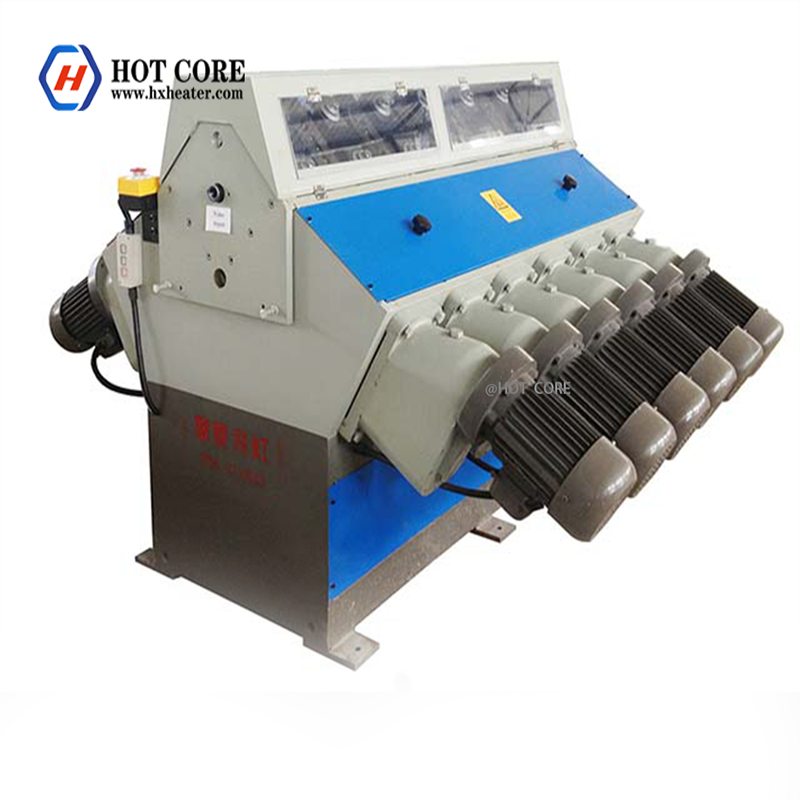

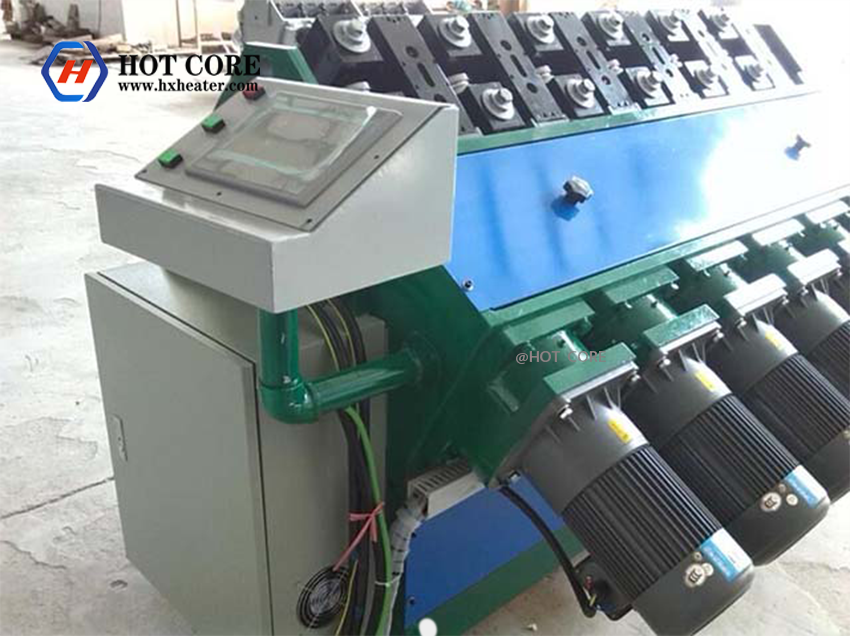

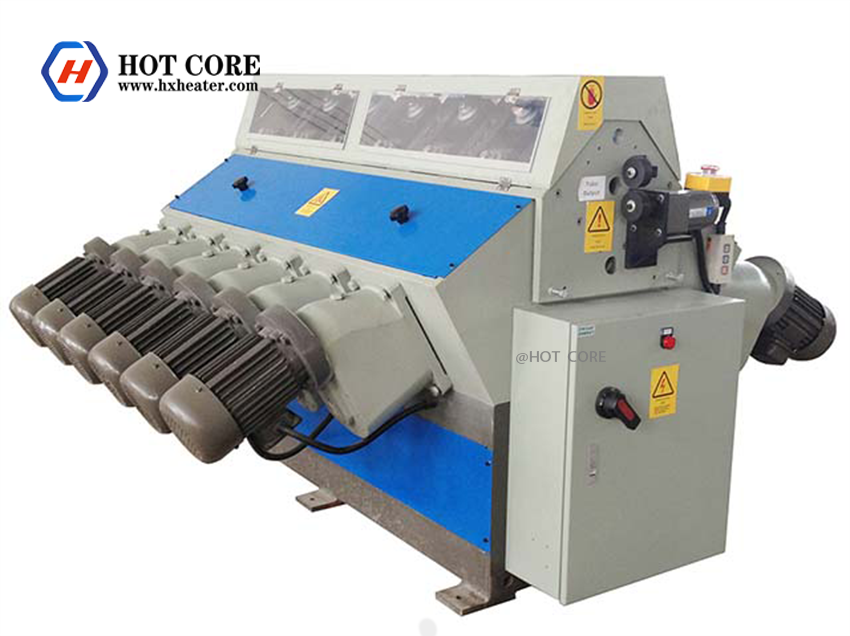

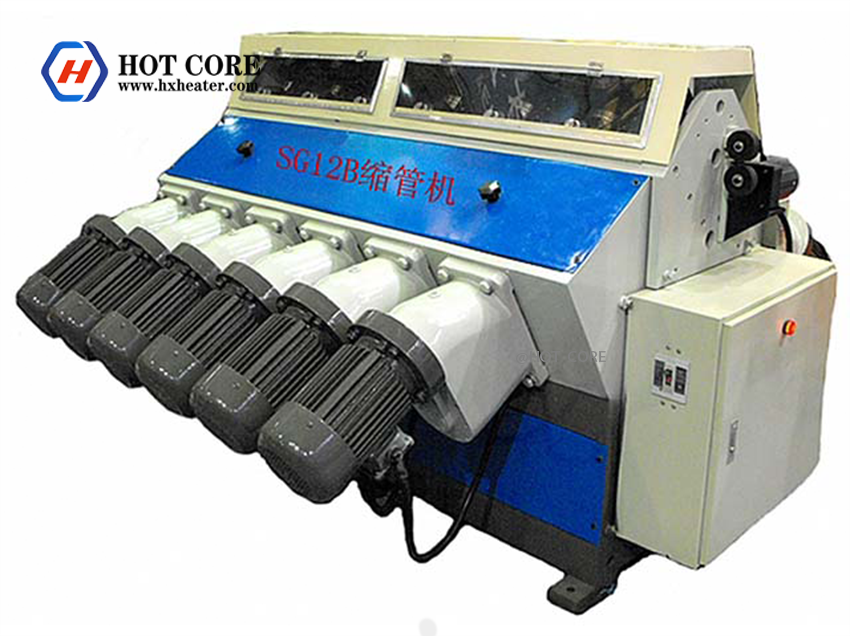

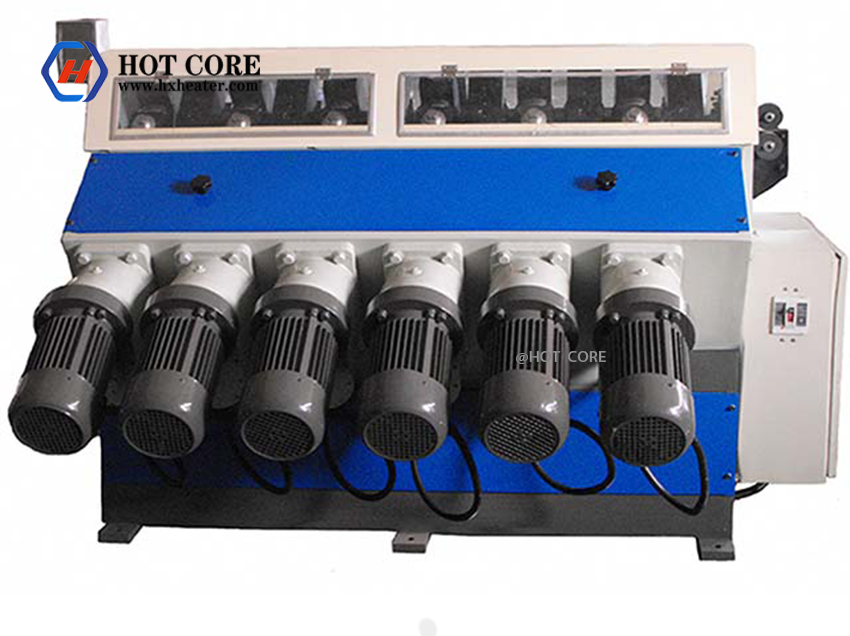

Tubular Heaters 12 Stations Rolling Mill Reducing Shrinking Machines
Szczegóły produktu
JD0601 rolling machine ，is used for compacting heating elements in order to increase the density of MgO. The speed rate of each pair of axis wheel will increase while the diameter of pipe changed ,Compression and elongation of the tube tends to match the variation.It ‘s not easy to rolling pipe blockage in the pipe elongation ratio constant rolling machine increased by 5%.and with a fixed size trench roller R series,it’s heating element profession first choice ideal product .
Functions:
1. The machine body using integrated coin structure ,small distort, Wysoka precyzja, long lasting.
2. The speed rate of each pair of axis wheel will increase while the diameter of pipe reduced. The details have good linear character and small distort after pipe shrink,and elongation length, saving materials.
3. When adjusting roller compression ratio, roller high center unchanged.
4. High geometric precision of the compressed pipe, ovality at ≤ 0.05.
5. Motor with overload protection, when blockage, automatic stop;
6. Speed of pipe shrinking18m/min.high efficiency.
7. Used in Copper,iron,aluminum,stainless steel ,itp.
Main technical parameter:
1. Power supply：three-phase380V/50Hz(three-phase220V /60Hz customize)
2. Średnica rury：φ5～φ19（customize）
3. Pipe length：Above 130mm .
4. Center of two axis wheel 99mm.
5. Adjustment of two axis wheel：±1mm.
6. Speed of pipe shrinking：18m/min.
Technical parameter:
No. Number of roller groups power (Kw) Reducer Size(L*W*H)mm Weight (kg)
JD0601-08 8 Station 12 Differential or Uniform 1360×1650×1100 2000
JD0601-10 10Station 15 Differential or Uniform 1600×1650×1100 2400
JD0601-12 12Station 18 Differential or Uniform 1840×1650×1100 2800
NASZE ATUTY：
1.Minimalne zamówienie: 1szt
2.Czas dostawy : 15days
3.Zapewnienie jakości：1year
4.Service: Lifetime Service
5.Service channels:Telephone communication, online video guide, e-mail feedback provided to our factory acceptance, technical training and on-site service to customers factory
Hot Core Heater Technology has been focused on the production of tubular heaters 12 stations rolling mill reducing shrinking machines since 1985, which is well-known as one of the leading manufacturers and suppliers of tubular heaters 12 stations rolling mill reducing shrinking machines. W ubiegłych latach, posiadaliśmy dobrą reputację dzięki wysokiej jakości, niezawodne działanie i duża trwałość naszych produktów. Jeśli jesteś zainteresowany, please feel free to contact our factory.
Gorące Tagi: tubular heaters 12 stations rolling mill reducing shrinking machines manufacturers, dostawcy, fabryka
