PRODUCT DETAIL

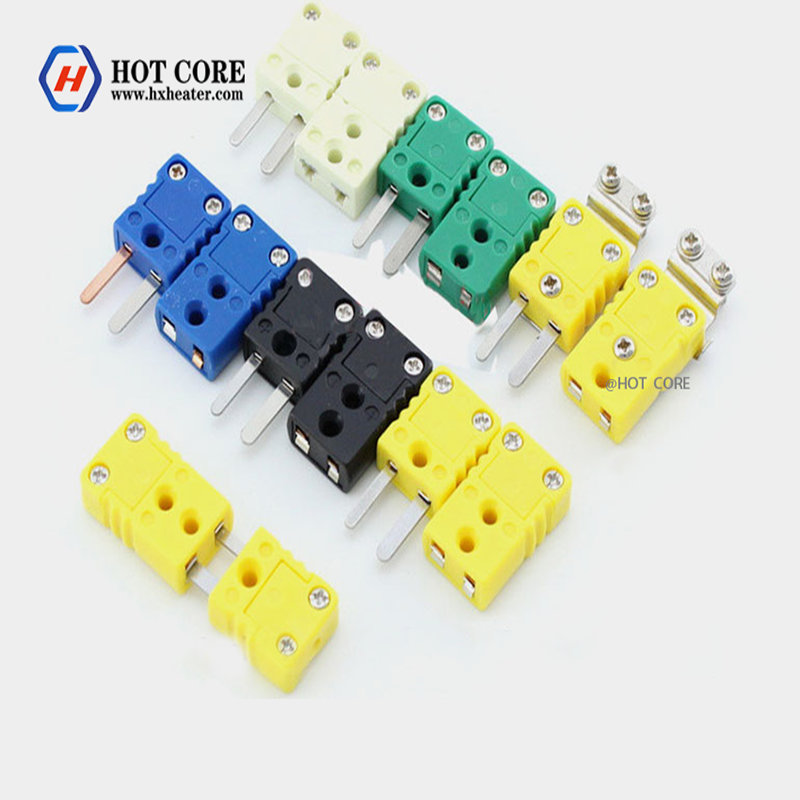

Thermocouple Connector for thermocouple and RTD circuits, solid pin design ensures good contact in demading applications.
Budowa
– Ceramic body with original thermocouple material pins and springloaded inserts.
– Polarized pins ensure proper connection.
– Central cover screw design for quick wiring.
– Captive cover screw for easy assembly.
Wire size
– Accepts wires from 0.2 mm to 2.0 mm.
– Maximum cable diameter 8.0 mm.
Max. Temperature
– 200 Deg. C for thermoplastic body
– 650 Deg. C for ceramic body

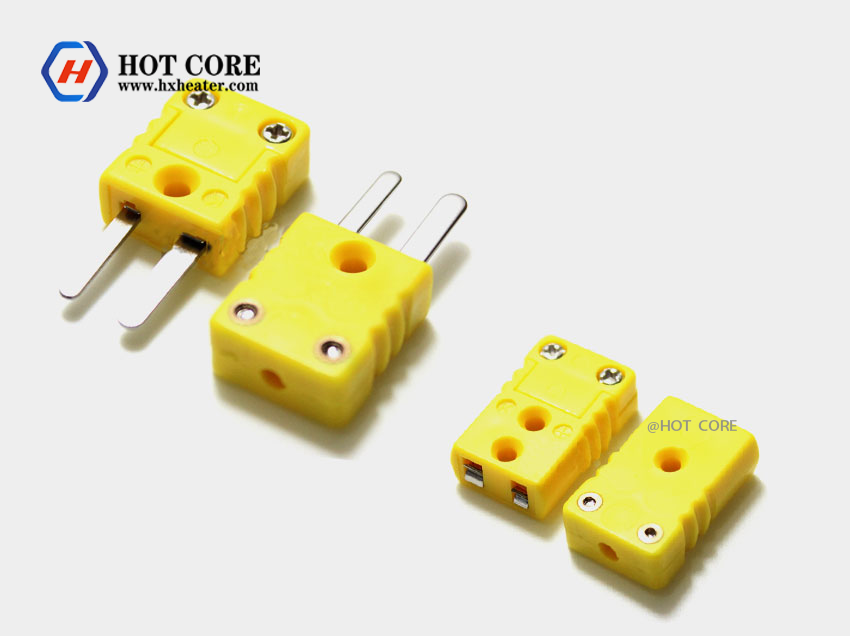

Thermocouple connector Type K
Order code Description Calibration Material Color code
Positive Negative ANSI IEC JIS
K Male+Female Type K NiCr NiAl Yellow Green Blue
K-M Male Type K NiCr NiAl Yellow Green Blue
K-F Female Type K NiCr NiAl Yellow Green Blue
Thermocouple connector Type J
Order code Description Calibration Material Color code
Positive Negative ANSI IEC JIS
J Male+Female Type J Fe CuNi Black Black Yellow
J-M Male Type J Fe CuNi Black Black Yellow
J-F Female Type J Fe CuNi Black Black Yelow
Thermocouple connector Type E
Order code Description Calibration Material Color code
Positive Negative ANSI IEC JIS
E Male+Female Type E NiCr CuNi Violet Violet Violet
E-M Male Type E NiCr CuNi Violet Violet Violet
E-F Female Type E NiCr CuNi Violet Violet Violet
FAQ
Q1. Can I have a sample order for the quality checking?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q3. Do you have any MOQ limit?
A: Niskie MOQ, 1pc for sample checking is available.
Q4. Excluded type K thermocouple connector, do you have other type thermocouple connectors?
A:Yes, excluded type k thermocouple connecotr, we also produce type J, type T,type E thermocouple connectors.
Q4. How do you ship the goods and how long does It take to Arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
