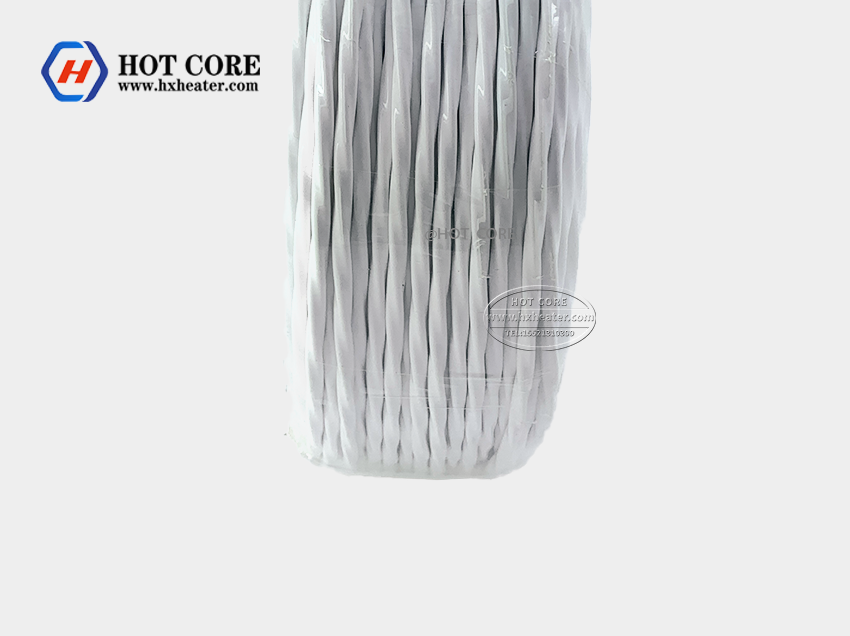

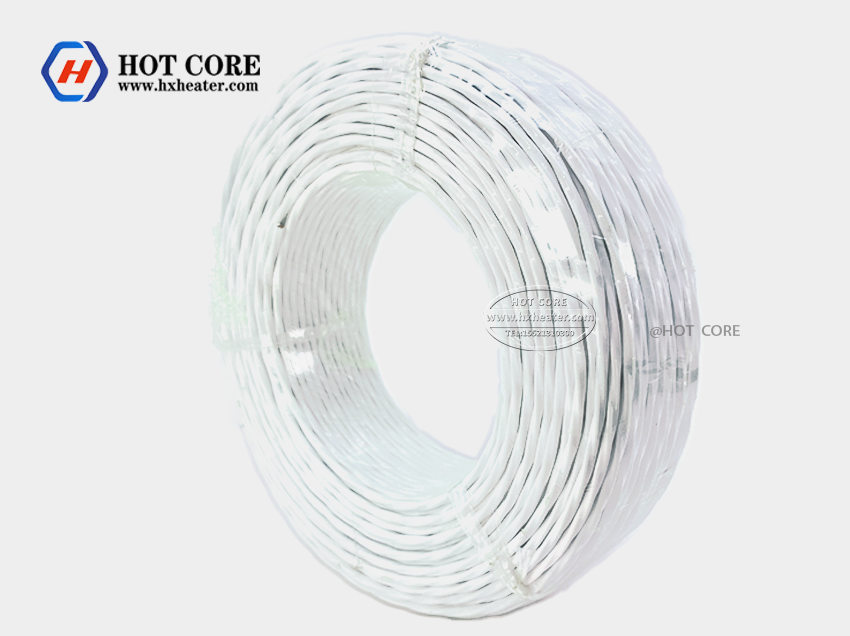

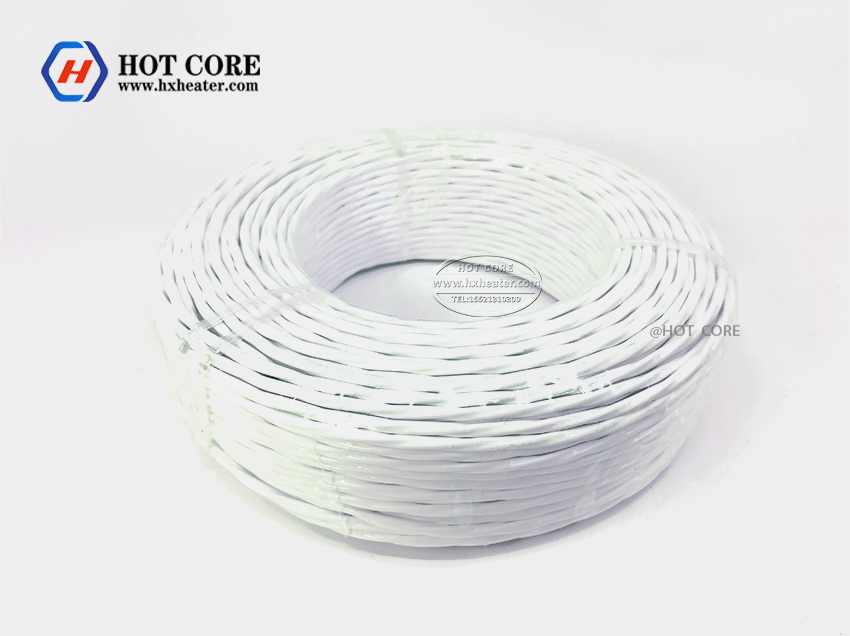

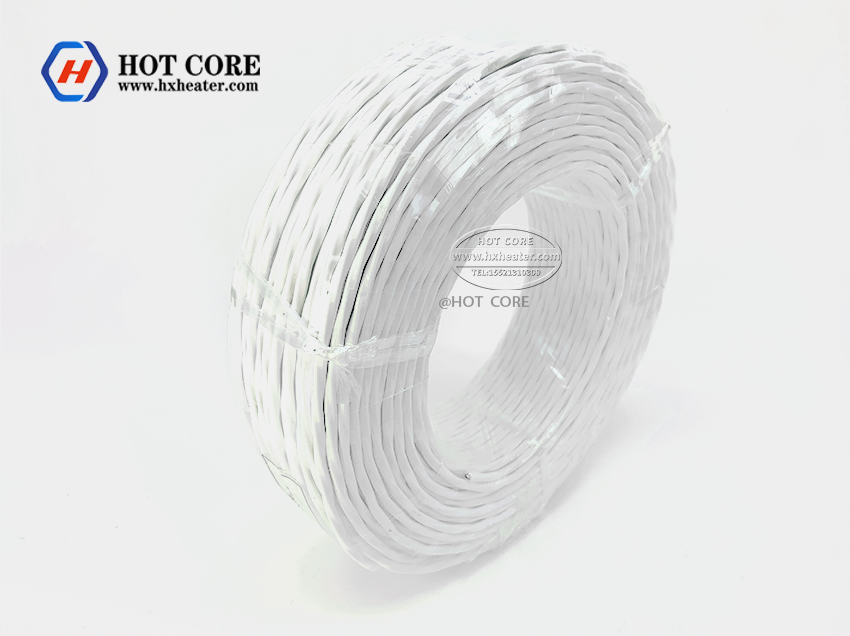

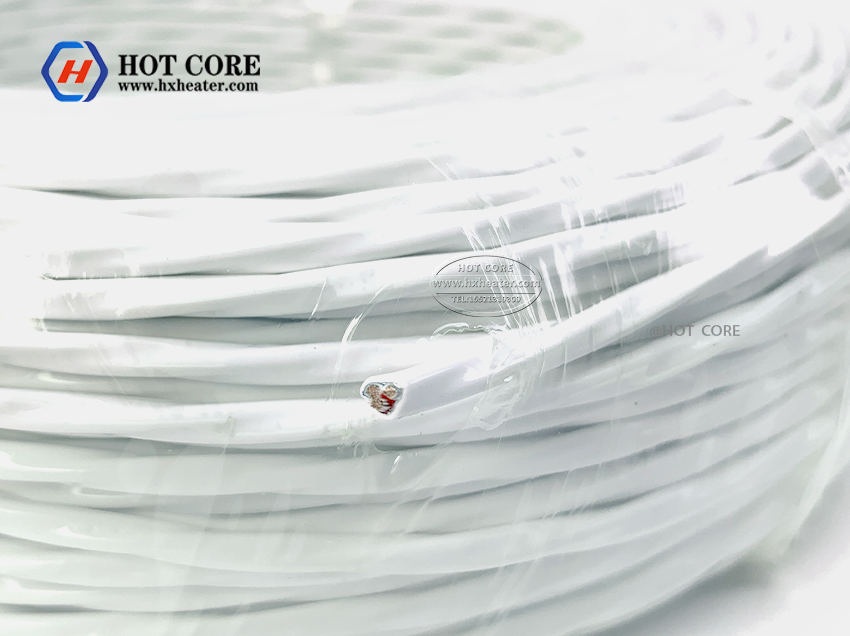

RTD Extension wire Type RTD-PFA/PFA-3*7/0.2mm
1, SUBJECT
This specification covers the requirements for PFA insulated, PFA sheathed RTD
extension cable, 3*7/0.2mm, stranded wire.
2, TECHNICAL FEATURES
A. Conductors:
Stranded RTD extension wire
Conductors Size(AWG) NO.of Strands &Gauge
24 7/0.2mm
B. Izolacja:
Extruded PFA ( 260℃)
Nominal Insulation Thickness 0.16mm±0.2
Kod koloru:
Red/Red/ White(2 cores red and 1 core white)
C. Assembly:
Four conductors (rdzenie) twisted construction.D. Overall Jacket
Extruded PFA ( 260℃)
Nominal Sheath Thickness 0.24mm±0.2
Color code White
3, DIMENSIONS AND TOLERANCES
Dimensions/tolerances(mm) Ø2.42±0.2
4, CALIBRATION TOLERANCE
Temperature range Standard tolerance Special tolerance
0º to 200ºC ±2.2℃ or 0.75% ±1.1℃ or 0.4%
Thermocouple extension wire type available: KX, JX, TX, EX, NX, RX,SX and other compensating
cable like KCA, KCB and so on.
Besides those wires, we can also produce according to your demand.
