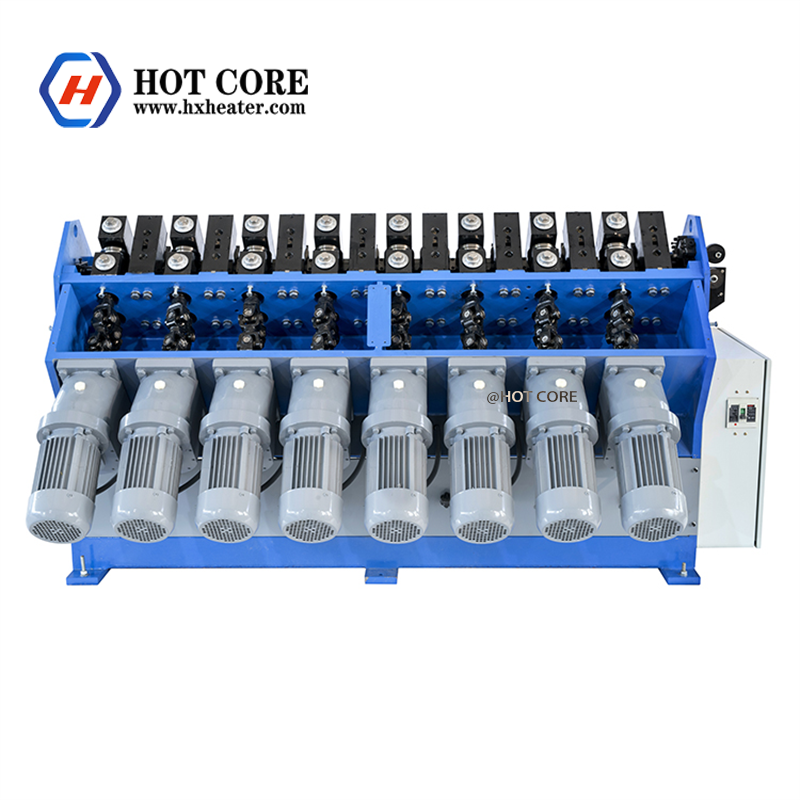

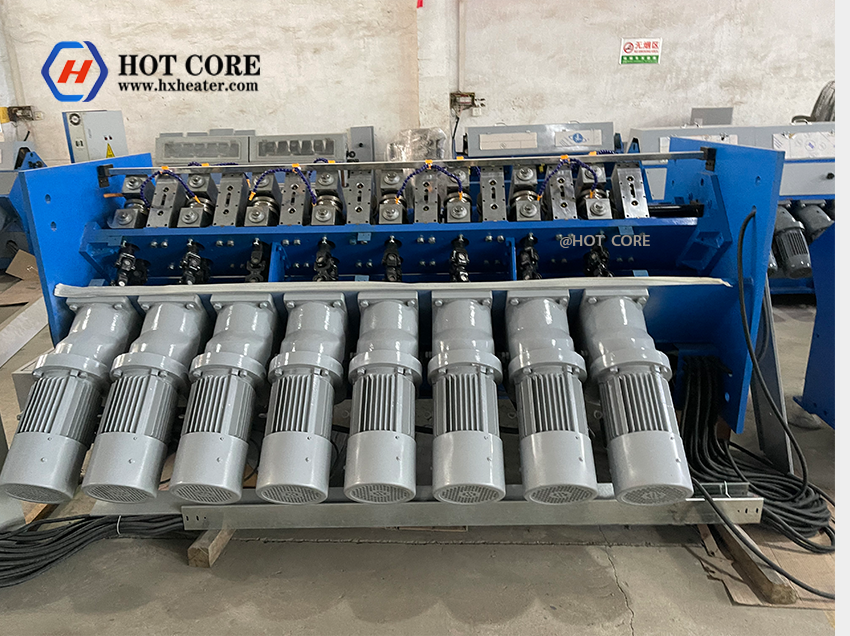

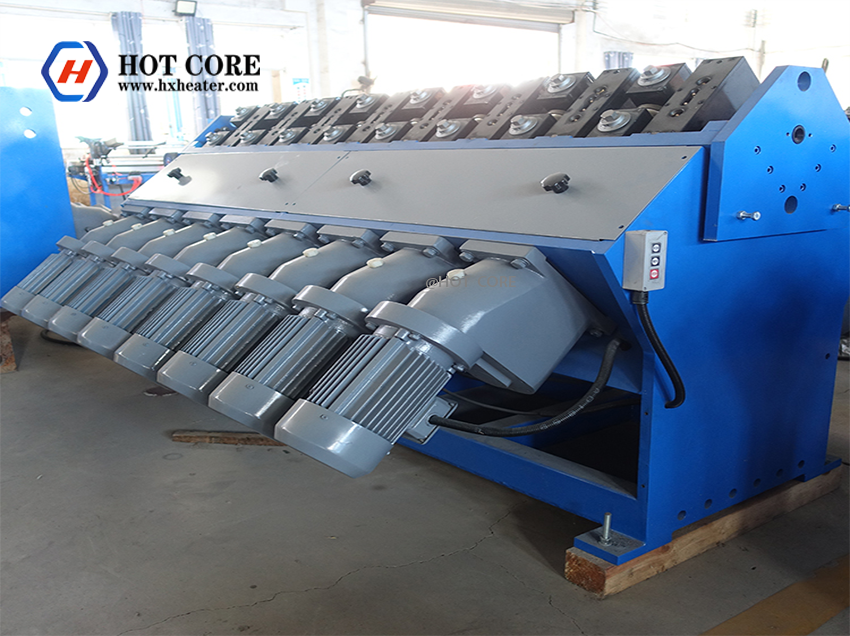

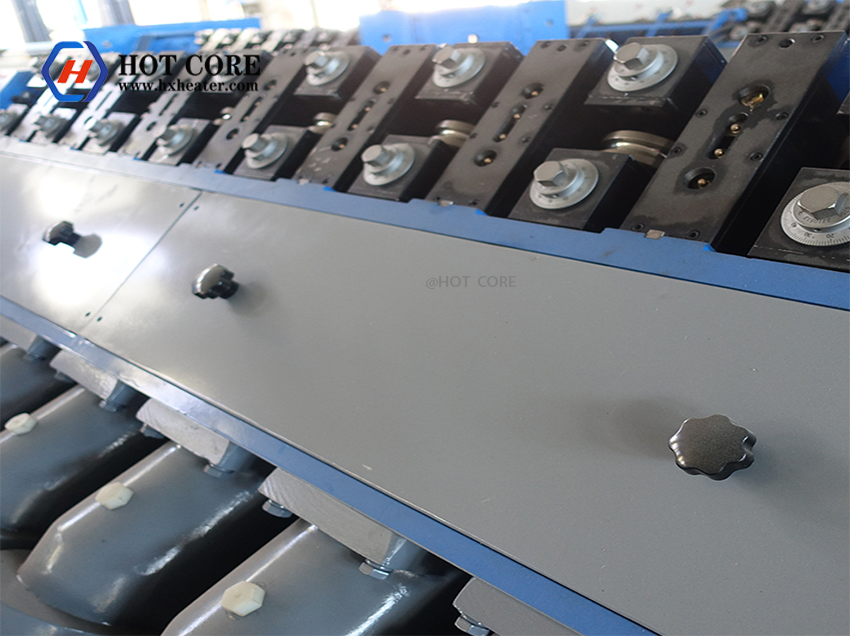

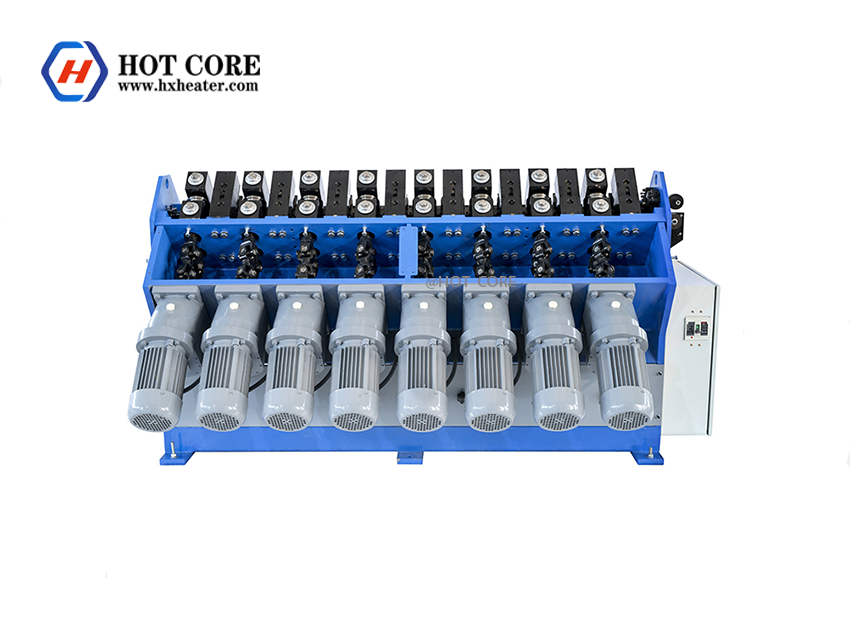

Reducing Rolling Mills

Tube selection: round tube, flat tube, square tube, flat steel, itp.

Pipe size: heating element with large diameter and long length.

Reducing rolling mills use multiple sets of gears, which are connected to motors, and a set of high-torque reduction motors are set up.

In this way, it can avoid that the transmission device is not strong enough or the motor is easily damaged when the large heater or the long heater is contracted.

The motor and the roller shaft are connected with the Cardan shaft, so that the motor will run smoothly and the torque is increased, thereby reducing the direct force on the motor and the roller shaft, thereby protecting the motor.

Reducing rolling mills data
1. The best diameter: 3-25 (mm);
2. The best length: 30-4000 (mm);
3. Machine structure: complete machine or extension (according to customer requirements);
4. Transmission structure: double Cardan shaft;

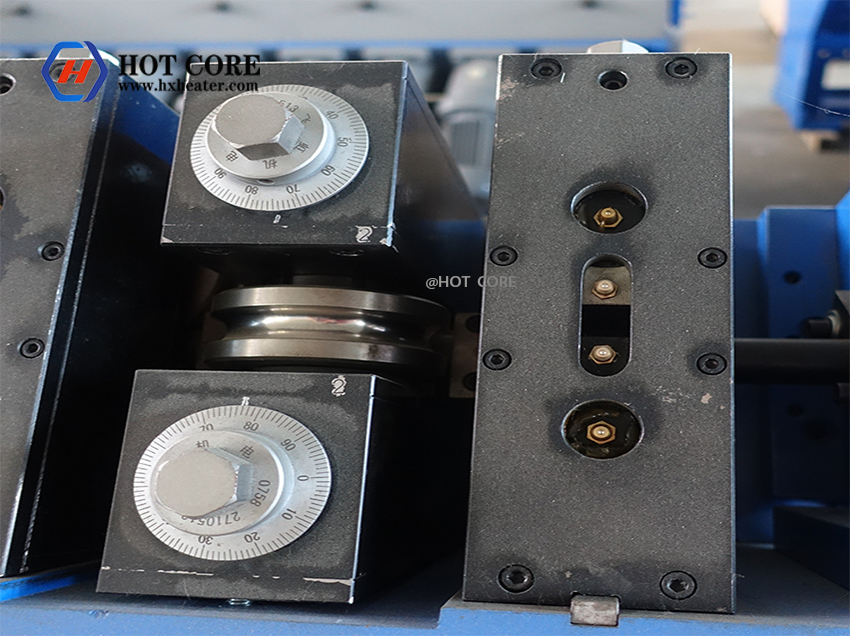

5. Roller: can be matched with tungsten carbide roller, high-speed roller, and Cr12Mov roller;
6. We can manufacture 6-16 groups of machines, and others can be customized according to customer requirements;
7. Gearbox motor warranty: 10 years! (Quality assurance)
