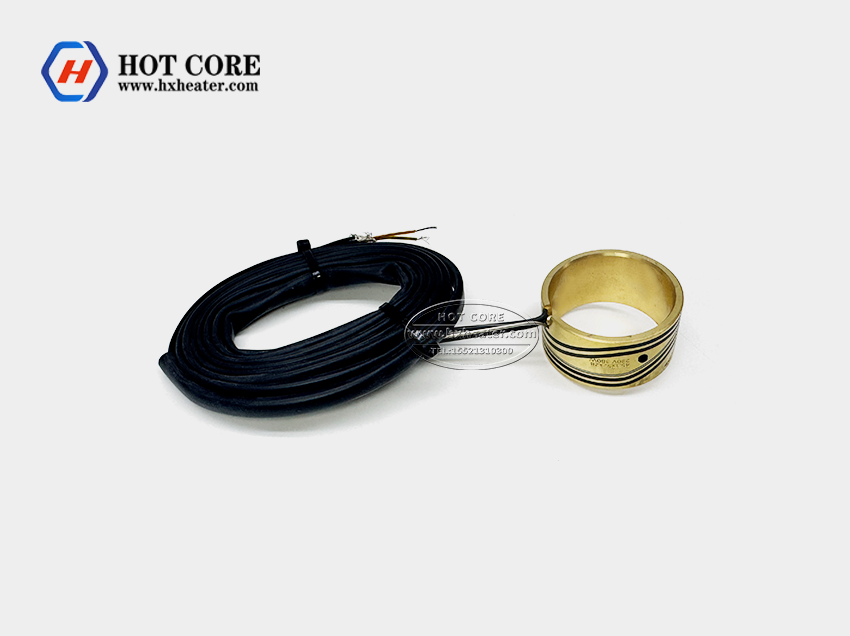

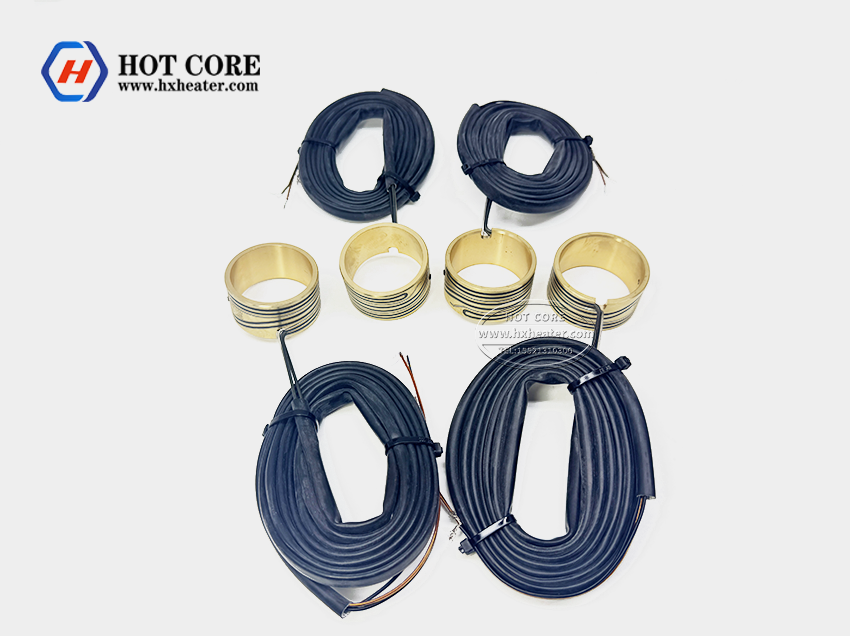

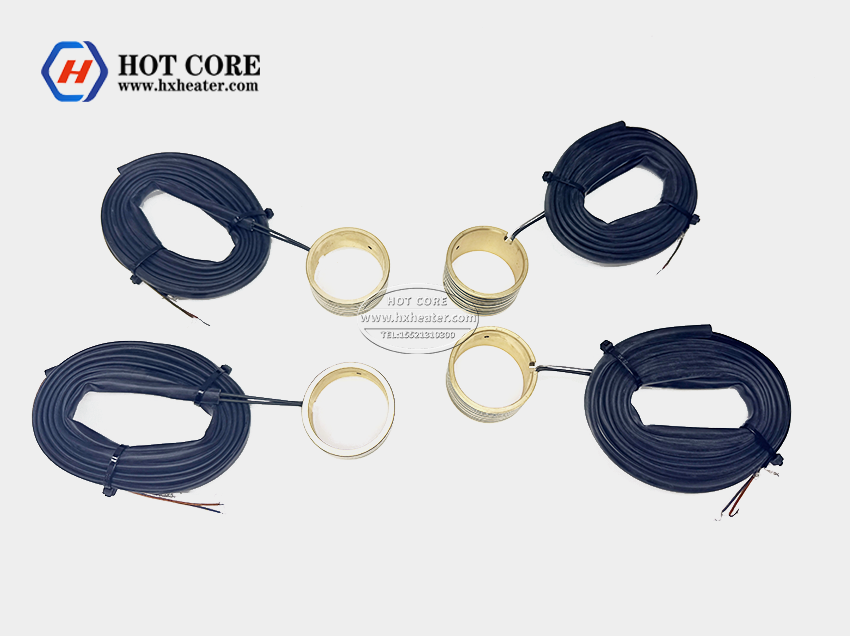

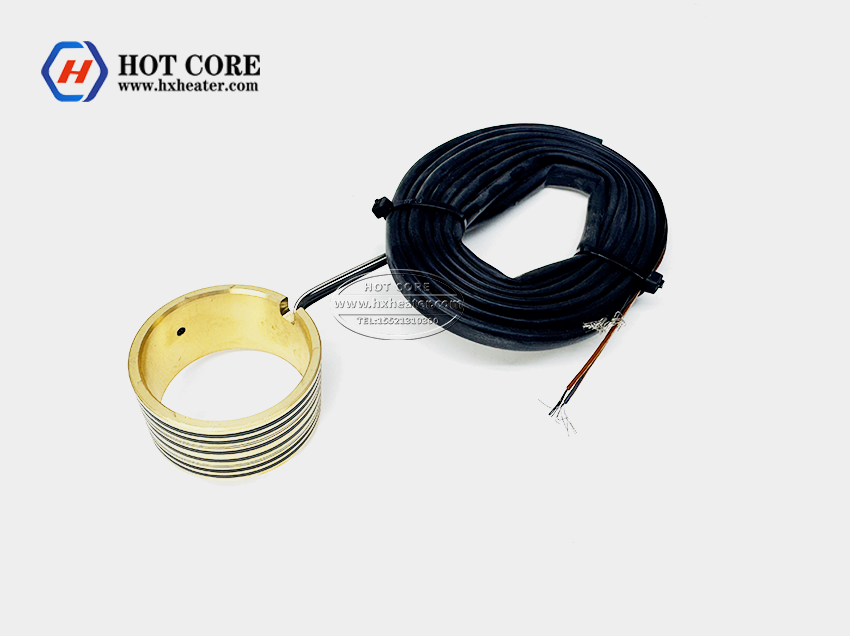

Press In Brass Coil Heater Type J K For Hot Runner
1.Product Introduction
Electric Coil heater, also known as cable heater, convert electricity into heat through the process of Joule heating. Electrical current running through the element encounters resistance, resulting in heating of the element. S.B.T. Brass Nozzle coil heater can be constructed with or without built in thermocouples. Jego wysoka temperatura pracy ,Szybkie ogrzewanie,Precyzja ogrzewania jednolitych,długa żywotność,może być automatycznie kontrolowany obszar,Wysokie przewodzenie termiczne,podczas gdy wewnętrzne uszkodzenie materiału grzewczego,external can reuse.
2. Specyfikacja
 |
Rozmiar: | OD20mm*ID16*L45mm |
| Wire length: | 0meter (Fiberglass) | |
| Volts: | 220-240V | |
| Watts: | 350W | |
| Thermocouple sensor: | Without | |
| Minimum Order Quantity: | 3szt | |
| Usage/Application | Moulds & Dies | |
| Materiał grzejnika | Mosiądz |
| Minimum diameter Φ | 10mm |
| Woltaż | 12V- 400V |
| Wattage tolerance | ±10% |
| Tworzywo | SS304/SS321/SS310/SS316 (Dostosowane) |
| Sleeve material | Mosiądz |
| Resistance | ±10% |
| Dielectric strength | 600V 800V 1000V |
| Izolacja(cold 1000V) | ＞10 MΩ |
| Leakage current(cold) | ＜0.5mA |
| Max power density | 10W/cm² |
| Heating length tolerance | ±0.05mm |
| Maximum working temperature allowed on sheath | Max.750℃ / 1380°F |
| Build-in Thermocouple | Type K/ J/ E |
| Standard supply 1000mm PTEE insulated nickel lead wire | |
| Material of lead wire:Fiberglass, Kevlar, Telfon, Silicone Rubber, Metal braided, SUS armoured. | |
3. Szczegóły produktu
| Application examples
Hot runner hearer Plastic industry Packing machine Sprzęt medyczny Casting process Other electric heating industry |
 |
 |
Latest technical process
Superb Heater factory: 1. High density, In addition to filling MgO rod, and also filled high-temperature MgO powder to achieve the optimal density. 2. Have own Tunnel furnace annealing process, focus on high quality product. Other factory: 1. Low density, just filling MgO rod, density is not up to use requirement. 2. Use a simple oven, easy to cause breakage |
| Cechy:
1. Standardowe rozmiary dostępne z różnymi przekrojami |
 |
 |
Advantage:
1.Niskie MOQ: It can meet your promotional business ver-y well. 2.Zaakceptowano OEM : We can produce any your design as lo-ng as you provide us the drawing. 3.Good Service : Traktujemy klientów jak przyjaciół. 4.Good Quality :We have strict quality control system .G-ood reputation in the foreigner market 5.Szybko & Tania dostawa: We are the manufacturer, have our own factory, direct delivery from the factory. |
