Maszyny do redukcji rur

Hot core Pipe Reducing Machines The structure of pipe reducing machines is basically the same as that of Roll-Reducing Machine/Reducing Machine. In order to adapt to rolling into large-diameter and long-diameter square or round pipes, the machine is divided into fourteen groups for rolling, and each group is compressed reasonably. It also uses a gearbox with a larger reduction ratio. Choose different speed devices according to different pipe materials to meet the production needs of various heating pipes.

Szczegóły produktu:

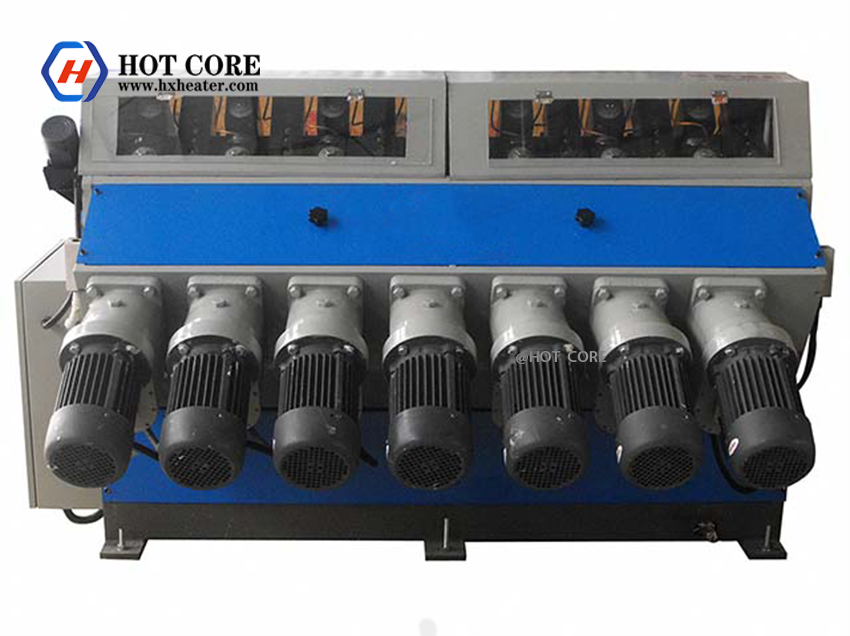

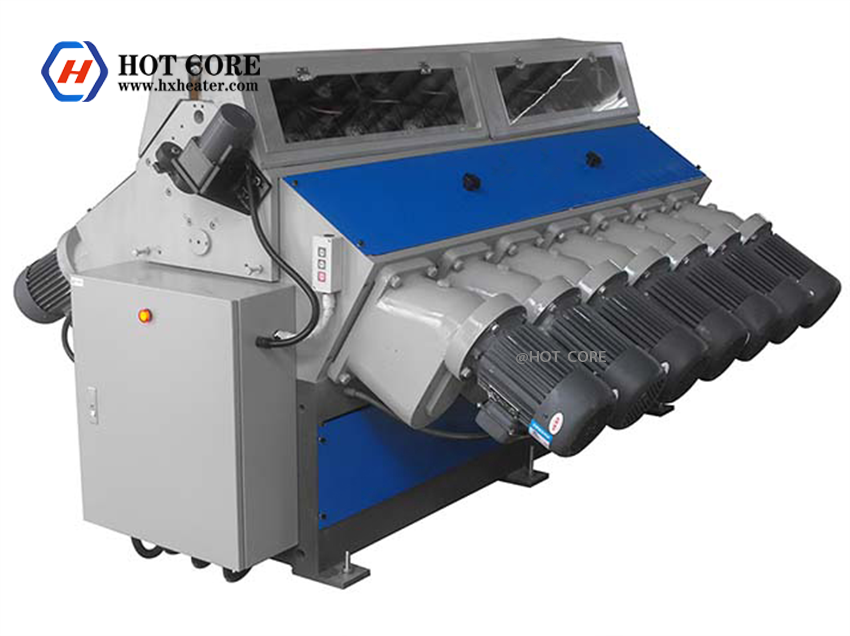

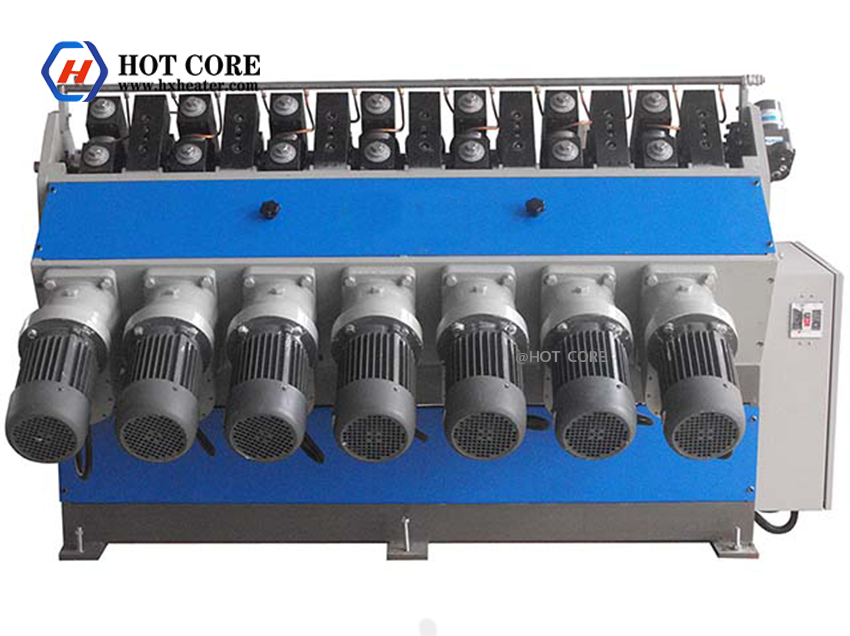

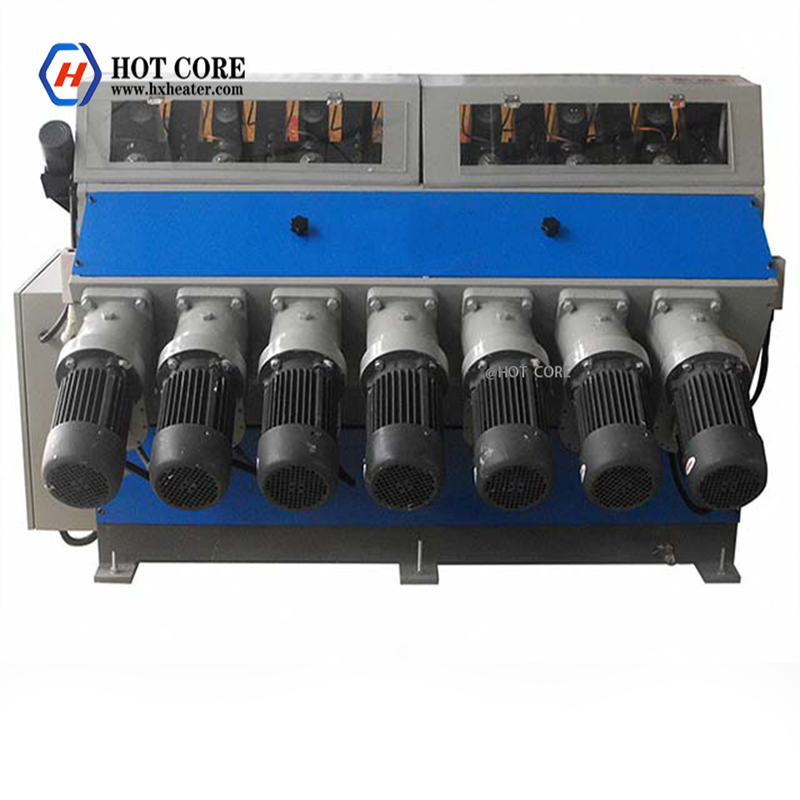

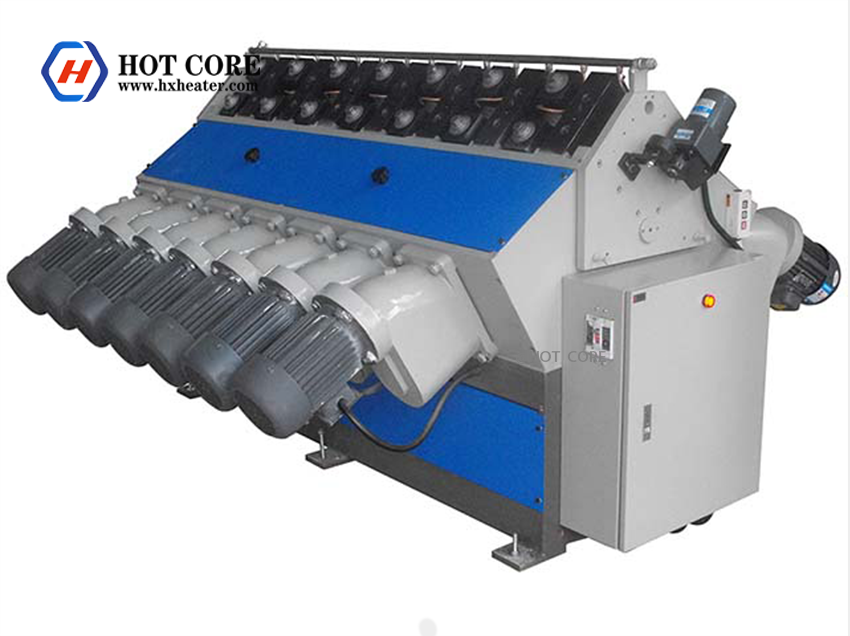

Hot core Pipe Reducing Machines

Opis
Parametry techniczne
The structure of pipe reducing machines is basically the same as that of Roll-Reducing Machine/Reducing Machine. In order to adapt to rolling into large-diameter and long-diameter square or round pipes, the machine is divided into fourteen groups for rolling, and each group is compressed reasonably. It also uses a gearbox with a larger reduction ratio. Choose different speed devices according to different pipe materials to meet the production needs of various heating pipes.

The function of pipe reducing machines: Reduce the diameter of the heater to increase the density of magnesium powder in the pipe;
Features of pipe reducing machines:
1) Single power: 1.1kW, 1.5kW, 2.2kW; (można dostosować)
2) Pipe reducing machines are more suitable for high-density pipes, large pipes, and long pipes;
3) The reference range of the pipe: Φ10-Φ33mm; the length is recommended to be shorter than 4 meters
Notatka: In the reference range, the service life of the equipment will be longer.
4) Pipe material: miedź, aluminium, żelazo, stal nierdzewna, itp.;
5) Tube shape: okrągły, oblate, kwadrat;
6) Contraction speed: jednolita prędkość, prędkość niejednorodna (można dostosować).
7) Changing the roller or roller assembly can reduce different diameters;
