Insulated Ceramic Flexible Mat Heater
General Information
Flexible ceramic pad heater element is a pad heater constructed of interlocking sintered alumina ceramic beads which insulate stranded Nichrome resistance wire. This durable construction forms a flexible mat of considerable mechanical strength. Flexible ceramic pad heater can be used up to 1050C and are supplied with insulated leads with male welder terminations.
These flexible ceramic pad heater elements are designed for most preheat and post heat treatment requirements on weld joined materials. They can be used to construct a simple, inexpensive furnace when combined with the proper insulation as well as in many other applications where a flexible ceramic pad heater element is required.
Flexible ceramic pad heaters operate on low voltage 60 volts and 80 volts such as that supplied by a typical arc welder. They are designed for repeated heating applications. Their modular design permits a variety of element shapes, sizes, and thermal capacities to choose from. Flexible ceramic pad heater elements can be used bare or with the application of rigid or flexible insulation to retain heat and speed up the heat treating jobs.
Charakterystyka & Właściwości
| Woltaż (V) | 60 or 80 |
| Current (A) | 45 |
| Moc (KW) | 2.7 or 3.6 |
| Maximum Use Temperature (C) | 1050 |
| Heating Element Type | Ni-Cr |
| Lead Length (mm) | 500 |
| Insulator Type | Aluminum Oxide |
| Insulator Color | Pink |
Suggested Applications & Availability
Heating source in furnaces and industrial process equipment operating to 1050C.
1). Post heat treatment of weld joints.
2). Preheating of materials to be welded.
| Numer modelu | Rozmiar (MM) | Woltaż (V) | Wattage (KW) | Current (Amps) |
| 60-CP3 | 75 X 670 | 60 | 2.7 | 45 |
| 60-CP4 | 100 X 500 | 60 | 2.7 | 45 |
| 60-CP6 | 150 X 335 | 60 | 2.7 | 45 |
| 60-CP8 | 205 X 250 | 60 | 2.7 | 45 |
| 60-CP10 | 255 X 205 | 60 | 2.7 | 45 |
| 60-CP12 | 305 X 165 | 60 | 2.7 | 45 |
| 60-CP15 | 380 X 145 | 60 | 2.7 | 45 |
| 60-CP16 | 410 X 125 | 60 | 2.7 | 45 |
| 60-CP21 | 525 X 105 | 60 | 2.7 | 45 |
| 60-CP24 | 600 X 85 | 60 | 2.7 | 45 |
| 60-CP48 | 1200 X 45 | 60 | 2.7 | 45 |
| 80-CP3 | 75 X 925 | 80 | 3.6 | 45 |
| 80-CP4 | 100 X 690 | 80 | 3.6 | 45 |
| 80-CP6 | 150 X 465 | 80 | 3.6 | 45 |
| 80-CP8 | 205 X 360 | 80 | 3.6 | 45 |
| 80-CP10 | 255 X 295 | 80 | 3.6 | 45 |
| 80-CP12 | 305 X 230 | 80 | 3.6 | 45 |
| 80-CP15 | 380 X 190 | 80 | 3.6 | 45 |
| 80-CP17 | 420 X 165 | 80 | 3.6 | 45 |
| 80-CP21 | 535 X 145 | 80 | 3.6 | 45 |
| 80-CP33 | 840 X 85 | 80 | 3.6 | 45 |
| 80-CP66 | 1680 X 40 | 80 | 3.6 | 45 |
To Order
For flexible ceramic pad heater elements, rozmiar, wattage and voltage are available on request.
Please contact us with your special requirements. We are pleased to contact you if you would like more information or want to discuss custom product availability and pricing.
Welcome to order sample flexible ceramic pad heater element for initial evaluation.

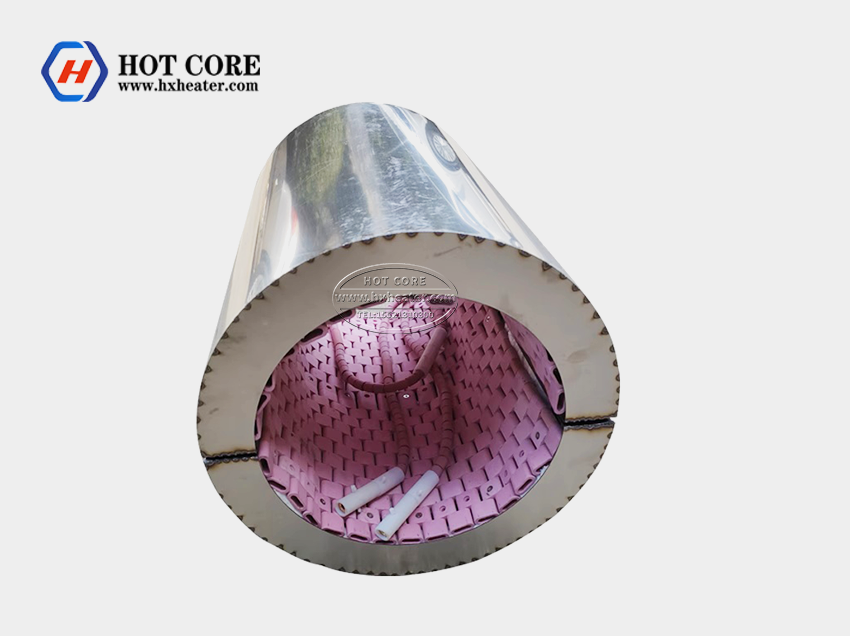

Photos
