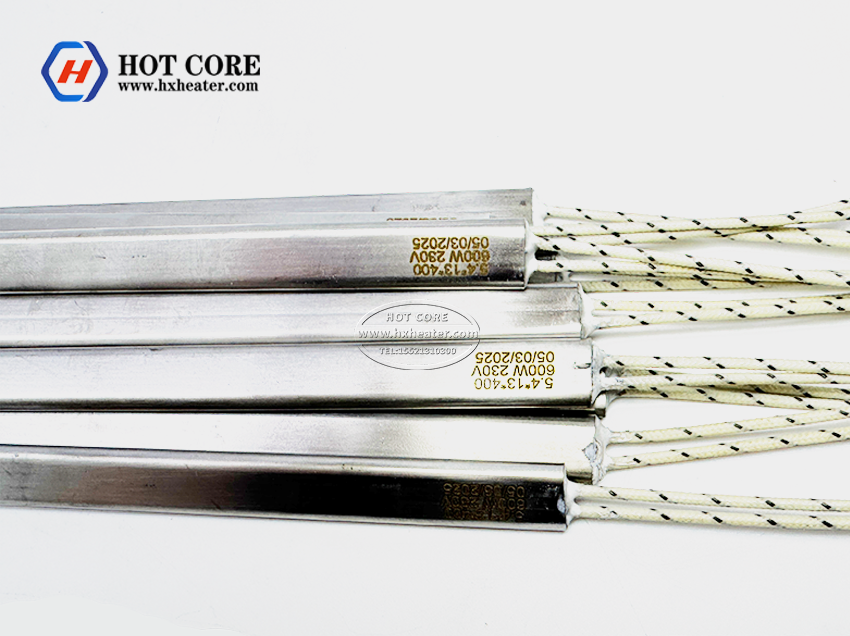

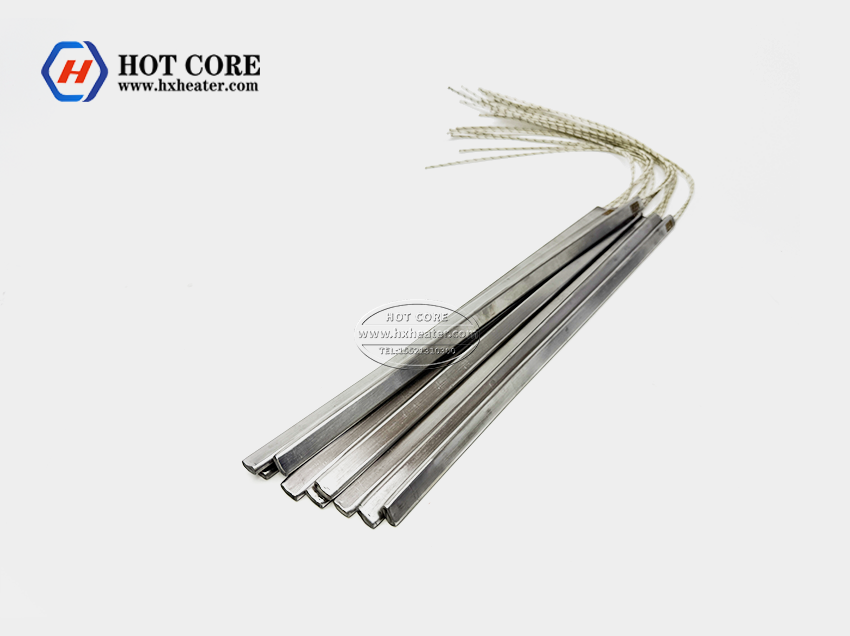

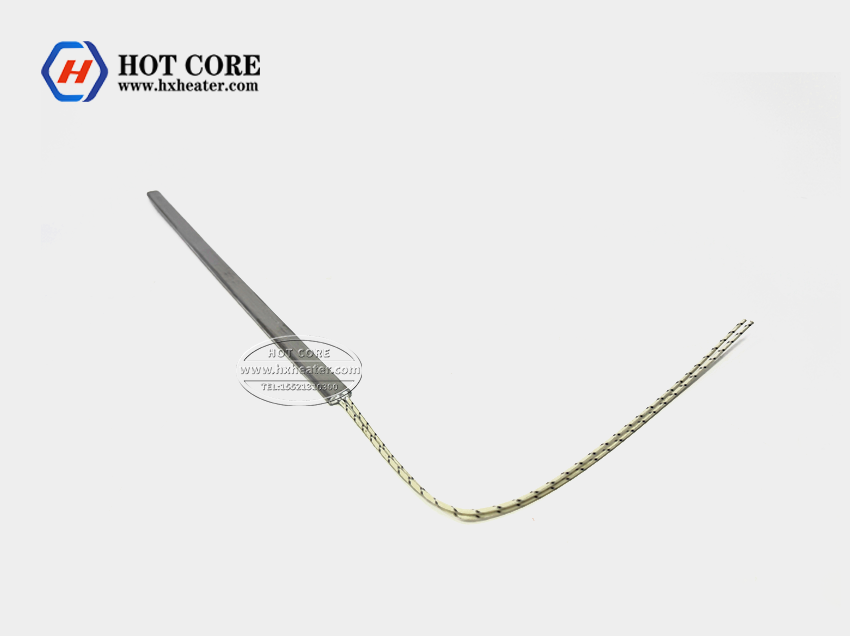

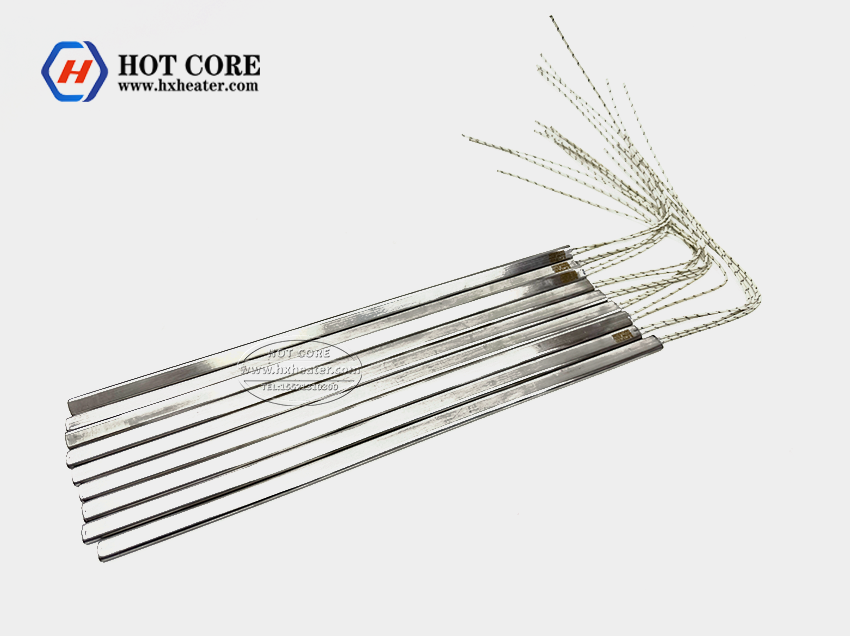

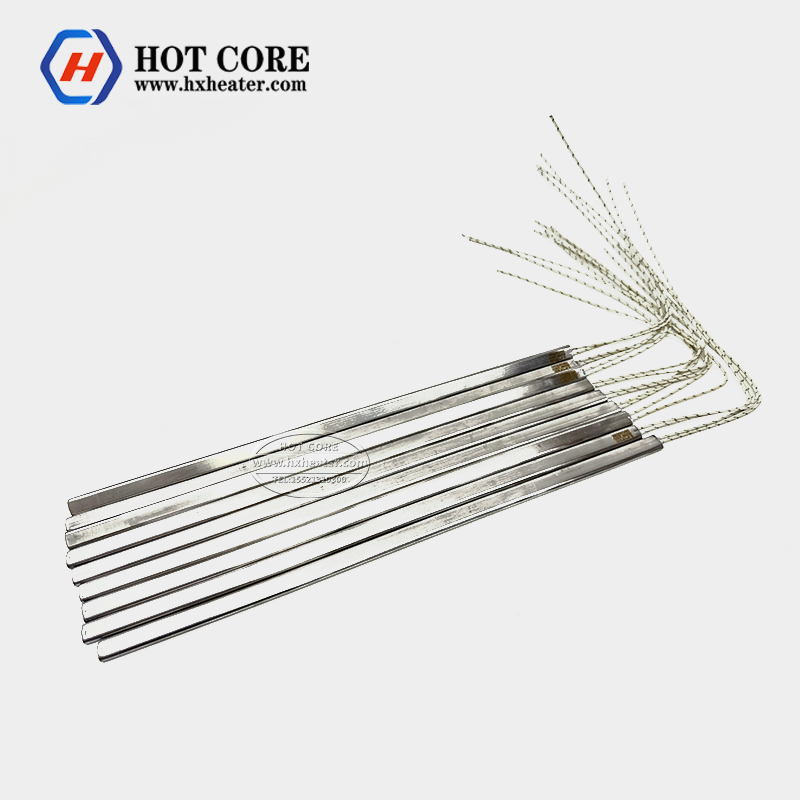

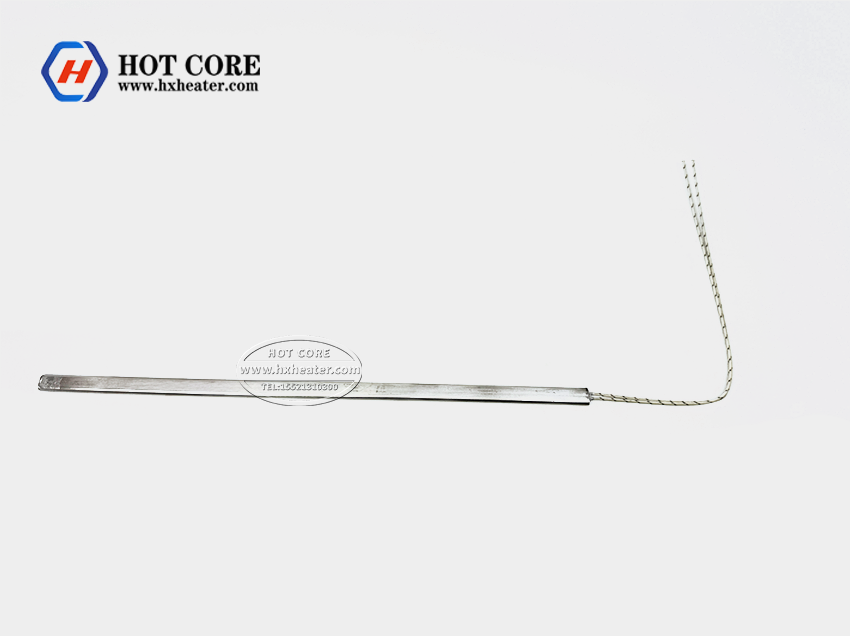

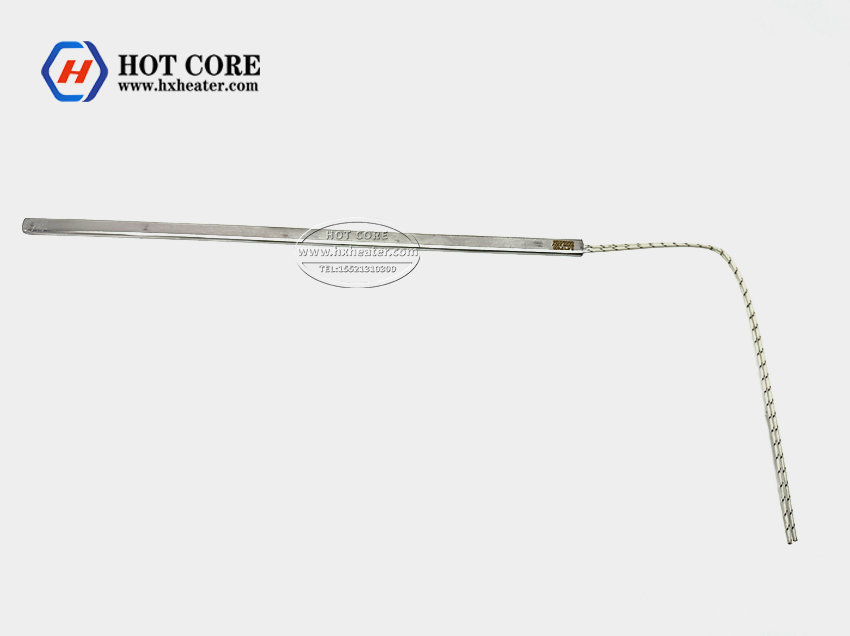

Industrial Stainless Steel Cartridge Heater Heating Element Non-Standard Customized
Industrial Stainless Steel Cartridge Heater Heating Element Non-Standard Customized
Składnik elementu
1. China and Europe High-grade nickel chromium resistance wire, Germany BGH
2. Japan and USA MgO Rod,
3. Seamless Stainless steel tube
4. Swaged in wire or Terminal wire
• Specjalne rozmiary, moce, i materiały są dostępne na życzenie;
• Zaprojektowane na zamówienie, aby spełnić Twoje wymagania;
• Dostępne są przewody pinowe
| Nazwa | Industrial Stainless Steel Cartridge Heater Heating Element Non-Standard Customized |
| Średnica(mm) | 2.5-32.5mm (Non-standard can be customized) |
| Length | 10mm – 6000mm |
| Max Wattage | 40w/cm2 |
| Aplikacja | Mold Tools,Packaging Machinery,Plastic Process Machinery, Food Process Machinery,Printing…itp |
| Max temperature | 927 ºC |
| Insulation resistance (500 [V-DC] unheated) | ≥50MΩ |
| The maximum leakage current (253 [V-AC] unheated) | ≤0.5mA |
| High voltage stability (temperature) Rated voltage | ≤24V -500V-DC> 24V 1500V-AC |
| Tolerancja na moc | +5% – 10% (closer tolerances are available upon special request) |
| Input voltage | 12V-440V (non-standard can be customized) |
| Terminal unheated length | <3mm-20mm |
| Non-terminal unheated length | <3mm-20mm |
