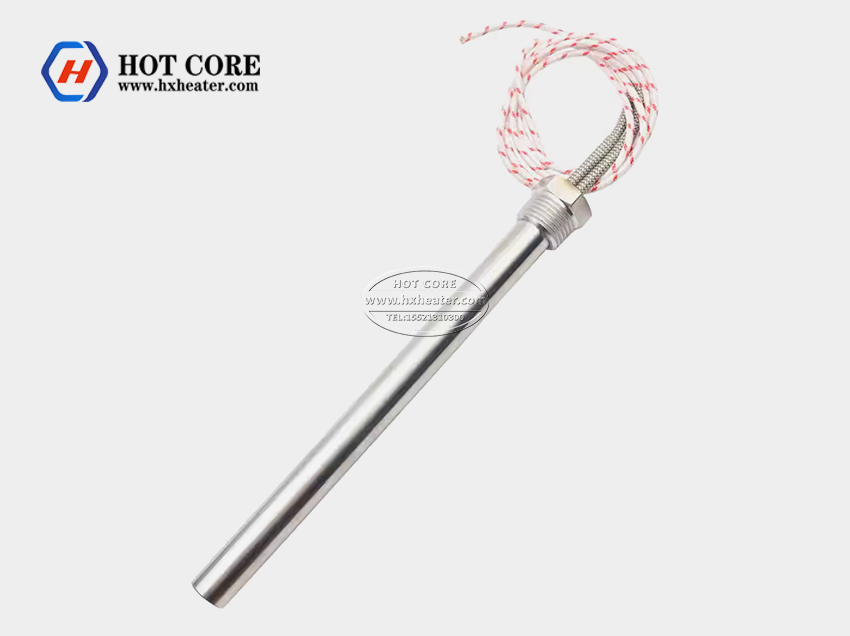

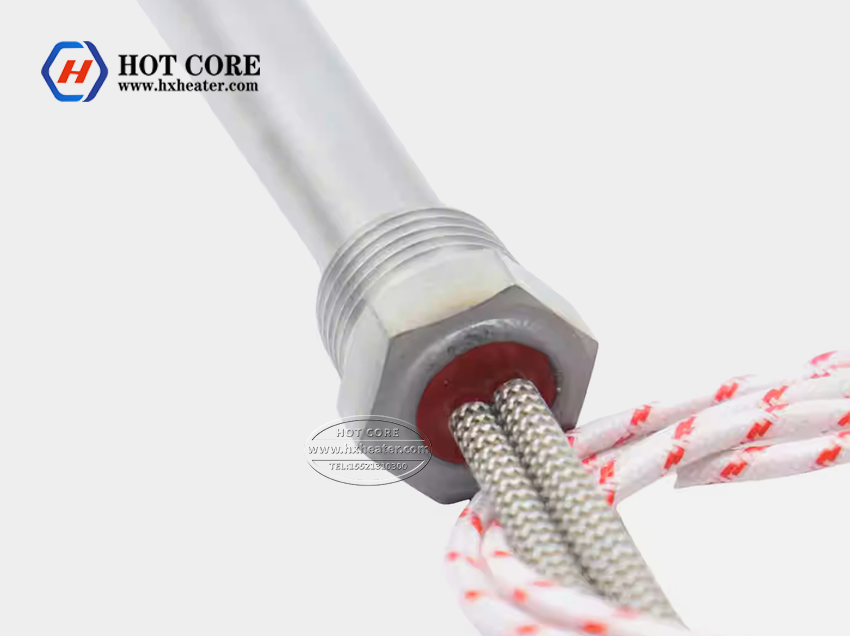

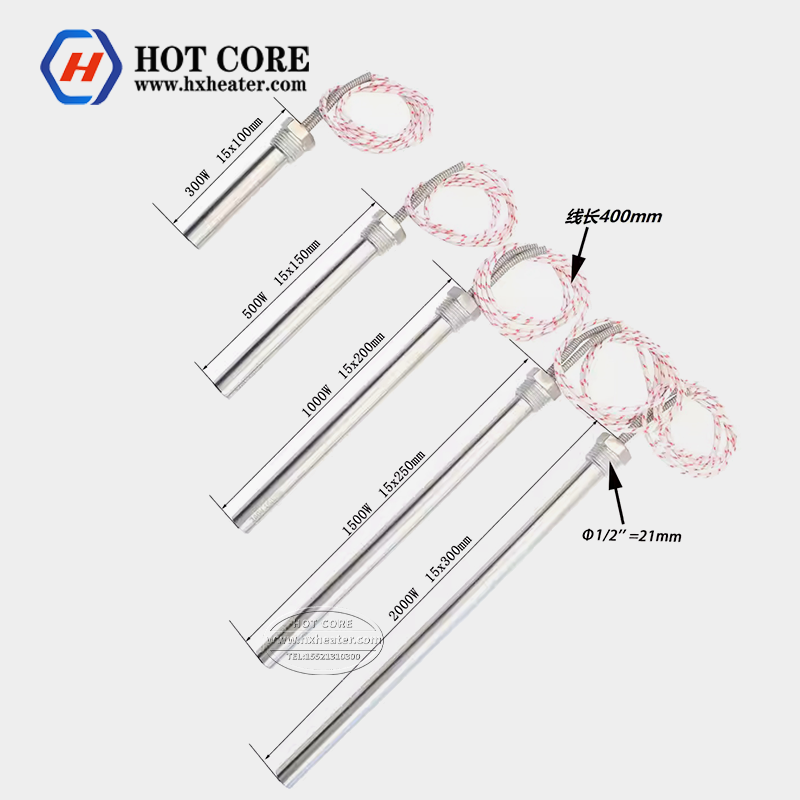

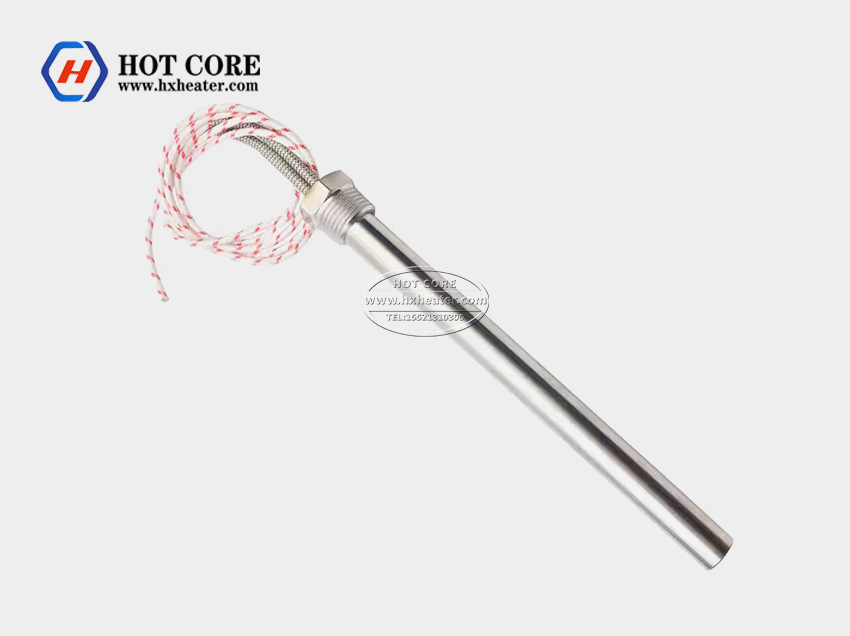

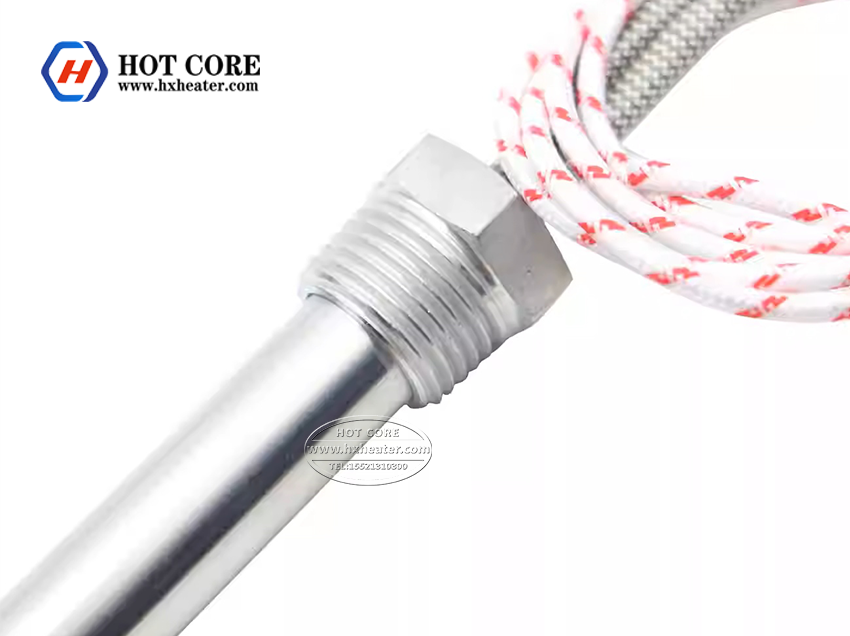

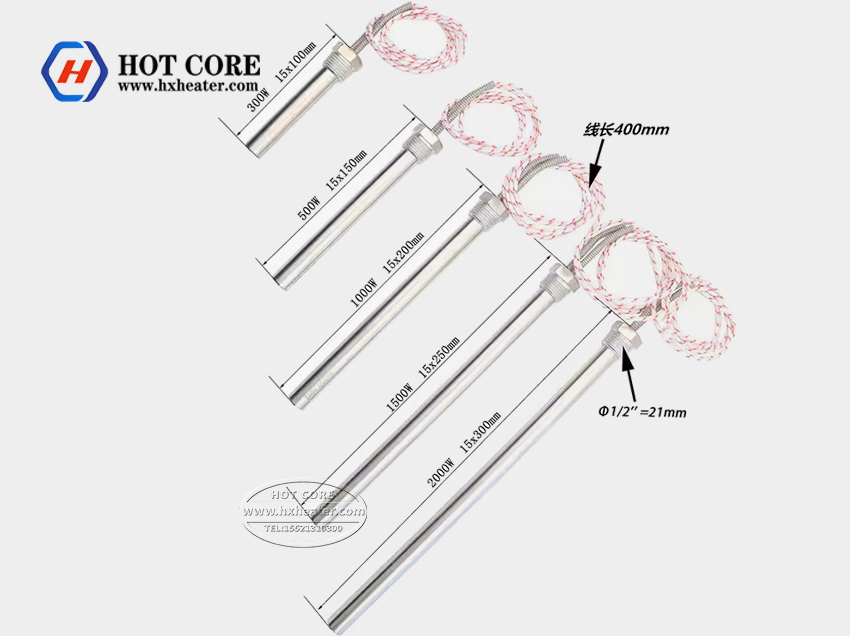

Highlights Of Cartridge Heater
Szczegóły produktu
Cartridge Heaters are able to withstand tough industrial usage due to their special construction.
The heaters can achieve a watt density up to 200W/in2.
The nickel chrome heat wires are wound onto a ceramic core which is positioned inside the cylindrical metal sheath.
The heating coils are evenly spaced on the ceramic core to provide a uniform heat transfer to the sheath surface.
The power is controlled by the number of the heat coils.
The magnesium oxide powder are used as the insulating medium to avoid a short circuit.
The metal sheath is filled with the MgO powder.
The MgO powder is highly compacted through a special cold form process.
It makes the MgO powder very efficient to transfer heat inside the metal sheath.
cartridge heater are manufactured using the finest material and constructed with tight quality controls.
heaters provide superior heating performance, uniform watt densities and a long service life. They are also able to fitted with various thermocouples and sensors to your requirements.
Funkcja
J-type and K-type thermocouple available
Easy to install
Highly efficient
High watt densities
Various metal densities
Resistant to oxidation and corrosion
Fast heat up
Low mass
Swaged construction
Shock and vibration resistant
Aplikacja
Semiconductor chamber heating
Humidity control
Seals bar
Hot isothermal forming
Melting & Welding
Vulcanization
Plastic processing
Liquid immersion
Injection molding
Platens
Labeling
Technical Data
Working temperature: up to 1600F (880C)
Watt densities: up to 200W/in2
Dielectric strength: 1500V
Leakage current: < 0.5mA
Length tolerance:<1%
Izolacja: >15MΩ
Maximum Voltage: up to 480V
Heating of Mould Tools, Tooling, Platens, Packaging Machinery, Heat Sealing Equipment, Plastic Process Machinery, Food Process Machinery, Catering, Printing, Hot Foil Printing, Shoe manufacturing Machinery, Laboratory / Test Equipment, Vacuum Pumps, and many more.
We manufacture Cartridge Heaters engineered to satisfy the full spectrum of Cartridge Heater
NASZE ATUTY：
1.Minimalne zamówienie: 3szt
2.Czas dostawy : w magazynie 1-2 dni ,brak w magazynie 3-7 dni
3.Ponad 100 zapasy różnych rozmiarów
4.Produkty podzielone są na dwie klasy
Oceny：korzystaj z najwyższej jakości materiałów na świecie，Osiągnij lub przewyższ tę samą jakość w Europie i Ameryce，Tylko 40% ceny podobnych produktów w Europie i Ameryce Aby sprostać wymaganiom klientów w zakresie wysokiej jakości.
B grades：użyj najwyższej jakości chińskiego materiału，Najlepsza jakość w Chinach ，Spełniaj standardy wymagań jakościowych i cenowych klientów
5.Zapewnij usługę OEM.
6.Zapewnienie jakości：W normalnych warunkach zgodnych z zakresem projektowym ，
Oceny 365 dni
Klasy B 180 dni
