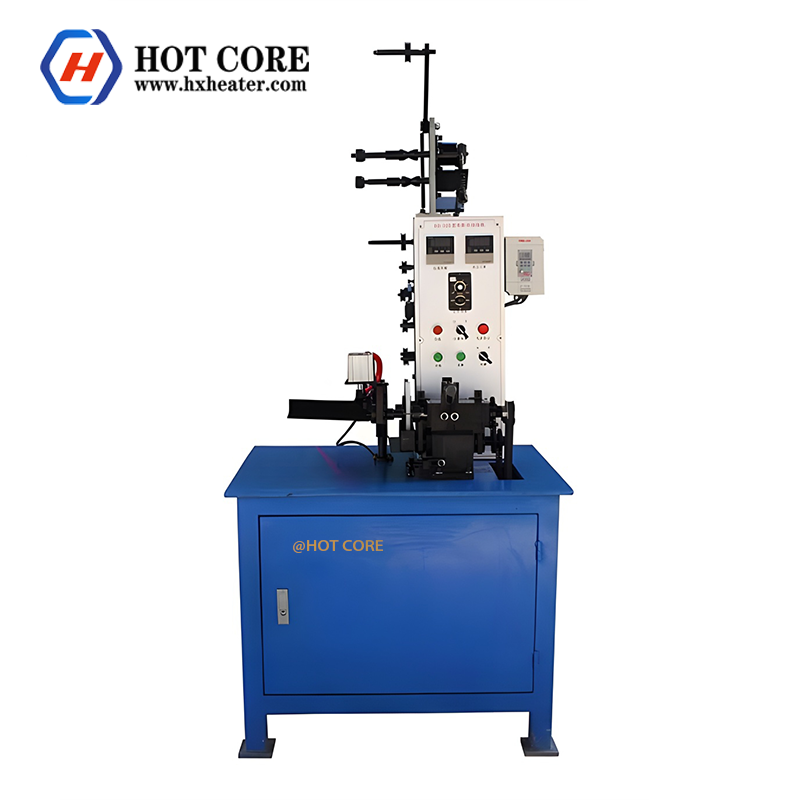

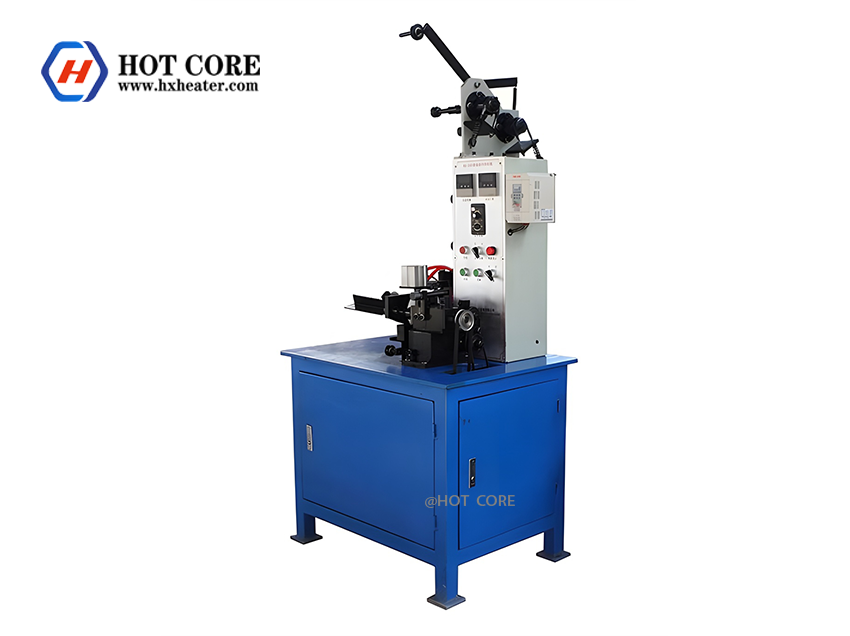

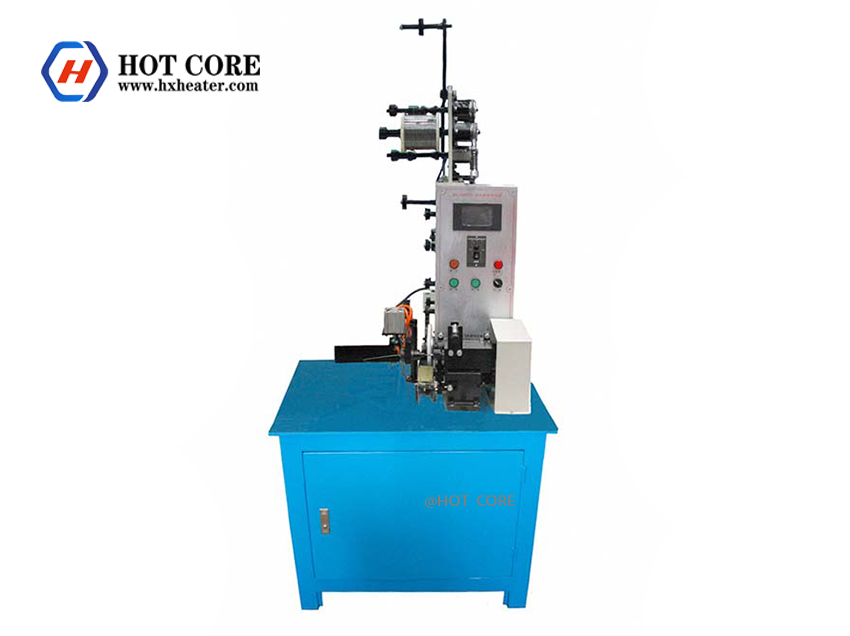

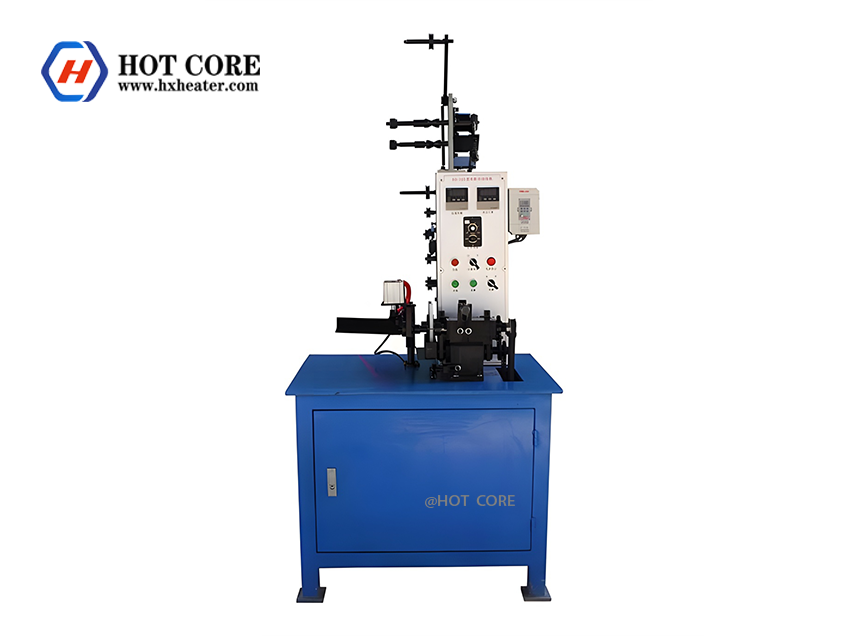

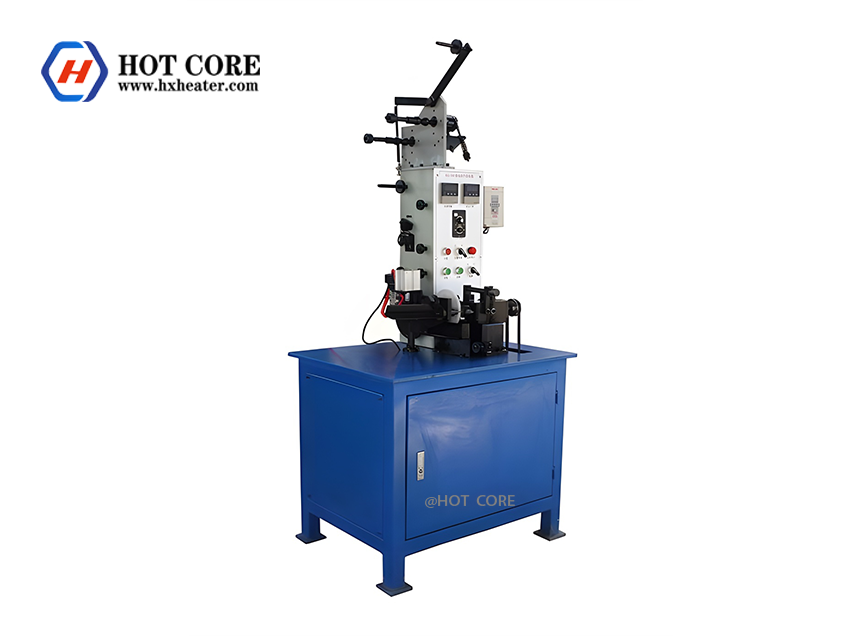

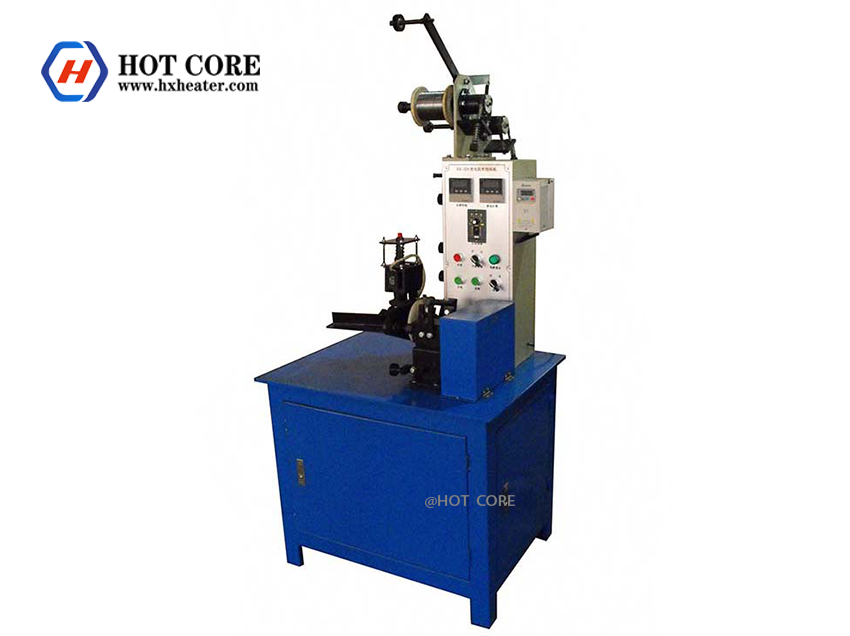

Hot core Heating Element Winding Machine
Description
Technical Parameters
Produkt: Heating element winding machine
Number: PLC heating element winding machine
Parameters of heating element winding machine:
Production capacity: 2500-3000 pcs/8h
The diameter of the resistance wire: 0.12-1.0mm
The diameter of the mandrel: 1.0-10mm
Voltage and power: 220v 500W
The volume of the heating element winding machine: 800 * 600 * 1800 mm
Heating element winding machine:
The heating element winding machine is used to manufacture compact spiral coils.
The use process of the heating element winding machine is: the brake gear winds the coil on the pay-off shaft, and the resistance wire is guided to the lead frame for precise rotation, and then the wire is wound on the core shaft
(The core shaft is composed of an adjustable speed rotating device.)
The inner diameter of the coil is determined by the outer diameter of the mandrel. The outer diameter of the mandrel can be changed freely, and it can be controlled by the encoder and PLC touch screen.
Of course, the corresponding resistance value can be set and modified on the touch screen to realize resistance control.
When the wire reaches the preset resistance, the wire is cut by displacement, or the electromagnet is cut.
The function of PLC is to record and control the number of spiral coils, and to control the speed of the mandrel through adjustment.
