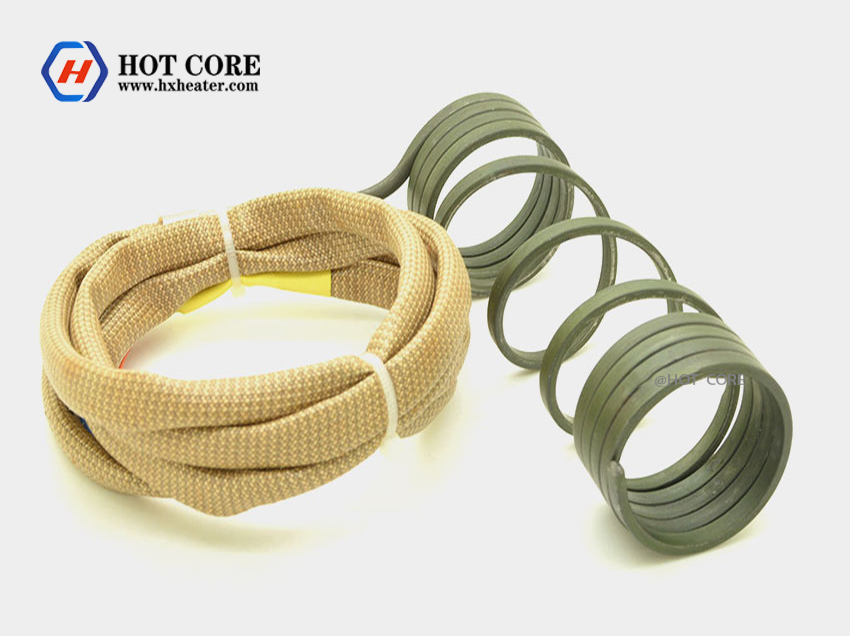

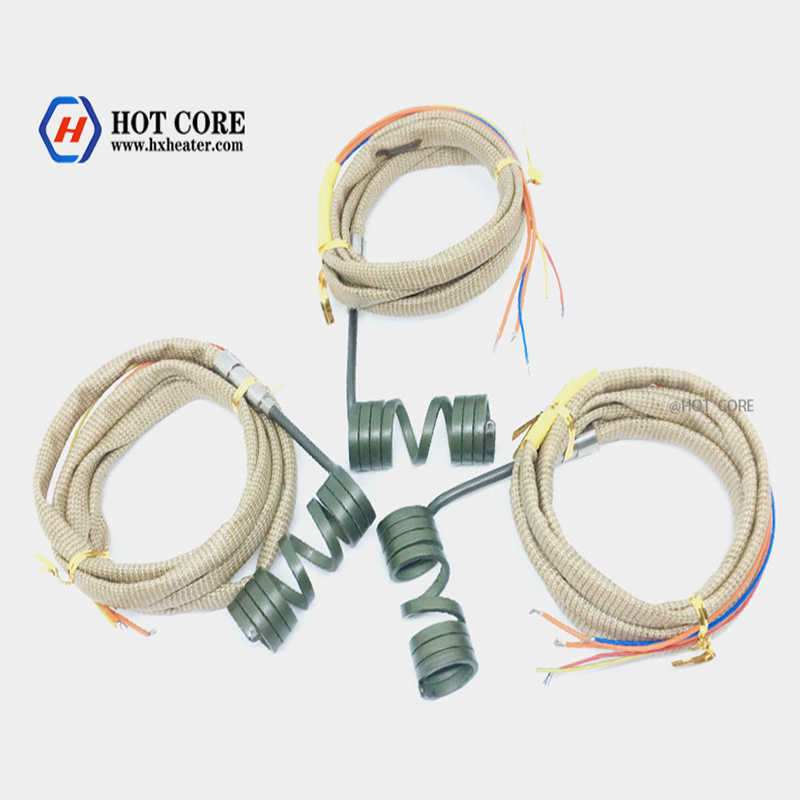

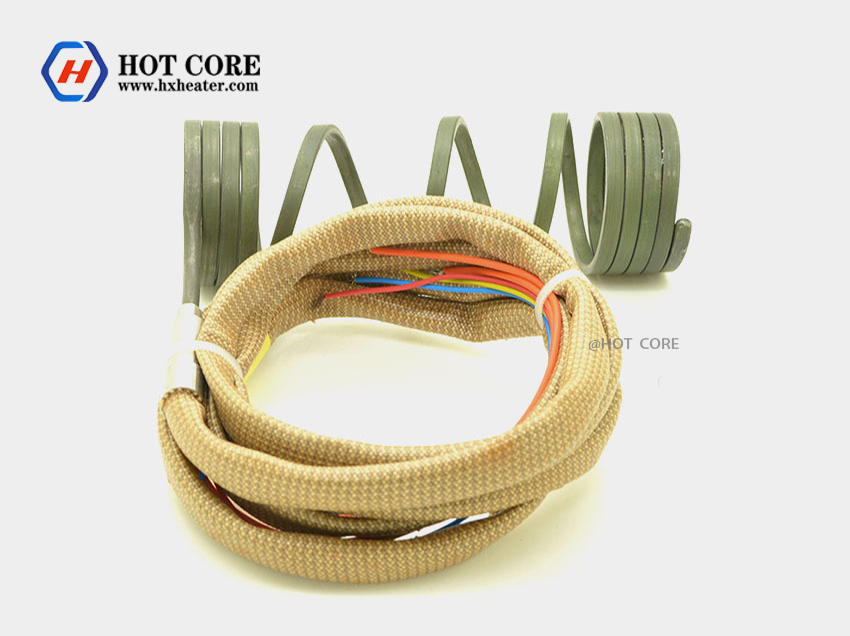

Heating element coil factory
Coil heaters, also known as cable heaters, can be shaped according to their various applications.
Jednakże, coil heaters are often configured with small diameters and high performance nozzle heaters are fully annealed.
The coil heater is used for injection molding machine nozzles and gate bushing to provide 360-degree heat. Optional distributed watt-number models are available.
Coil heaters can also be used for cylindrical heaters where holes of irregular size are found.
During packaging installation, a straight, round cable heater may wind through the seal strip.
Application of industrial spring heater:
1.The manifold
2.Hot runner nozzles and spruce shrubs
3.Maszyna opakowań
4.Injection molding machine nozzle
Cechy:
1.Standard dimensions available with various sections
2.Various watt densities are available.
3.Select the robust design of terminal outlet
4.Available with built-in thermocouple
5.Design uniform thermal profiles.
6.Precision mounted on hot runner nozzle and manifold.
7.Highly stainless.
8.Maksymalne przeniesienie ciepła z powodu większej powierzchni kontaktu.
9.Advanced thermal engineering.
Specyfikacje:
Materiał pochłaniowy:Cr ni-stel
Materiał izolacyjny:MGO
Drut oporowy: Ni cr 80-20
Maksymalna temperatura osłony :700°C
Woltaż: 800V A/c
moc > 5 M W.
Thermocouple J type (Standard) lub typ K.
Tolerancja długości: (Prosty) 5%
Tolerancja na moc :+ 10% ( + 5% Dostępne na żądanie)
Tolerancja oporu :+ 10% ( + 5% Dostępne na żądanie)
Nieogrzewana długość: 35mm (Standard)
Dimensional Tolerance Coil: ID + 0.1 do 0,2 mm
Długość cewki: + 1mm
