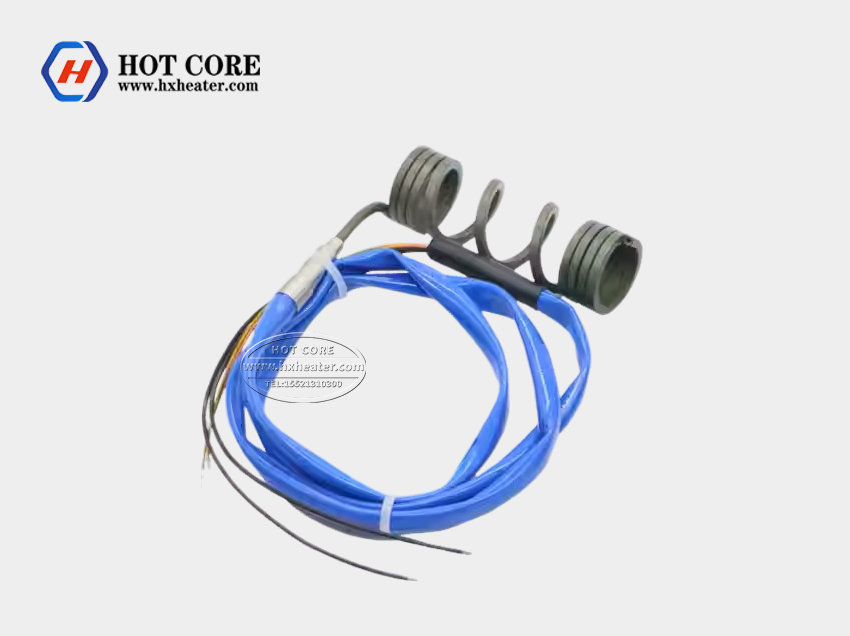

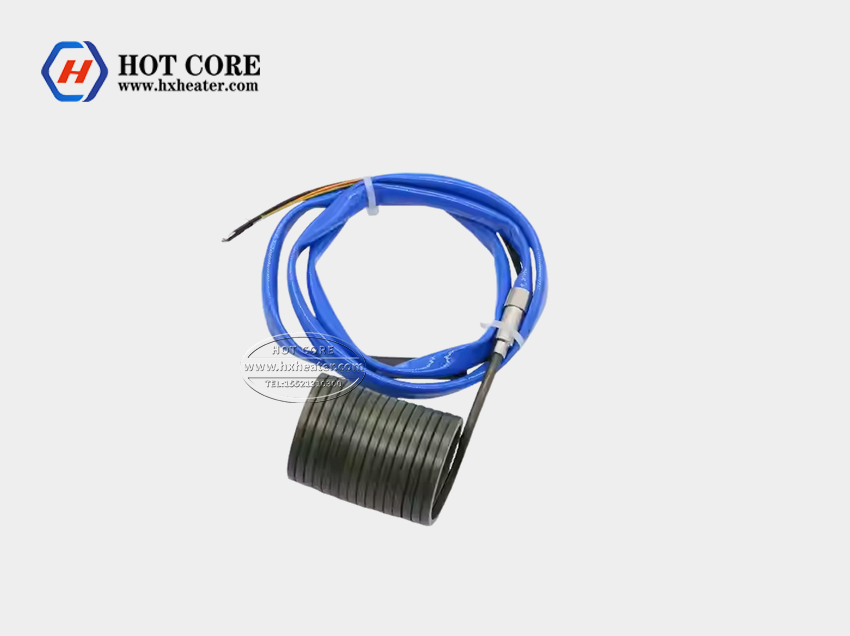

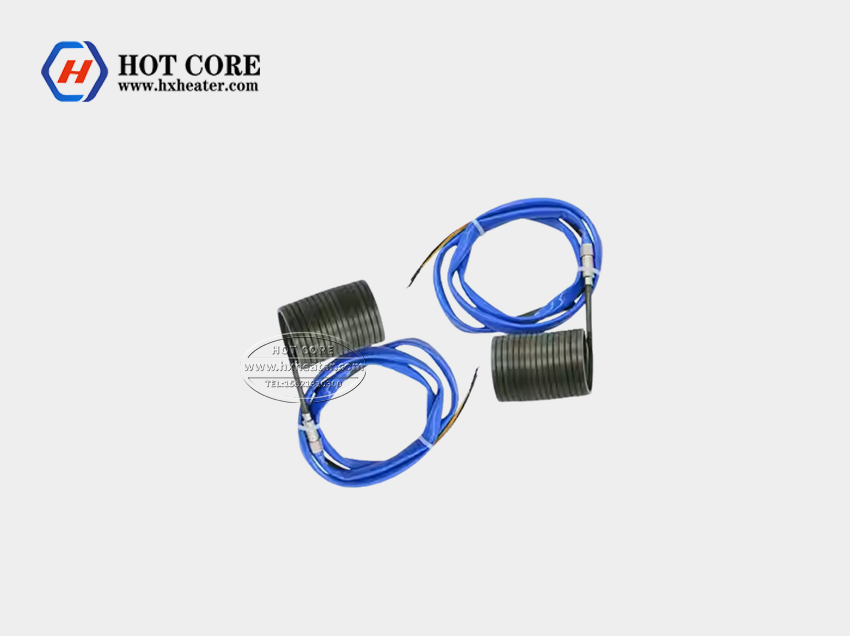

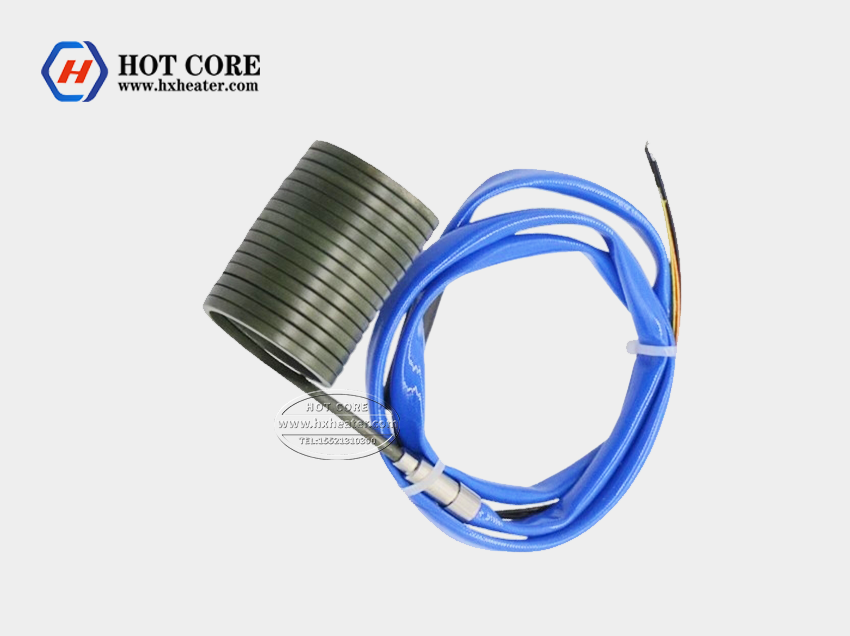

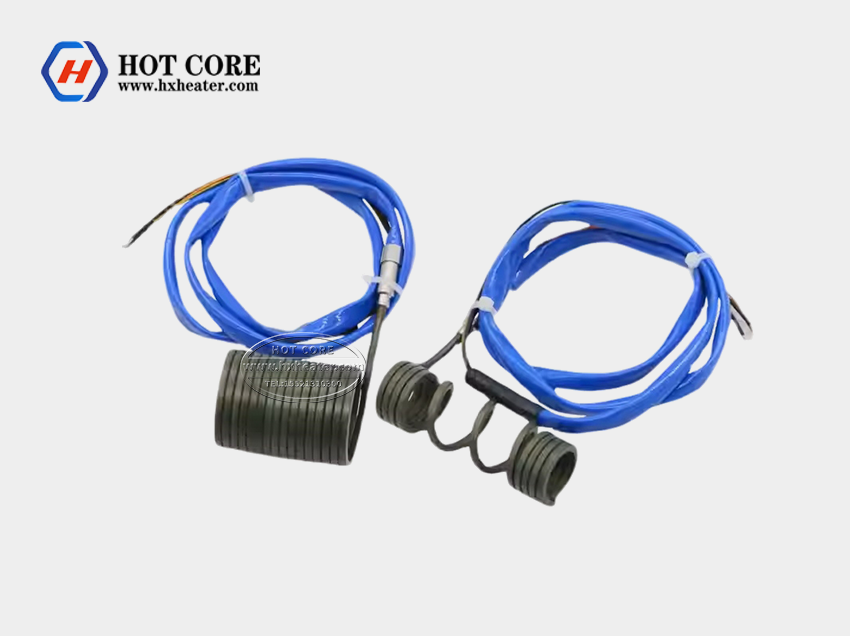

Coil Heater
Szczegóły produktu
Water heater coil can be formed to many shapes due to its different applications. Frequently, these heaters are formed into coil nozzle heater for use on plastic processing equipment, like blow molding, extrusion, injection molding, thermoforming and hot runner systems. Sometimes the coil heater can be used as cartridge heater if the hole size is irregular.
Funkcja
Flexible lead wire
Rapid heating and cooling
Corrosion resistant
Easy to control
Flexible cold section
Easy access
Providing homogeneous heat for entire circumference
Husky compatible
Aplikacja
Custom die applications
Hot runner system
Heat sealing
Heat tracing
Medical equipment
Heat cutting bars
Air heating
Blow molding
Extrusion
Injection molding
Thermoforming
Sprue bushing
Technical Data
Operating temperature: up to 1200F
Termoelement: integrated J type and K type
Maximum sheath temperature: 1500 F
Sheath material: stainless steel, chrome nickel or custom
Length tolerance: -1% ~ +1%
Wattage tolerance: -5% ~ +5%
Length of unheated zone: 80mm or custom
Standard connection: flexible Teflon leads or custom
Minimum bending radius: 5mm
Insulation material: High purity MgO powder or custom
