Hot core 16B Type Tube Reducing Machine
Description
Technical Parameters

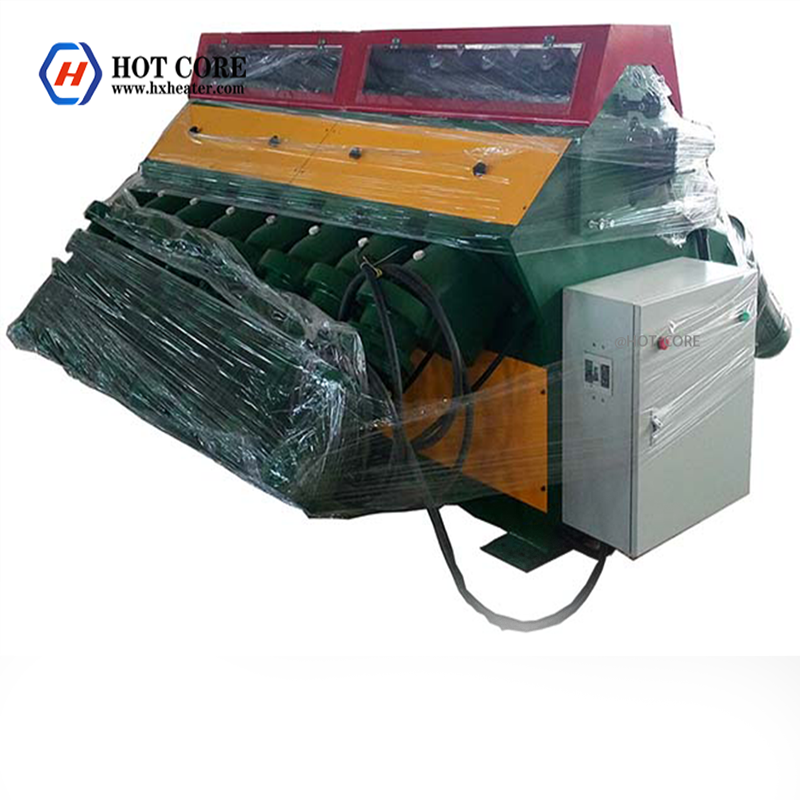

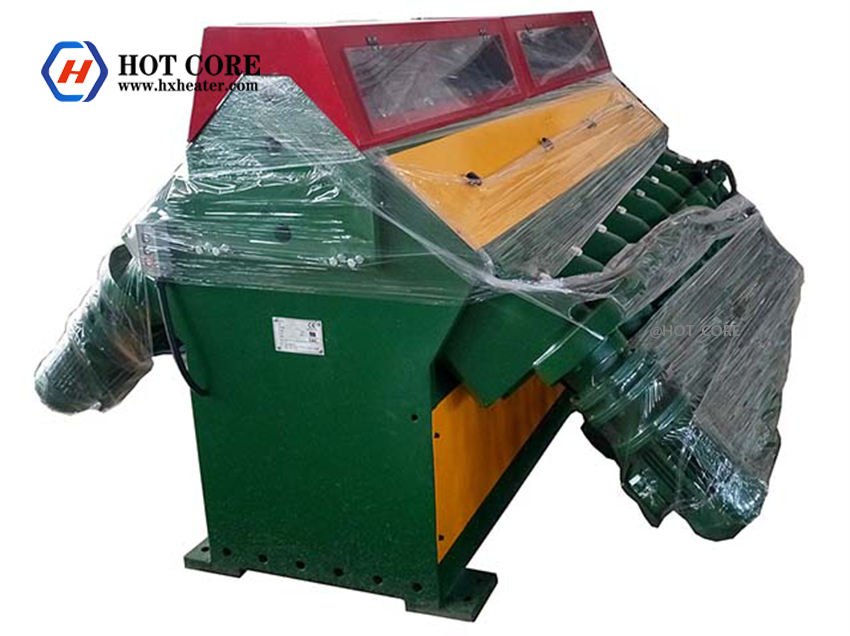

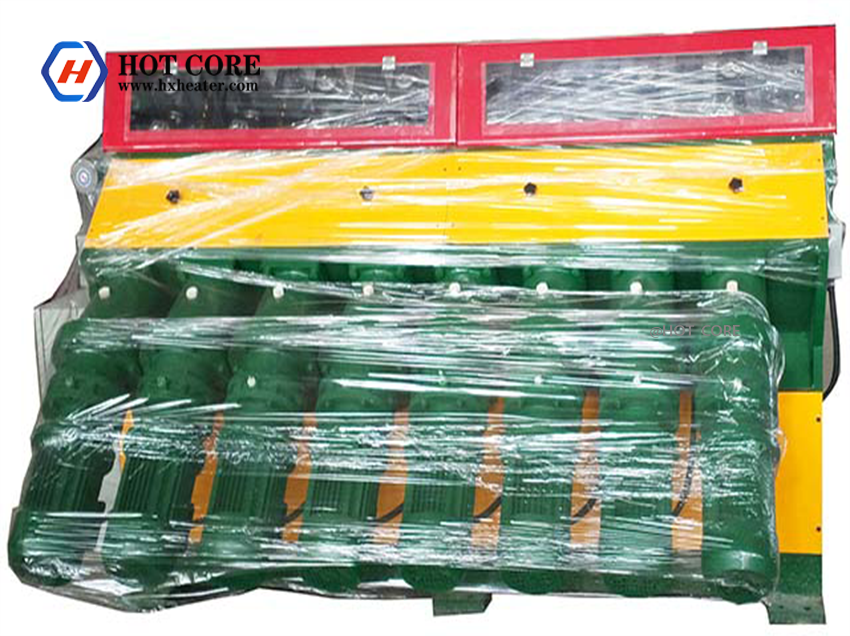

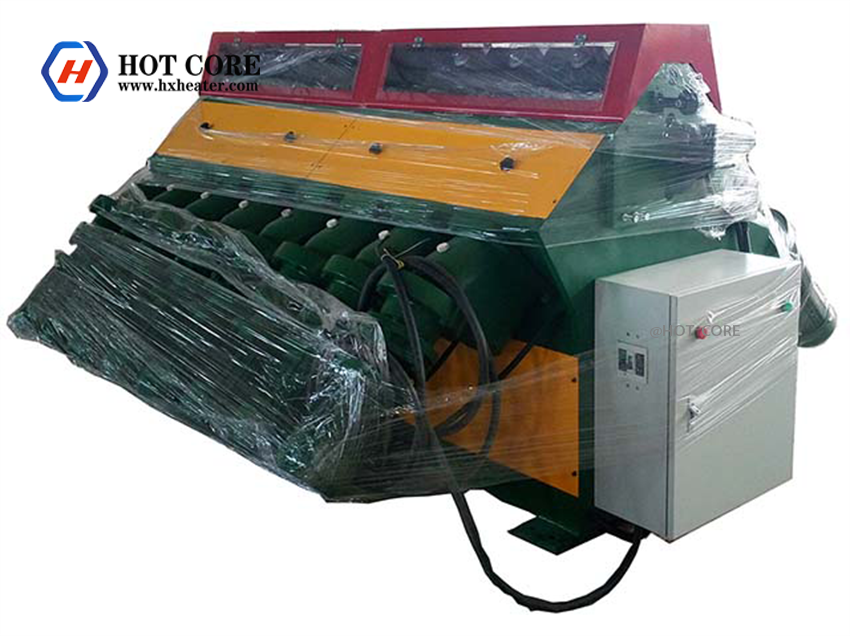

16B type tube reducing machine
The main technical parameters:
Roller size (mm) φ98.5×φ45×38
Speed (m/min): 5, 8, 10, 13 (can be customized)
Single motor power (KW): 1.1, 1.5, 2.2 (can be customized)
Drawing lessons from the advantages of imported machines of the same type, combined with China’s market conditions to improve the design, using gears to reduce speed.
Reference range of pipe diameter (mm): Φ4-Φ28mm;
The material of the pipe: copper, aluminum, iron, ss, etc.;
The shape of the pipe: round pipe, flat pipe, composite pipe.
Shrinkage speed: uniform speed, non-uniform speed (customized according to customer requirements).
The 16B type tube reducing machine is equipped with a straightening device, so there is no need to straighten it again. The surface of the shrink tube is smooth and round.
The shrink tube of 16B type tube reducing machine has high efficiency and is suitable for mass production of electric heating tubes.
According to different pipe materials, hard alloy roller or Cr12Mor roller can be selected.
When reducing a different diameter, the related roller or roller assembly can be replaced.
