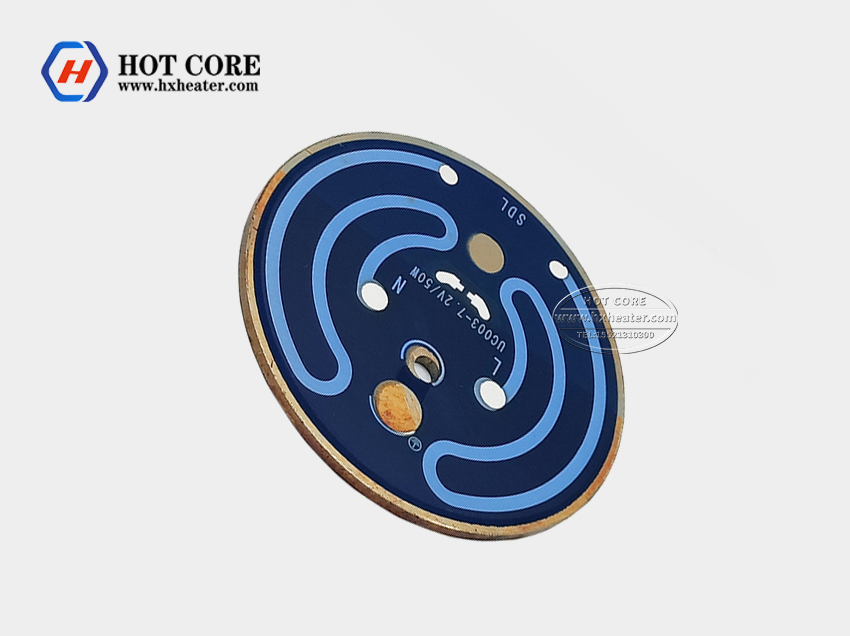

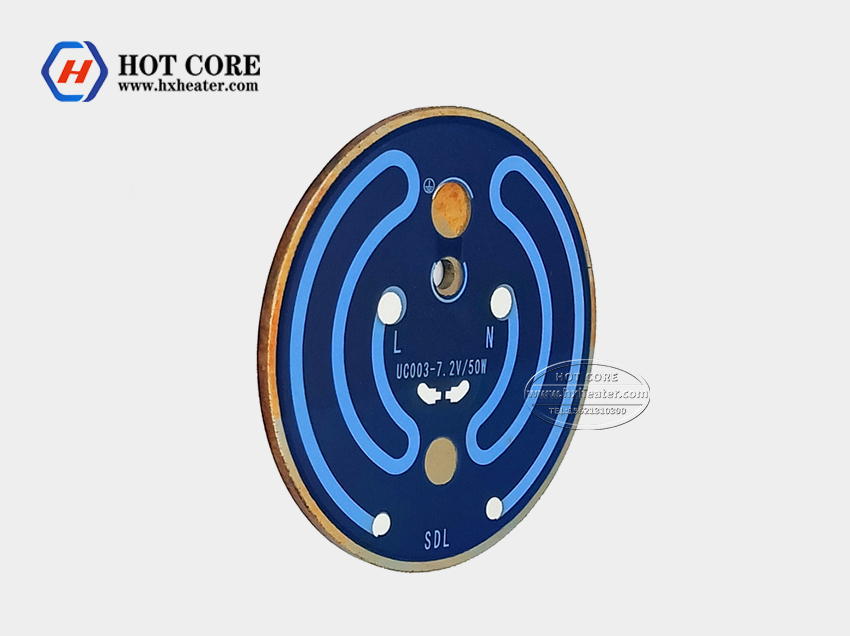

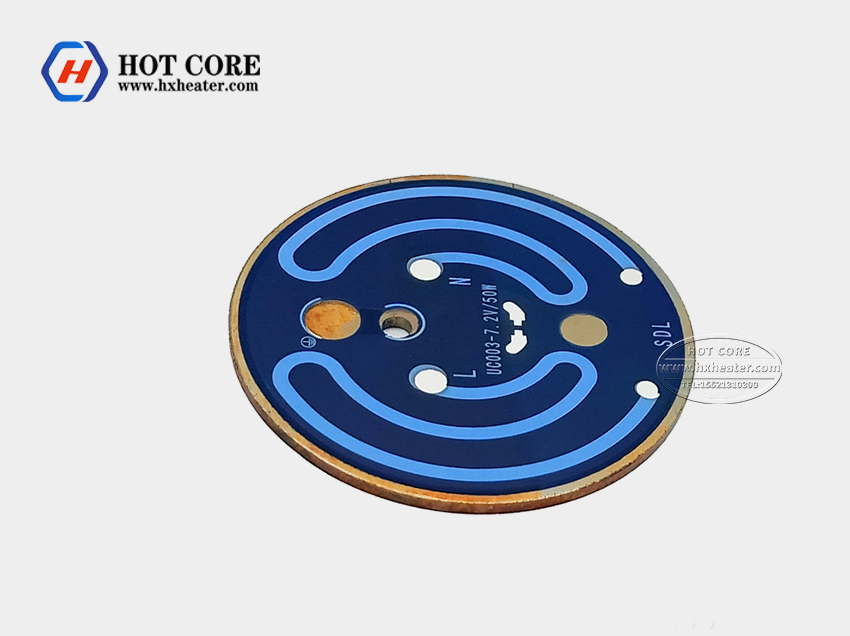

Thick Film Hybrid Circuits
Ubuchwepheshe befilimu obukhulu involves depositing specialized pastes (isib., conductive, resistive, dielectric) onto substrates like ceramics or aluminum nitride using screen printing. After high-temperature firing (600–1000°C), these layers form robust, high-performance circuits. Ngokungafani namafilimu amancane, thick films excel in durability, cost-efficiency, and adaptability for complex designs.
Inzuzo:
1. Ukusabela okusheshayo kwezinga lokushisa
2. Amandla aphezulu emishini
3. Amazinga okushisa aphezulu okusebenza
Advantages of thick film heating plate and tube:
1, Amandla aphezulu aphephile futhi aqinile: I-substrate yensimbi engagqwali, Multi-layer microcrystalline vitreous insulation.
2, Ukushisa okusheshayo: Isifunda sokushisisa sinokukhuphuka kwezinga lokushisa ngaphezu kwama-80 ~ 150 degrees ngomzuzwana.
3, Izinga eliphezulu lokusetshenziswa kokushisa: ishubhu yensimbi engenasici ngokusheshisa ngokushesha, indawo enkulu yokushintshanisa ukushisa, ukushintshwa okusheshayo, ukusebenza kahle kuze kufike phezulu 98%.
4, Ukuvikelwa okuluhlaza kanye nemvelo: umthwalo oqinile wokumelana, ayikho imisebe ye-electromagnetic, kuhle emzimbeni womuntu.
Imingcele Yezobuchwepheshe
| Uhlobo Lokugcina | Spot Weld | Ukushisa Ukushisa | >60W / cm² |
| Isilinganiso se-ramp | 80℃/S-150℃/S | Ukusebenza kahle okushisayo | >98% |
| Ukushisa Amandla | 5500W | Impilo Yenkonzo | >10,000 amahora |
| Amandla kagesi | 220v | Isitifiketi | I-CQC, Rohs |
| Amandla we-Dielectric | 1,500V / 5m / 60s | Ukuphambuka kwamandla | -10% – +5% |
| Ukuvuza kwamuva | ≤0.25MA | Ukumelana nokufakelwa | ≥200m |
| Uhlobo lwe-Thermistor | Uhlobo lwenhlanzi | Ubukhulu | Φ50mm*150mm(ubude) |
Izinja:
1. Impahla yesevisi yokudla
2. Ama-Semi-conductor Warmers
3. Ilabhorethri & imishini yezokwelapha
4. Ipuleti eshisayo yezimboni
5. Umshini Wasekhaya
Uku-oda, Sicela ucacise imininingwane yakho edingekayo. Wonke Amashubhu Okushisisa Kagesi Aminyene Enziwa ngokwezifiso njengomklamo wangempela wezidingo eziqondile zekhasimende lethu..
1) I-voltage esetshenzisiwe(V), kanye nemvamisa(Hz)
2) Cela amandla esicelo(Watt)
3) Ishubhu yokushisisa noma impahla yePlate( Ithusi, noma insimbi engagqwali,noma Iron?)
4) Uma unosayizi womdwebo noma isithombe somkhiqizo,noma isampula ezandleni, kuzoba ngcono kakhulu futhi kube usizo ekubaleni amanani ngqo.
