Infrared Heat Lamp
Reflector lamps focus infrared heat forward in the direction where it is required, reducing the loss of heat to the rear and improving efficiency. A reflective coating is applied to the surface of the lamp, usually covering 180° of the quartz tube. Infrared heat is emitted forward through the quartz tube, or is reflected off the back of the tube to then pass out from the front. Infrared heat lamps, with a reflector coating or clear heat lamp be used in various machines.
1.Infrared Heating For Plastics Process
| IR drying of coatings on plastics | IR stretching or shrinking plastics |
| IR Heating For Plastic Packaging | IR heating for blow moulding of PET bottles |
2.Infrared Heating For Photovoltaic Industry
| IR heating for string soldering | IR preheating for sputtering processes |
3.Infrared Heating For Printing Industry
| IR curing ink on cloth | IR drying for inkjet-based CTP plates |
| IR drying of printing products ,such as using in banners machine |
4.Infrared Heating For Food And Chemical Industry
| IR heating for disinfection of tableware | IR heating of chicken and vegetables |
| IR heating of natural herbal medicine | IR heating for removing snow and ice |
5.Infrared Heating For Glass Industry
| IR preheating of car glass | IR drying of coatings on glass |
| IR heating for manufacturing and cutting laminated glass |
6.Infrared Heating For Textiles Industry
| IR drying of coatings on textiles | IR heating for laminating of fabrics |
7.Infrared Heating For Electronic Industry
| Coatings on electronic components | The aging of the electronic components |
Infrared heat lamps are divided into 3 segments by wavelengths measurements
* 1.3 μm Short wave infrared
* 1.6 μm Short-medium wave infrared
* 2.5 μm Medium wave infrared
Technical information of Infrared heat lamp:
| Filament | Tungsten, Carbon fiber,Resistance wire. |
| Tube Color | Clear, White, Gold, Ruby |
| Wavelength | 1.3-1.6µm, 2.5µm, |
| Voltage | 24-600V |
| Power | 50-4000W |
| Color Temp | 2450K, 1800K, 1200K |
| Common Diameter | 10mm, 12mm, 14mm, 18mm |
| Life Time | 5000Hours |
Carbon fiber heat lamp
*High-priced imported carbon fiber filament.
*The finished filament is smooth and does not fluff.
*The optimum power and maximum longevity.
Reflector heat lamp
*To transmit and focus heat more efficiently on the material
*According to the specific application and customers’ needs.
*We usually applies gold, white and ruby reflectors on heat lamp.

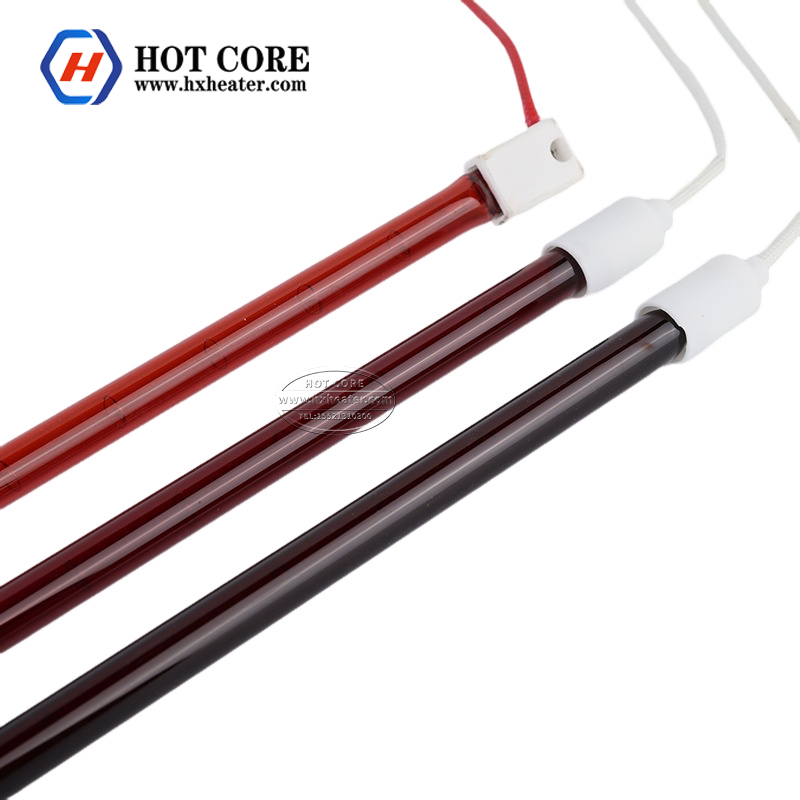

Ruby & All gold heat lamp
*Reduce the brightness of visible light.
*Reduce wavelength, increase heat.
White heat lamp
*Imported ceramic white plating material.
*The white reflector coating is stable, not easy to fall off.
Gold heat lamp
*Imported gold plated material,gold water plated.
*Reflect heat use,Stronger reflection efficiency.
*Reflection effect is better than white plated.
All types of the Infrared Heat Lamps can be custom made , and the different length, diameter and the different ceramic and terminal types can be choosed by our customers.
