Yudo paslanmaz çelik kılıf bobin ısıtıcı yüksek sıcaklık indüksiyonu
Yudo Stainless Steel Sheath Heater Coil High Temperature Induction
Ürün Açıklaması

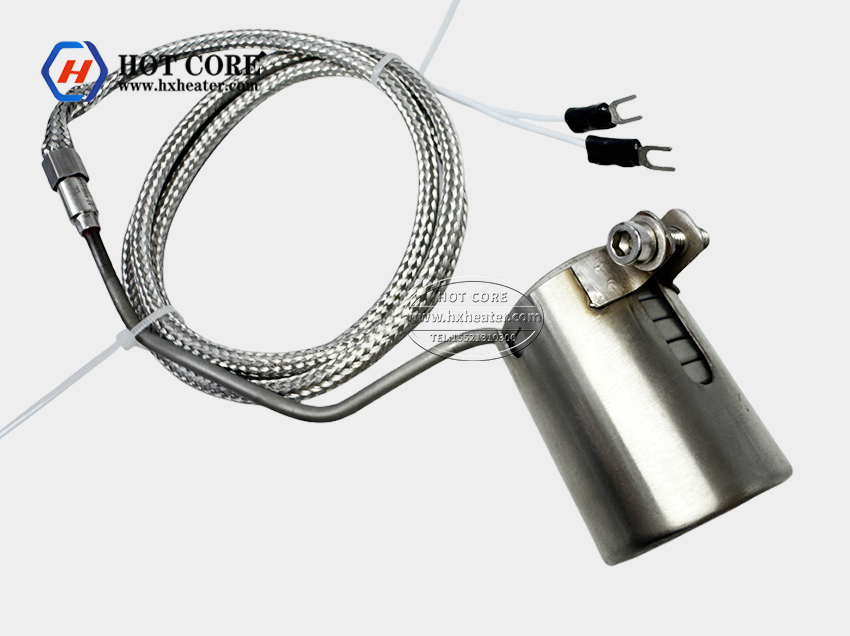

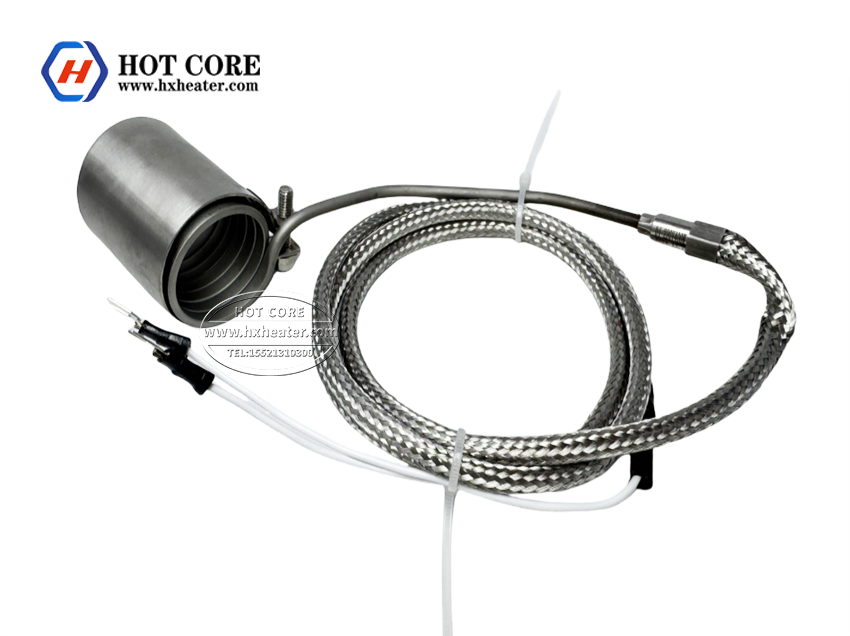

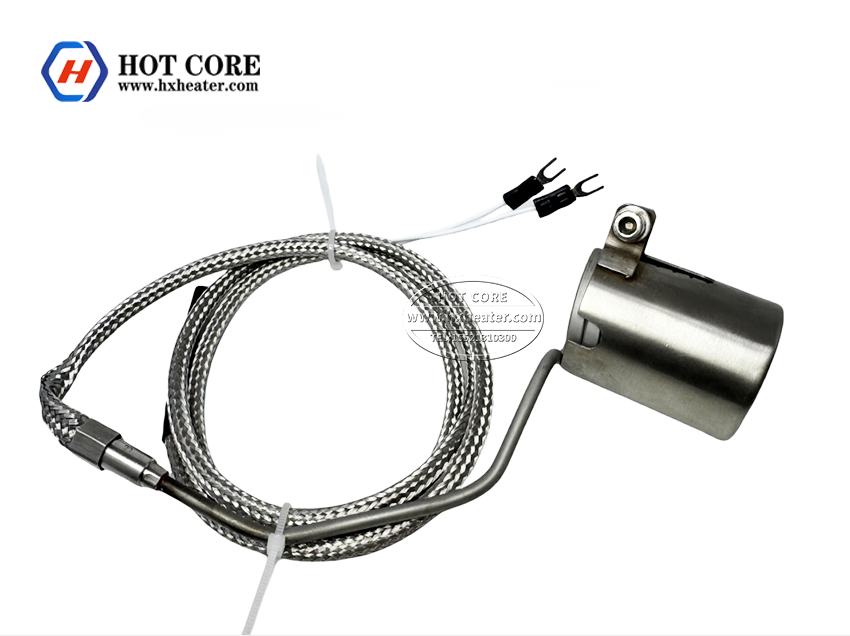

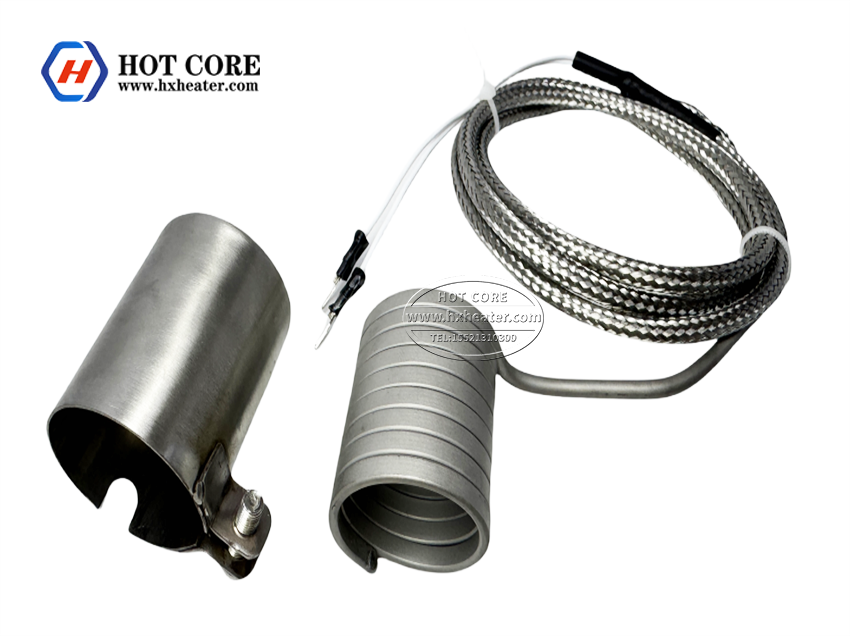

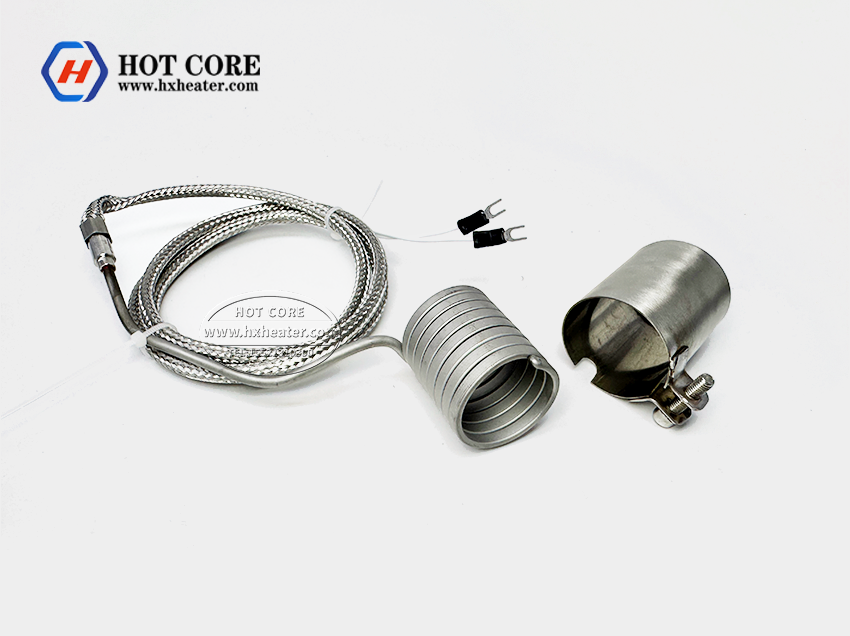

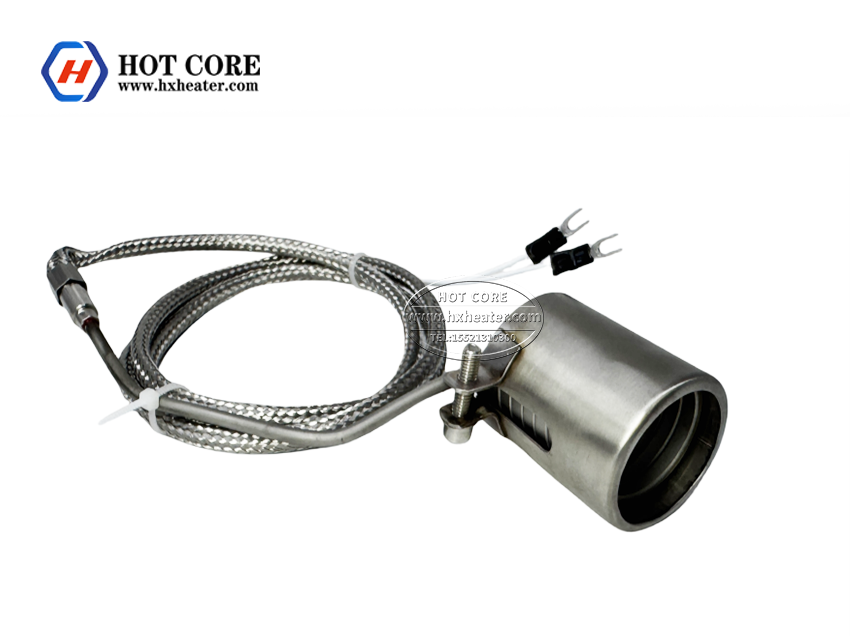

Product Pictures for Stainless Steel Sheath Heater Coil High Temperature Induction
Product Description for High Temperature induction heater coil
| Sheath Material for Coil Heater | Cr Ni-Steel |
| Yalıtım malzemesi | MgO |
| Resistance Wire | Ni Cr 80-20 |
| Maximum Sheath Temperature | 700° C |
| Die Electrical Strength | 800V A/C |
| Insulation | > 5 M W |
| Termokupl | J type (Standard) or K type |
| Length Tolerance (Straight) | + 5% |
| Wattage Tolerance | + 10% (+ 5% Available Upon Request) |
| Resistance Tolerance | + 10% (+ 5% Available Upon Request) |
| Unheated Length | 35mm (Standard) |
| Dimensional Tolerance | Coil I.D + 0.1 to 0.2mm |
| Coil Length + 1mm |
Stainless steel sleeve hot runner heater
TO ORDER SPECIFY:
① Inside diameter ② Outer diameter ③ Sleeve length
④ Sleeve material(Brass/Steel) ⑤ Sleeve thickness ⑥ Wattage/Voltage
⑦ Whether need with thermocouple
n Clamp band Heaters are manufactured in round and rectangular section. These round / rectangular Mini coil heaters are swaged and formed into a coil of predefined dimension. It is equipped with a metallic cover for easy fitment. These heaters are available in standard SCREW clamping system & AXIAL clamping system. The AXIAL clamping allows the front end loading for easy installation in multi-cavity molds.
n Kappa series / Brazed brass steel sleeve heater are constructed with a nickel plated copper inner sleeve and a stainless outer sleeve. The heater is sandwiched between these sleeves eliminating the heat transfer problems associated with other dual sleeved designs. The material used direct the heat inward the nozzle, resulting in a very efficient heater with even heat distribution.
Features for High Temperature induction heater coil
- 100% more surface contact
- High Temperature connection
- Integrated Thermocouple
- Proportioned profile heating
Applications for High Temperature induction heater coil
- Kalıplar & dies Manifolds
- Hot runner nozzles and spruce bushes
- Packaging machineries
- Manifolds
- Injection moulding machine nozzle
Cross Section for High Temperature induction heater coil
- 3.0 x 3.0, 3.30 x 3.30, 4.50 x 4.50 mm
- 4.20 x 2.20, 4.50 x 2.50, 3.20 x 1.80, 1.30 x 2.30 mm
- 3.30, 1.80, 1.60, 1.35 mm
- Any other cross sections can be manufactures and supplied on request.
Type of Output for High Temperature induction heater coil
Ambalajlama & Shipping
Packing for High Temperature induction heater coil
Export carton packing box for sample
Export wooden packing box for large qty
Shipping for High Temperature induction heater coil
For samples,3-5 days after payment
For large qty,7-15 days after payment
