Kalıp yüksek kaliteli sıcak koşucu bobin ısıtıcısı
Ürün Açıklaması

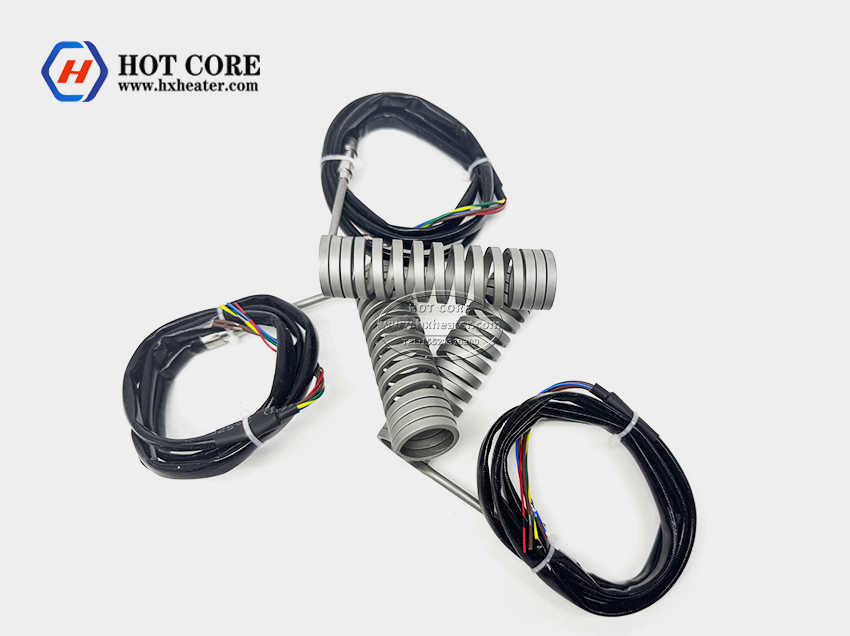

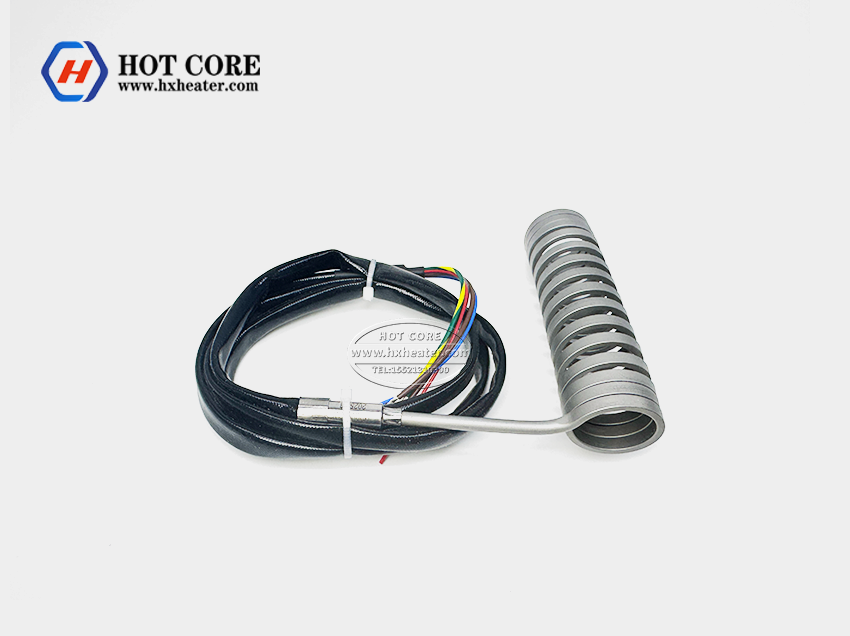

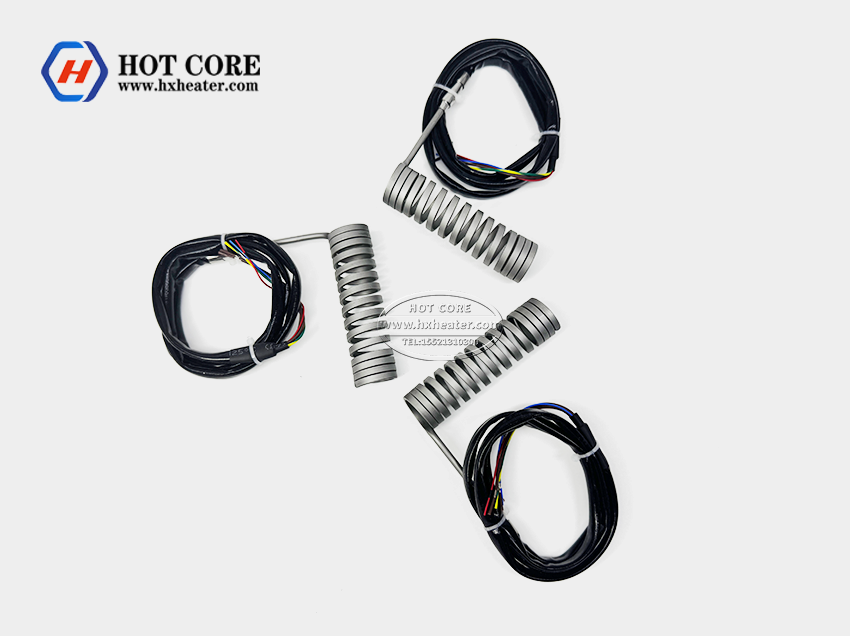

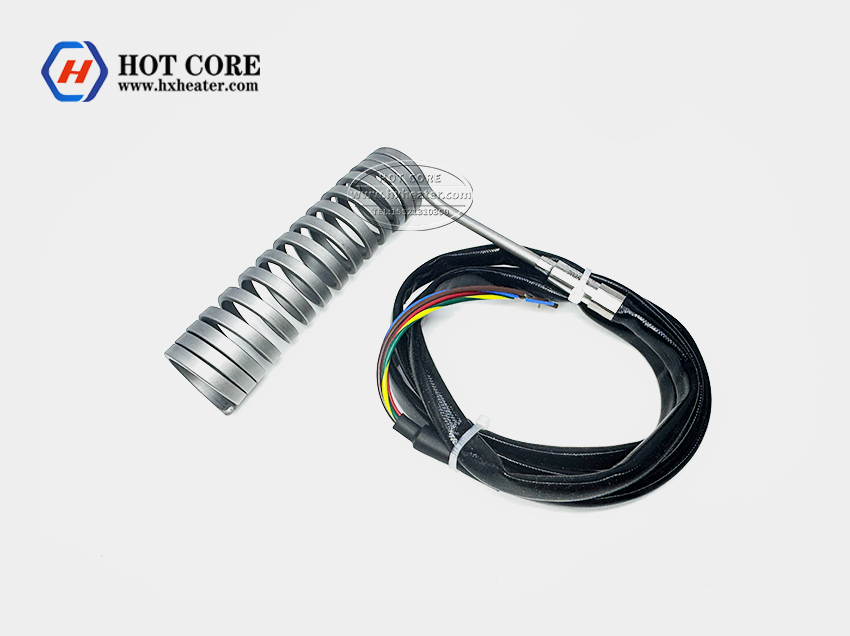

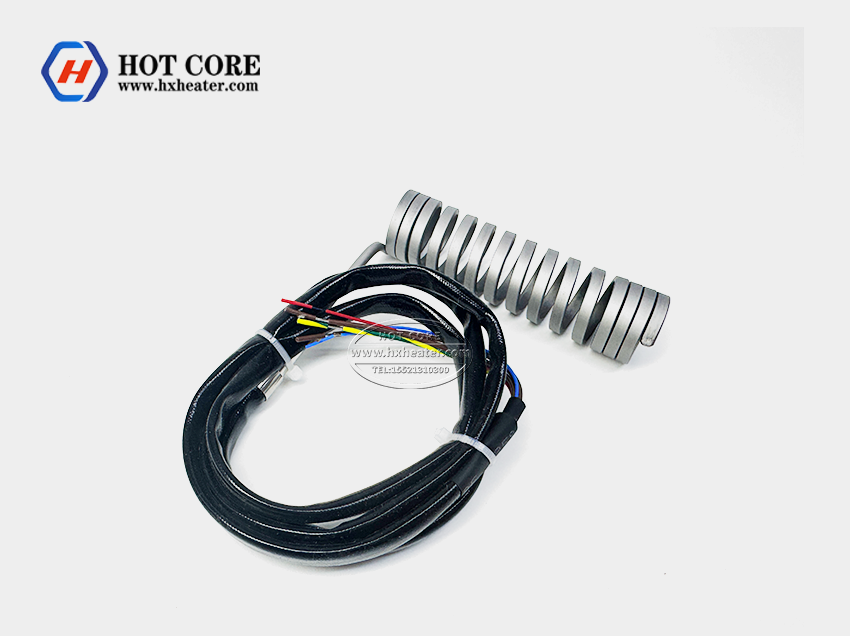

Hot runner heaters also known as cable heaters can be formed to a variety of shapes as required
by its many applications. Frequently though, hot runner heaters are configured as small diameter,
high performance nozzle heaters that are fully annealed. Hot runner heaters are used on injection
molding machine nozzles and sprue bushings supplying 360º of heat with optional distributed wattage
models also available. Hot runner heaters are also used as cartridge heaters where irregular size
bores are found.
A straight, round cable heater can snake through a sealing bar in packaging equipment installations.
| Design features | |
| Sheath temperature up to 800oC | Higher watt densities |
| Build in Type “J” (veya) “K” Termokupl | Rugged & Durable Construction |
| Available as per customer’s specifications | |
| Başvuru |
| 1. Kalıplar & Ölür
2. Nozzle heating 3. Sprue Bushing |
| Physical size construction |
| 2.3*4.3mm, 2.2*4.7mm, 2.0*4.0mm, 3.0*3.0mm, 3.2*3.2mm,
3.6*3.6mm, 4.0*6.0mm, 1.5*2.1mm, 2.7*4.5mm, Φ 1.8mm, 3.3mm, 3.7mm, 4.2mm |
