Screw Plug Immersion Heaters For Small Tanks

Screw Plug Immersion Heaters for Small Tanks made by Jaye Heater Technology adopting high grade of pipe material like SUS304, SUS316L, ความไม่สงบ 840, Incoloy800, Etc. They are the excellent heating devices installed in a tank or container to heat liquid. The installation method can be divided into groove side installation, flange installation or threaded installation. The screw plug immersion heater consists of a U-shaped...

รายละเอียดสินค้า:

Screw Plug Immersion Heaters for Small Tanks made by Jaye Heater Technology adopting high stainless steel material like SUS304, SUS316L, ความไม่สงบ 840, Incoloy800, Etc and also high quality of resistance wires. They are the excellent heating devices installed in a tank or container to heat liquid. The installation method can be divided into groove side installation, flange installation or threaded installation

Description of Screw Plug Immersion Heaters for Small Tanks

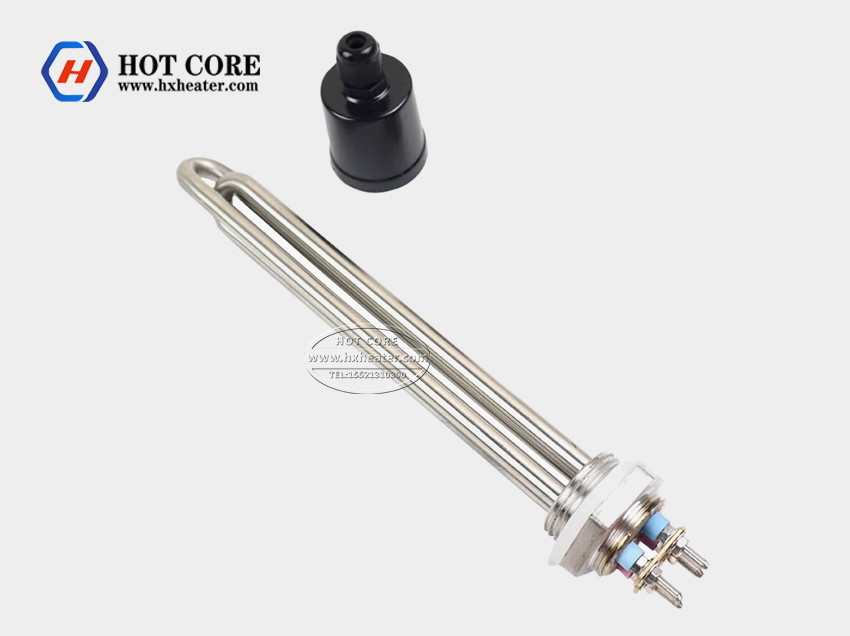

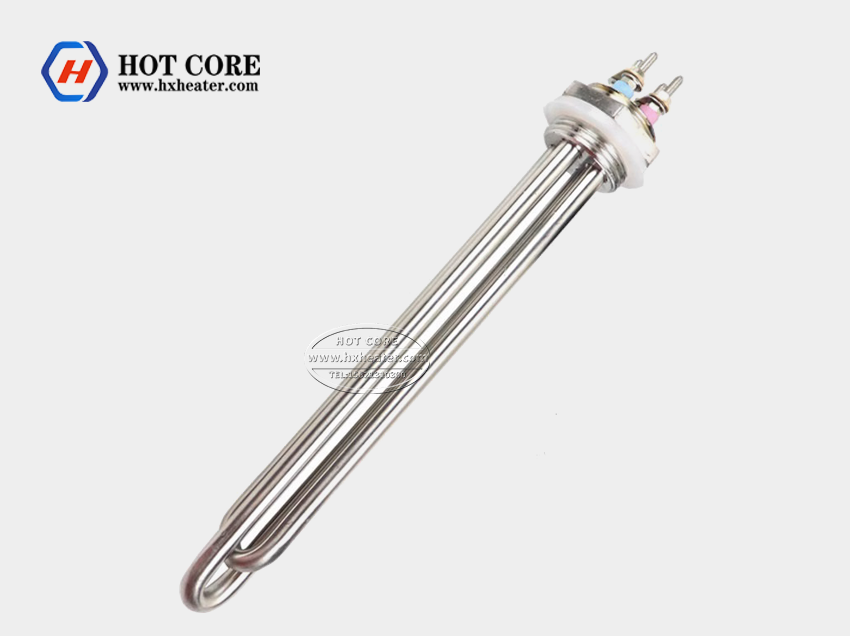

Screw Plug Immersion Heaters consist of U-shaped tubular elements that are welded or brazed into the screw plug, and also has a junction box for electrical connection.

The screw plug immersion heater is directly screwed through the threaded opening of the tank wall or by means of matched pipe joints, half pipe joints or welding flanges.

Screw plug heaters are available in ½”, ¾”, 1″, 1¼”, 2″ and 2½” pipe threads in several different sizes.

Due to the wide selection of screw plug sizes, rated power (in kilowatts), แรงดันไฟฟ้า, วัสดุฝัก, terminal fittings and thermostats, these small heaters are ideal for various types of applications.

Application and Feature of Screw Plug Immersion Heaters for Small Tanks

Screw plug immersion heaters are used to heat liquids in various processes. These heaters are particularly suitable for process water heating and frost protection. Various types of oils and heat-conducting solutions can also be heated using these small and easy-to-control devices. The direct immersion method is not only energy efficient, but also very suitable for many applications.
