ความไม่สงบ 840 electric immersion heater element

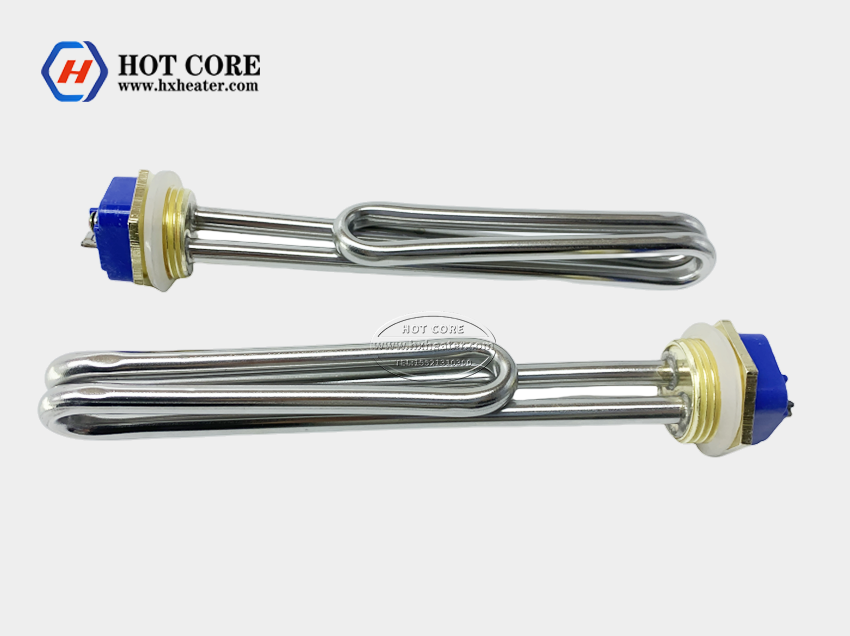

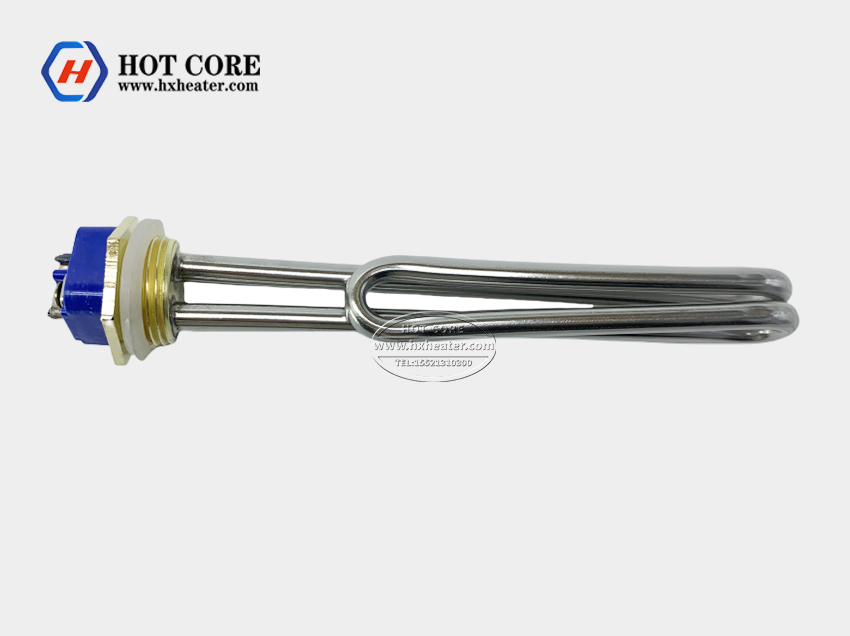

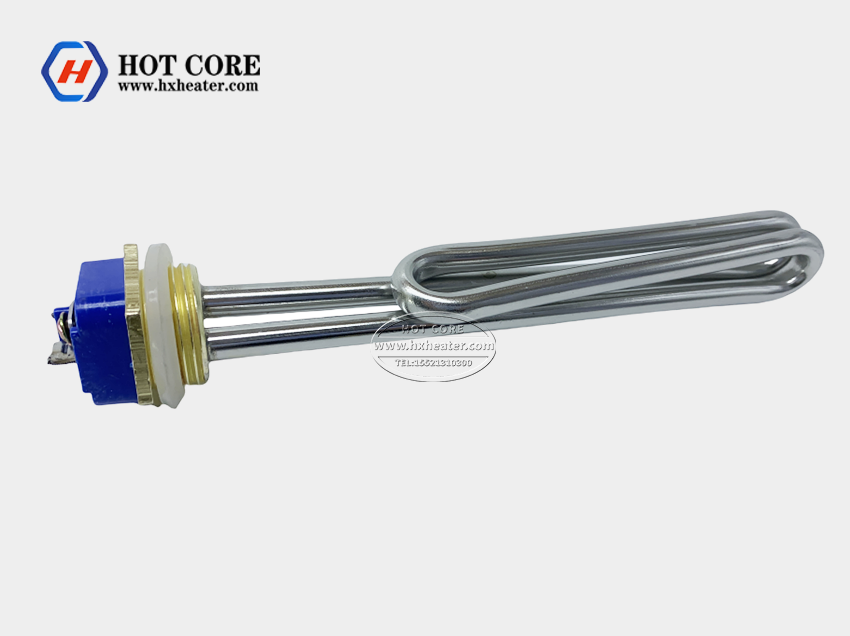

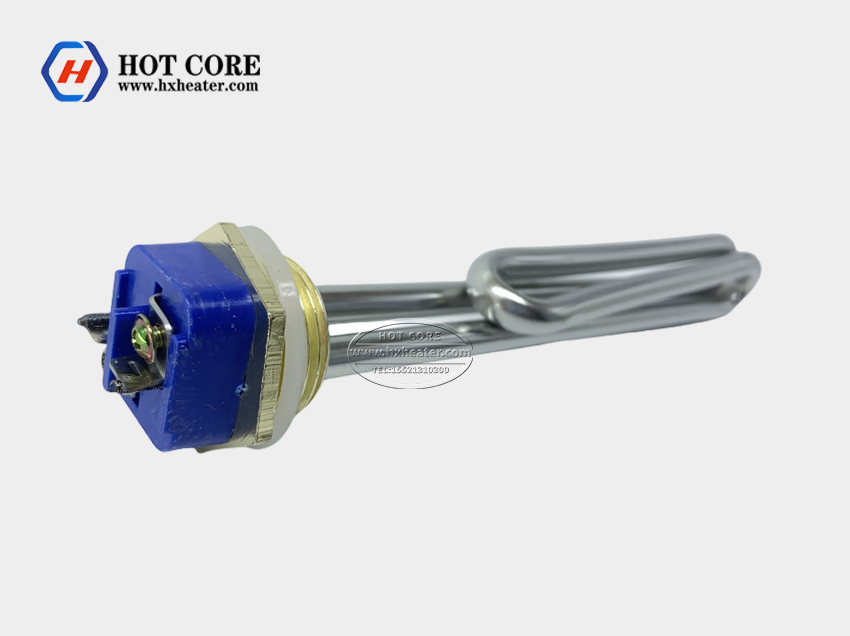

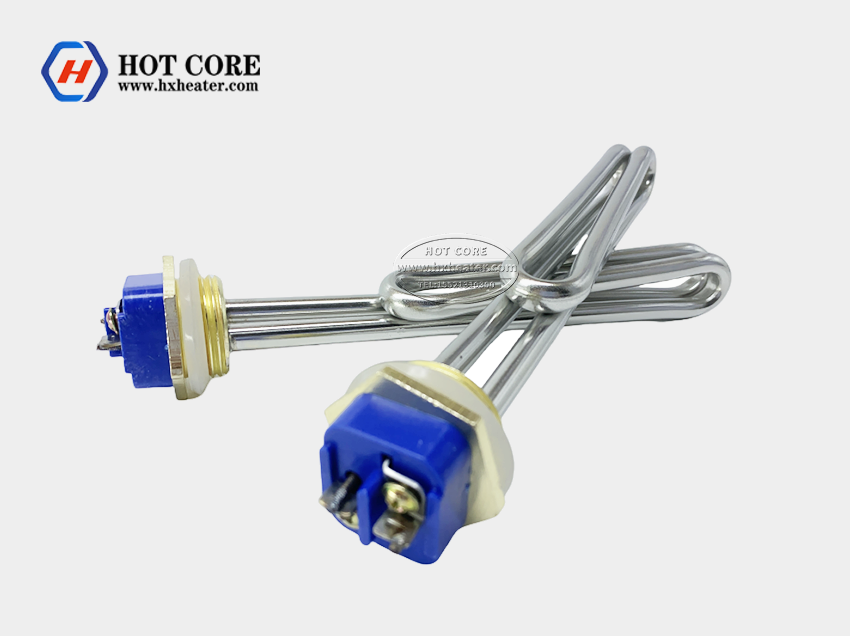

ความไม่สงบ 840 electric immersion heater element for heating water are screwed directly through a threaded opening in a tank wall or through a matching pipe coupling or half coupling.
Sizes of screw plug immersion heaters are available with 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2″ pipe threads.
A wide selection of screw plug sizes, kilowatt ratings, voltages, sheath materials, terminal enclosures and thermostats makes these compact heaters ideal for all types of applications.
ความไม่สงบ 840 electric immersion heater Specifications:
PERFORMANCE CAPABILITIES
| วัสดุฝัก | SUS304.321.316,Incoloy800.840,Titanium | ||||||||
| Resistance wire | NiCr2080 | ||||||||
| Maximum temperature | 1400 ° F ( 760° C ) on alloy 800 sheath | ||||||||
| Maximum Watt density | 11W/cm2 | ||||||||
| Maximum voltage | 600VAC | ||||||||
| Wattage tolerances | +5 percent, -10 percent | ||||||||
| Resistance tolerance | -10 percent, +5 percent | ||||||||
| เส้นผ่าศูนย์กลางขั้นต่ำ | 6มม | ||||||||
| Sheath Dia. ±0.15mm | 6.4 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 25 |
| Sheath Length Max. (มม) | 6000 | 6000 | 6500 | 6500 | 7000 | 7000 | 7000 | 7000 | 7000 |
| Maximum Voltage | 250 | 277 | 480 | 550 | 550 | 550 | 550 | 550 | 550 |
| ความอดทนต่อวัตต์ | +5% -10% | ||||||||
| ความทนทานต่อความต้านทาน | +10% -5% | ||||||||
Application of electric immersion heaters:
1. Heating heat transfer fluids
2. Heating medium and lightweight oils.
3. Heating water in tanks.
4. Pressure vessels.
5. Freeze protection of any fluids.
6. Food processing equipment.
7. Cleaning and rinsing equipment.
8. Beverage equipment
9.Brewing&Distillery
