Толстопленочный нагреватель

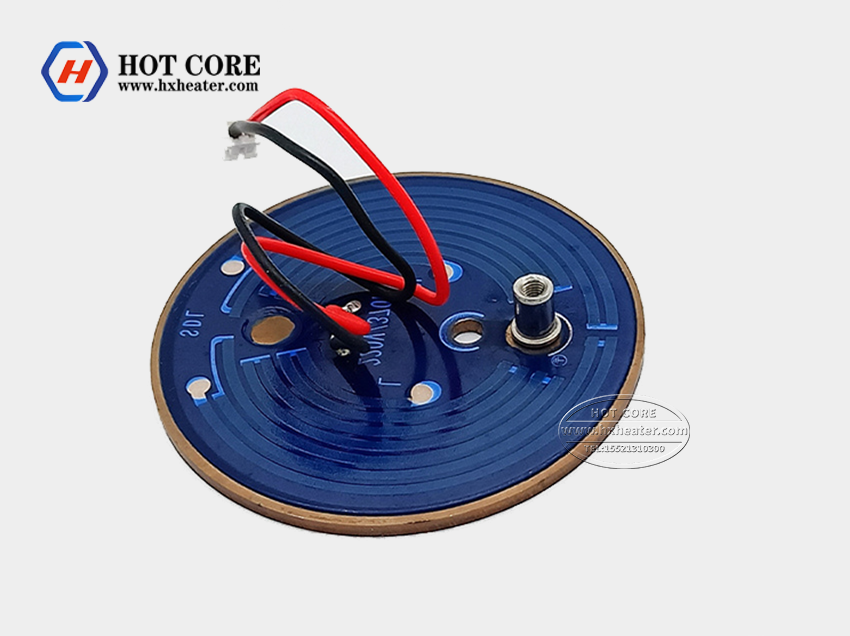

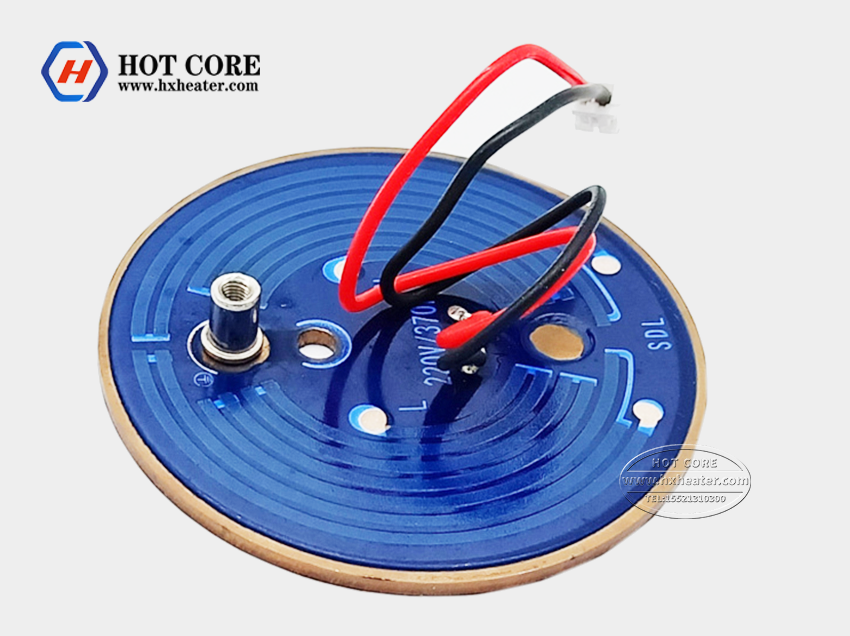

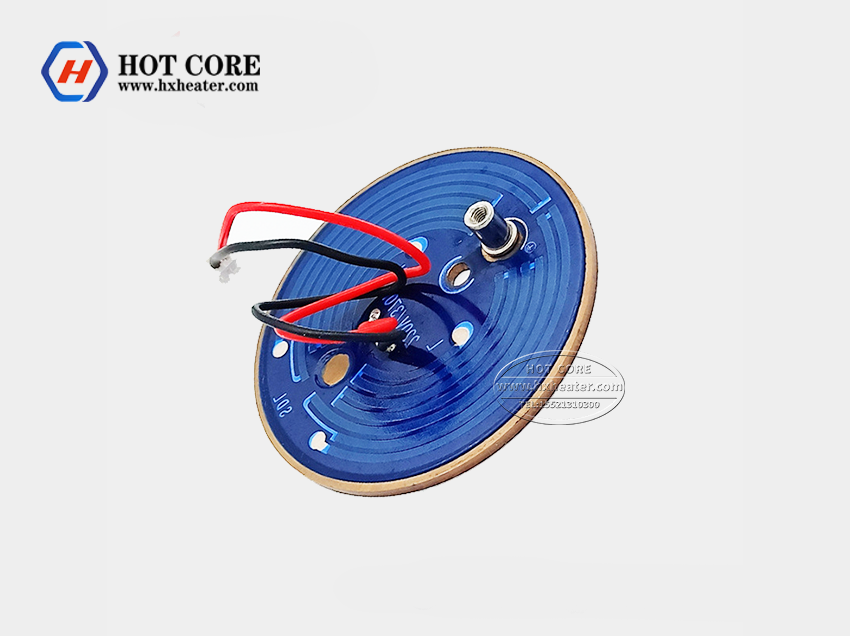

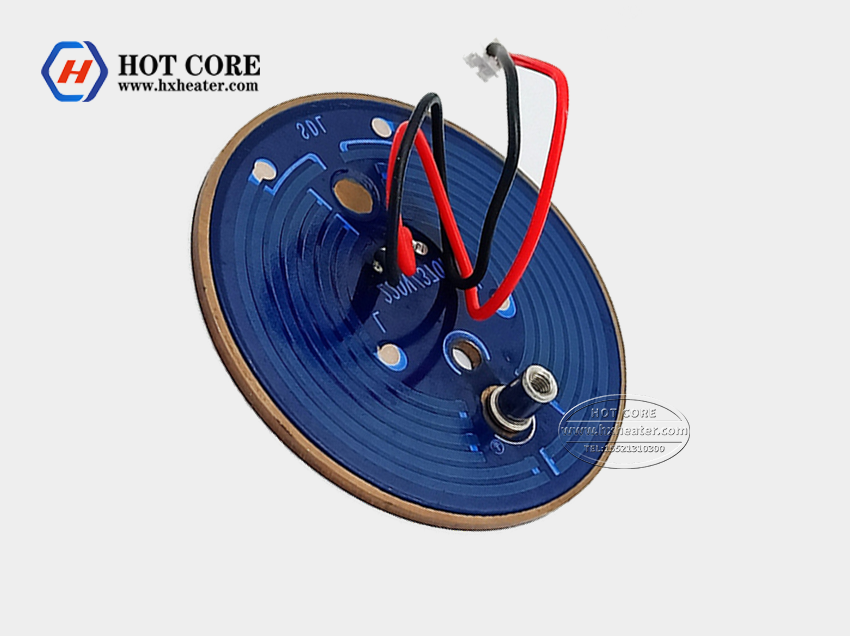

Electric Thick Film Heating Circuit can be sintered and covered with 5 insulation layers on the surface of Stainless Steel plate heat Stainless steel directly and the temperature speed up 150℃/S. Stainless Steel Thick Film Heater Plate made by Jaye industry has the feature of rapidly raise temperature, high heat efficiently, technical mature, product reliability, thermal shock resistance.
Преимущество:
1. Fast temperature response
2. Высокая механическая прочность
3. Высокие рабочие температуры
Advantages of thick film heating plate and tube:
1, Safe and durable high strength: Подложка из нержавеющей стали, Multi-layer microcrystalline vitreous insulation.
2, Быстрое отопление: heating circuit has temperature rise over 80~150 degrees per second.
3, High utilization rate of heat: directly rapid-heat Stainless steel tube, a big heat exchange area, fast replacement, efficiency up to above 98%.
4, Green and environmental protection: pure resistive load, no electromagnetic radiation, good for human body.

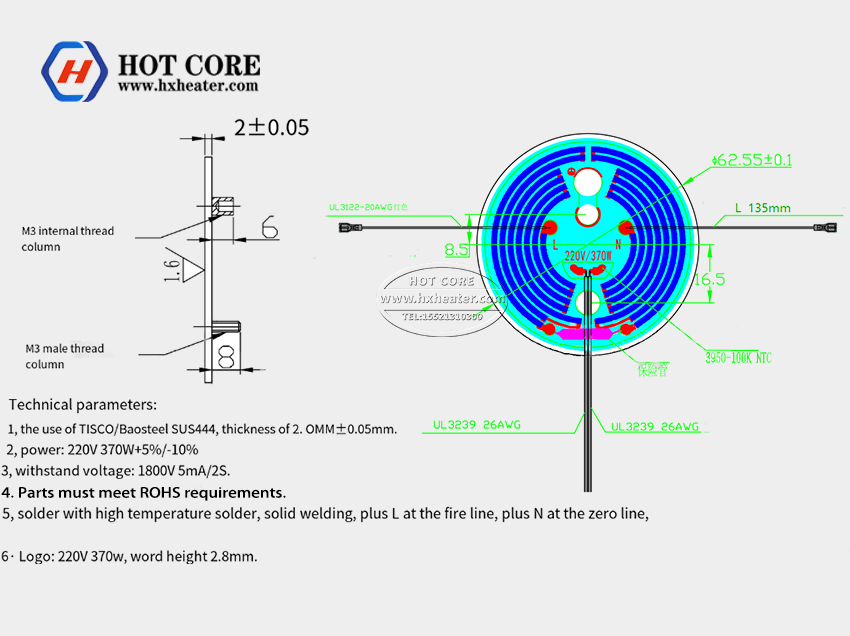

Технические параметры
| Тип заземления | Точечный | Тепловая плотность | >60W/cm² |
| Скорость нарастания | 80℃/S-150℃/S | Тепловая эффективность | >98% |
| Нагревающая сила | 5500Вт | Служба срока службы | >10,000 часы |
| Номинальное напряжение | 220V. | Сертификат | CQC, Rohs |
| Диэлектрическая прочность | 1,500V/5MA/60S | Отклонение силы | -10% – +5% |
| Ток утечки | ≤0,25 мА | Устойчивость к изоляции | ≥200 мОм |
| Thermistor Type | Ptc | Измерение | Φ50mm*150mm(length) |

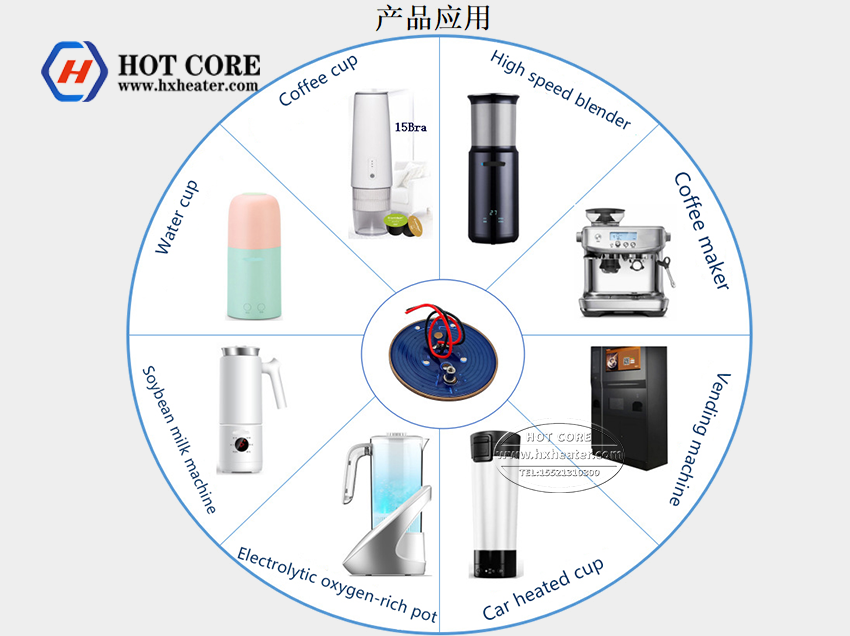

Приложения:
1. Food service equipment
2. Semi-conductor Warmers
3. Laboratory & Медицинское оборудование
4. Industrial hot plate
5. Home Appliance
На заказ, Please specify your detail required specifications. All the Thick Film Electric Heating Tubes are be made customized as the actual design of our customer’s indicidual specific requirements.
1) Used voltage(В), and frequency(Hz)
2) Demand request power(Ватт)
3) Heating tube or Plate material( Медь, or Stainless steel,or Iron?)
4) If you have Size drawing or product picture,or sample in hands, will be much better and helpful for exact price calculation.
