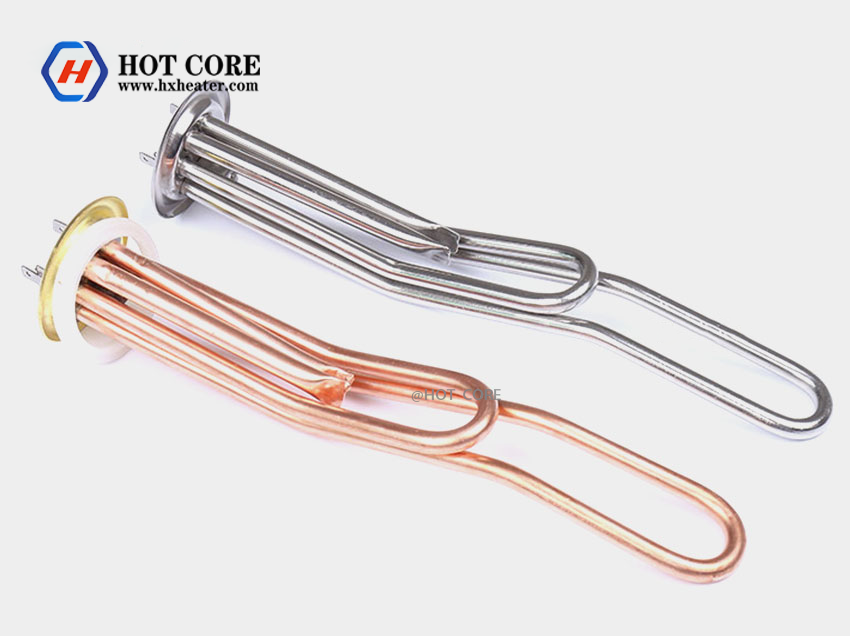

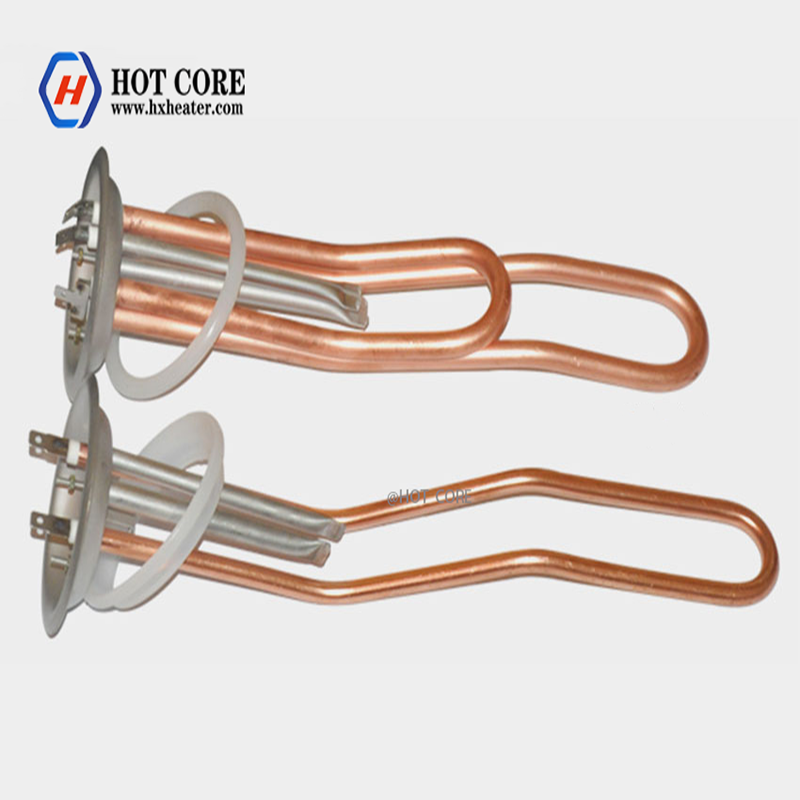

Product description:
water heating tube
Type: electric water heater accessories
Brand name :HOT CORE
Model: TU – 504
Material: SUS304
Tube diameter :8 mm
V: 110-240 V
Watt: 1000-5500W
Fran: 2 “Tri – clamp (OD64mm)
Shape: ripple
Use: water heating
Type: heating element
Class: water heater element
Instructions:
1 The heated liquid does not contain materials that should not be corroded by the components. The scale or carbon deposition on the surface of the tube should be removed frequently during use, otherwise the efficiency and service life of the components will be affected.
2. The operating voltage of the heating element shall not exceed 1.1 times of its rating, the environmental humidity shall not exceed 95%, and the enclosure shall be effectively grounded.
3. The electric heating element of the water heating pipe should be stored in a dry place, because be placed for long if its insulation resistance to earth less than 1 m Ω, can be in around 200 ℃ oven drying resumed after several hours.
4. When the water heating pipe is tightening the thread, don’t push the thread too hard.
