Immersion Water Heater For Pool

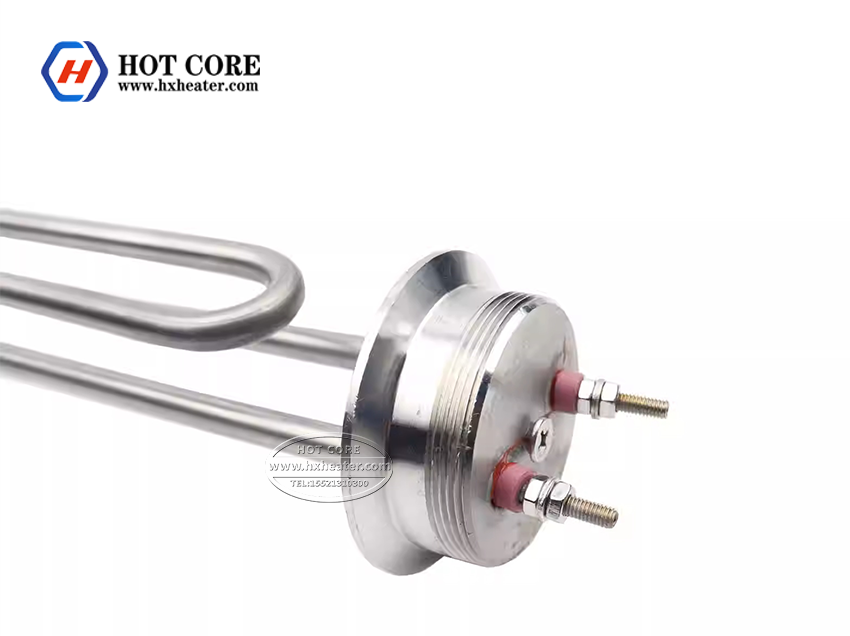

Custom immersion water heater for pool is composed of a high grade stainless steel tube like Stainless steel 304, 316 or Incoloy material, a spiral resistance wire, and crystalline magnesium oxide powder with good thermal conductivity and good insulation. The swimming pool can be heated by the immersion water heater to a suitable temperature. the water heater adopts a black mesh belt furnace with atmosphere protection and undergoes a high temperature nitriding process of 1060℃, which improves the high temperature resistance and corrosion resistance of the element and ensures the service life.
Specification of Immersion Water Heater For Pool:
1. Product voltage: 220V/380V
2. Product power: 3KW/6KW/9KW/12KW
3. Product material: stainless steel/red copper or customized materials
4. Aplicație: solar water heaters, air source heat pump heating, water boilers, water tanks, boilers, etc.
For different voltage and phases, the connection way is also different, there are mainly three ways of connection:
Star-delta connection and Delta connection for 3 phases; Star connection for 2 phases 220V.
Because different sheath materials of immersion heater are used for different application, so how should we choose the right sheath material? the following is the general instruction:
|
Copper Sheath Material
|
Popular used in Water heating, water solutions non-corrosive to copper.
|
|
Stainless Steel Sheath material
|
Stainless steel pipe material is a very good material for immersion heating in oils, molten salt baths, alkaline cleaning solutions, tars and asphalt. Also suitable for clamping to metal surfaces and casting into aluminum. Corrosive liquids, food processing equipment. Stainless steel 304 and stainless steel 316 are the normal material.
|
|
Incoloy Sheath Material
|
Incoloy sheath material are usually used for high temperature heating and anti-corrosive heating, like Air heating, radiant heating, cleaning and degreasing solutions, plating and pickling solutions, corrosive liquids. Usually for high temperature.
|
|
Titanium Material
|
Titanium is a perfect material used in corrosive environment.but only with high cost. if considering about the cost, incoloy material is also a very good choice.
|
Precautions of Immersion Water Heater For Pool:
1. When heating the liquid, it is strictly forbidden to use it dry or dehydrated.
2. Please place the heating tube when the heating tube is not used for a long time
3. In a polite and dry place, sealed and stored in a plastic bag. It is strictly forbidden to place it in a humid environment.
4. When the insulation is low, it can be dried in a 200C oven.
