Hot Runner Brass Nozzle Heater For Moulds
PRODUCT DESCRIPTION：
Brass hot runner coil heater according with different sizes (the sprue bush or nozzle) design and manufacturing, the sleeve is made of high quality stainless steel or copper, inner sleeve, outer there are various winding section (round, square or flat) heating coil, temperature uniformity, thermal inertia characteristics,
can be integrated with the K type, J type or E type control temperature thermocpuple.

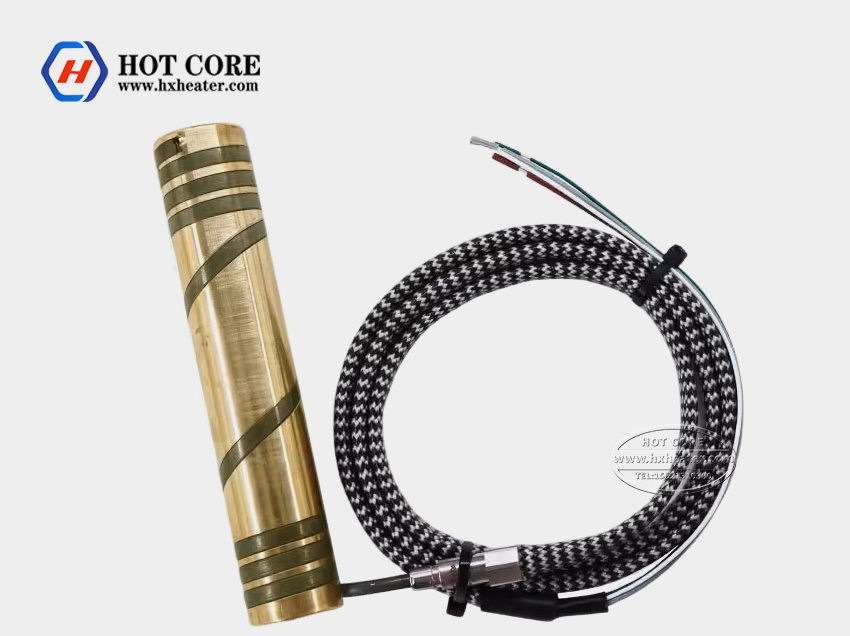

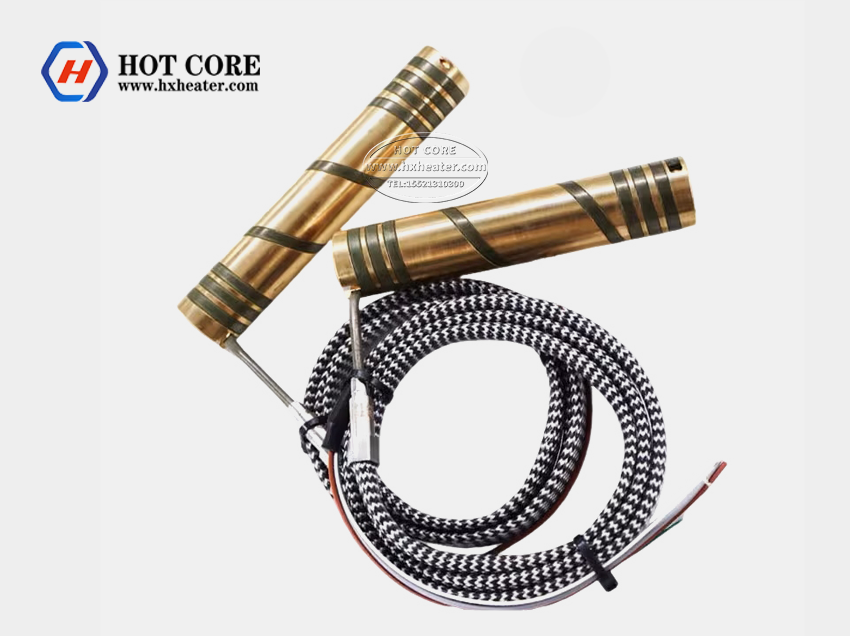

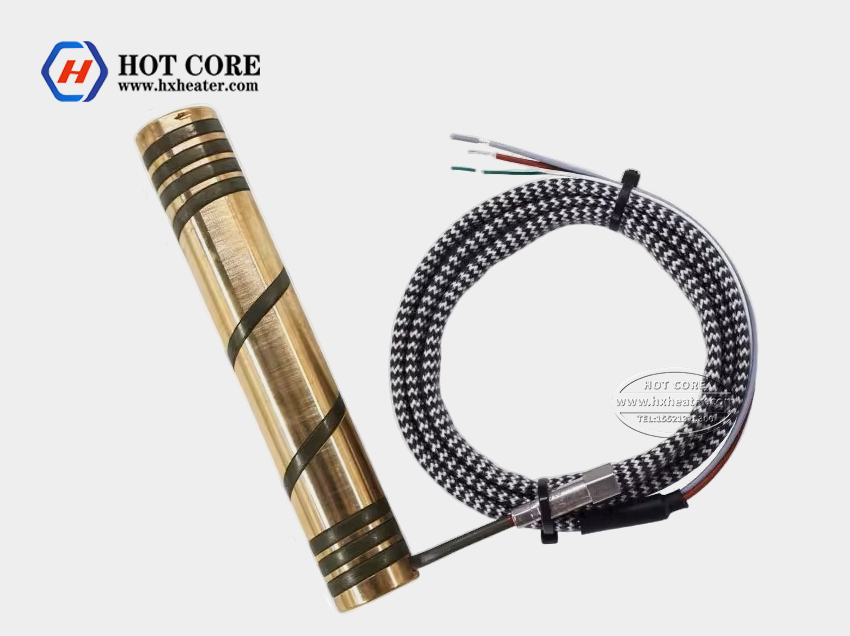

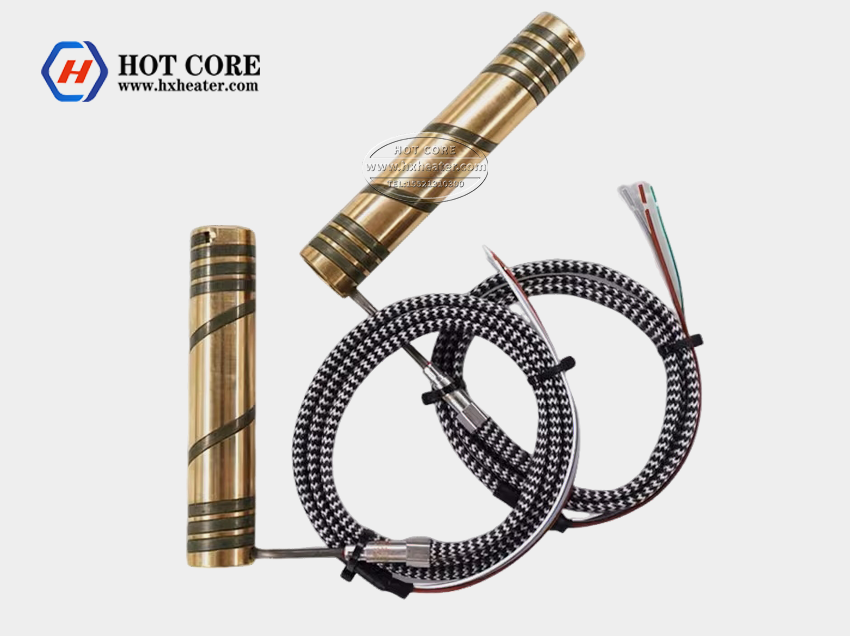

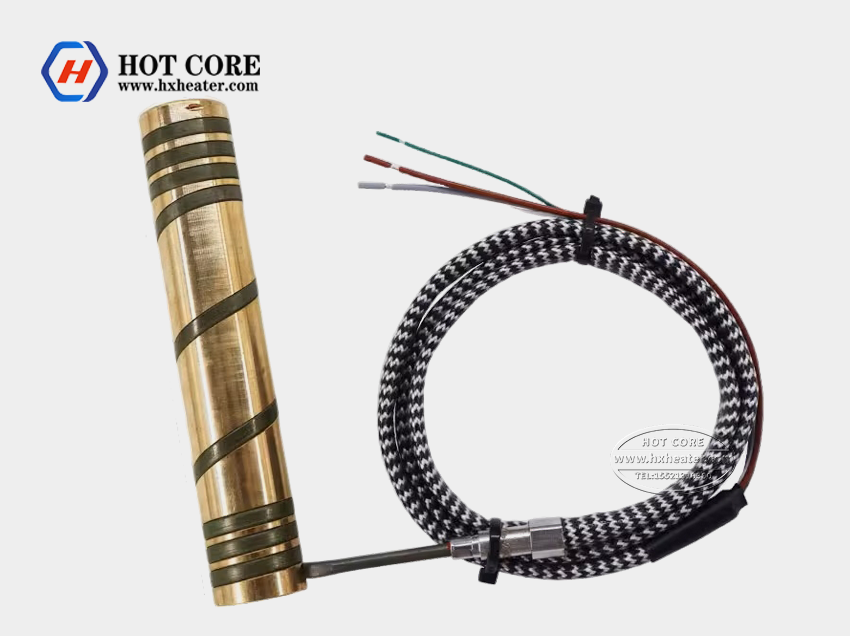

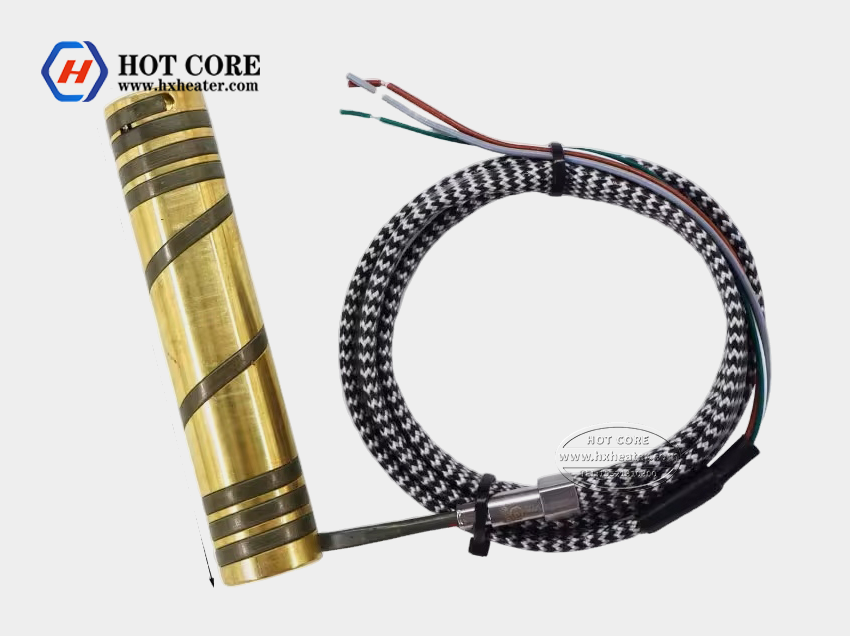

PICTURE DISPLAY
| Minimum diameter Φ | 10milímetros |
| Voltage | 12V- 400V |
| Wattage tolerance | ±10% |
| Material | SS304/SS321/SS310/SS316 (Customized) |
| Sleeve material | Brass |
| Resistance | ±10% |
| Dielectric strength | 600V 800V 1000V |
| Insulation(cold 1000V) | ＞10 MΩ |
| Leakage current(cold) | ＜0.5mA |
| Max power density | 10W/cm² |
| Heating length tolerance | ±0.05mm |
| Maximum working temperature allowed on sheath | Max.750℃ / 1380°F |
| Build-in Thermocouple | Type K/ J/ E |
| Standard supply 1000mm PTEE insulated nickel lead wire | |
| Material of lead wire:Fiberglass, Kevlar, Telfon, Silicone Rubber, Metal braided, SUS armoured. | |
