Straight tube heating element
The following data of 120 volt heating elementm can be customized
1) Voltage: 12V-440V,
2) Power: 200w-3000w,
3) Tubular material: various stainless steel, nickel-cobalt alloy 800/840
4) High-speed test: low temperature conditions of 1500V/S minimum
5) Insulation resistance: 20MΩ minimum
6) Leakage current: below 0.75ma
7) Power tolerance: 5%
8) Diameter range: 1mm to 40mm
9) Heating resistance wire: 0Cr25Al5, Cr20Ni80
10) Diameter: 6.5mm, 8mm, 8.5mm, 9mm, 10mm, 12mm and other different diameter pipes,
11) Length range: 10mm to 6000mm

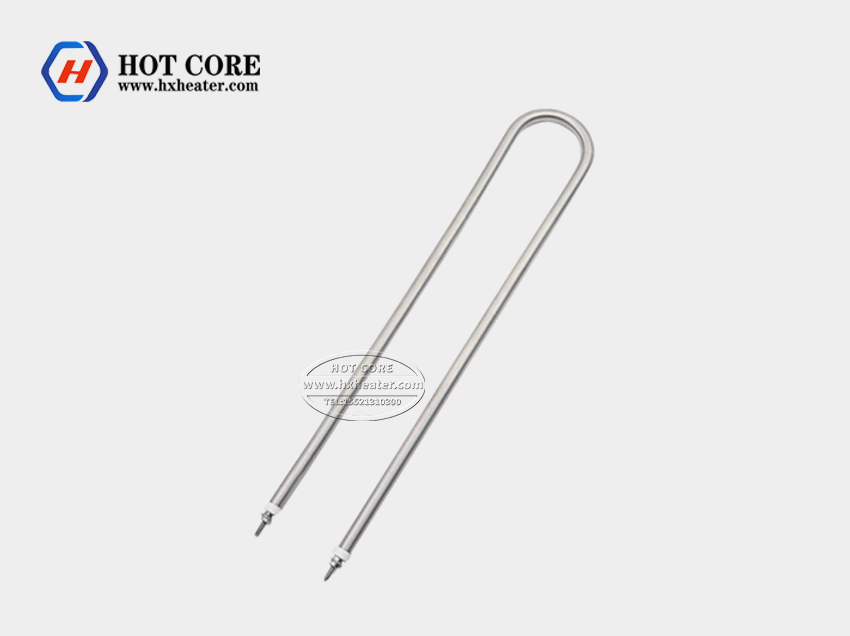

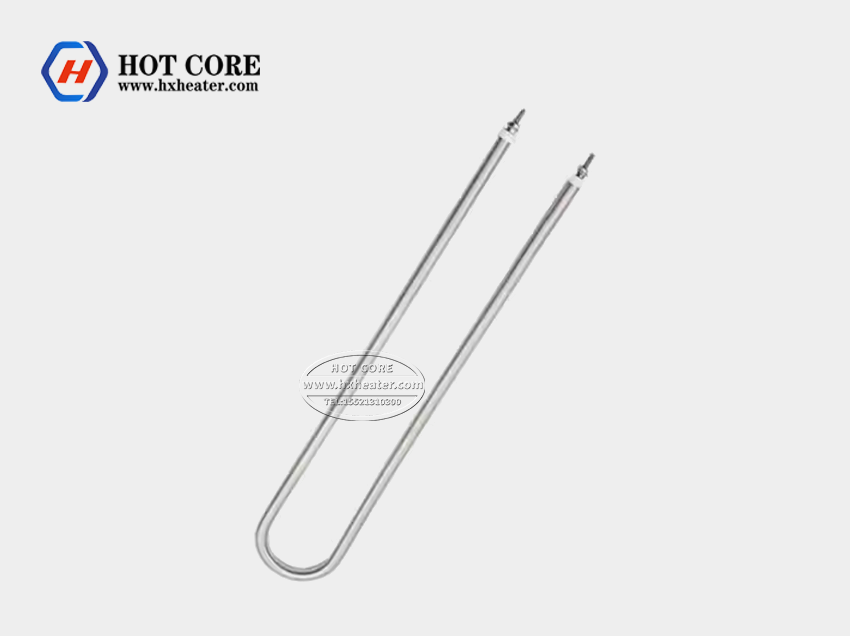

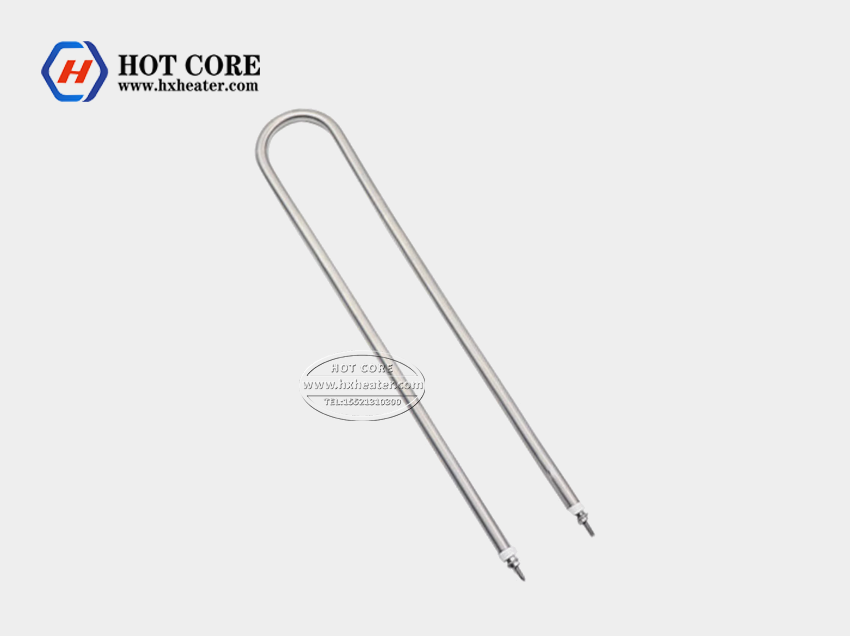

Shape: U type, W type, special shape, immersion heater with flange or screw, explosion-proof heater.
120 volt heating elementm is generally installed in air ducts or other static or flowing air environments, and is widely used in machinery industry, automobile industry, textile industry, food industry, household appliances, etc.
