Intelligent Temperature Control Box
This is an intelligent temperature control box, a type of industrial-grade temperature control equipment, used for precisely controlling the temperature of heating devices such as molds, tin furnaces, and electric heating tubes.
Product Contents

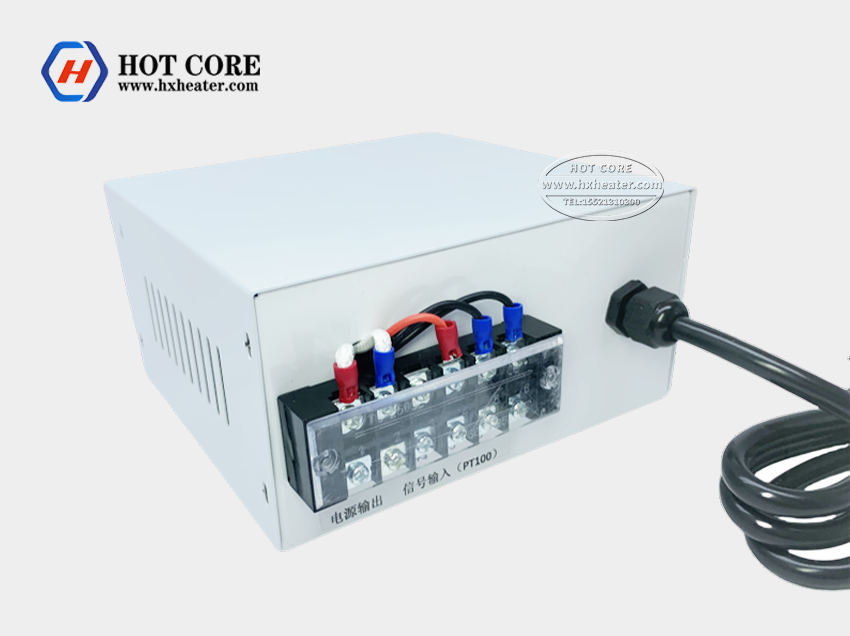

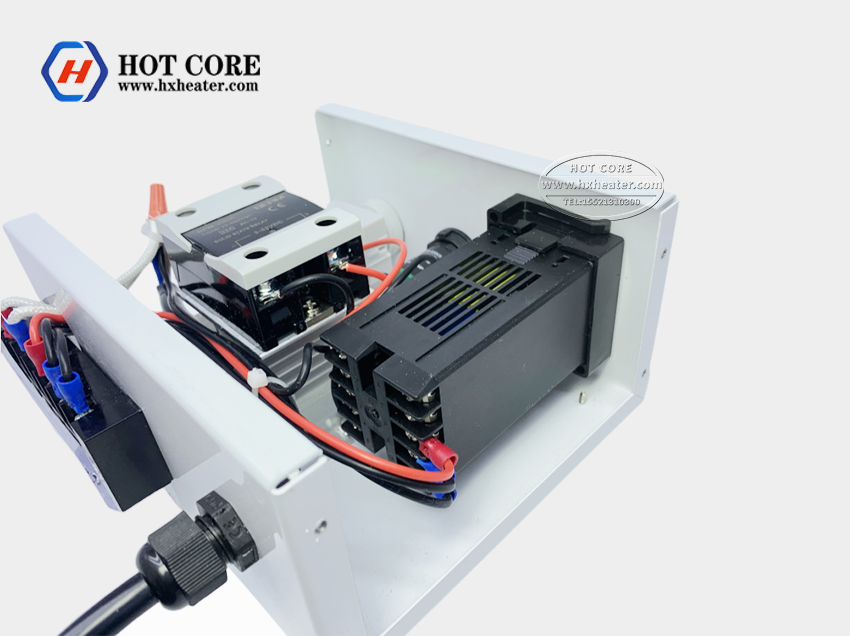

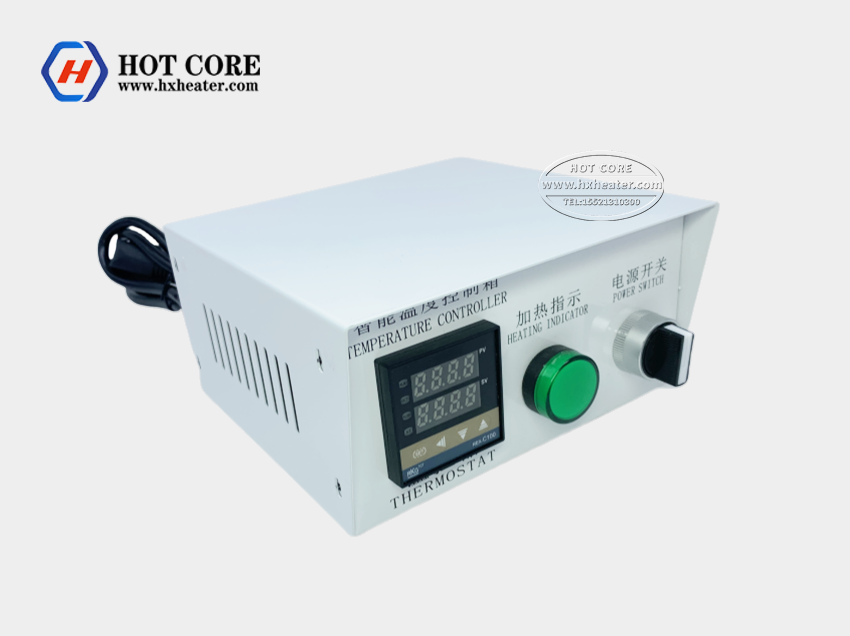

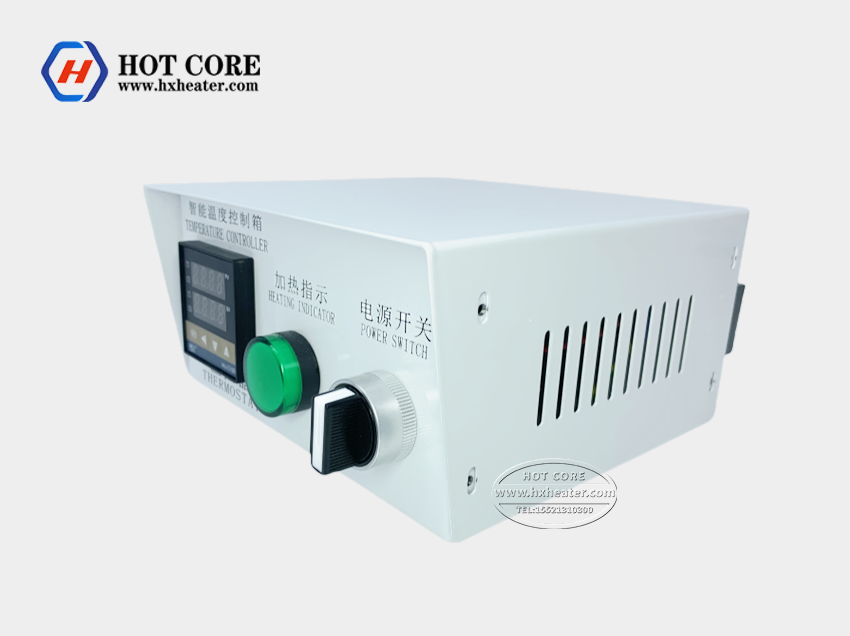

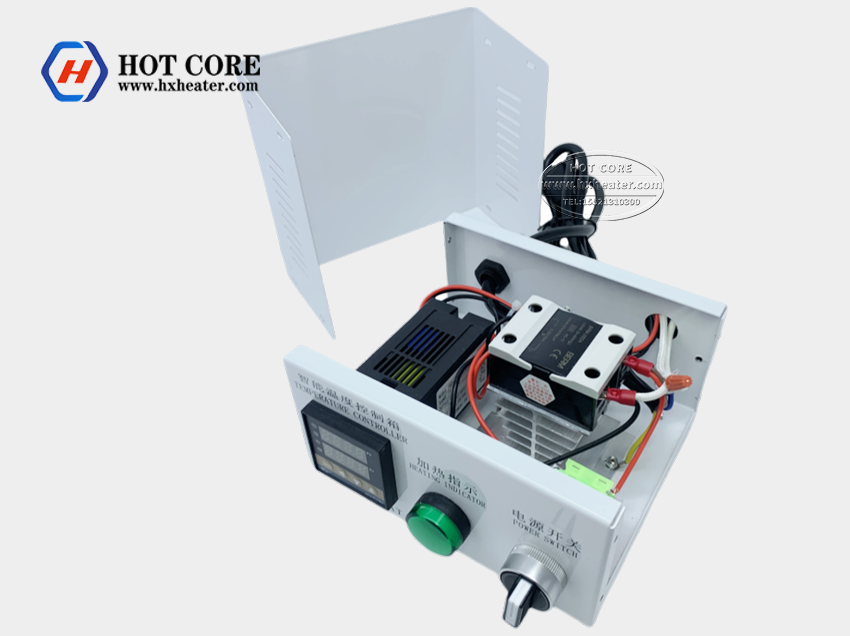

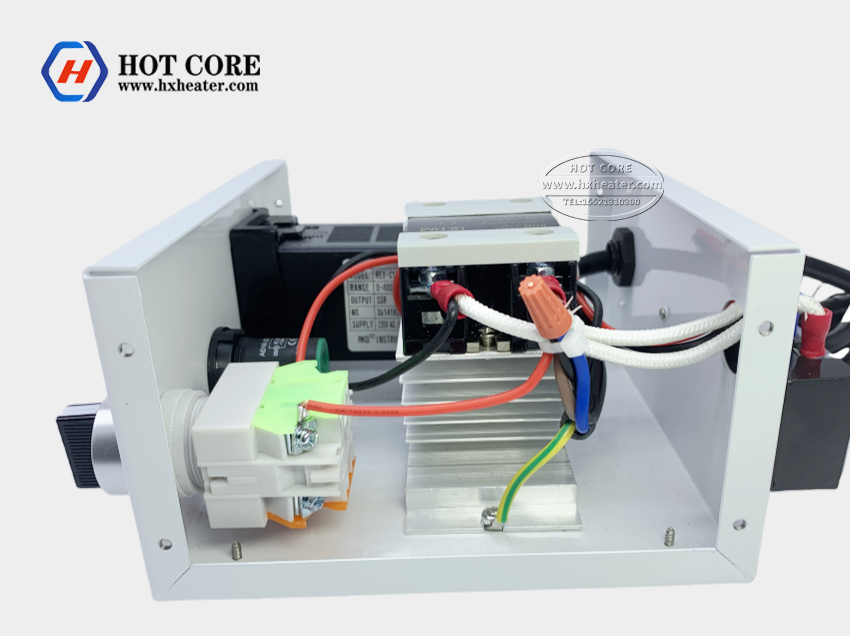

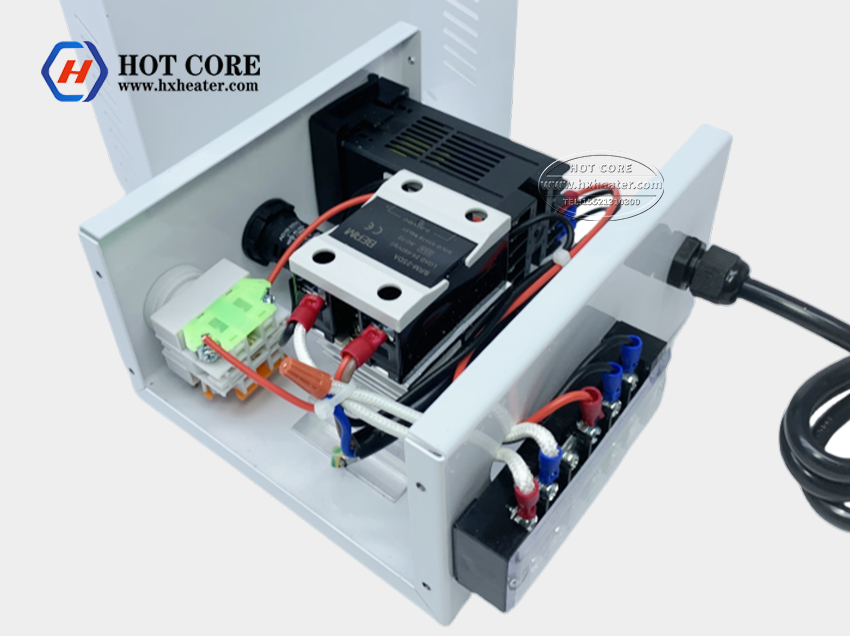

It is a control box that integrates a digital temperature controller, a power switch, and a heating indicator device. The exterior features a digital display (for showing the real-time temperature and set temperature), a green heating indicator button, a power switch knob, and a heat dissipation grille on the side of the box. The overall size is 175mm × 165mm × 85mm.
Characteristics
Precise temperature control: Utilizing digital display temperature control technology, the temperature control accuracy is high with minimal error, meeting the strict temperature requirements of industrial production.
Intuitive operation: Temperature setting and equipment start/stop can be completed through the digital display screen, knobs, and buttons. The operation is simple and easy to understand.
Wide applicability: Suitable for various industrial heating scenarios such as molds, tin furnaces, water tanks, etc. The temperature control range can be adjusted according to different needs.
Good stability: The box structure is compact, and the heat dissipation design is reasonable, enabling long-term stable operation and ensuring production continuity.
Usage
Connection: Connect the control box to the heating equipment that requires temperature control (such as electric heating tubes, tin furnaces), as well as the power supply correctly.
Set the temperature: Enter the desired target temperature through the buttons on the temperature control instrument or the relevant operation interface.
Start the equipment: Turn on the power switch. When the heating indicator light comes on, the equipment begins to control heating according to the set temperature.
Monitoring and adjustment: Observe the real-time temperature displayed on the digital screen. If adjustment is needed, you can set the temperature value again.
Function
Temperature control: Capable of precisely controlling the temperature of the heating equipment, keeping it within the set range.
Status indication: The heating indicator light provides a clear visual display of the heating status of the equipment.
Temperature display: Displays the current temperature and the set temperature in real time, facilitating user monitoring and adjustment.
Attribute
Type: Intelligent Temperature Control Box
Temperature Control Range: Depending on the specific model, it can generally cover the temperature range from room temperature to several hundred degrees (such as 0-300℃, etc.)
Control Method: Digital display intelligent control, some support PID adjustment
Power Supply: AC220V (common specification, specific as per the product)

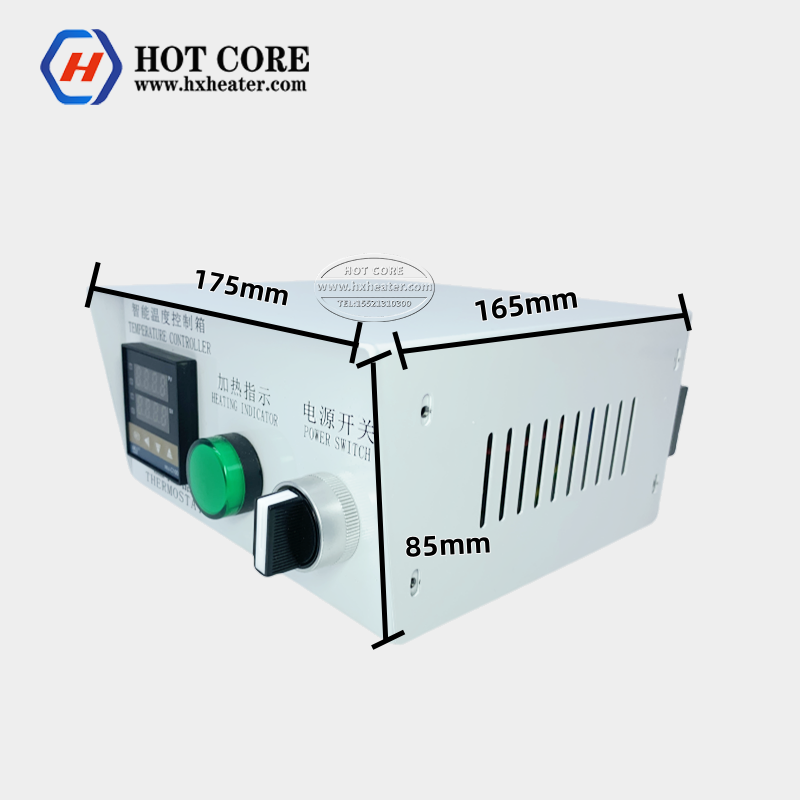

Size: 175mm × 165mm × 85mm (Length × Width × Height)
Application Scenarios: Mold heating, soldering furnace temperature control, water tank heating, etc. in industrial fields
