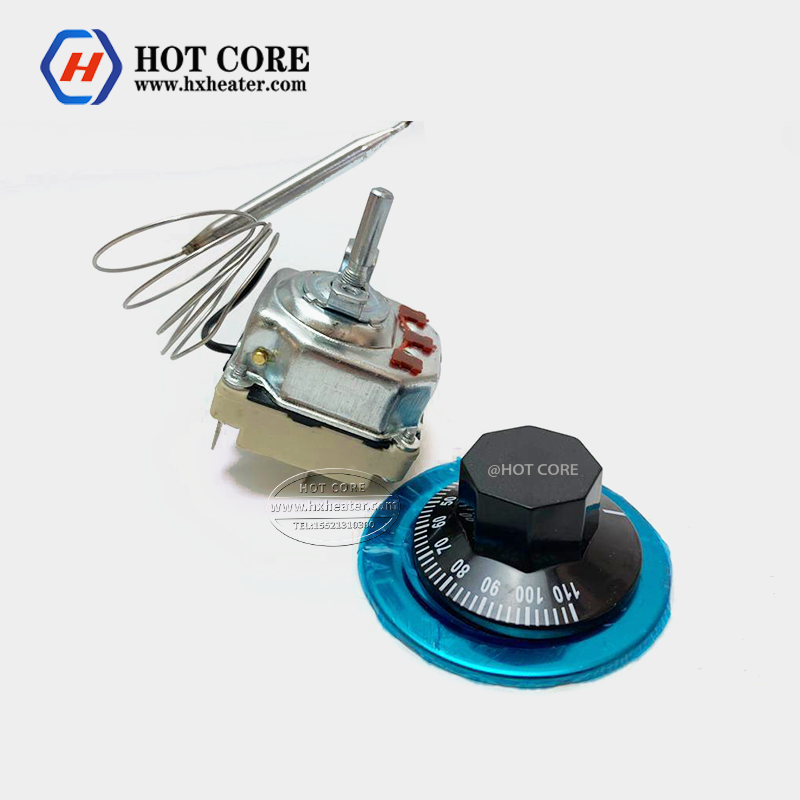

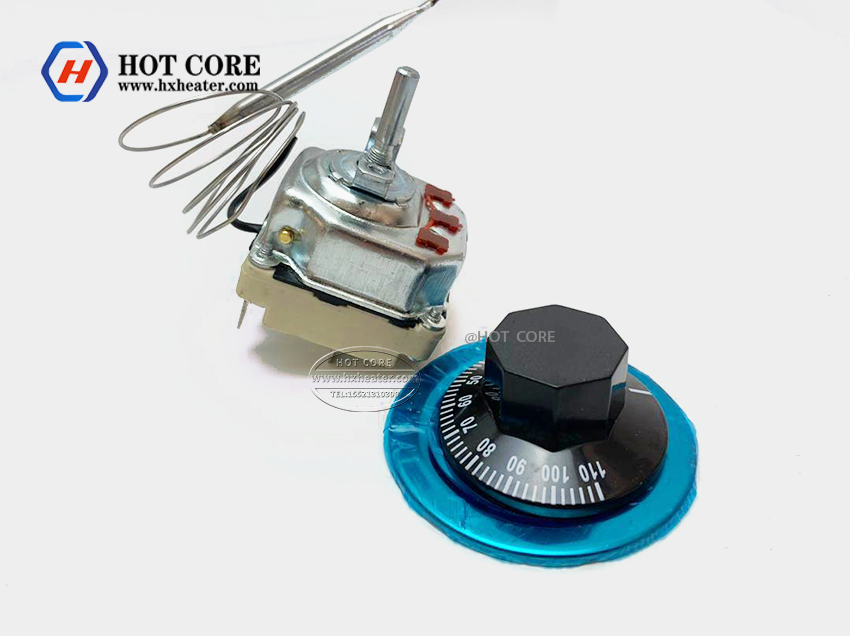

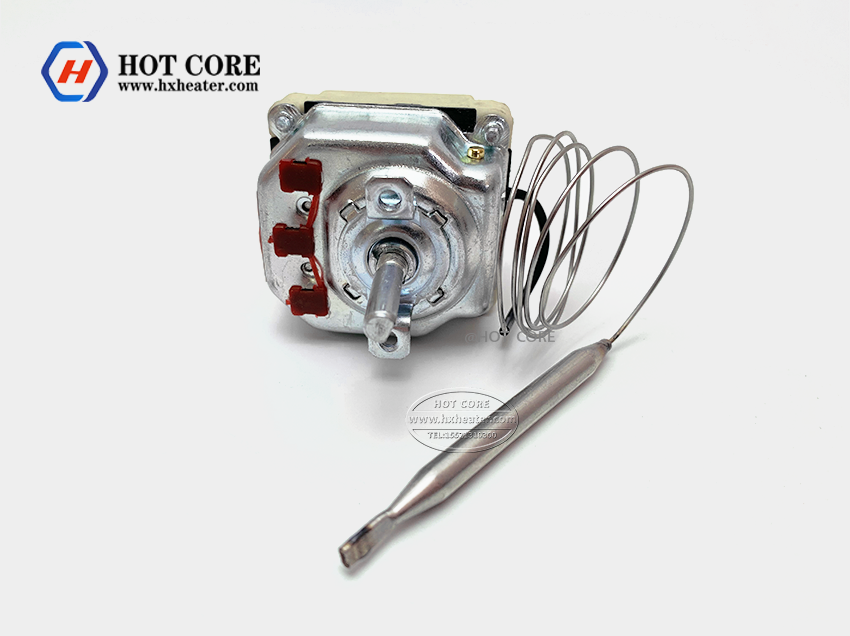

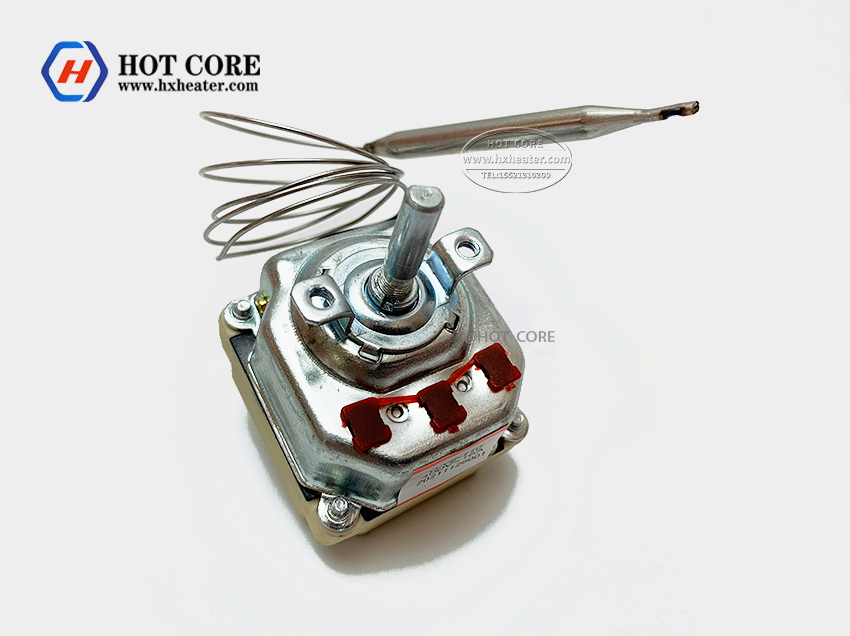

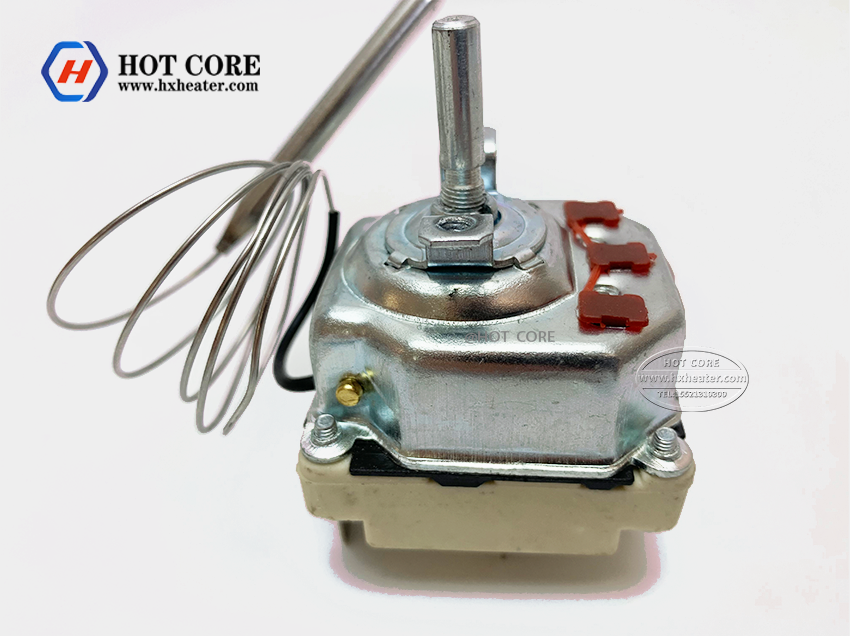

Water Heater Thermostat Switch
The temperature sensing component is composed of a temperature bulb, a tube, a film sheet and an expansion medium. When the bulb is heated, the medium is heated and begins to expand. The expansion of the medium increases the pressure in the closed system of the entire sensing component. The increased pressure is converted into displacement of the diaphragm. This kind of displacement is also called the stroke, which can touch a snap-action switch, which can open or close the circuit. The required positioning displacement variable can be set by adjusting the rotating shaft. A very short displacement can start the thermostat. This is guaranteed by the meticulous manufacturing process.
온도 범위: -35~400°C
Capillary length: 고객 요구 사항에 따라
Temperature bulb size: 고객 요구 사항에 따라
Current and voltage: 16A/250V 50/60Hz
Sensitivity: 10° C
Installation size: 28±0.25mm
Body temperature: T150
Current intensity: 800v/s between two pins
절연저항: ≥100MΩ
Purchase instructions:
1. The size of the shaft and its initial rotation angle should be set according to the needs of the customer
2. The disconnection temperature and its characteristic curve shall be determined by the customer’s finished product and temperature control matching test
3. There are various terminal size specifications and directions, and the length of capillary tube and sheath tube can be selected at will by customers
4. In order to facilitate customer installation, temperature sensing bulbs of different diameters can also be welded.
