제품 설명
Thermocouple wire is a cable made of two different metals called positive and negative and is used to measure temperature. This wire is used in thermocouple sensors and very important devices used to measure temperature in various environments. Thermocouple grade wire is used in that it is vital for engineers to understand the properties and differences of both wires. Usually it comes in different types like K-type, J-type, T-type, E-type, L-type, N-type, R-type. It also comes in thermocouple extension wire and thermocouple compensating wire.
Flexible thermocouple wire (1024° C)
Product usage: these cables are suitable for a range of applications, including replacement bead-based thermocouples, thermocouples for oven measurements, heat treatment or forging, cast steel or titanium, thermocouples for coke ovens, soaking pits that require greater flexibility than mineral insulation products.Designed for extreme temperature applications.
Solid or twisted thermocouple wires
Melt TFE tape insulation
Parallel to the conductor
Flame retardant extrusion fluoropolymer TFE sheath
Technical:
| Continuous temperature rating: | 260° C |
| The minimum bending radius: | 3 x Ø cable insulation |
| Limits of Error: | Conforms to ASTM E230, IEC 584, and ANSI MC 96.1 |
| Color code: | in accordance with ANSI, IEC, JIS standards |
Properties:
Thermocouple wire designed for extended high temperature service of (1024° C) with intermittent use of (1432° C)
좋은 유연성.
Replace beaded thermocouples.
Thermocouple wire excellent thermocouple probe for various high temperature applications.
Product specifications:

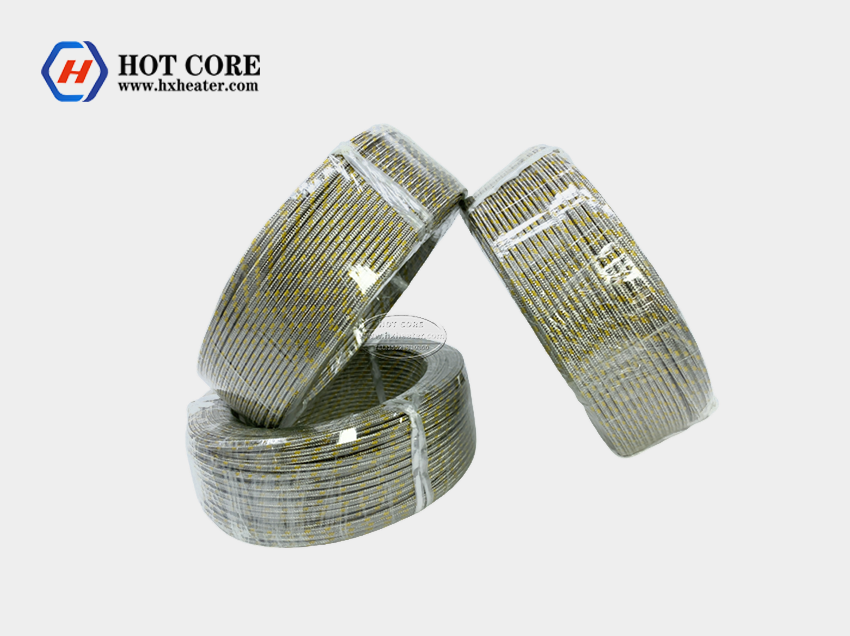

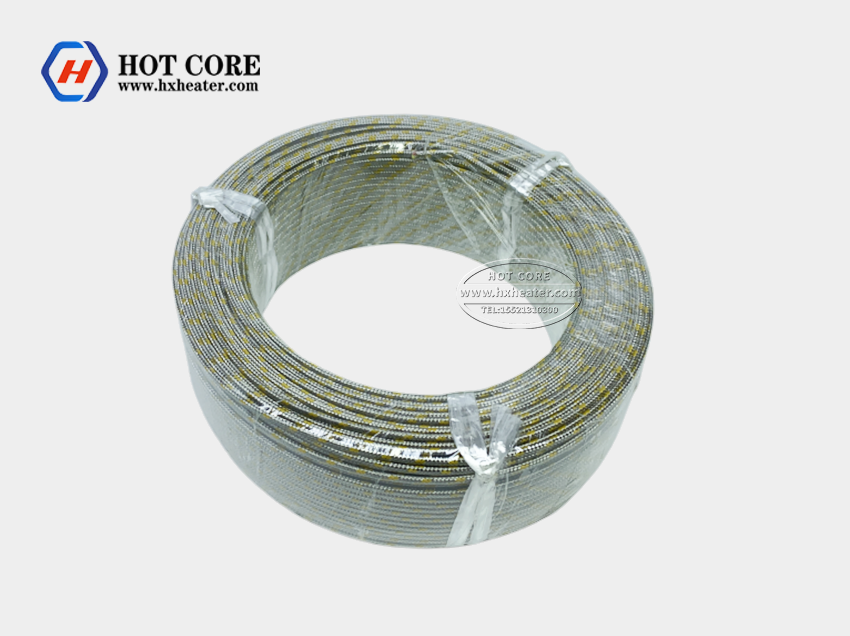

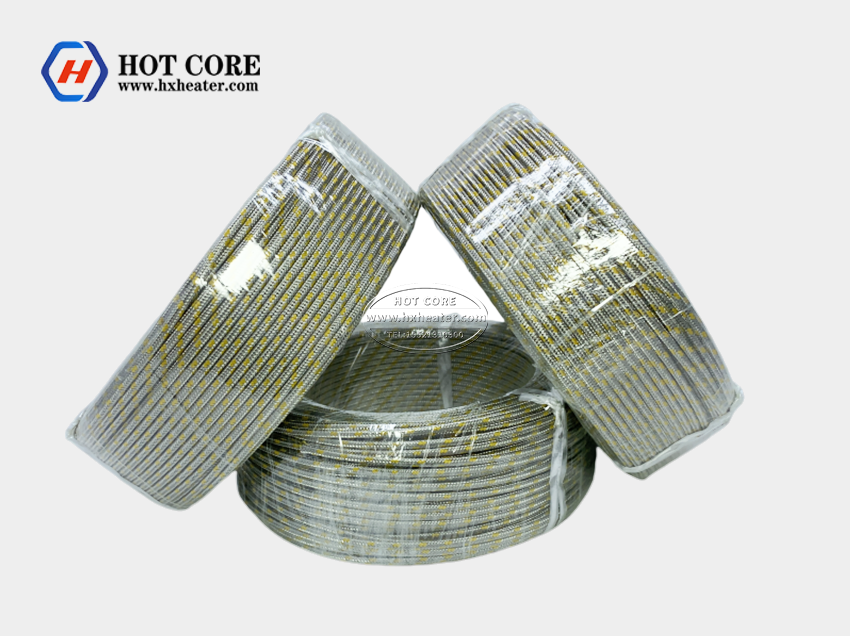

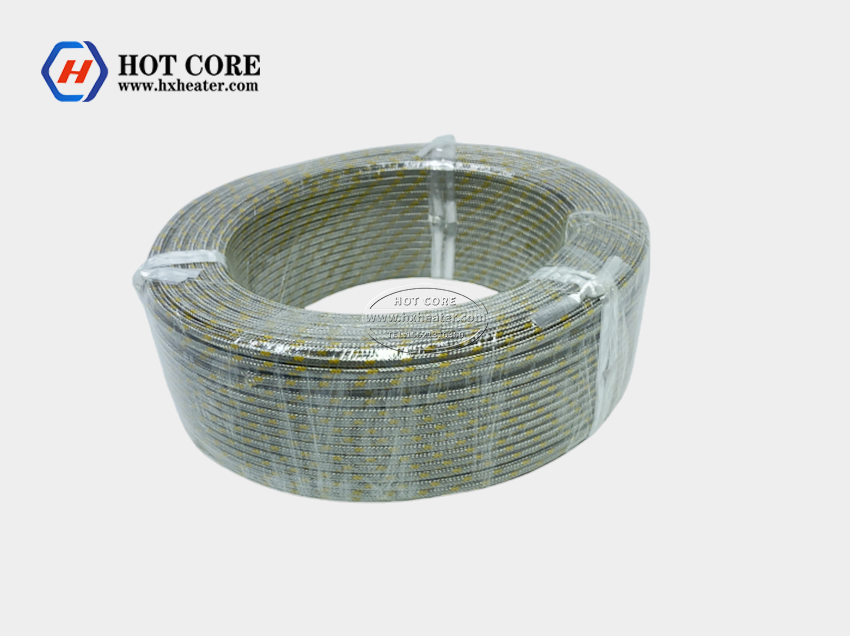

Flexible K thermocouple wire
Chromel/Alumel flexible thermocouple line type K
