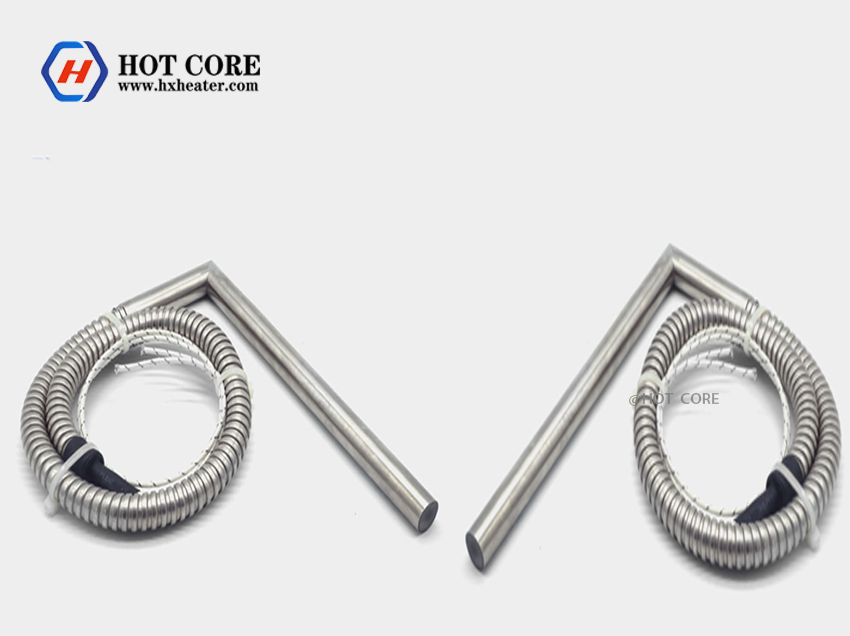

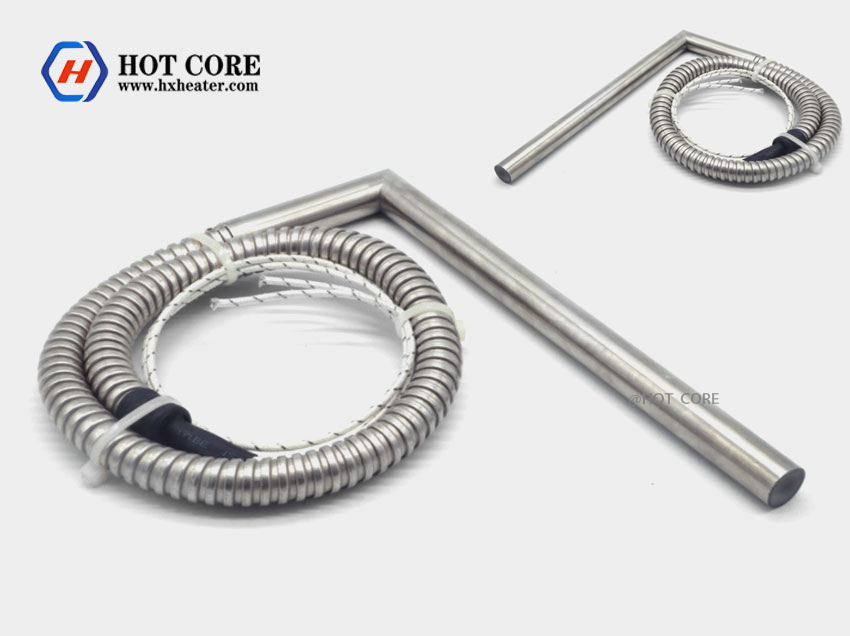

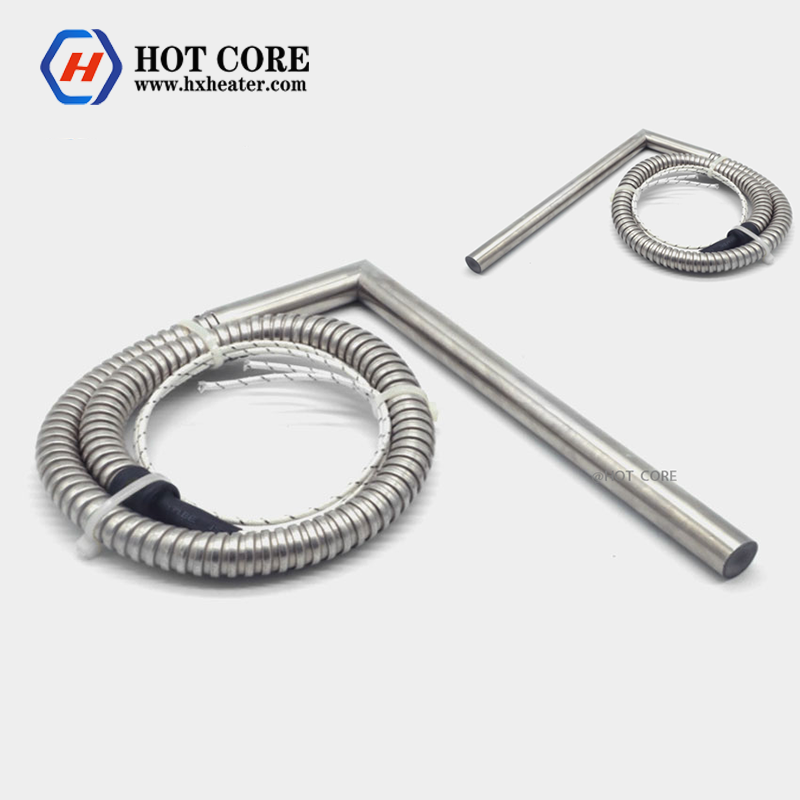

L right angle cartridge heater
특징
빠른 가열, working temperature ≤ 450 ° C.
용도: plastic molding mold, C02 decompression assembly, cigarette machine, quick sealing machine, pharmaceutical machinery, 등.
전압: 36-250V Power: 8-20W/cm2 (
Recommended specifications: 6<20×40<100
In southern China, the electric heating pipes for such a outgoing mold are called single-head electric heating pipes, which are very similar. It is also called a cartridge heater in foreign countries. It is also called a shape.The insulation compressive strength component should be kept for 1 min under the specified test conditions and test voltage without flashover and breakdown.
How to determine the diameter of L right angle cartridge heater？
The choice of the size of the mounting hole of the mold heating tube is closely related to the heat density of the electric heating tube. The temperature generated by different heat densities is different, and the degree of expansion of the sheath tube is also very different. 그러므로, it is necessary to combine the relationship between the two to make a suitable one. Install the hole size and then determine the diameter of the Cartridge heater.
