제품 설명

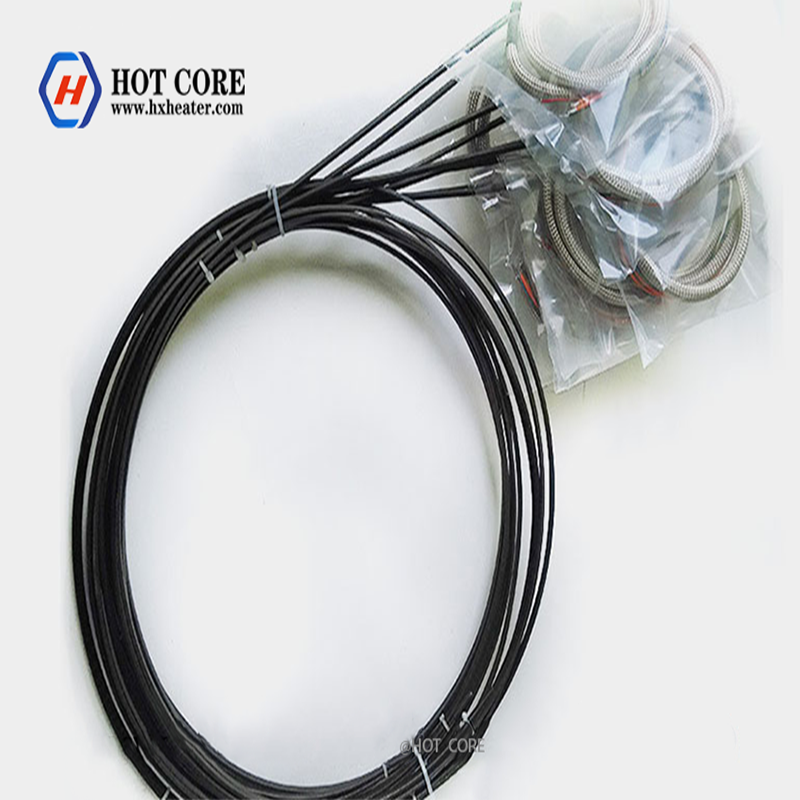

Hot runner heater made by Hot Core Heater industry with thermocouple is also available based on the application requirements. Hot Runner Coil Heater made by Hot Core Heater industry have advantages such as fast speed of heating, 높은 열 이용률, 심지어 가열, 고온 저항, anti-oxidation, excellent energy saving, high resistance of high insulation rate, convenient insulation, high quality performance and long service life. Hot runner heaters built in thermocouple are also available and all shapes and size of Hot runner heater can be custom made by Hot Core Heater industry.
When highly focused heat is required in the Hot runner system, and a very low profile is imperative, hot runner coil heaters are the best cost-effective option. Coil heaters may be used to concentrate the heat on specific segments, or the coil may be spread to equalize the temperature across the object to be heated.
명세서:
Sheath Material Cr Ni-Steel
Insulation Material High Grade MgO
Resistance Wire Ni Cr 80-20 철사
Maximum Sheath Temperature Up to 700°C
voltage As requested and up to 800V A/C
power Make as request and up to > 5 M W
열전대 J형 (기준) 또는 K 유형
Unheated Length 35mm (기준)
특징:
1. 100% surface contact
2. High Temperature connection
3. Integrated Thermocouple
4. Proportioned profile heating
Cross Section for Coil Heater Heating Element with Thermocouple
1. 3.0 엑스 3.0, 3.30 엑스 3.30, 4.50 엑스 4.50 mm
2. 4.20 엑스 2.20, 4.50 엑스 2.50, 3.20 엑스 1.80, 1.30 엑스 2.30 mm
3. 3.30, 1.80, 1.60, 1.35 mm
4. Any other cross sections can be manufactures and supplied on request.
Applications of Hot Runner Heater with Thermocouple:
* Injection moulding machine nozzle
* 핫 러너 노즐 & 부싱.
* Packaging machineries
* Hot runner Injection moulds.
* 주입 & 블로우 몰딩 머신 노즐.
* 애완 동물 사전 형식 & 얇은 벽 용기 금형
* 핫 러너 매니 폴드.
