카트리지 히터의 하이라이트
제품 세부정보

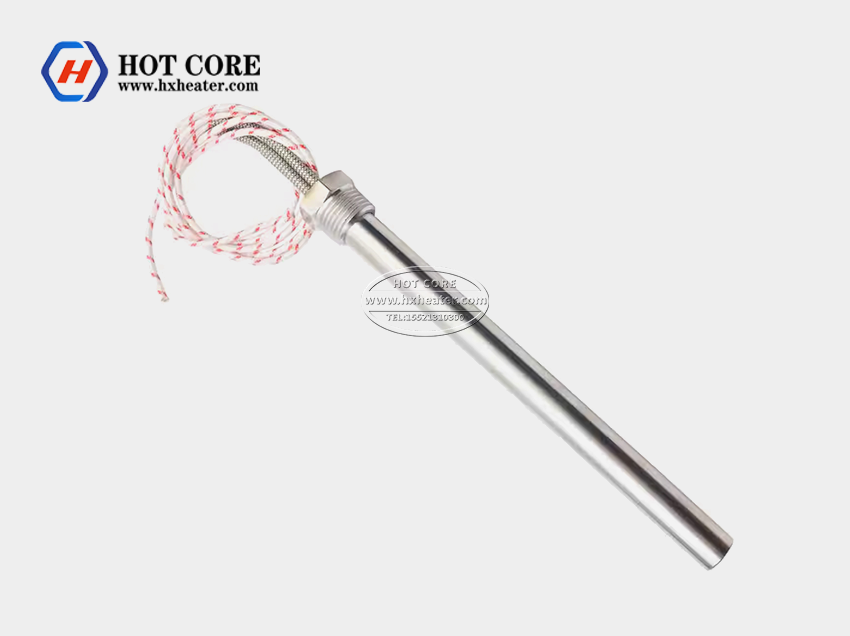

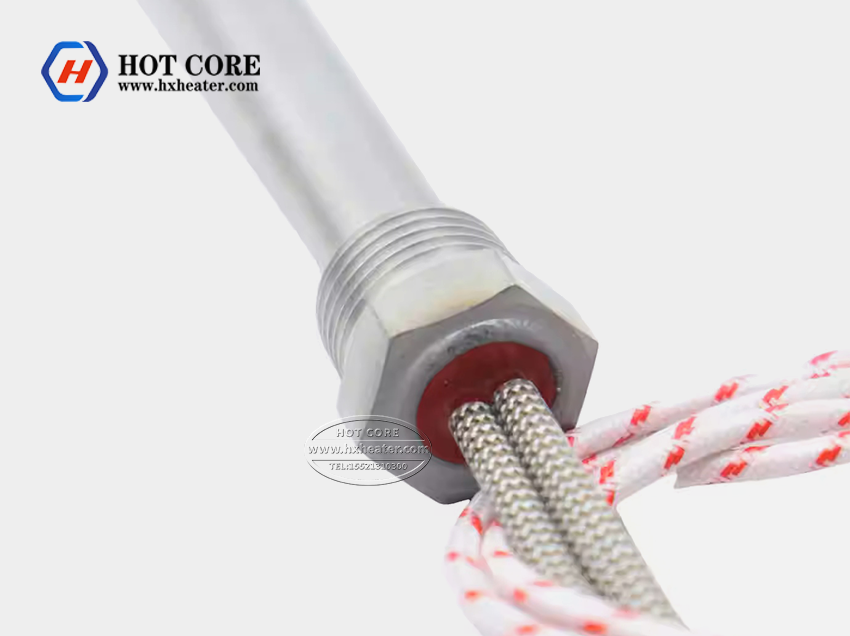

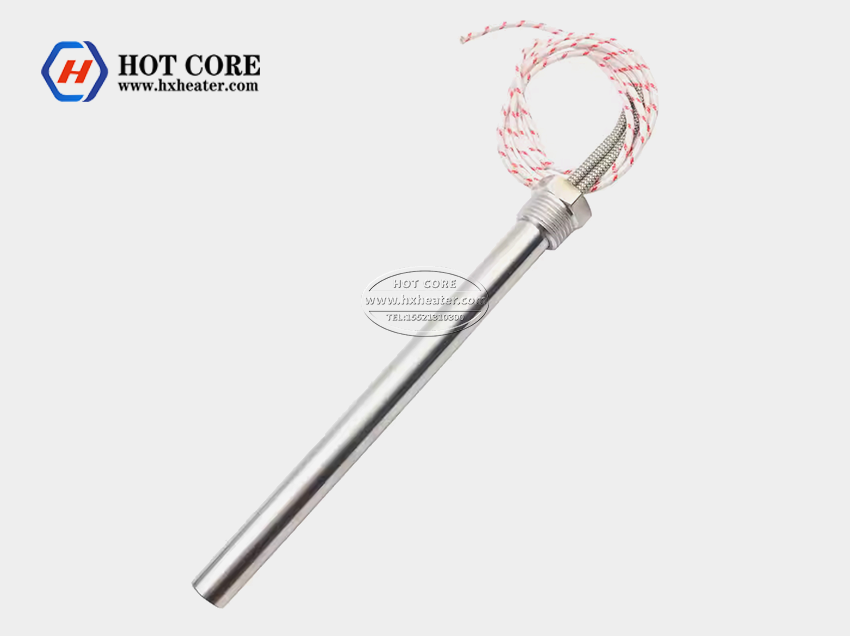

Cartridge Heaters are able to withstand tough industrial usage due to their special construction.
The heaters can achieve a watt density up to 200W/in2.
The nickel chrome heat wires are wound onto a ceramic core which is positioned inside the cylindrical metal sheath.
The heating coils are evenly spaced on the ceramic core to provide a uniform heat transfer to the sheath surface.
The power is controlled by the number of the heat coils.
The magnesium oxide powder are used as the insulating medium to avoid a short circuit.
The metal sheath is filled with the MgO powder.
The MgO powder is highly compacted through a special cold form process.
It makes the MgO powder very efficient to transfer heat inside the metal sheath.
cartridge heater are manufactured using the finest material and constructed with tight quality controls.
heaters provide superior heating performance, uniform watt densities and a long service life. They are also able to fitted with various thermocouples and sensors to your requirements.
특징
J-type and K-type thermocouple available
설치가 용이함
Highly efficient
High watt densities
Various metal densities
Resistant to oxidation and corrosion
Fast heat up
Low mass
Swaged construction
Shock and vibration resistant
애플리케이션
반도체 챔버 가열
Humidity control
Seals bar
Hot isothermal forming
Melting & 용접
Vulcanization
Plastic processing
Liquid immersion
Injection molding
Platens
Labeling
Technical Data
Working temperature: up to 1600F (880기음)
Watt densities: up to 200W/in2
Dielectric strength: 1500다섯
Leakage current: < 0.5엄마
Length tolerance:<1%
격리: >15MΩ
Maximum Voltage: up to 480V
Heating of Mould Tools, Tooling, Platens, 포장 기계, Heat Sealing Equipment, Plastic Process Machinery, Food Process Machinery, Catering, Printing, Hot Foil Printing, Shoe manufacturing Machinery, Laboratory / Test Equipment, Vacuum Pumps, and many more.
We manufacture Cartridge Heaters engineered to satisfy the full spectrum of Cartridge Heater
OUR ADVANTAGES：
1.Minimum order: 3pcs
2.Delivery time : in stock 1-2days ,out stock 3-7days
3.More than 100 different sizes stock
4.Products are divided into two grades
A grades：use the The world’s top material Best quality，Meet or exceed the same quality in Europe and America，Only 40% of the price of similar products in Europe and America To meet customer demand for high quality.
B grades：use the The china top material，Best quality in china ，Meet the standard for quality and price requirements of customers
5.Provide OEM service.
6.Quality Assurance：Under normal conditions consistent with the design range ，
A grades 365days
B grades 180days
핫 태그: highlights of cartridge heater manufacturers, 공급업체, 공장
