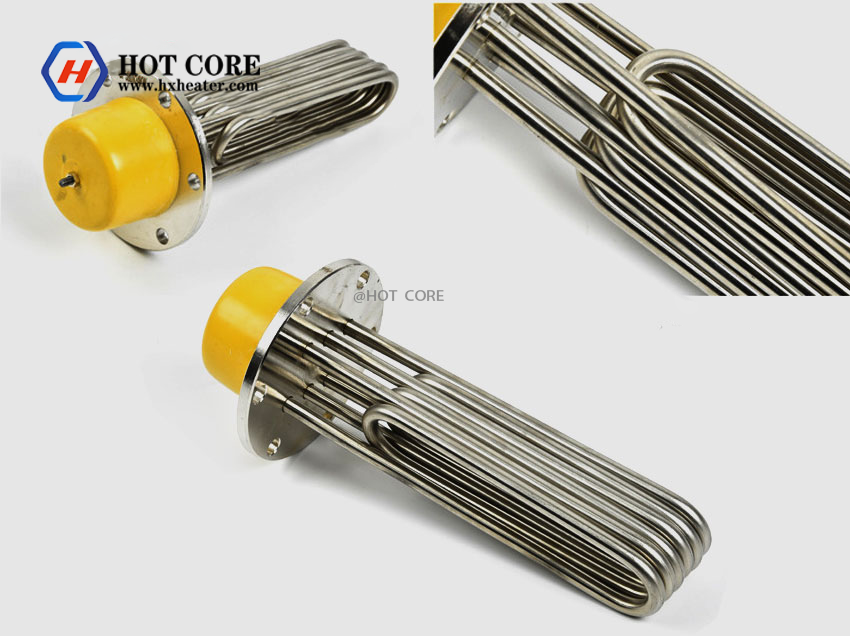

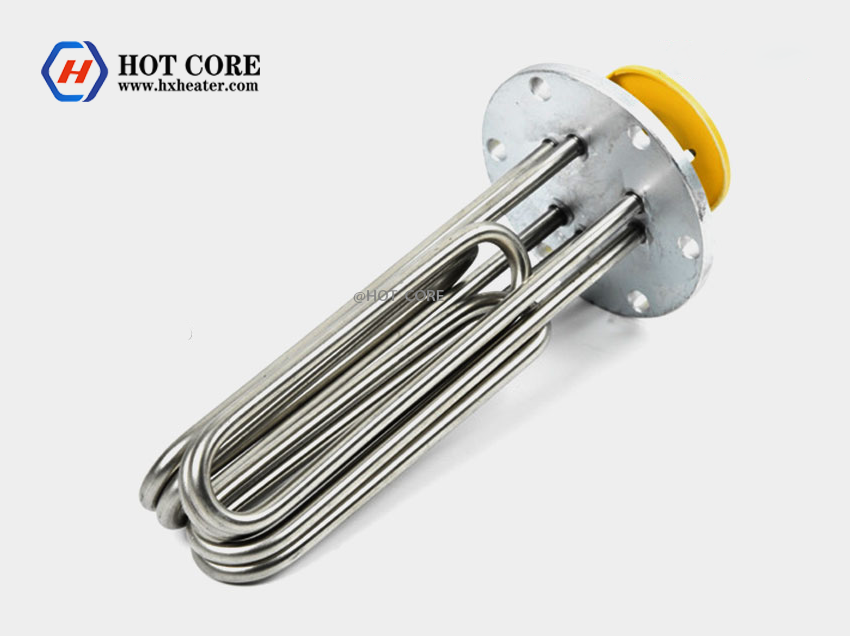

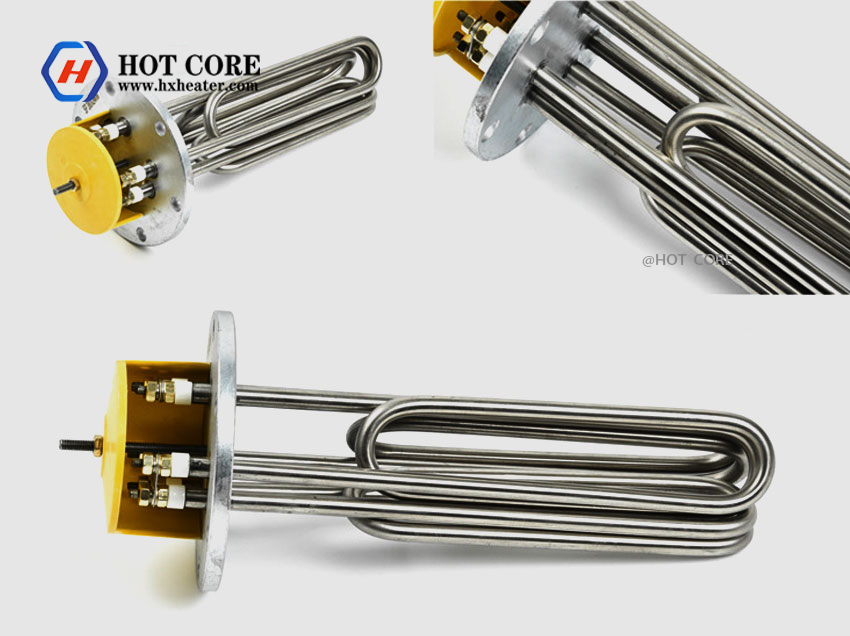

Heating tube of the steamer

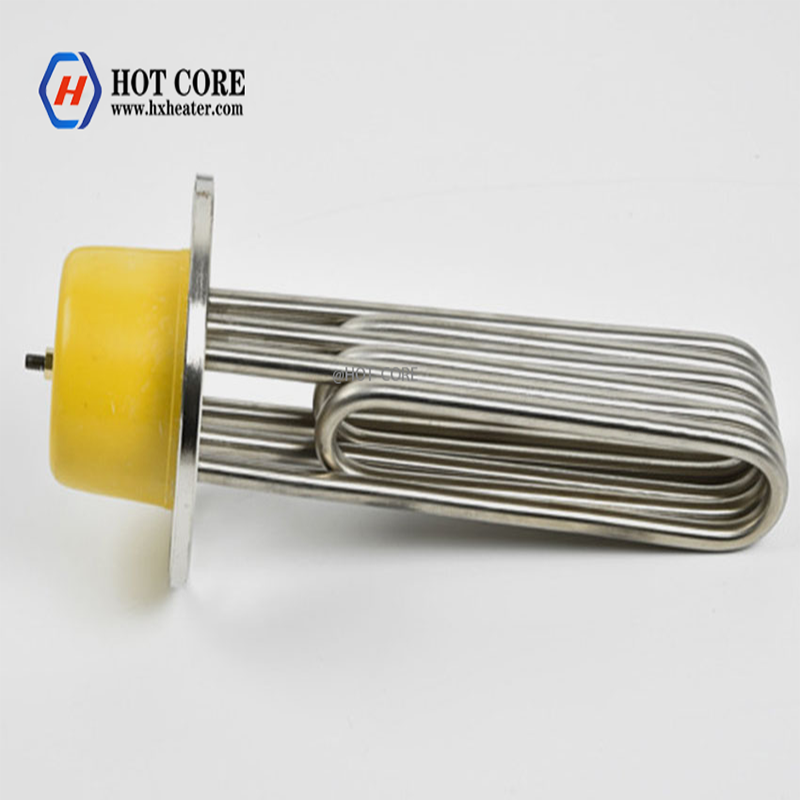

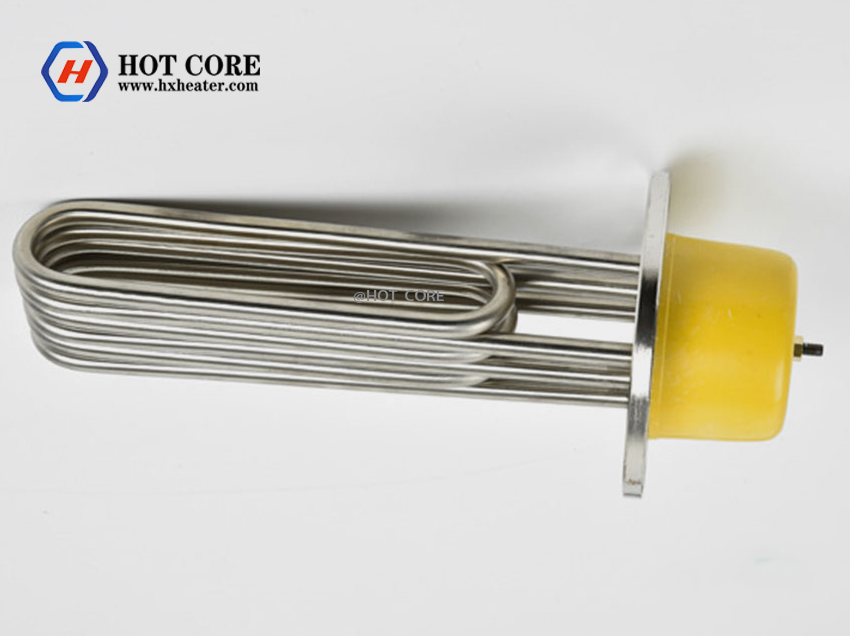

Electric immersion heater consists of metal tube, spiral resistance wire and crystal magnesium oxide powder with good thermal conductivity and insulation.
특징:
1. Pipe diameter is 8mm, 10mm, 12mm, 14mm, 16mm, 18mm and 20mm
2. Center distance.(generally, the pipe diameter should be at least 8mm, the center distance should be at least 30mm, the pipe diameter 10mm, the center distance should be at least 40mm, the pipe diameter 12mm, the center distance should be at least 50mm, the pipe diameter 16mm, the center distance should be at least 70mm, the pipe diameter 20mm, the center distance should be at least 90mm, the above data are for reference only.)
3. Appearance material selection: the main materials are 10# 탄소강, SUS304, SUS321, SUS316L, stainless steel coating (scale prevention treatment), SUS310S(commonly known as: 2520), titanium tube, 등.
이름: steam electrical heating tube/electric boiler electrical heating tube
재료: 202 stainless steel tube /304 stainless steel tube (seamless tube)
명세서:
220다섯, 380V 9KW/12KW/14KW/18KW
파이프 직경: 10mm flange diameter: 140mm (철)
Flange thickness: 10MM(plus or minus a little) installation hole diameter: 120mm
Friendly tip: the effective heating zone of water heating tube must be completely immersed in liquid. It is strictly forbidden to empty heat. If there is scale or carbon on the surface of the tube, it should be cleaned and reused in time to avoid affecting heat dissipation and shortening service life.
