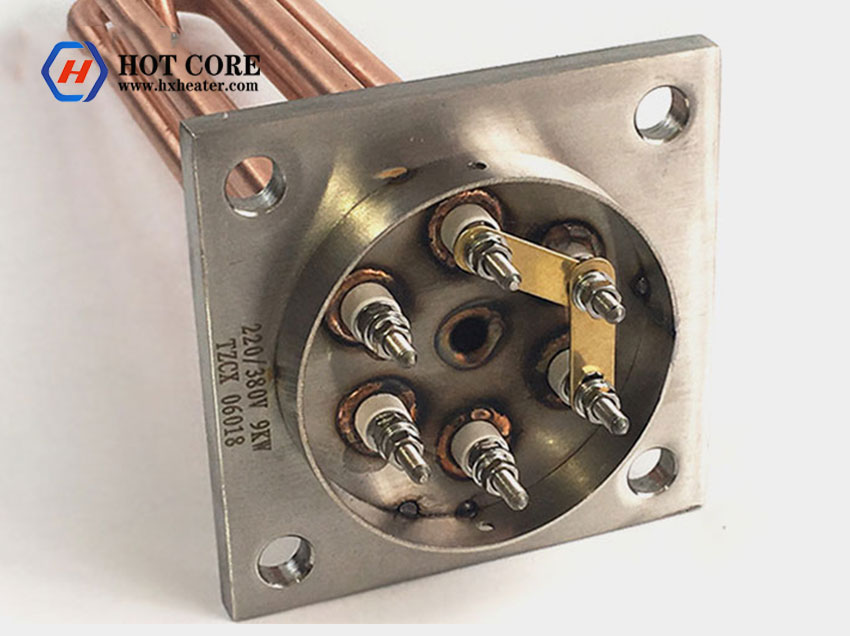

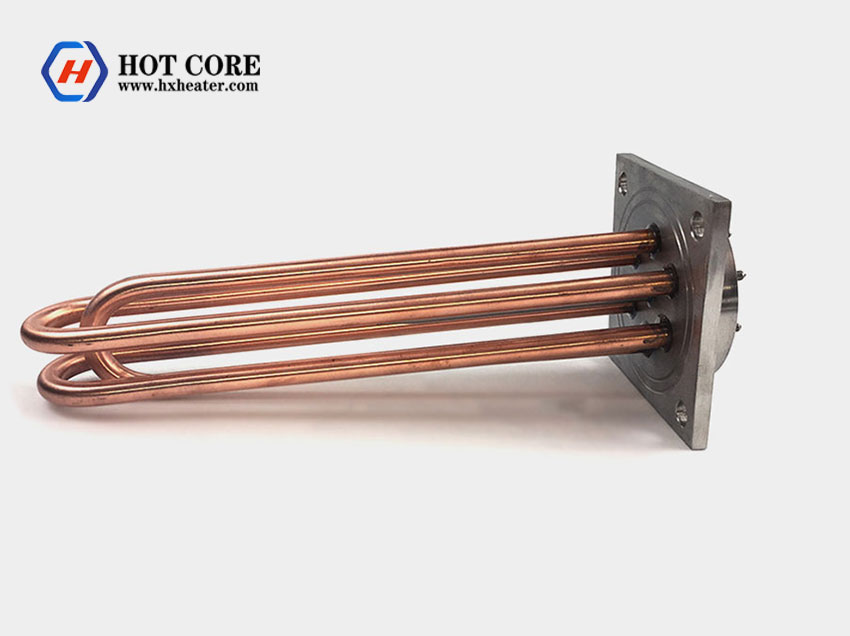

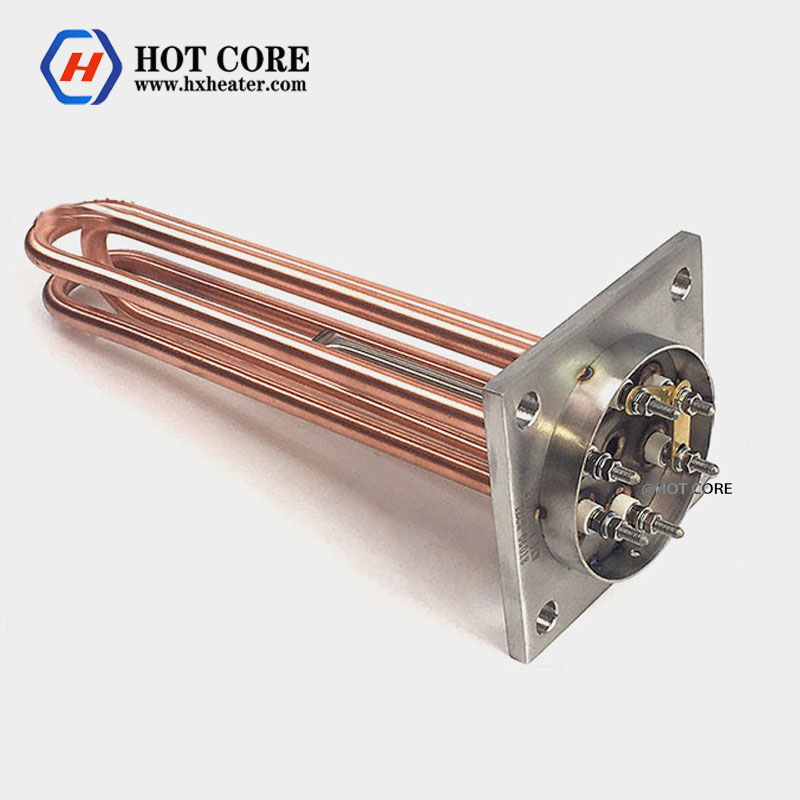

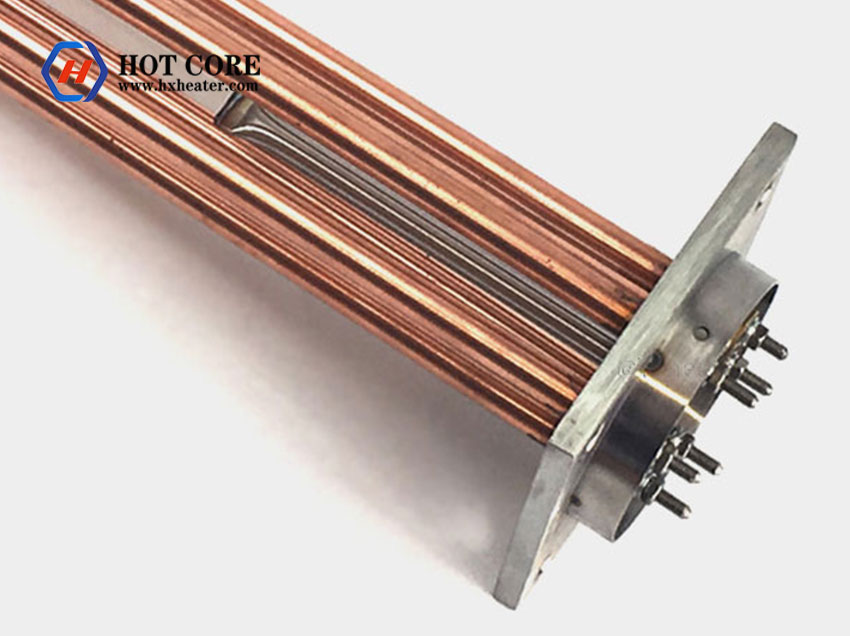

Use of heating flange
Heating flange is mostly used in electric water boilers, electric boilers, solar systems, solar water tanks, chemical pools, bathing pools, swimming pools and other places that need heating. The connection method can adopt flange type or threaded end face seal.
Applications of heating flange
The heating flange can be widely used for heating water, oil, air, nitrate solution, acid solution, alkali solution and low melting point metals (알류미늄, zinc, tin, babbitt alloy).
Pipe electric heating pipe: mainly used to install in the blowing pipe of the air heating system for blowing hot air. It can also be used as heating elements for various ovens and electric furnaces. Nitrate solution, oil, 물 가열: the curved tubular electric heating tube is welded to the flange. Used for heating in open and closed solution tanks and circulation systems.
Basic parameters of heating flange
Reference voltage: 220V-380V
Heating pipe diameter: Φ8.5—Φ22
Heating pipe material: 스테인레스 스틸, 아니요. 10 steel, 구리
주요 힘: 3KW—150KW
작동 압력: 1.0MPA-3.0MPA
플랜지 및 스레드 헤드의 재료: 스테인레스 스틸, 탄소강, 구리.
Customizing instructions for heating flange
The common specifications of flange electric heating pipes are 1.5KW, 3KW, 6KW, 9KW, 12KW, 15KW, 30KW, 등.
This product can be customized according to their own needs, providing drawings, voltage, power, and dimensions.
Conventional products are generally available in stock, specifications products can be produced according to requirements, and the production cycle depends on the quantity.
