제품 세부정보

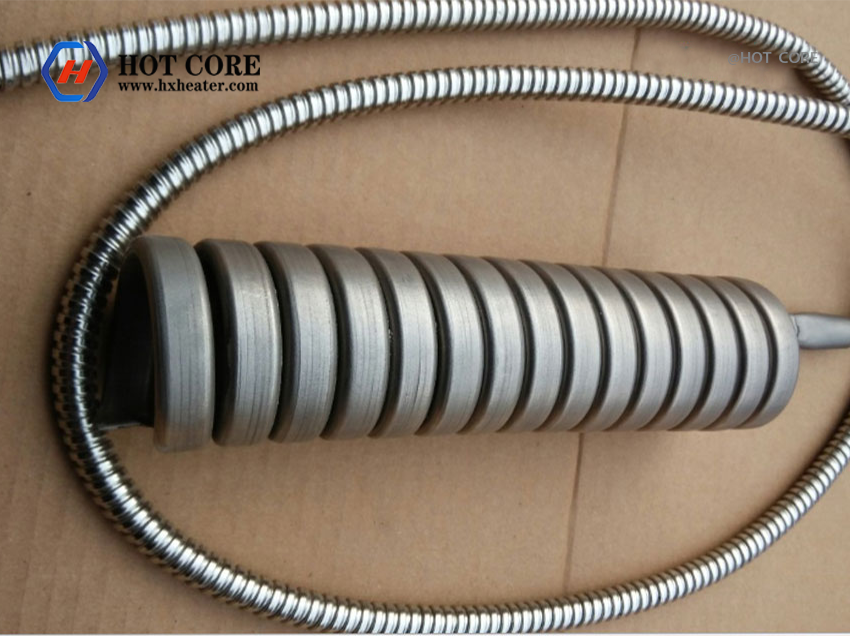

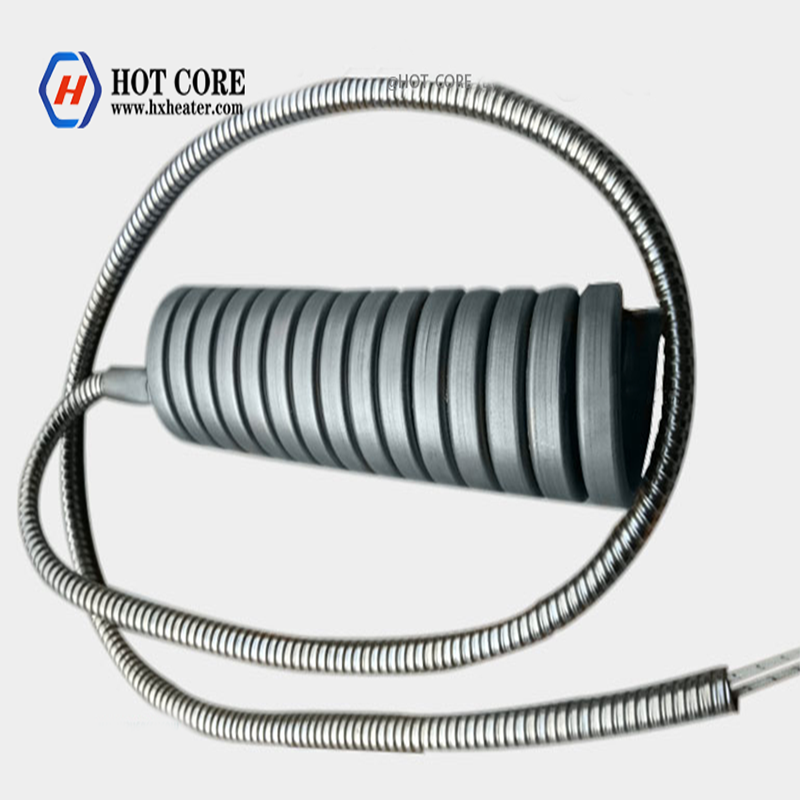

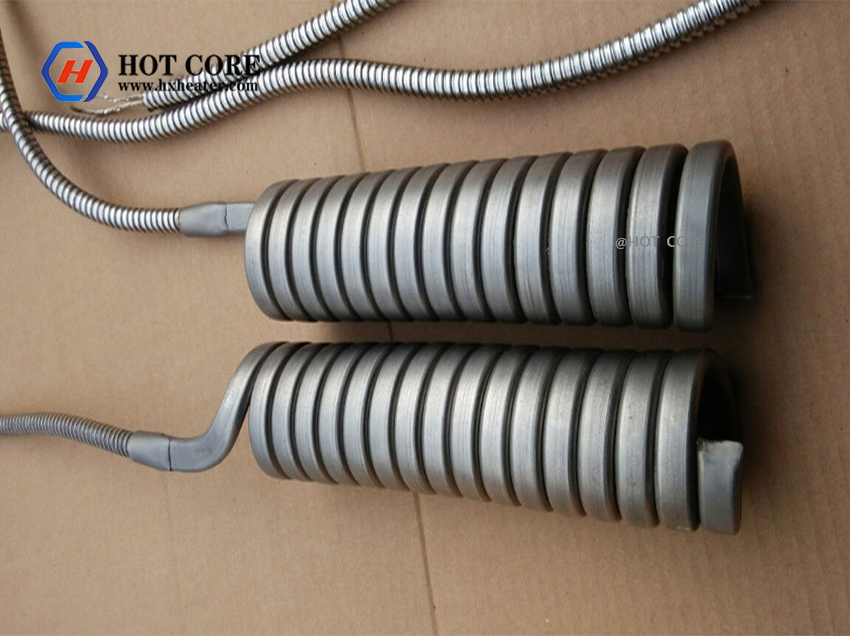

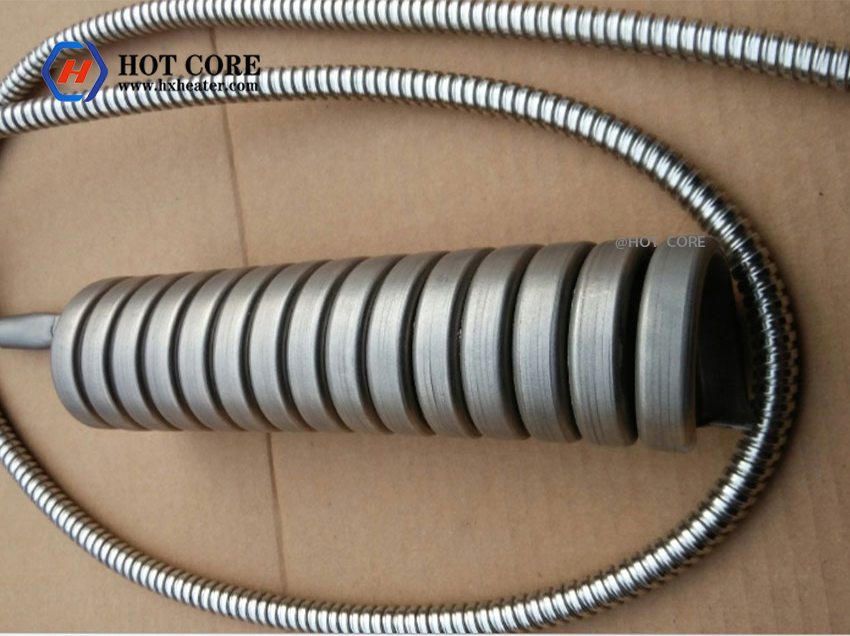

110V 100W Flat Coil Heater titanium nail For Enail specially
1.Product Introduction
Superb Heater Coil Heater made of Germany heater wire, the US high- -purity magnesium oxide materials and strict process technology, high-performance electric heater for heating hot runner mold and other fields, can be integrated with the K-type, J-type or E-type control temperature thermocouple.
Selling well in Europe, North America, South Korea and other developed countries.
2. 사양
크기: OD15mm*ID9*L4mm
Wire length: 1.2/1.4 미터
Volts: 110/120다섯
Watts: 100w
Thermocouple sensor: k or J thermocouple
Minimum Order Quantity: 5pcs
Usage/Application Moulds & Dies
Heater Material SS304
Minimum internal coiling Φ 10mm
Voltage 220V/230V/240V
Wattage tolerance ±10%
Material SS304/SS321/SS310/SS316 (사용자 정의)
Resistance ±10%
Dielectric strength 600V 800V 1000V
격리(cold 1000V) ＞10 MΩ
Leakage current(cold) ＜0.5mA
Max power density 10W/cm²
Heating length tolerance ±2.5%
Surface treatment Sandblasting, 검은색, polish, green
Maximum working temperature allowed on sheath Max.750℃ / 1380° F
Build-in Thermocouple Type K/ J/ E
Standard supply 1000mm PTEE insulated nickel lead wire

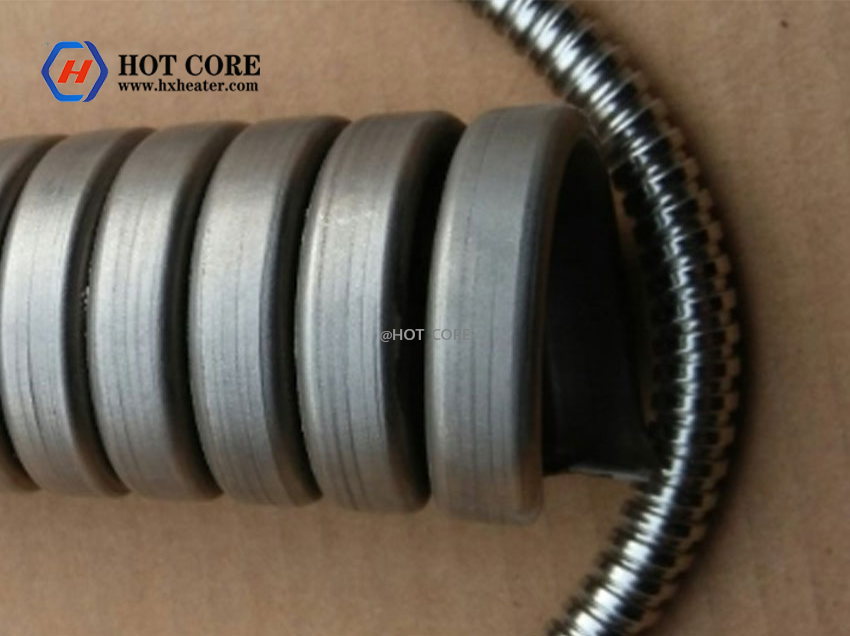

3. 제품 세부정보
Application examples
Mass channel Technology – Heating of manifolds
Packaging Industry – Heating of welding bars
Mass channel Technology – Heating of mass channel nozzles
Packaging Industry – Heating of sealed heads
Latest technical process 우리 공장:
1. High density, In addition to filling MgO rod, and also filled high-temperature MgO powder to achieve the optimal density.
2. Have own Tunnel furnace annealing process, focus on high quality product.
Other factory:
1. Low density, just filling MgO rod, density is not up to use requirement.
2. Use a simple oven, easy to cause breakage
General option:
1.Coil
2.Reflection tube
3.Casted in brass
