구리 노즐 밴드 히터
구리 노즐 밴드 히터
has mica, 세라믹, microtubules and sealed type.A nozzle with a heater with a built-in thermocouple is also available.We recommend brass bushing and external high temperature applications in microtubule-nozzle heaters.
구리 노즐 밴드 히터

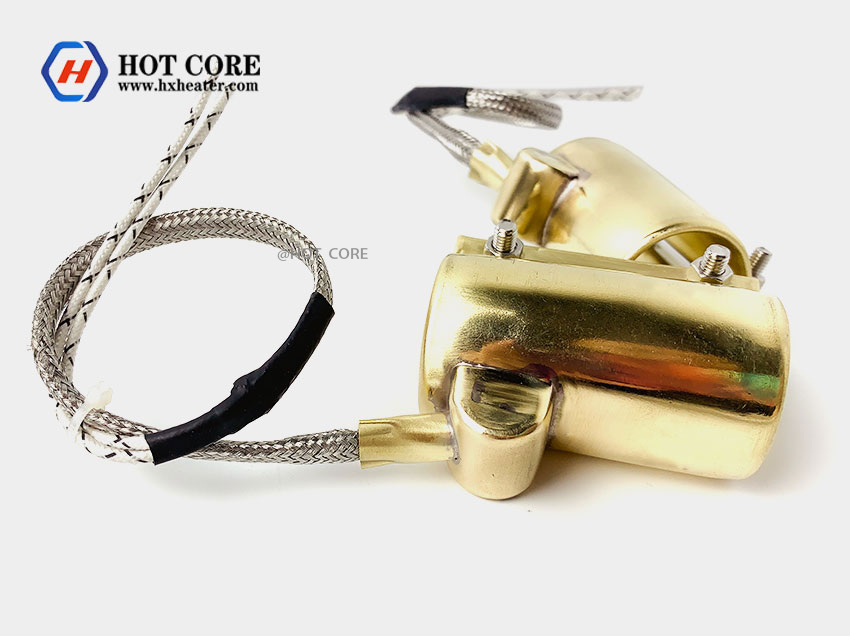

Brass strip heater for nozzle coil heater of injection molding machine
Brass nozzle belt heater has a variety of designs and styles, suitable for different applications.The connection between the heating element and the lead is protected by a special fitting made of 1mm thick brass, without welding, which gives the heater high mechanical strength where it is most vulnerable.The result is a more efficient heat-transfer – performance solution that lowers the component line temperature and increases the heater.
Copper Nozzle Band Heaters are designed for extremely high pressure, ensuring high insulation, good heat exchange, no internal air Spaces, perfectly smooth contact area for optimal and even heat transfer to each part of the nozzle.
Copper sheath material.
The sheath is made of high quality steel or brass.
Metal woven glass fiber terminal.
특징:
1. Seal belt type brass heater, both ends can be folded
2. Connection of belt heater, waterproof technology
3. Electrical insulation of mica plate
4. Connection mode: nickel core, glass fiber insulation + ground wire;Protected by galvanized steel ring
5. Max.Watt density :5 W/cm squared (power tolerance :+ 5% – -10%)
6. 지름 :25 to 150mm
7. Height :25 to 70mm
8. Max.Heater surface operating temperature :340℃, depending on the working conditions.
conditions.
Brass sealed nozzle heaters are high pressure, ensuring high insulation and good heat exchange.
응용 프로그램
Hot runner bushing.
Plastic machine nozzle.
Injection molding machine
Cylinder and drum

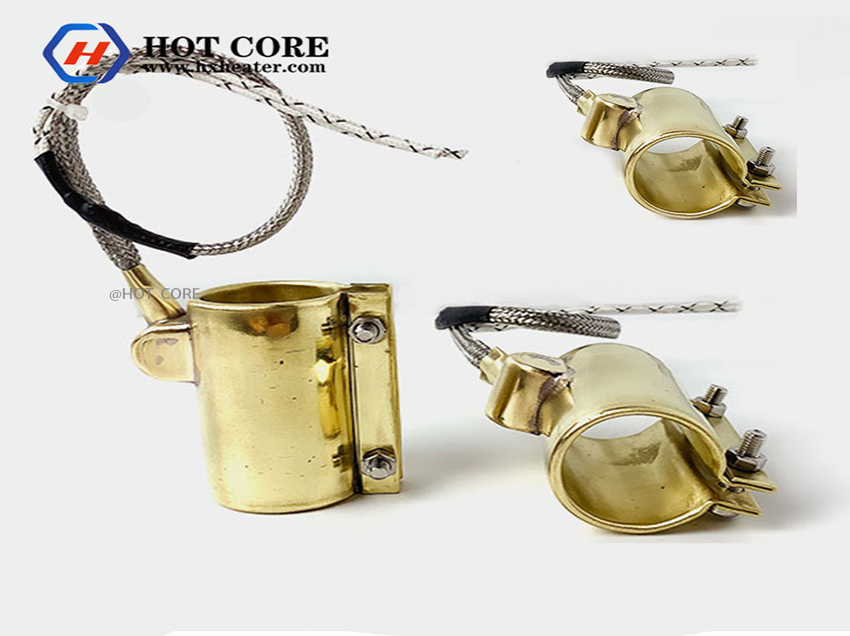

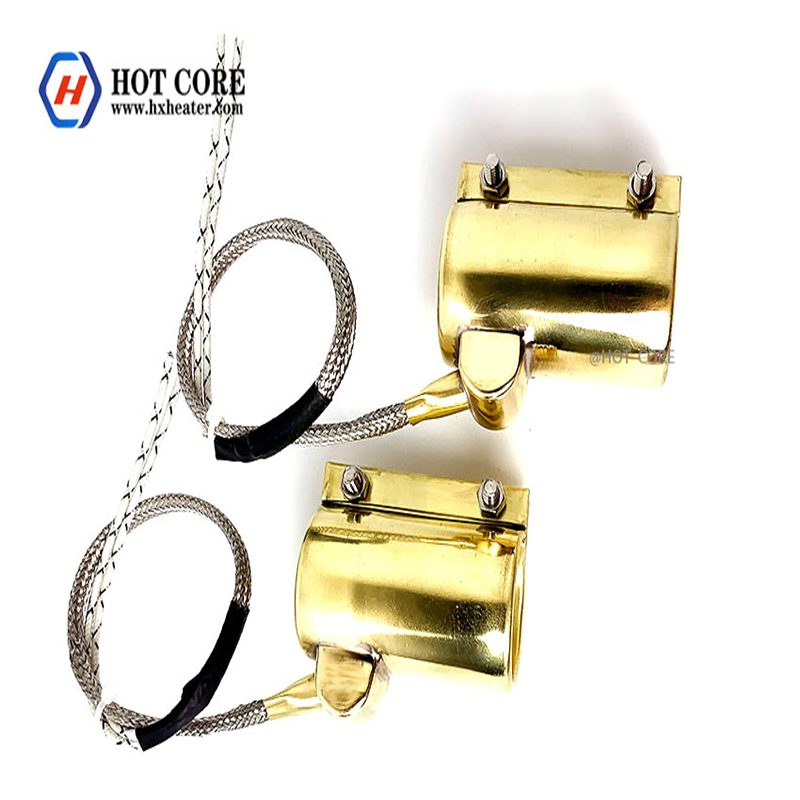

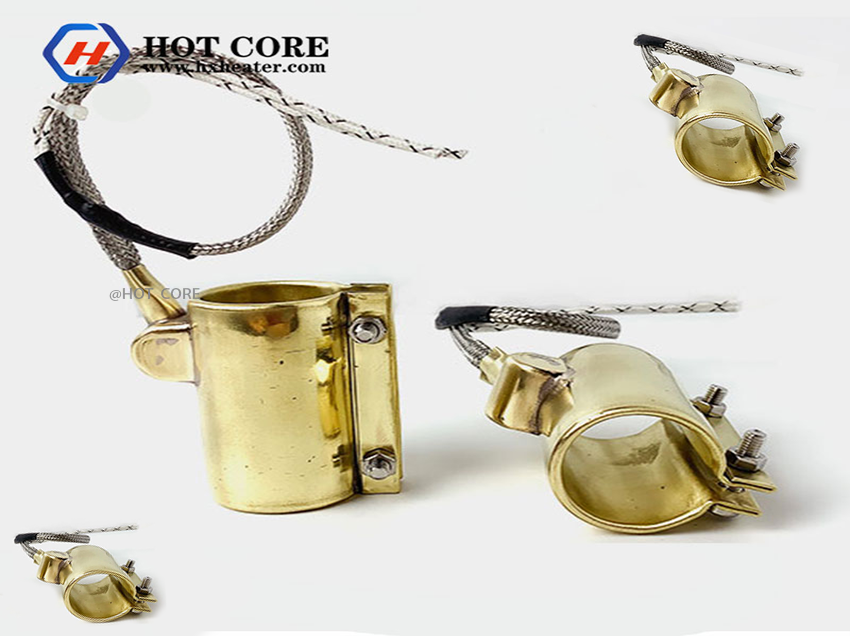

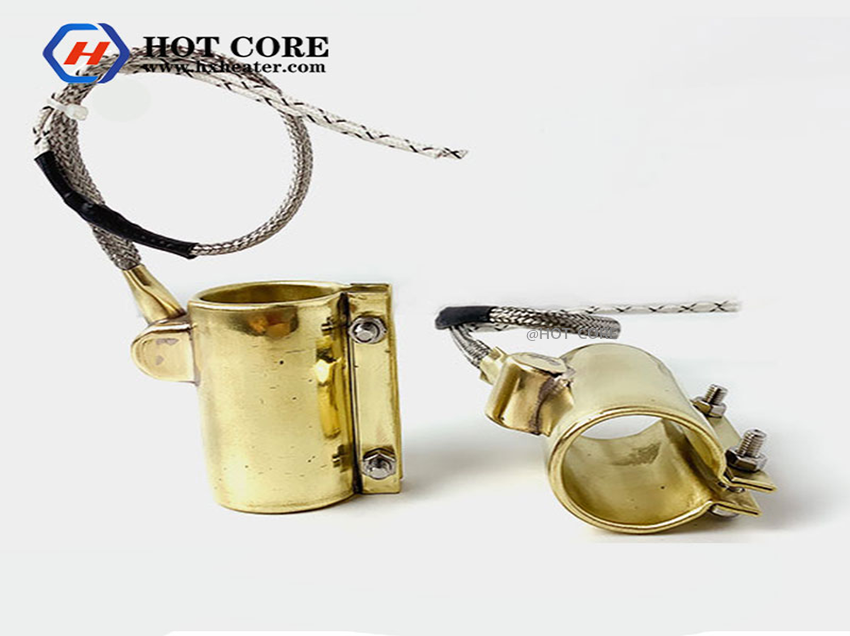

Copper Nozzle Band Heaters details:
The voltage ：12 ~ 440 다섯
Maximum power ：5 w/cm2
지름：25mm – 150mm
Height ：25mm-70mm
Heating wire： nicr2080
Insulating mica
Sheath brass tube
Operating temperature： 0 ~ 800 기음
“J.” type (또는) thermally protected “케이” 열전대
