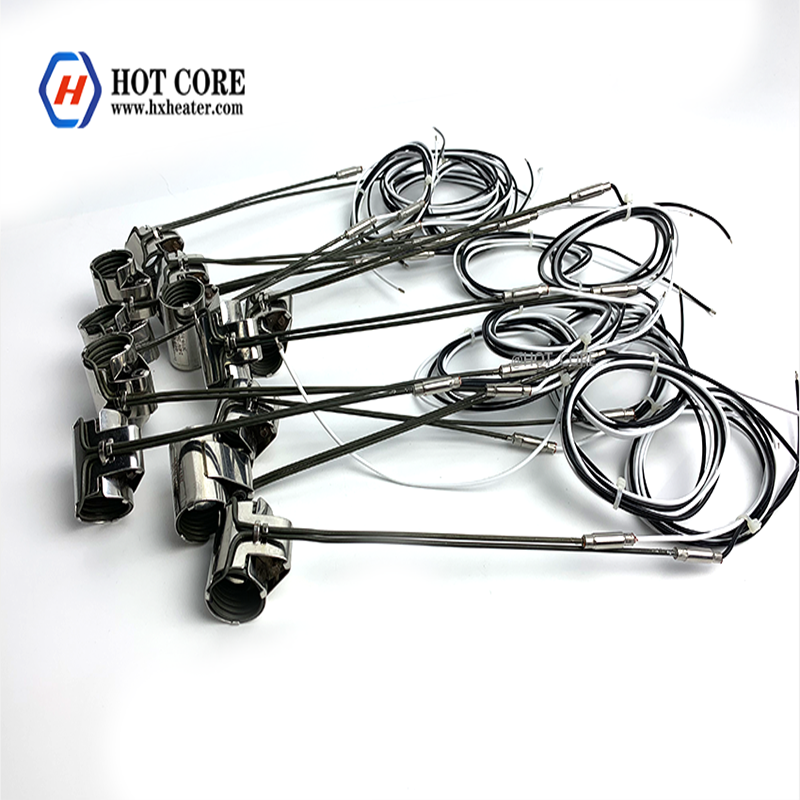

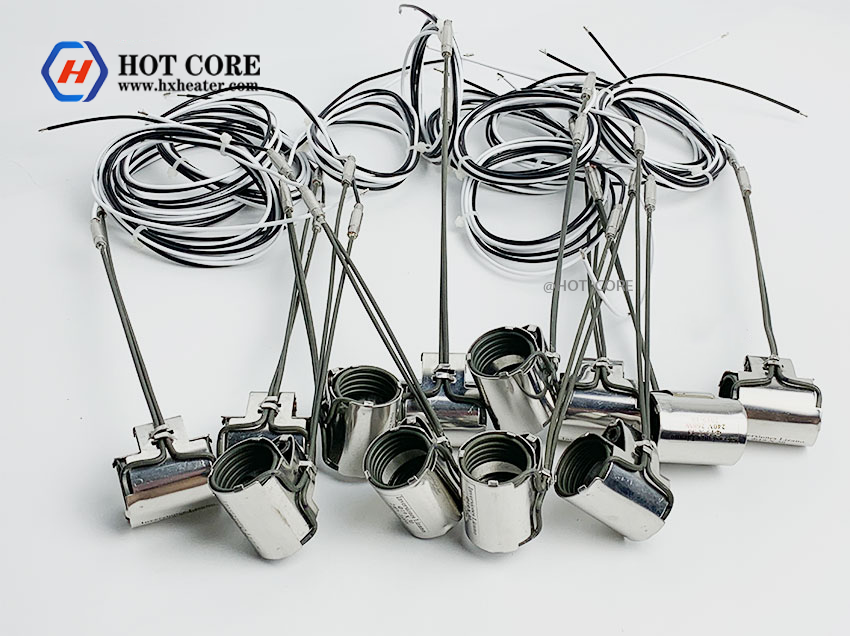

Axial Clamp Mini Coil Heater With Thermocouple On The Nozzle 240V / 268w
설명

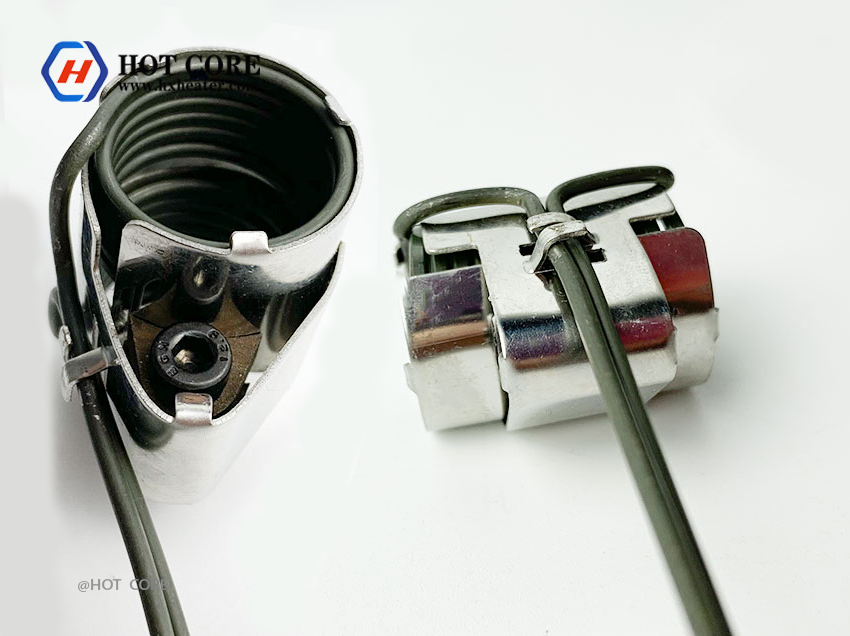

Axial clamp mini coil heaters are a proven performer for high cavitation applications including pre-forms, caps and closures, and razors. GME axial clamp heaters positively lock on the nozzle ensuring excellent heat transfer and durability. Adjustments can be made with a single front facing allen screw, greatly simplifying tightening and removal.
With flat mini coils in direct contact with the injection molding nozzle GME axial clamp heaters can be wound with more heater coils closer to the edge. This configuration improves responsiveness and heat profile.
Standard Axial Lock-up Heaters
Diameter Width Watts Volts
“3/4” “(19.05mm)” “1.2” “(30mm)” 149W 240V
“3/4” “(19.05mm)” “1.2” “(30mm)” 268W 240V
“7/8” “(22.22mm)” “1.2” “(30mm)” 268W 240V
Technical Specifications
Heater Sheath: CrNi Steel
High Voltage Stability: 800VAC
Insulation Resistance: >= 5M ohm at 500 VDC (Cold)
Leakage Current: <= 0.5 mA at 250VAC (Cold)
와트지 허용 오차: +/- 2%, +/- 4%, 또는 +/-10%
Maximum Voltage: 250다섯
Standard Connection: 72” Teflon to 500 deg. 에프
특징

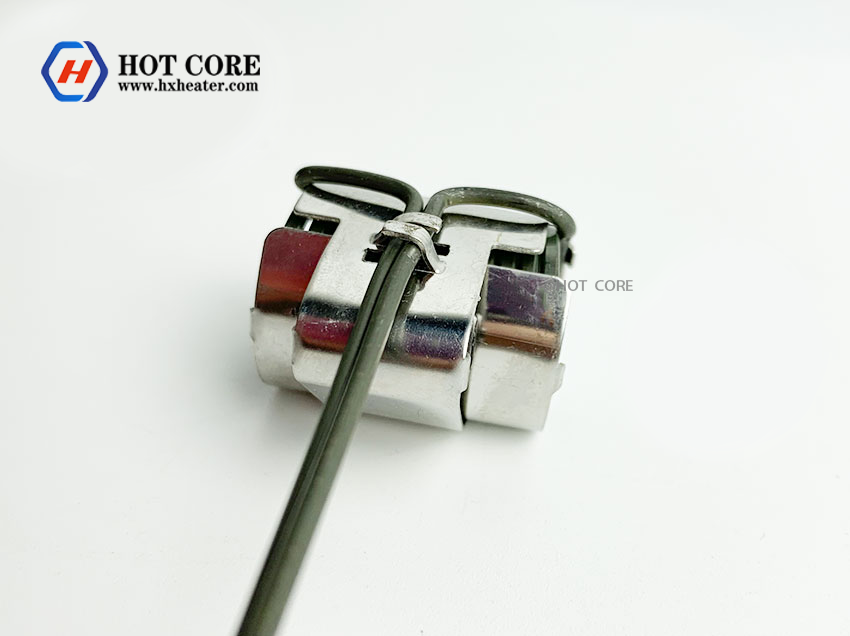

Positive locking positioning

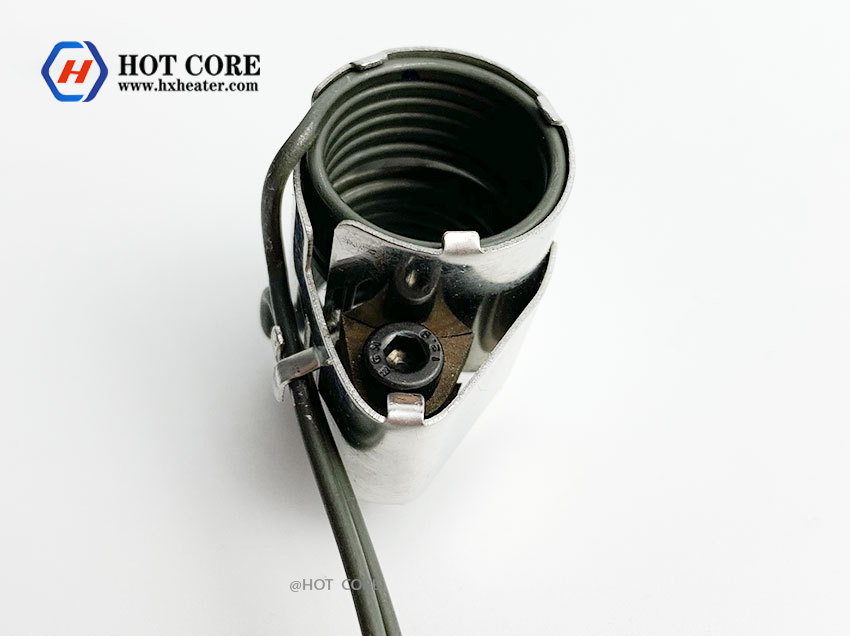

Single allen screw adjustment for tightening and removal

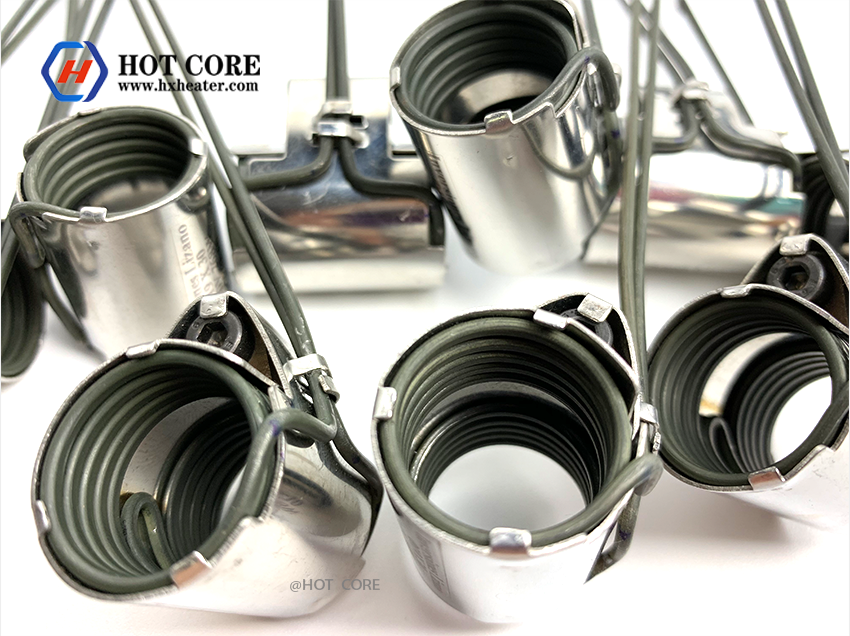

Mini coils in direct contact with nozzle
Replaceable external thermocouple
Profiled for more heat at the Tip
Caps and Closure Applications
Close matching of Ohms so that multiple axial clamp heaters can be controlled with a single thermocouple
Also used in Plastic molding for the cosmetic industry
애플리케이션
1. Injection Molding
2. Packaging
3. Automotive
