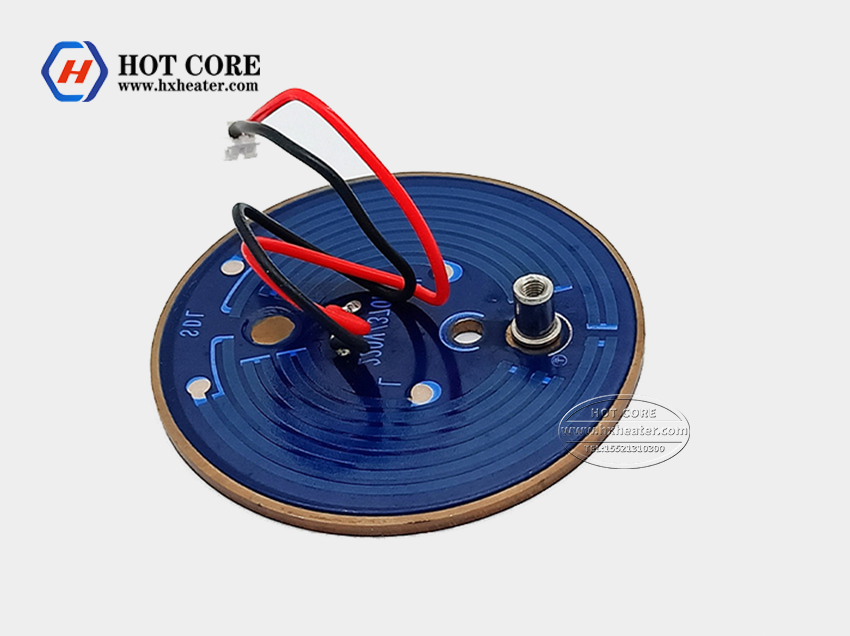

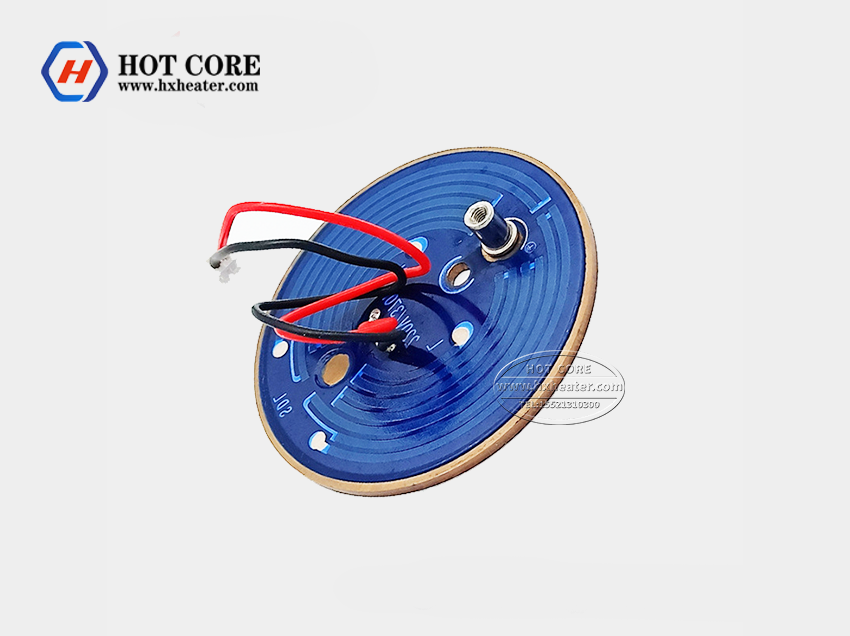

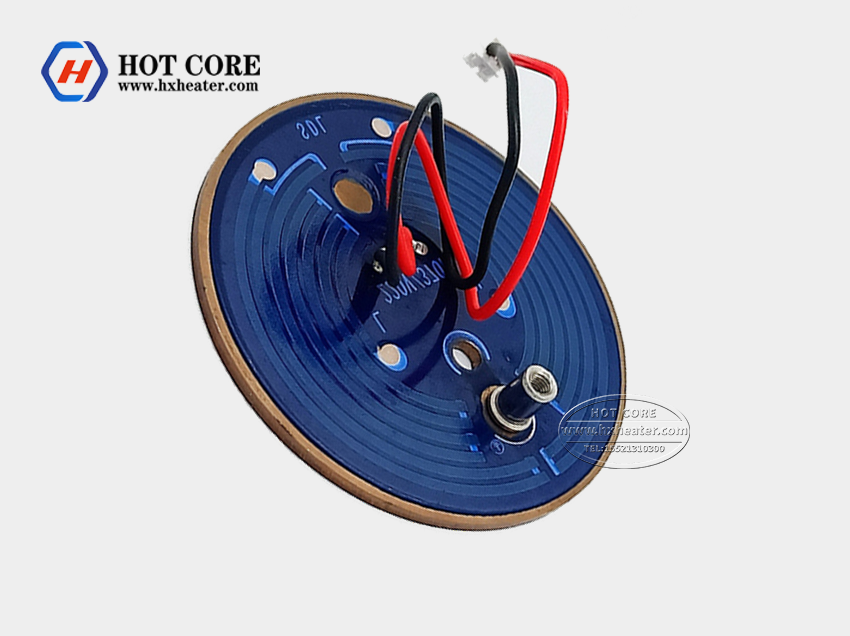

Thick Film Heater Plate
Electric Thick Film Heating Circuit can be sintered and covered with 5 insulation layers on the surface of Stainless Steel plate heat Stainless steel directly and the temperature speed up 150℃/S. Stainless Steel Thick Film Heater Plate made by Jaye industry has the feature of rapidly raise temperature, high heat efficiently, technical mature, product reliability, thermal shock resistance.
アドバンテージ:
1. Fast temperature response
2. 高い機械的強度
3. High operating temperatures
Advantages of thick film heating plate and tube:
1, Safe and durable high strength: Stainless steel substrate, Multi-layer microcrystalline vitreous insulation.
2, 高速加熱: heating circuit has temperature rise over 80~150 degrees per second.
3, High utilization rate of heat: directly rapid-heat Stainless steel tube, a big heat exchange area, fast replacement, efficiency up to above 98%.
4, Green and environmental protection: pure resistive load, no electromagnetic radiation, good for human body.
技術的なパラメーター
| 接地タイプ | スポット戦 | 熱密度 | >60w/cm² |
| ランプアップレート | 80℃/S-150℃/S | 熱効率 | >98% |
| 火力 | 5500W | サービスライフ | >10,000 時間 |
| 定格電圧 | 220v | 証明書 | CQC, RoHS |
| Dielectric Strength | 1,500V/5MA/60S | 電力偏差 | -10% – +5% |
| 漏れ電流 | ≤0.25mA | 絶縁抵抗 | ≥200MΩ |
| Thermistor Type | PTC | 寸法 | Φ50mm*150mm(長さ) |
アプリケーション:
1. Food service equipment
2. Semi-conductor Warmers
3. Laboratory & 医療機器
4. Industrial hot plate
5. Home Appliance
To Order, Please specify your detail required specifications. All the Thick Film Electric Heating Tubes are be made customized as the actual design of our customer’s indicidual specific requirements.
1) 使用電圧(V), と周波数(Hz)
2) デマンド要求電力(ワット)
3) Heating tube or Plate material( 銅, またはステンレス鋼,または鉄?)
4) サイズ図面または製品写真がある場合,または手にサンプルを, will be much better and helpful for exact price calculation.
