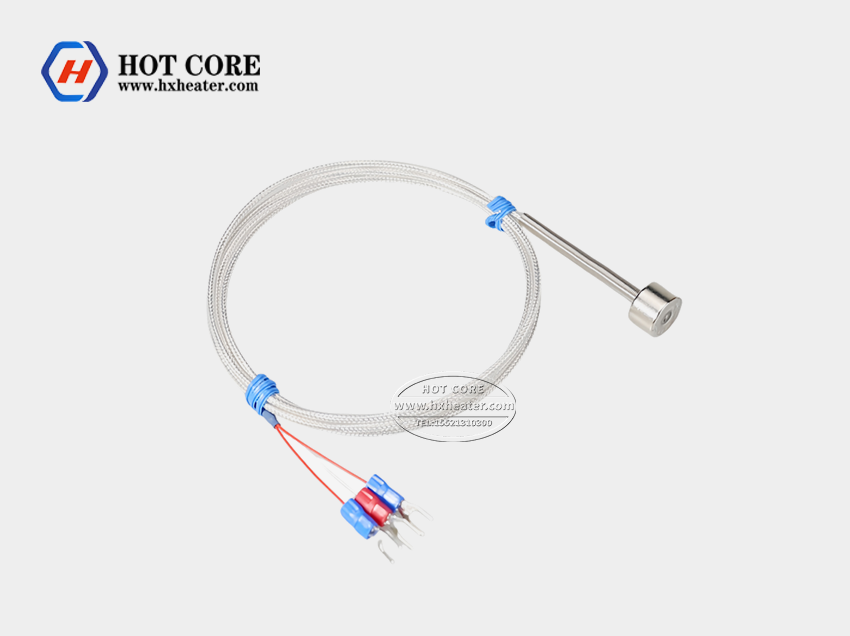

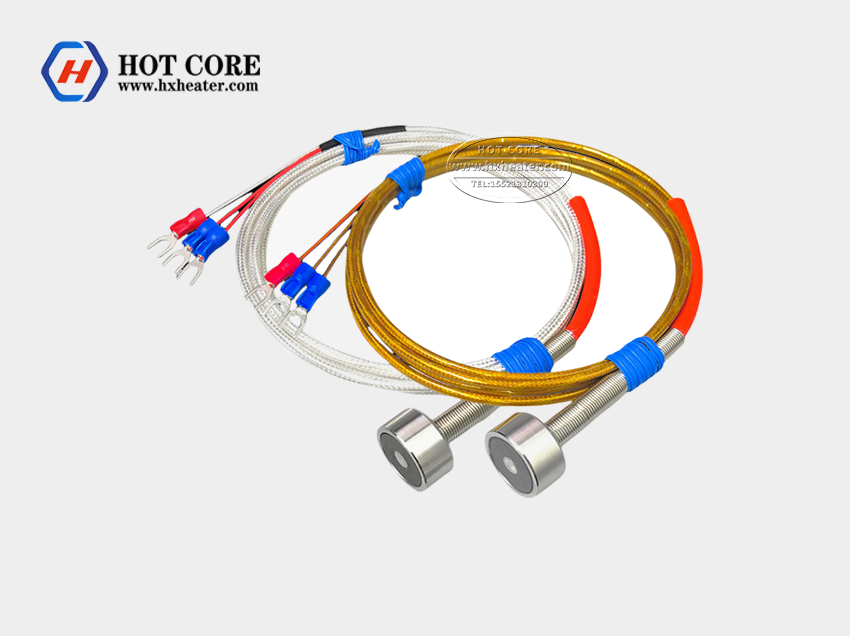

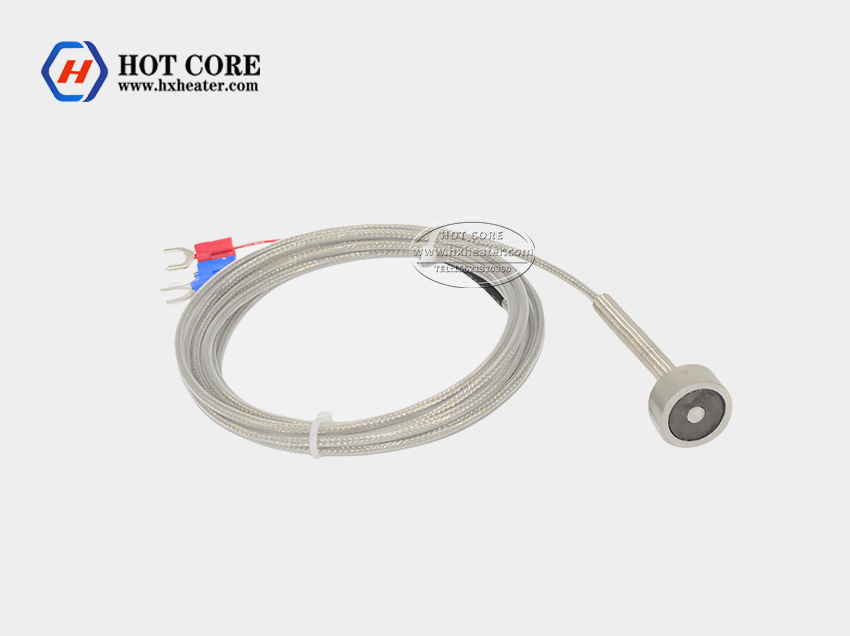

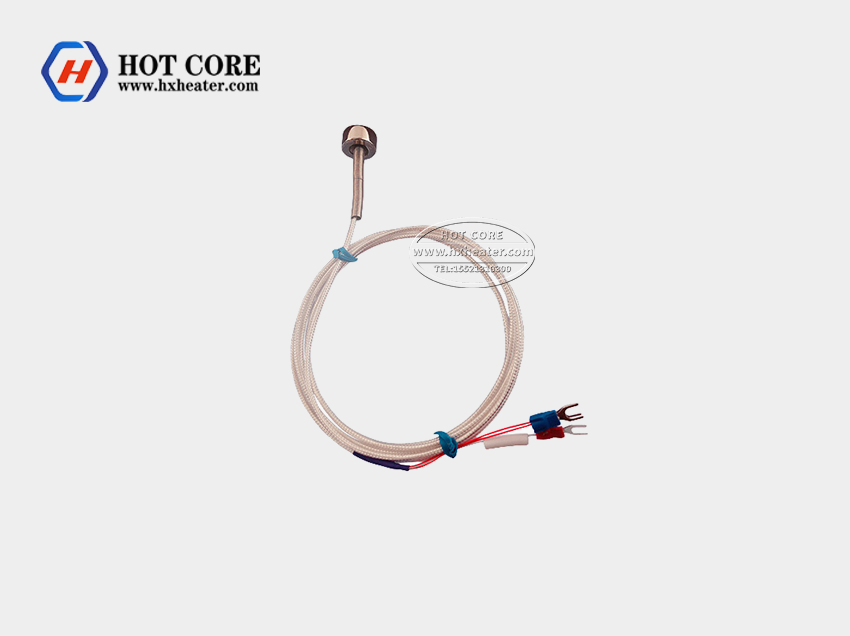

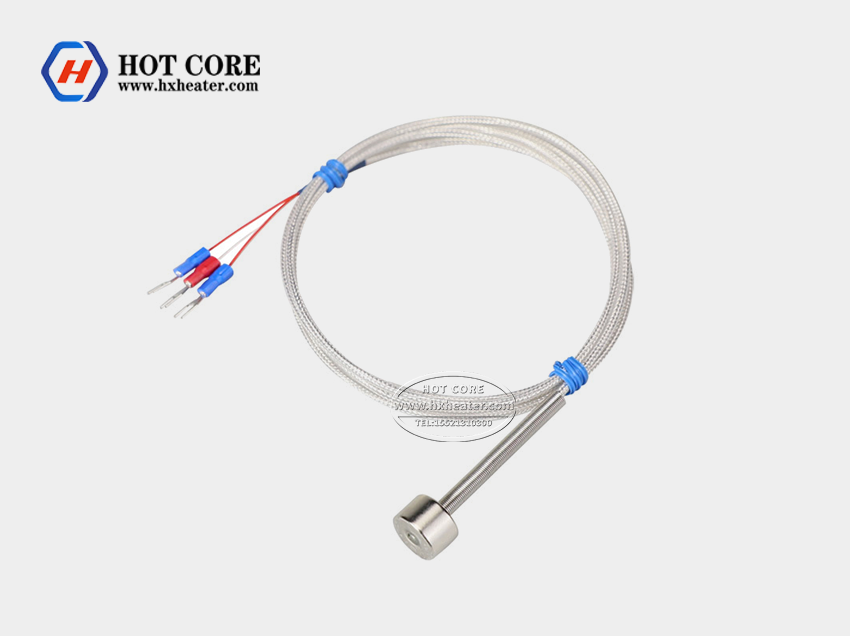

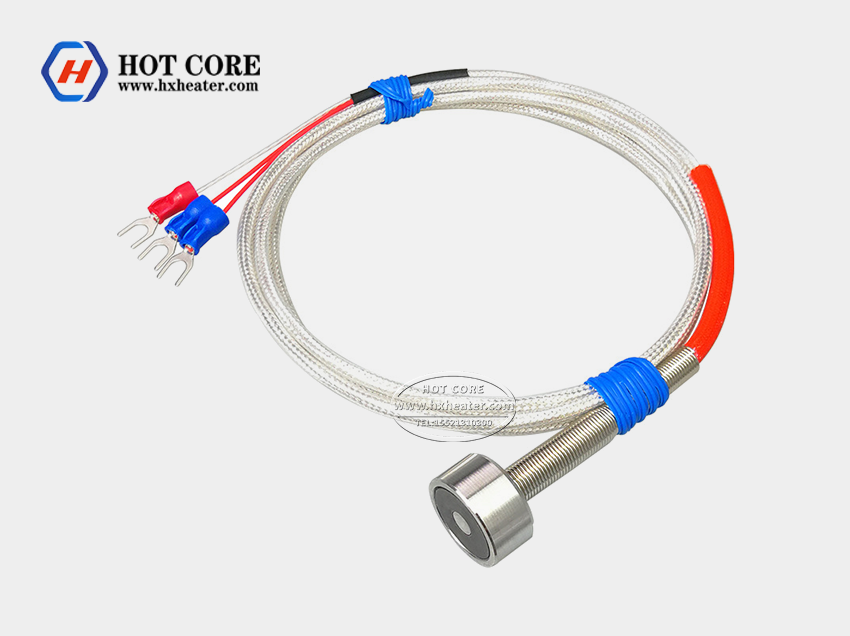

Temperture Controller Thermocouple
temperature controller thermocouple, divided into K type and J type, M6 thread, fine workmanship, stable and reliable, multi-stranded wire system, stable and sensitive, durable materials, a variety of specifications and lengths, easy to install, wide range of applications, not easy to damage.
Temperture controller thermocouple is one of the commonly used temperature detection elements in industry
1:High measurement accuracy, because the thermocouple directly in contact with the object to be measured is not affected by the intermediate medium.
2: Measurement range, commonly used thermocouple from -50 ~ 1600 ℃ can be measured on the side, some special thermocouple can measure the lowest -269 ℃ (such as gold, nickel, iron and chromium), up to 2800 ℃.
3: Simple structure, easy to use. Temperture controller thermocouple is usually composed of two different metal wire, and is not limited by the size and beginning, outside the protective casing, very convenient to use.
仕様
| Probe material: | 304/316/201 ステンレス鋼 |
| Mounting thread: | M12*1 (with nut and high-temperature sealing ring) |
| Probe diameter: | 7mm |
| Probe length： | 50mm, 100mm, 150mm, 200mm. |
| Extension wire: | Pt100 for three-core high-temperature multi-strand shielded wire(wire length can be customized) |
| K type： | 0-600 度 |
| E type ： | 0-400 度 |
The lead wire is a three-wire system of polytetrafluoro high-temperature silver-plated (three cores of silver-plated wire inside, silver-plated shield wire) four fluorine outer skin resistant to high, temperature up to 180 度. Lead wire length can be customized, can also be ordered other high temperature resistant wire.
Two kinds of wiring clips
Easy to connect, long life cycle, good transmission effect. The default is three-wire system, if you need two-wire system, you can directly cut off one of the red can be used as two wires. You can also screw the two red wires together to use.
The benefits of the three-wire system
Three-wire system is to reduce the wire resistance error when measuring, to measure the voltage at both ends of the platinum resistance temperature sensor instead of directly measuring the resistance value, so that as long as the input impedance of the measuring instrument is high enough, it can reduce the impact of wire resistance on the measurement accuracy.
