ホットランナー用のマイクロチューブラーブラスヒーター
PRODUCT DESCRIPTION
HOT CORE Brass hot runner coil heater according with different sizes (the sprue bush or nozzle) design and manufacturing, the sleeve is made of high quality stainless steel or copper, inner sleeve, outer there are various winding section (ラウンド, square or flat) 加熱コイル, temperature uniformity, thermal inertia characteristics, can be integrated with the K type, J type or E type control temperature thermocpuple.

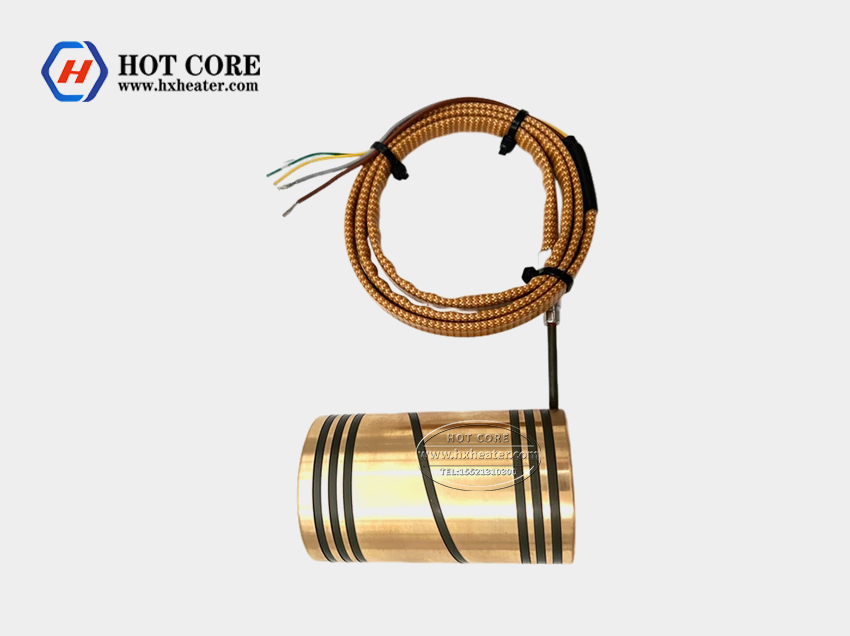

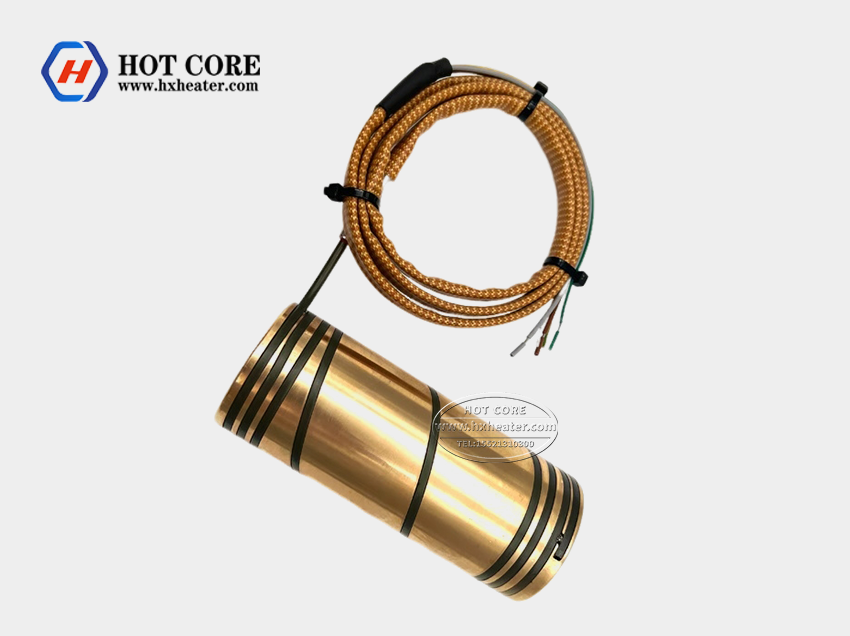

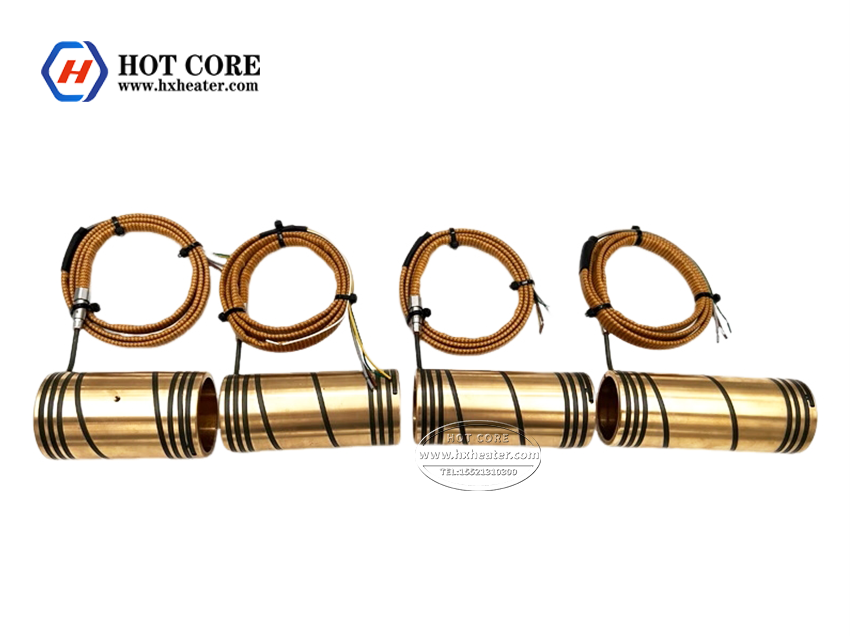

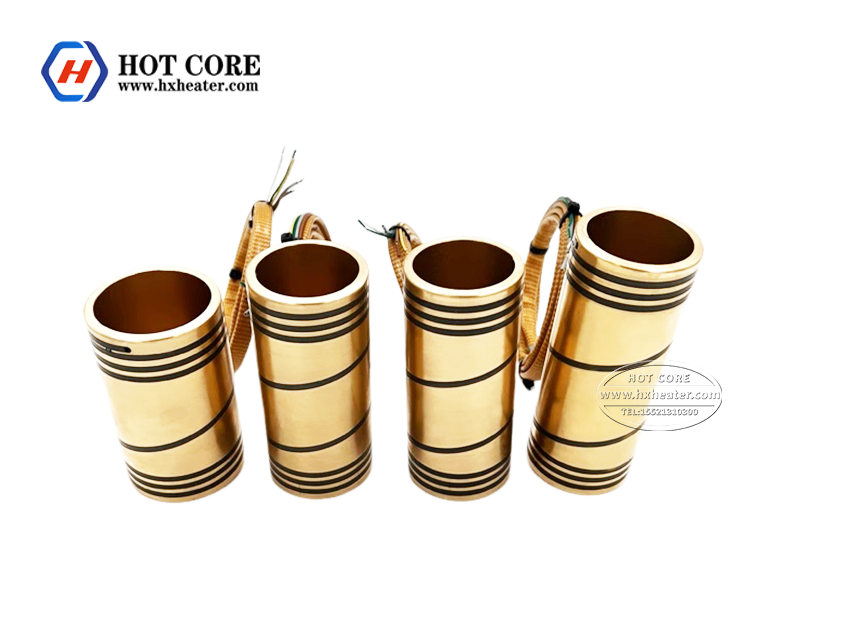

PICTURE DISPLAY
| Minimum diameter Φ | 10mm |
| 電圧 | 12V- 400V |
| ワット数の寛容 | ±10% |
| 材料 | SS304/SS321/SS310/SS316 (カスタマイズされた) |
| Sleeve material | 真鍮 |
| 抵抗 | ±10% |
| 絶縁耐力 | 600V 800V 1000V |
| 絶縁(冷間1000V) | ＞10MΩ |
| 漏れ電流(寒い) | ＜0.5mA |
| Max power density | 10w/cm² |
| Heating length tolerance | ±0.05mm |
| Maximum working temperature allowed on sheath | Max.750℃ / 1380°F |
| Build-in Thermocouple | タイプK/J/E |
| 標準供給 1000mm PTEE 絶縁ニッケルリード線 | |
| Material of lead wire:グラスファイバー, Kevlar, Telfon, Silicone Rubber, Metal braided, SUS armoured. | |
