産業浸漬ヒーター

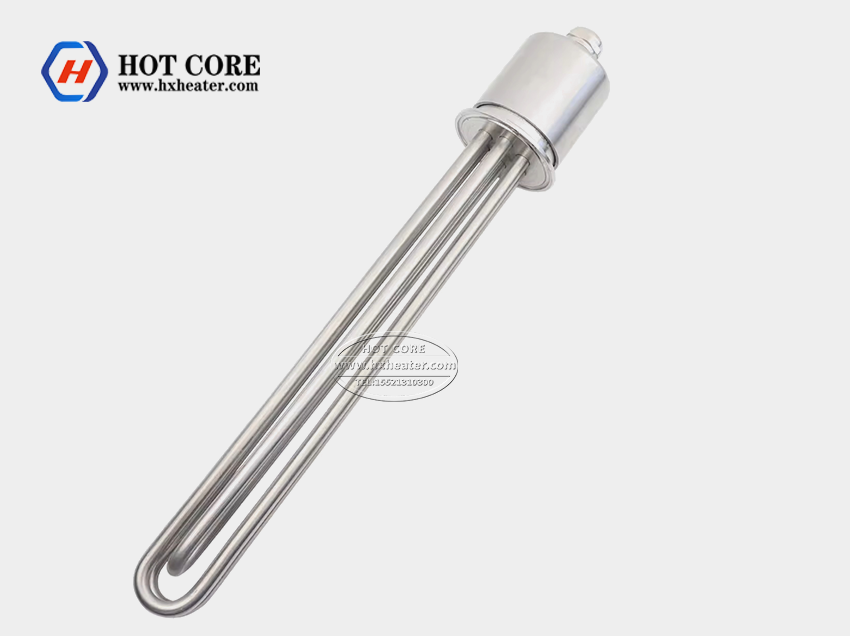

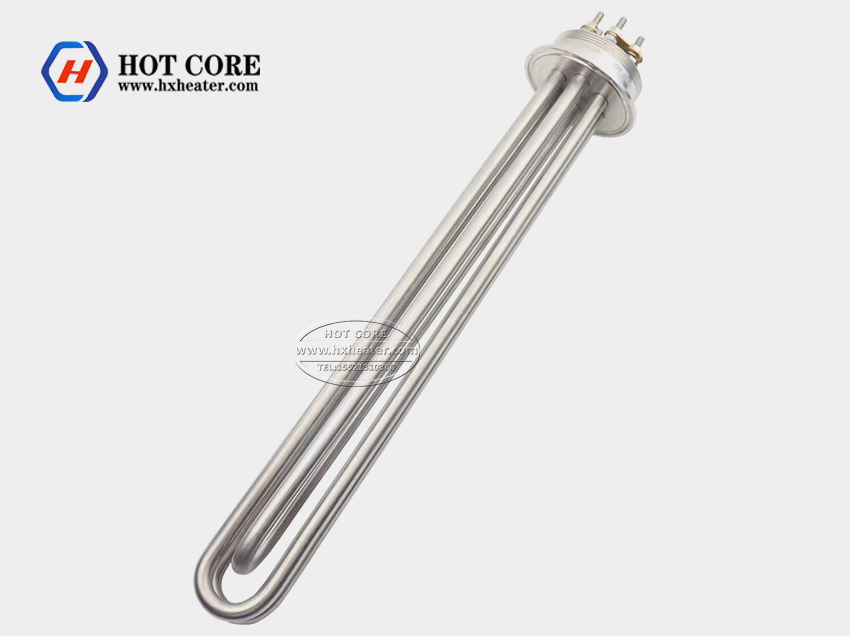

Industrial immersion heaters can be widely used for heating water, 油, nitrate solution, acid solution, alkali solution and low melting point metals (アルミニウム, zinc, tin, babbitt alloy). The curved tubular electric heating element is welded to the flange. Industrial immersion heaters are used for heating in open and closed solution tanks and circulation systems.
特徴:
1. Has good thermal efficiency, uniform heating.
2. High temperature and corrosion resistance.
3. Has good safety performance.
4. 長いサービスライフ: The main technical indicators are implemented in accordance with JB/T2379-93 “Metal Tubular Electric Heating Elements” and JB/T 4088-99 “Daily Tubular Electric Heating Elements”, and the service life of the product is ≥4000h.
nstallation methods of Industrial immersion heaters :
1. Vertical installation
When the water level in the container is not full, part of the heating tube is out of the water level. Since the power load of the heating tube for heating the liquid medium is much greater than that of dry heating, the industrial immersion heaters cannot be separated from the water for dry heating, so in the vertical In the case of installation, it is necessary to confirm the actual liquid level on site.
2. Horizontal installation
Due to the influence of gravity, the horizontal installation side has a small force area and a large unit force. したがって, when selecting the flange parameters of industrial immersion heaters, this issue must be properly considered. The size and number of mounting holes need to be treated differently. 一般的に, horizontal installation generally does not need to consider the issue of cold end.
All products produced by Jaye Heater comply with all relevant industry standards with the most stringent quality control procedures, and the products are exported to countries all over the world.
