Hot runner parts custom
Hot runner Parts are composed of hot runner spring heaters, hot runner nozzles and other mechanical parts.

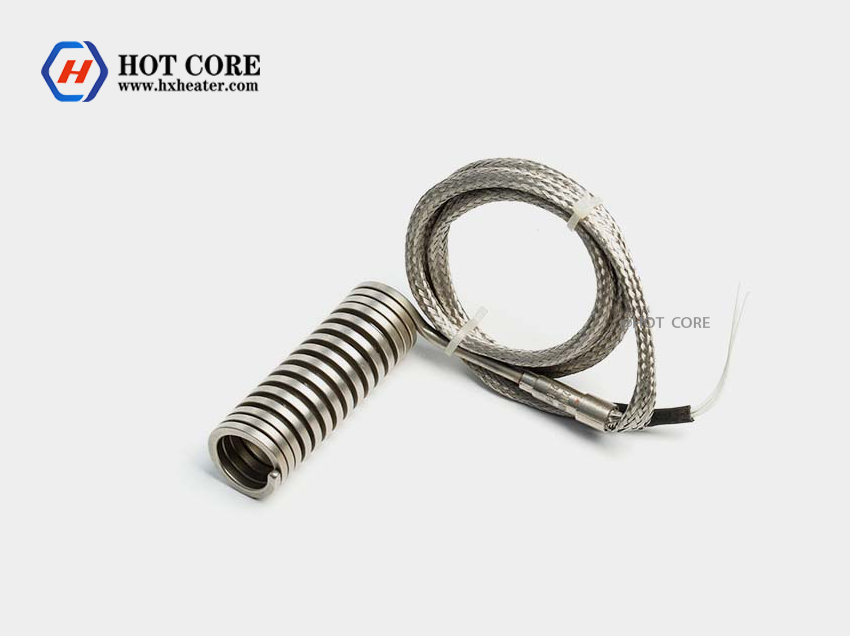

Hot runner spring heaters are mainly used for molds and other precision heating systems. The spring heating is made of high-quality nickel-chromium alloy tubes on the outside and high-purity magnesium and high-temperature resistance wires on the inside, as well as first-class technology. The heating wire is annealed and can be bent into an arc and round heating. High working temperature, 高速加熱, uniform, and precise heating, そして長いサービスライフ. The installation is convenient and the price is very cheap.
原産地: 広州, 中国
材料: ステンレス鋼,
ブランド: ホットコア
Length: カスタマイズされた
電圧: カスタマイズされた
力: カスタマイズされた
直径: カスタマイズされた
材料: カスタマイズされた
Technical specification of hot runner spring heater
1. Maximum sheath temperature: 700℃
2. 電圧: 110V~380V
3. ワット数: 50W-2000W
4. Cross-sectional area: 3X3, 4.2X2.2, 4X2, 4X2.7, 4X2.5, 3.3 X 3.3, 3.5 X 3.5, 4 X 4, 2.2X1.3
5. Available sheath: ナイロン, metal braid, glass fiber, シリコーンゴム, aramid
Application of hot runner spring heater:
1. Caustic cyanide for gold processing
2. Caustic alkali solution detergent
3. Sterilization equipment
4. Plastic processing and packaging machinery
5. Oven and dryer
6. Mould
7. Water and oil heating device
8. Vending machine
9. The medical equipment specifies the information you need.
Features of hot runner spring heater:
1. Standard size can provide various cross-sections
2. A variety of watt densities are available
3. Designed for uniform heat dissipation
4. Precisely installed on the hot runner nozzle
5. Highly anticorrosive
