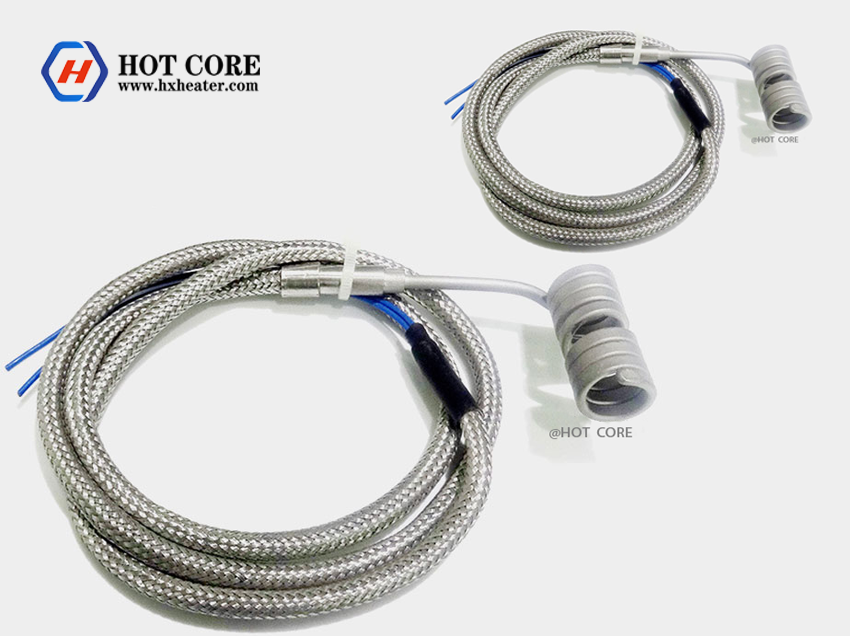

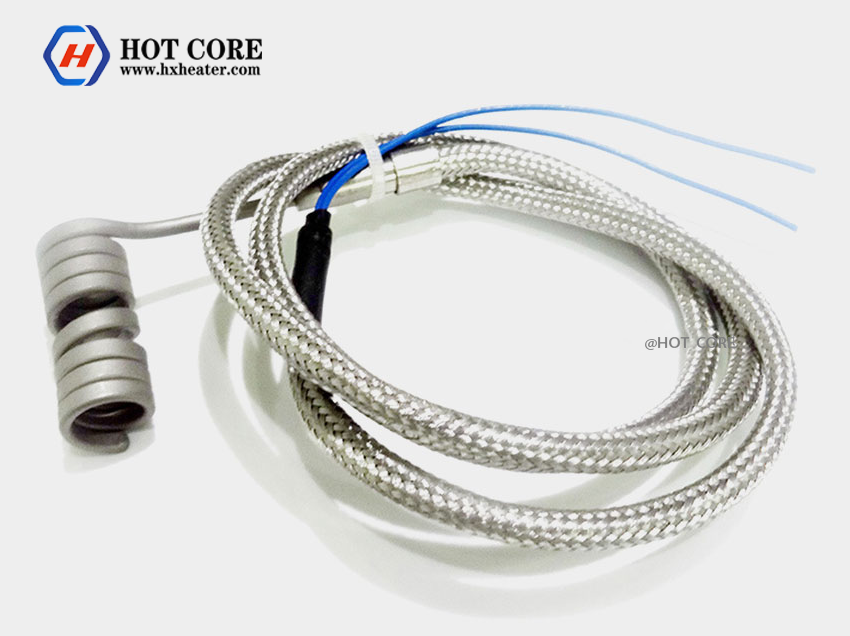

Hot runner mould made by Hot Core Heater industry with thermocouple is also available based on the application requirements. Hot Runner Coil Heater made by Hot Core Heater industry have advantages such as fast speed of heating, high rate of heat utilization, 暖房さえ, 高温抵抗, anti-oxidation, excellent energy saving, high resistance of high insulation rate, convenient insulation, high quality performance and long service life. Hot runner heaters built in thermocouple are also available and all shapes and size of Hot runner heater can be custom made by Jaye industry.
When highly focused heat is required in the Hot runner system, and a very low profile is imperative, hot runner coil heaters are the best cost-effective option. Coil heaters may be used to concentrate the heat on specific segments, or the coil may be spread to equalize the temperature across the object to be heated.
仕様:
Sheath Material Cr Ni-Steel
Insulation Material High Grade MgO
Resistance Wire Ni Cr 80-20 wire
Maximum Sheath Temperature Up to 700°C
voltage As requested and up to 800V A/C
power Make as request and up to > 5 MW
Thermocouple J type (標準) またはKタイプ
Unheated Length 35mm (標準)
特徴:
1. 100% surface contact
2. High Temperature connection
3. Integrated Thermocouple
4. Proportioned profile heating
Cross Section for Coil Heater Heating Element with Thermocouple
1. 3.0 × 3.0, 3.30 × 3.30, 4.50 × 4.50 mm
2. 4.20 × 2.20, 4.50 × 2.50, 3.20 × 1.80, 1.30 × 2.30 mm
3. 3.30, 1.80, 1.60, 1.35 mm
4. ご要望に応じて他の断面も製造および供給可能です.
Applications of Hot Runner Heater with Thermocouple:
* 射出成形機ノズル
* ホットランナーノズル & ブッシング.
* 包装機械
* ホットランナー射出成形金型.
* 注射 & ブロー成形機ノズル.
* PET PREFORM & 薄い壁の容器型
* ホットランナーマニホールド.
Order Guide:
1-Voltage and Power of the hot runner coil heater need.
2-Inner diameter and out diameter
3-Cross section dimension
4-Thermocouple type J type or K type
5-Lead wire length and if have special request on the insulation material
6-数量を注文します
The best Hot runner heater with thermocoule is made by HOT CORE industry in China, HOT CORE Industry perseveres in the management conception of human’s importance. insists in offering high quality products and perfect aftersale service continually for customers. “The pursuit of excellence and customer first” is our Business philosophy.
