ホットランナーシステム用の電気真鍮ノズルコイルヒーター

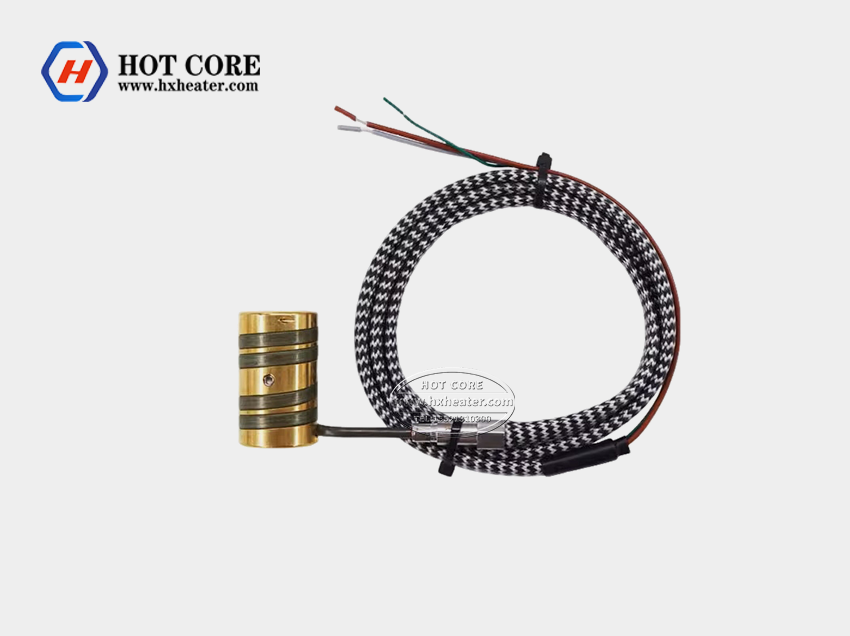

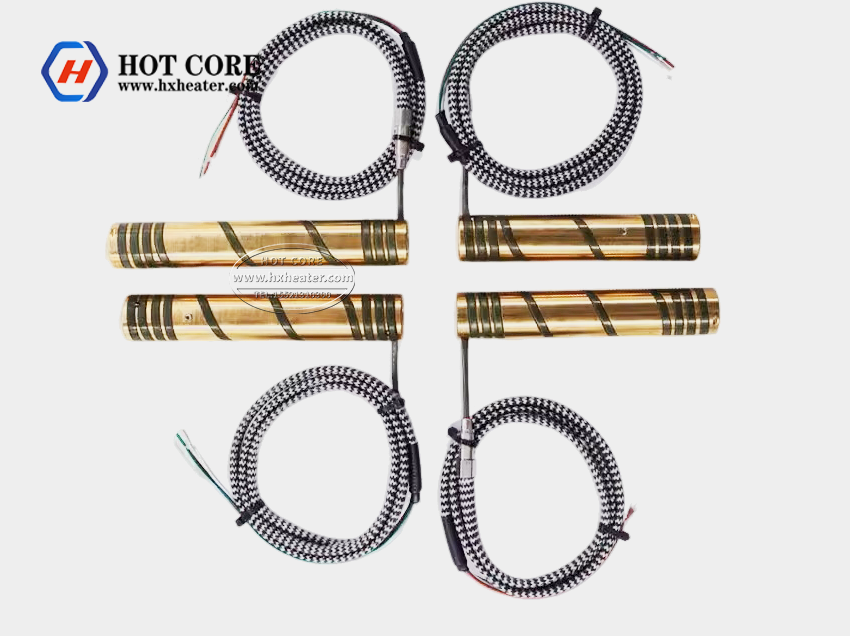

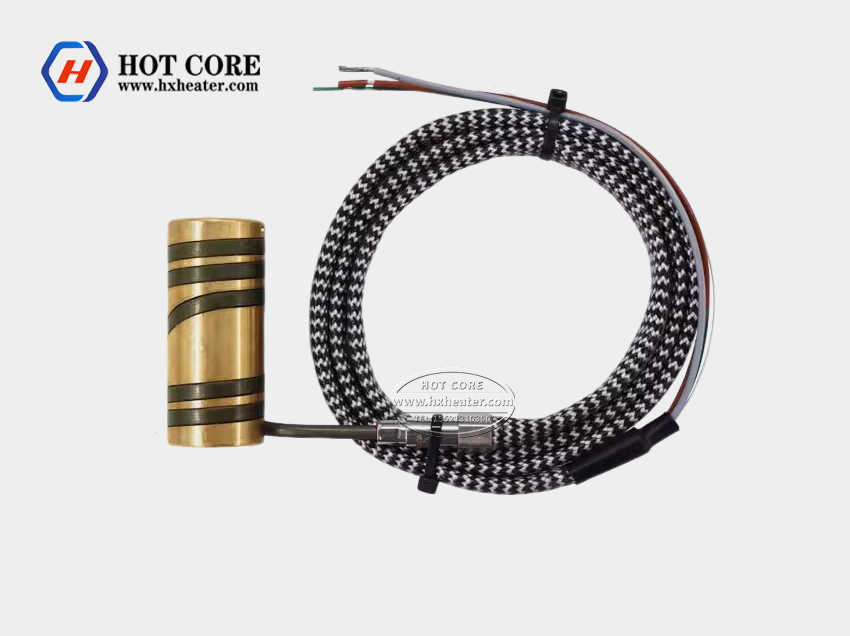

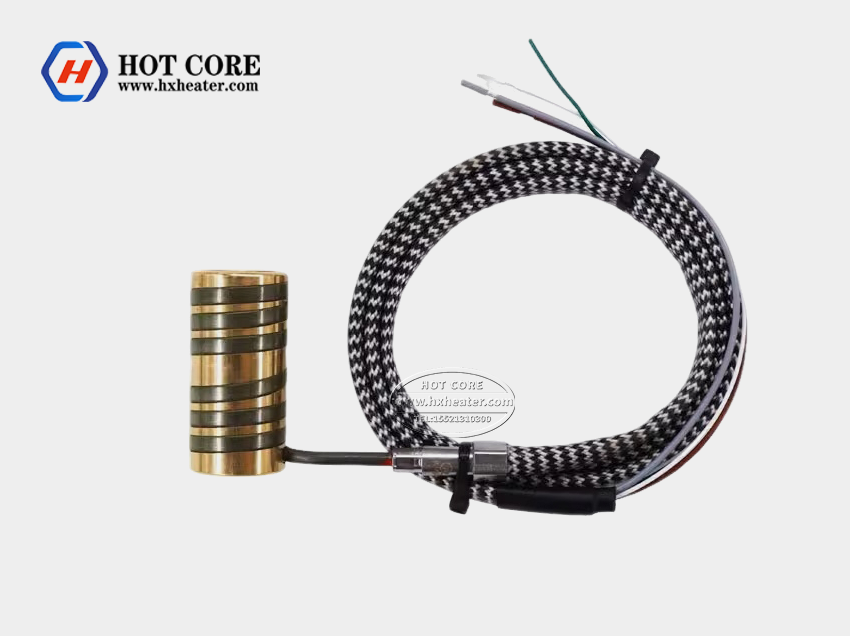

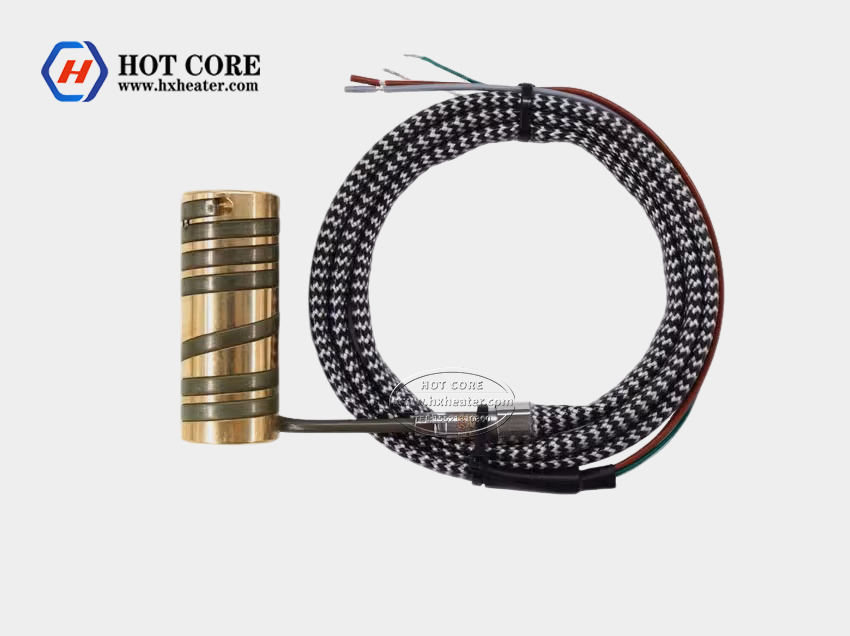

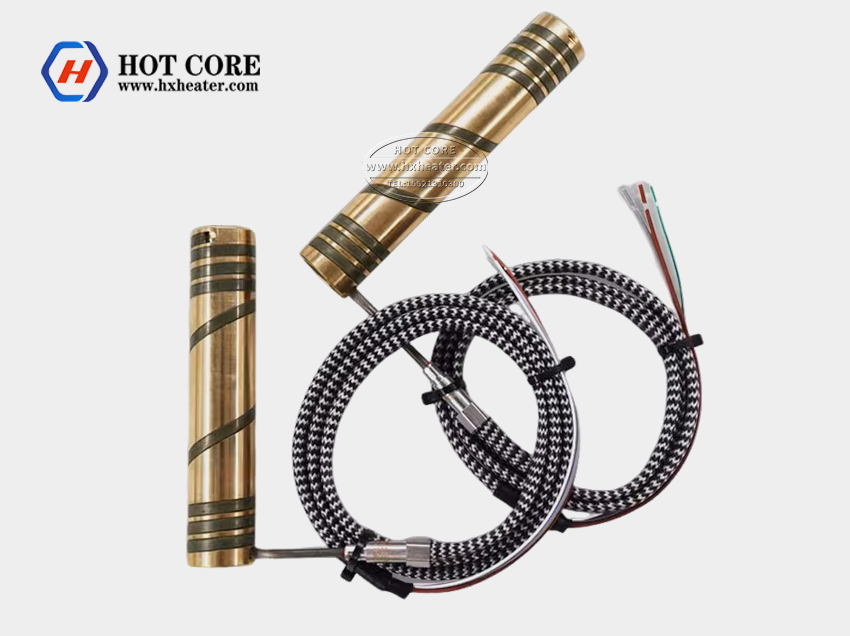

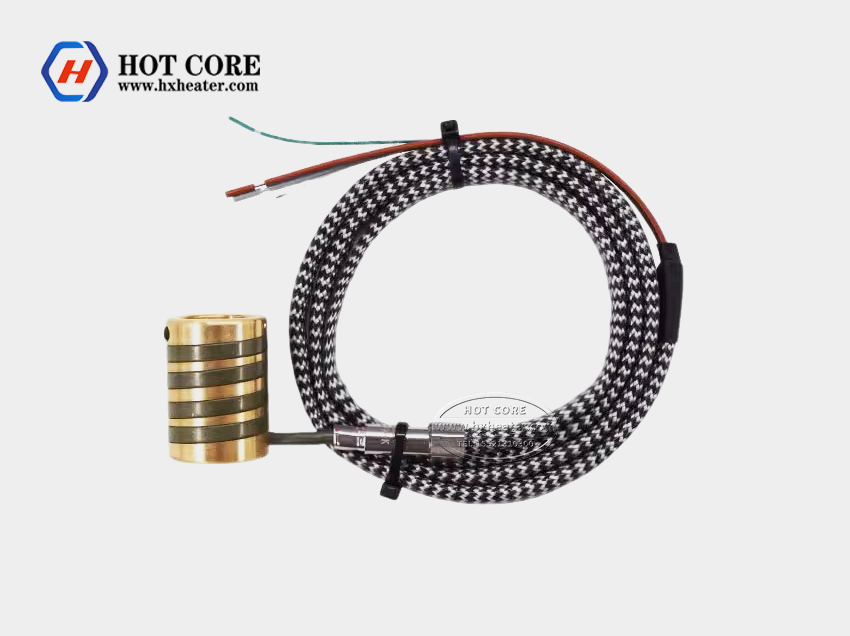

Electrical Brass Nozzle Coil Heater For Hot Runner System Hot Runner Brass Nozzle Heater For Moulds Brass hot runner coil heater according with different sizes (the sprue bush or nozzle) design and manufacturing, the sleeve is made of high quality stainless steel or copper, inner sleeve, outer there are various winding section (ラウンド, square or flat) 加熱コイル, temperature uniformity, thermal inertia characteristics, can be integrated with the K type, J type or E type control temperature thermocpuple.

製品詳細:

製品詳細
ホットランナーシステム用の電気真鍮ノズルコイルヒーター

1.Product Introduction

S.B.T. Electrical brass nozzle coil heater for hot runner system is mainly used for hot runner mold.The main features of these heaters are 360℃ heated area, readily confirms to surface, fast response and quick heat transfer, helical coil design for superior performance, good resistance to corrosion and it can easily be coupled with J or K type thermocouple.

2. 仕様

	サイズ:	OD50mmID56L50mm
	Wire length:	1メーター (Silicone Rubber)
	Volts:	240V
	Watts:	530W
	Thermocouple sensor:	K type thermocouple
	Minimum Order Quantity:	3PC
	Usage/Application	Moulds & 死ぬ
	ヒーター材料	真鍮

Minimum diameter Φ	10mm
電圧	12V- 400V
ワット数の寛容	±10%
材料	SS304/SS321/SS310/SS316 (カスタマイズされた)
Sleeve material	真鍮
抵抗	±10%
Dielectric strength	600V 800V 1000V
絶縁(cold 1000V)	＞10 MΩ
漏れ電流(cold)	＜0.5mA
Max power density	10w/cm²
Heating length tolerance	±0.05mm
Maximum working temperature allowed on sheath	Max.750℃ / 1380°F
Build-in Thermocouple	Type K/ J/ E
Standard supply 1000mm PTEE insulated nickel lead wire
Material of lead wire:グラスファイバー, Kevlar, Telfon, Silicone Rubber, Metal braided, SUS armoured.

3. 製品詳細

Application examples Hot runner hearer Plastic industry Packing machine Medical equipment Casting process Other electric heating industry
	Latest technical process Superb Heater factory: 1. High density, In addition to filling MgO rod, and also filled high-temperature MgO powder to achieve the optimal density. 2. Have own Tunnel furnace annealing process, focus on high quality product. Other factory: 1. Low density, just filling MgO rod, density is not up to use requirement. 2. Use a simple oven, easy to cause breakage
特徴: 1. さまざまな断面で利用可能な標準サイズ 2. Various Watt Density options available. 3. Robust Design with Choice of Terminal Exits 4. Available with built in Thermocouple 5. 均等な熱プロファイル用に設計されています. 6. ホットランナーノズルに精密に適合します & Manifolds. 7. 非常に非腐食性. 8. より多くの接触面積による最大熱伝達. 9. Advanced Thermal Engineering.
	アドバンテージ: 1.低MOQ: It can meet your promotional business ver-y well. 2.OEMを受け入れました : We can produce any your design as lo-ng as you provide us the drawing. 3.Good Service : We treat clients as friend. 4.Good Quality :We have strict quality control system .G-ood reputation in the foreigner market 5.Fast & Cheap Delivery: We are the manufacturer, have our own factory, direct delivery from the factory.
