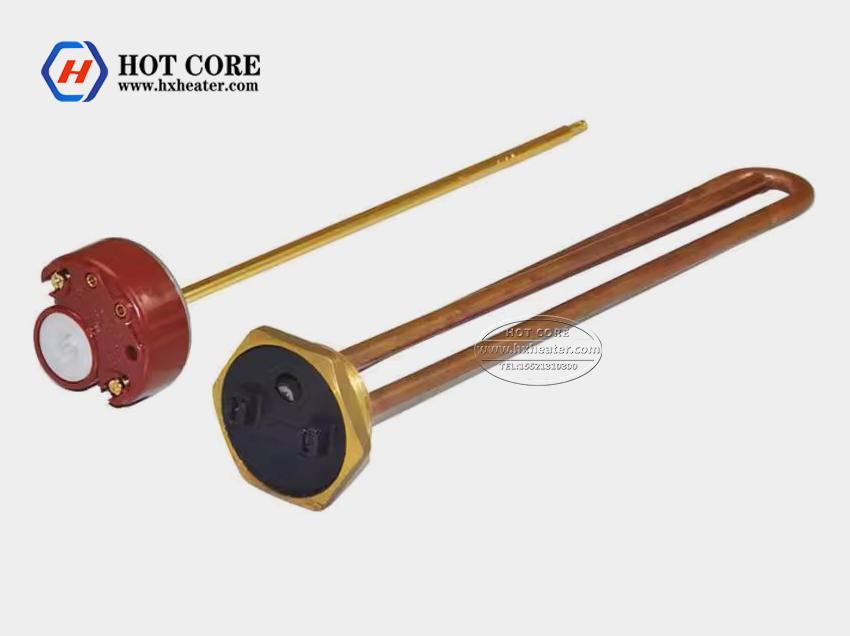

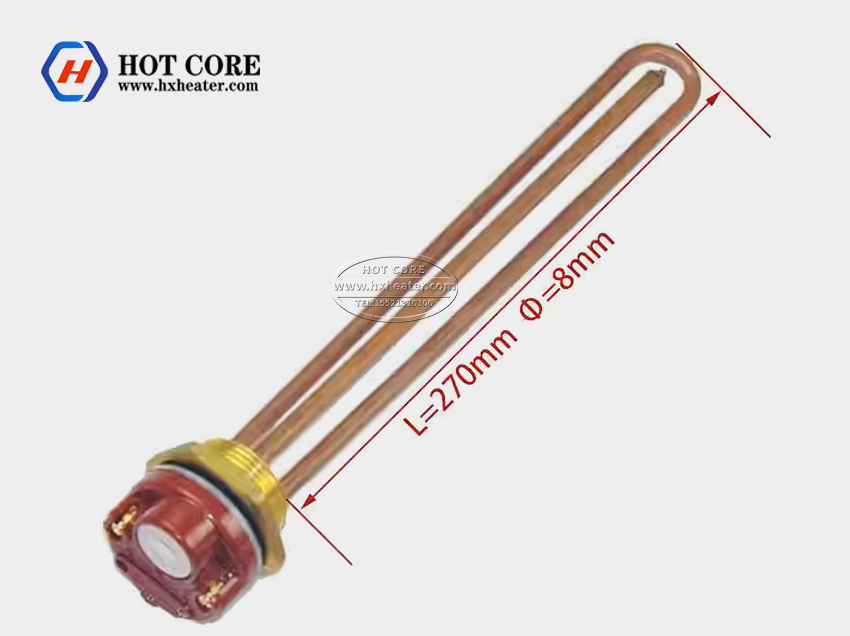

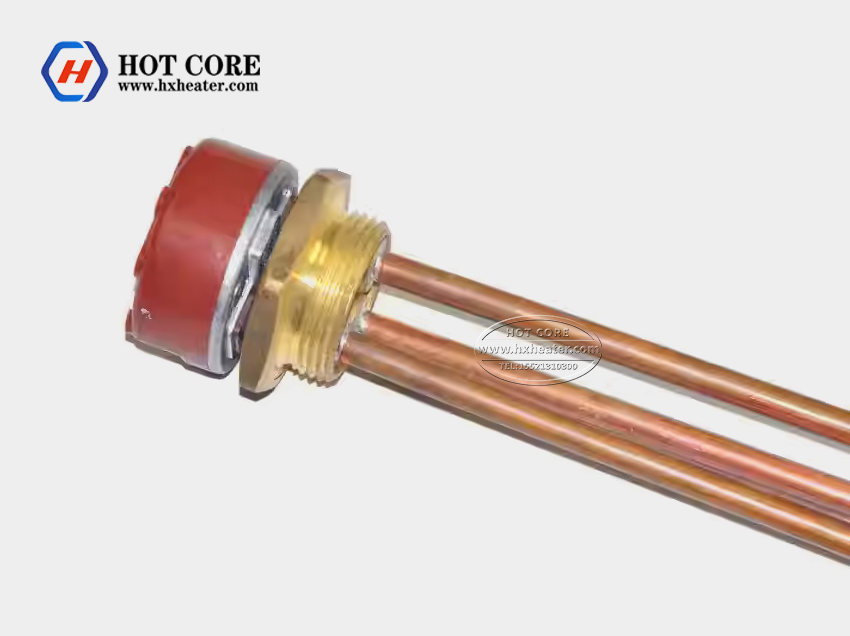

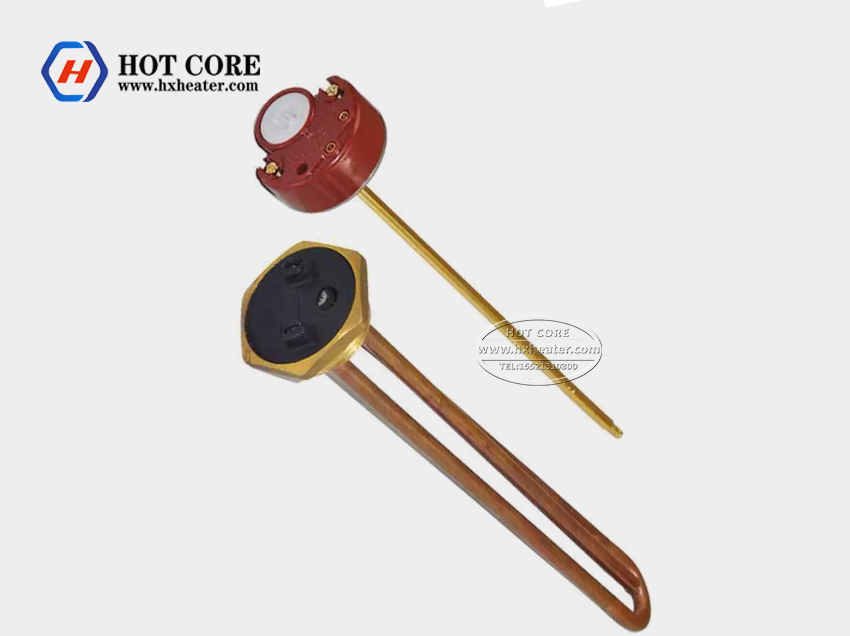

Immersion heater with temperature control is a u-shaped tubular heater, according to the design specifications of different media, assembled on the flange cover according to the power configuration requirements, inserted into the material to be heated, and the large amount of heat emitted by the product is conducted to the heated medium to increase the temperature of the medium High to meet the required process requirements.
Značajke:
1. The surface power is large, which is 2 do 4 times the surface load of air heating.
2. Highly intensive and compact structure. Because the whole is short and dense, it has good stability and no brackets are needed for installation.
3. The combined type mostly uses argon arc welding to connect the electric heating tube to the flange, and it can also use the form of a fastening device, that is, each electric heating tube is welded with a fastener. Then use a nut to lock the flange cover. The pipe and the fastener are welded by argon arc, and the fastener seal is made of scientific technology. It is convenient to replace a single one, saving the maintenance cost in the future.
Specifikacija:
1. Reference voltage: 220V/380V
2. Heating pipe diameter: Φ8.5—Φ22
3. Heating pipe material: SS304 stainless steel, SL316 stainless steel, titanium material, copper, itd.
4. Main power: 3KW—500KW
5. Working pressure: 1.0MPa—3.0MPa
6. Material of flange and thread head: stainless steel, carbon steel, copper.
