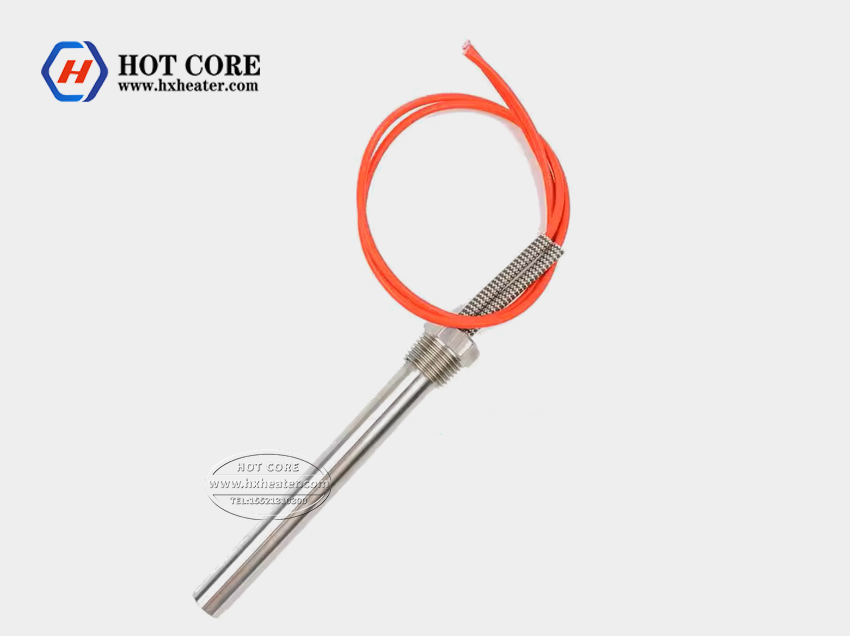

Prilagodite grijač uloška
Customize Pencil Heater For Plastic Machine
Prijave:
cartridge heating mlement general information
A cartridge heater is a tube-shaped, heavy-duty, industrial joule heating element (electrical resistance) used in the process heating industry, usually custom manufactured to a specific watt density, based on its intended application. Highly compacted they reach a surface watt density of up to 30 w/cm².
It may be used to heat any kind of substance or material, such as oil, air, or sugar. Međutim, a common application is plastic pellets, which are melted in order to form molded plastic parts. An example of such a process is the “vrući trkač” process. Cartridge heaters resemble tubular heaters structurally but tend to have higher watt densities.
Karakteristike & Properties

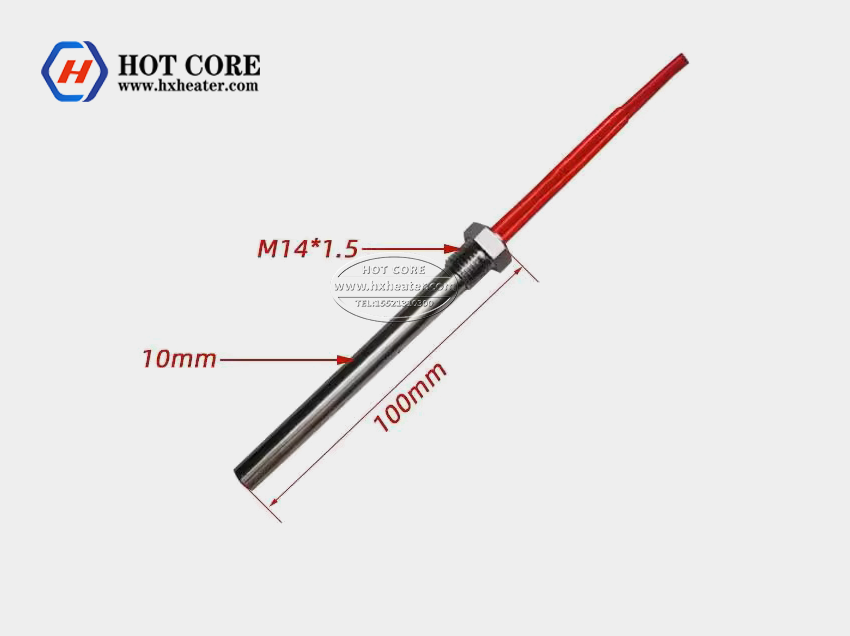

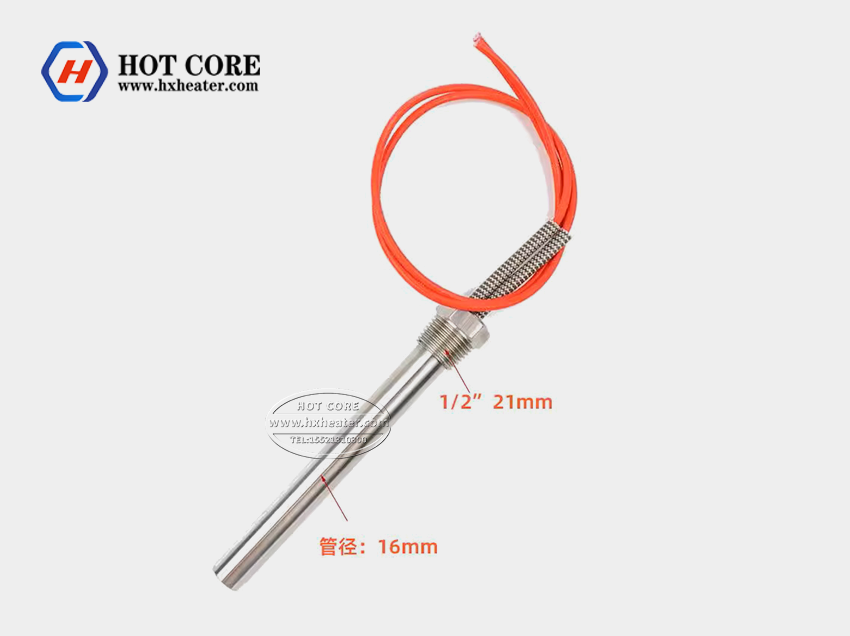

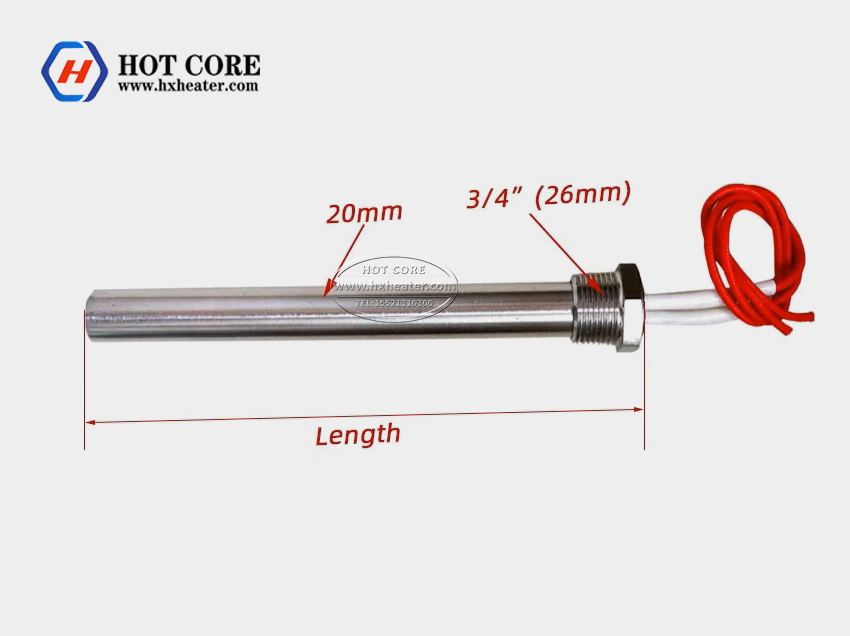

- Tube diameter: Φ2.5mm-Φ35mm
- Cijev: SS304, SS316, SS321 and NICOLOY800 etc
- Izolacijski materijal: High-purity MgO
- Conductor Material: Ni-Cr or Fe-Cr-Al Resistance Heating Wire
- Wattage density: high/middle/low (5-25w/cm2)
- Lead Connection Option: Crimped or Swaged leads
- Lead wire type: 10″ Standard (Teflon/silicone high temperature fiberglass)
| Heat intensity | Not exceeding 30w/cm2 (advisable) |
| Vlast | Depends on the dimension |
| Exhaust extreme (when cold) | <=0.1mA to 242 v. |
| Izolacija (when cold) | 5 Min Ohms 500 Watts minimum |
| Dielektrična čvrstoća | 1500v. 1/sec |
| Working temperature | 750 Deg C max. |
| Length tolerance | +/-1.5% |
| Tolerancija promjera | -0.02 do -0.06 mm |
| Cut off connection tolerance | +/-15 mm |
| Power tolerance (w) | +5 % – 10 % |
| Cold areas | Depends on length and diameter 5-25mm |
Suggested Applications
- Liquid Immersion
- Plastic Molds
- Umire
- Labeling
- Medical Equipment
- Platens
- Packaging Equipment
- Hot Stamping
- Sealing
- Injection Molding
To Order
Custom heaters, shapes and voltages are available on request.
Please contact us with your special requirements. We are pleased to contact you if you would like more information or want to discuss custom product availability and pricing.
