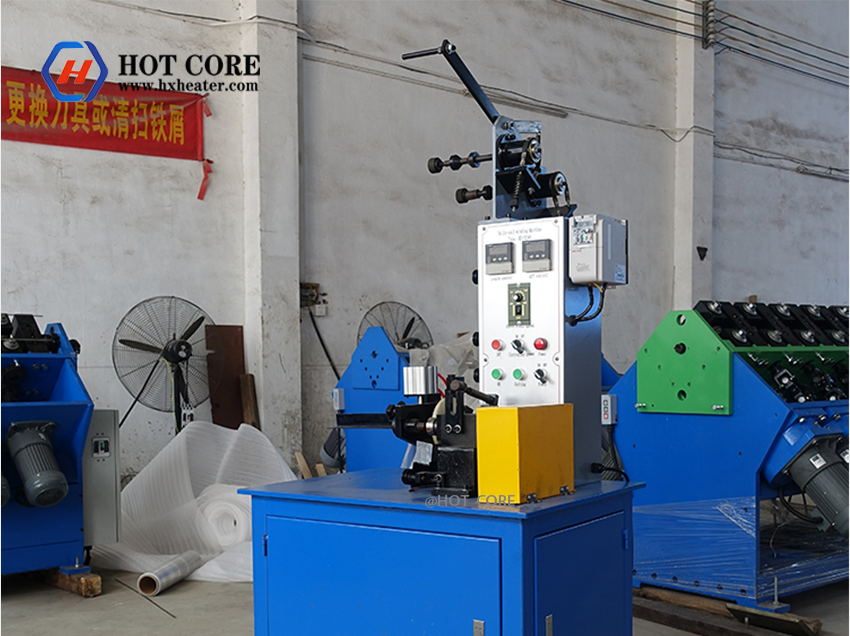

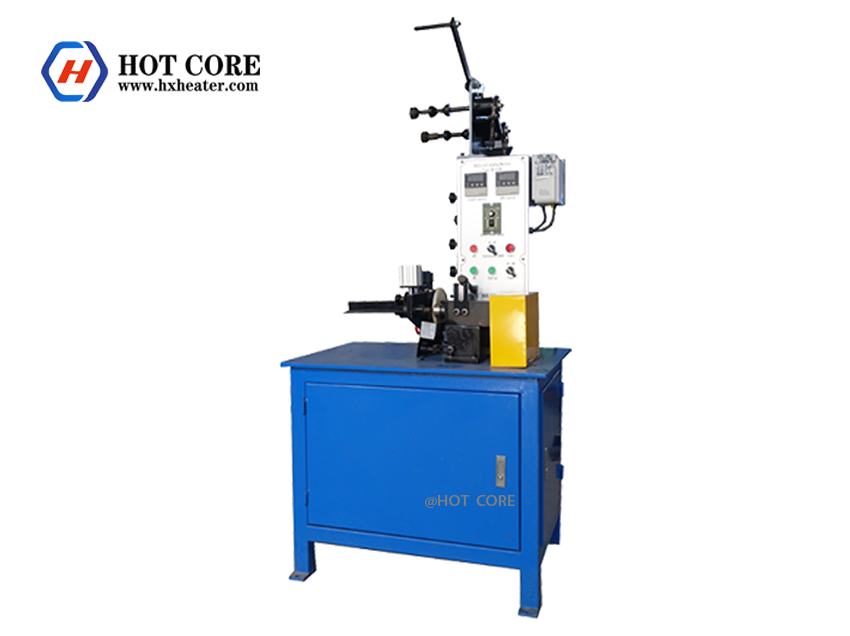

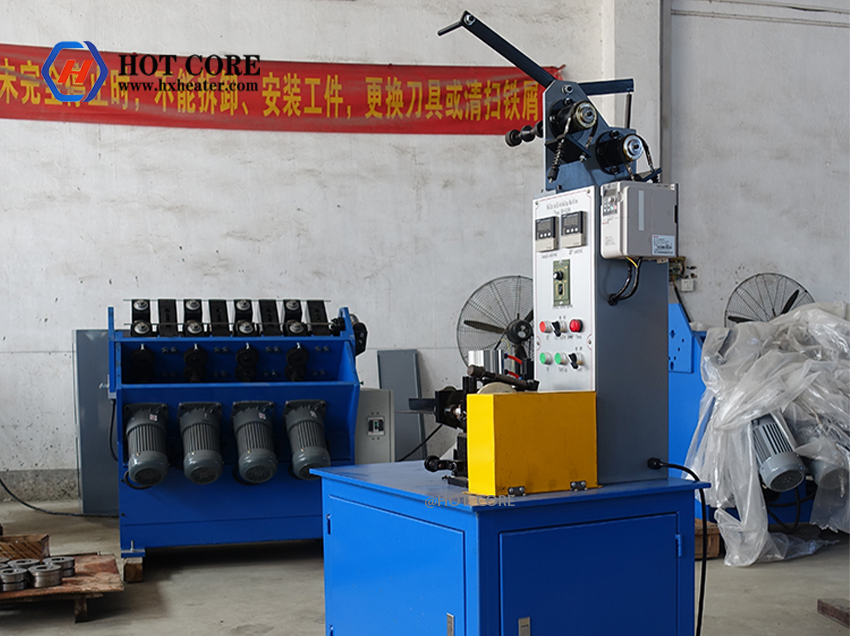

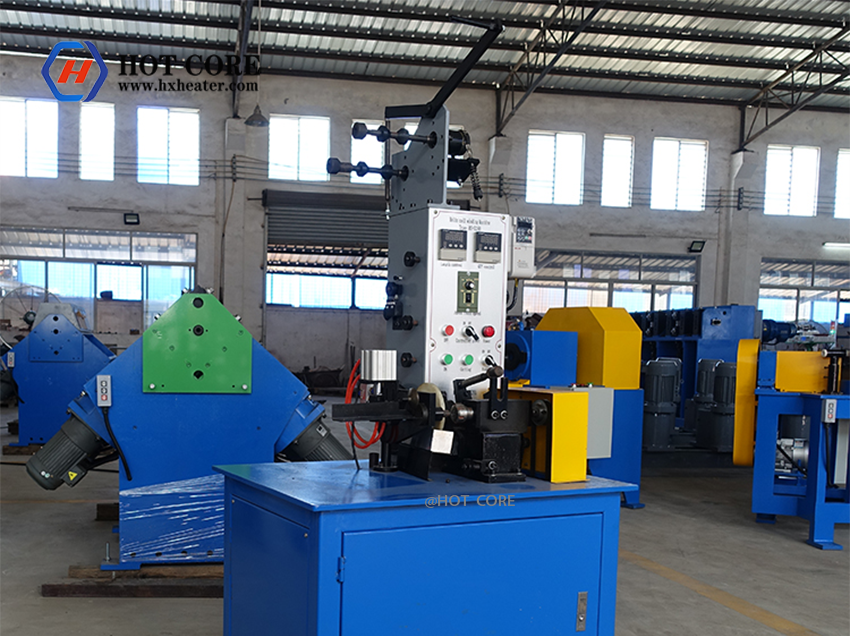

Hot core Winding Machine For Cartridge Heater
תֵאוּר
פרמטרים טכניים
מוּצָר: Winding Machine for Cartridge Heater
מִספָּר: 328B Winding Machine for Cartridge Heater
technical parameter:
Resistance wire diameter: Φ0.14-Φ0.8mm (ניתן להתאים אישית)
Mandrel diameter: Φ1.0-Φ10mm
Voltage and Power: 220V 500W
מקור אוויר: 0.6mpa compressed air
Volume: 800 * 600 * 1800 מ"מ
Production capacity: 2500 PCs / 8ח.
Winding Machine for Cartridge Heater:
Winding Machine for Cartridge Heater can manufacture compact spiral coils. The working principle of Winding Machine for Cartridge Heater is:
1) The coil is wound on the pay-off shaft through the brake gear, the resistance wire is guided to the lead frame for precise rotation, and the wire is wound on the core shaft by an adjustable speed rotating device.
2) The inner diameter of the coil is determined by the outer diameter of the core shaft. The outer diameter of the coil can be changed freely and is controlled by an encoder and an electronic counter.
3) The length analog of the resistance wire can be set and modified in the counter to realize length control. 4) As long as the wire reaches the preset length, the wire can be cut by displacement or electromagnet.
5) Another counter of the Winding Machine for Cartridge Heater records and controls the number of spiral coils.
6) The frequency converter is used to adjust the speed of the mandrel.
