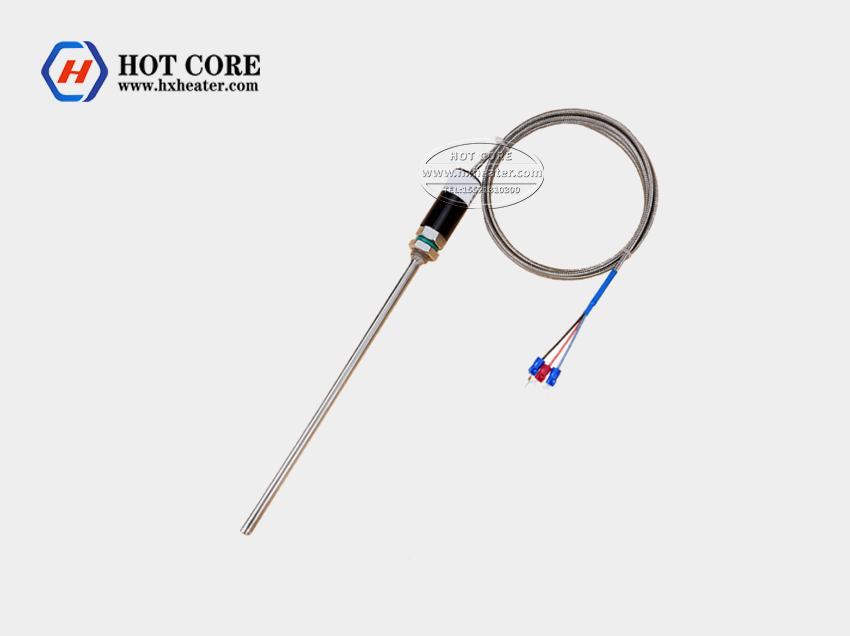

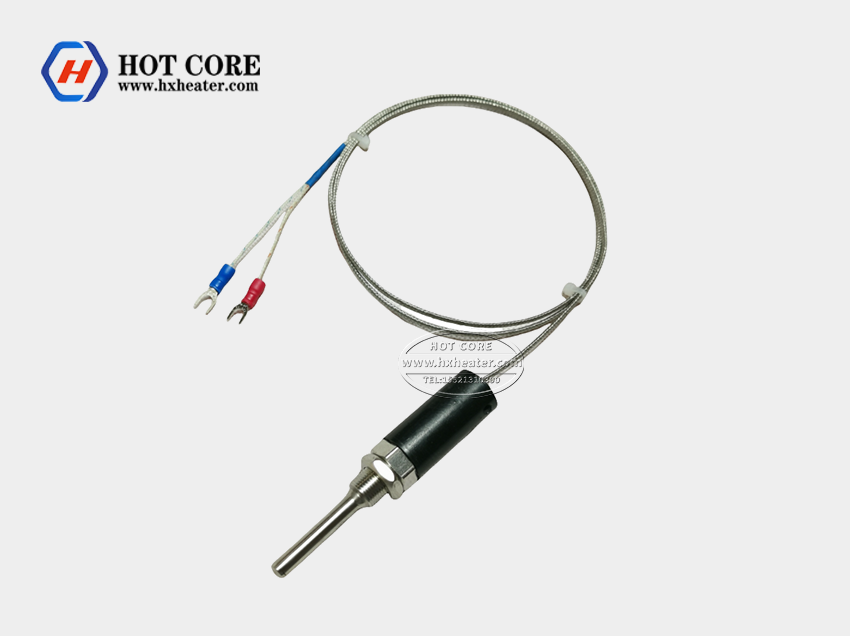

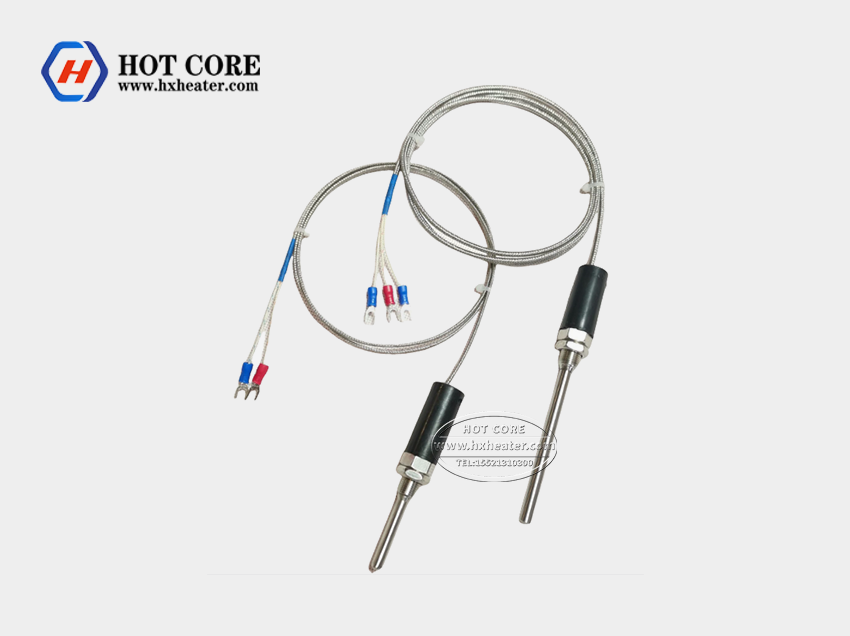

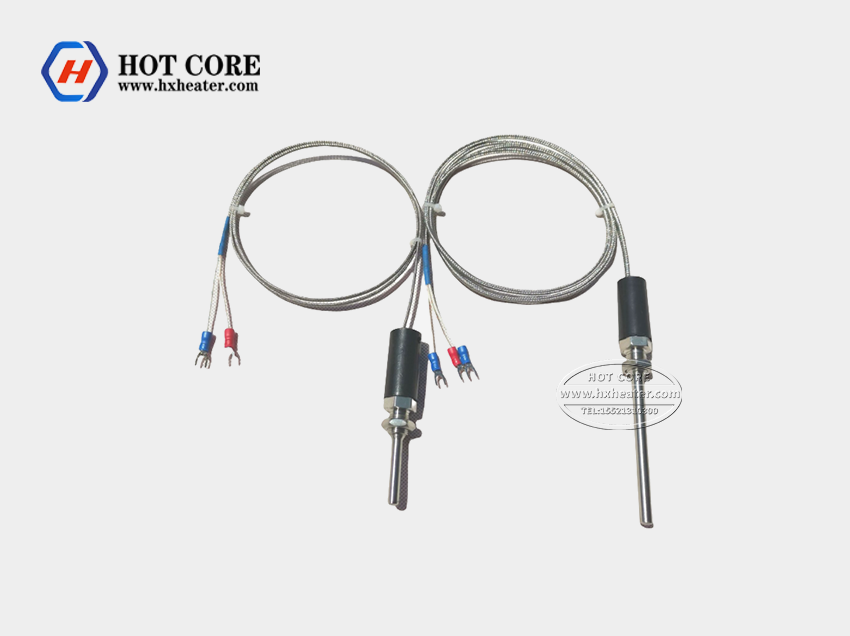

PT100 Thermocouple For Heater

PT100 Thermocouple For Heater PT100 thermocouple for heater PT100 thermal resistance is a temperature sensors contain a resistor that changes resistance value as its temperature changes. They have been used for measuring temperature in laboratory and industrial processes, and have a good reputation for accuracy,..

פרטי המוצר:

PT100 thermal resistance is a temperature sensors contain a resistor that changes resistance value as its temperature changes. They have been used for measuring temperature in laboratory and industrial processes, and have a good reputation for accuracy, repeatability, and stability.
Whether a pt100 rtd is used depends on the respective application. In the process industry, thermal resistance represent the most frequently used and the most common type of resistance sensor worldwide.
Temperature Range of PT100 and PT1000 is -200~_+500C.

	סוּג	PT100, RTD
	Accuracy	Class A
	sheath material	stainless steel or al2o3
	Temperature range	0-1300 ג
	Connection	threaded, non-threaded
	Other options	ק,י,S,B,N,PT1000
	Lead wire	stainless steel, teflon, silicon, fiber glass, וכו
	Packing	Clear PVC bag with ID label on it
	Product Keywords	b type thermocouples

Calibration	Nominal resistance R0(Ω)	Temperature coefficient of resistance(α)	Temperature tolerance error(℃)
Pt10	10	A class 0.003851±0.000006 B class 0.003851±0.000012	A class ±(0.15+0.2%\|t\|) B class ±(0.3+0.5%\|t\|)
Pt100	100
Pt500	500
Pt800	800
Pt1000	1000

Response Time and Insulation Resistance

דֶגֶם	Outer diameter	Response time T0.5(S)	Insulation resistance(MΩ)
WZPK WZ-RTD P-Pt100 K-Sheath	3~4	≤5	≥100
	5~6	≤12
	6~8	≤20
WZPO WZ-RTD P-PT100 O-Fixed	12	≤90	≥100

תכונות：
*Can be used to measure high temperatures because metals have high melting points
* Respond very quickly to temperature changes because metals have high conductivities
* Sensitive to very small changes in temperature
* Has precision accuracy in temperature measurement
l Thermocouple Wires: Cromel-Alumel, Iron- Constant, Copper-Constant, imported Bright & Oxidized finish, SWG 10 to 36. PT/PTRH 10%, 13% .
l Thermocouple Extension & Compensating Cables: Fiber glass covered, PVC / PVC. Asbestos / Asbestosis, Teflon/Teflon, Insulated, Teflon/Fg/SS Braided single pair, multi pair, Type K, י, T, R, and PT-100 RTD Cables 2 core, 3 core, 4 core , 6 core, Also Teflon /silicon rubber Teflon/shielded/Teflon etc qualities.
l Thermocouple M.I. Cables: SS 316, 310 & Inconel 600 quality type K, י, Simplex 1mm,1.5מ"מ, Simplex & Duplex 3mm,6מ"מ, 8מ"מ, also PT-100 RTD Thermocouple M I Cables SS 316 quality. 3מ"מ, 5מ"מ, 6מ"מ 4 core
l Thermocouple Assemblies: Straight, L Type , Rotating type, Inmelt Bolt type, Pencil type, Washer, Holder with Spring. Rotating Type, Adjustable Types etc. Made out of SS tube 4.8mm, 6מ"מ,supplied with Spring & Brass bayonets Single Slot & Double Slot , 10mm id, 12mm id, 14mm id, וכו.
בַּקָשָׁה：
1.Widely used in science and glass industry
2.Temperature measurement for kilns
3.Gas turbine exhaust application
4.Used for diesel engines and other industrial processes
5.Other applications for measuring temperature.

Excellent Material

Featured high quality material. Effectively prevent corrosion and rust,compression explosion-proof.

Tube material:SS304/316,incoloy600 ,incoloy 800 (Can be customized)

Thermocouple Extension & Compensating Cables: Fiber glass covered, PVC / PVC. Asbestos / Asbestosis, Teflon/Teflon, Insulated, Teflon/Fg/SS Braided single pair, multi pair, Type K, י, T, R, and PT-100 RTD Cables 2 core, 3 core, 4 core , 6 core, Also Teflon /silicon rubber Teflon/shielded/Teflon etc qualities.
