Industrial Thermocouple PT100
PT100 thermal resistance is a temperature sensors contain a resistor that changes resistance value as its temperature changes. They have been used for measuring temperature in laboratory and industrial processes, and have a good reputation for accuracy, repeatability, and stability.
Whether a pt100 rtd is used depends on the respective application. In the process industry, thermal resistance represent the most frequently used and the most common type of resistance sensor worldwide.
Temperature Range of PT100 and PT1000 is -200~_+500C

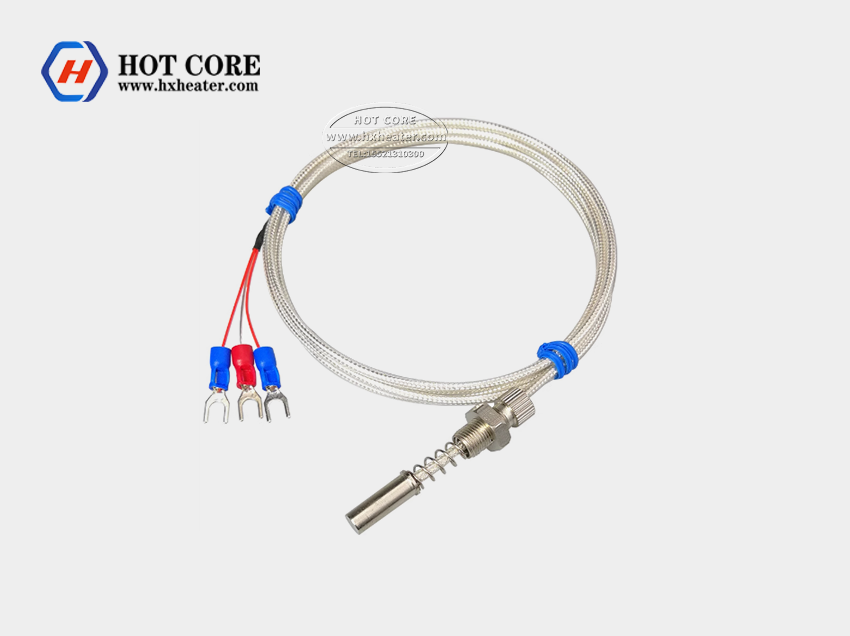

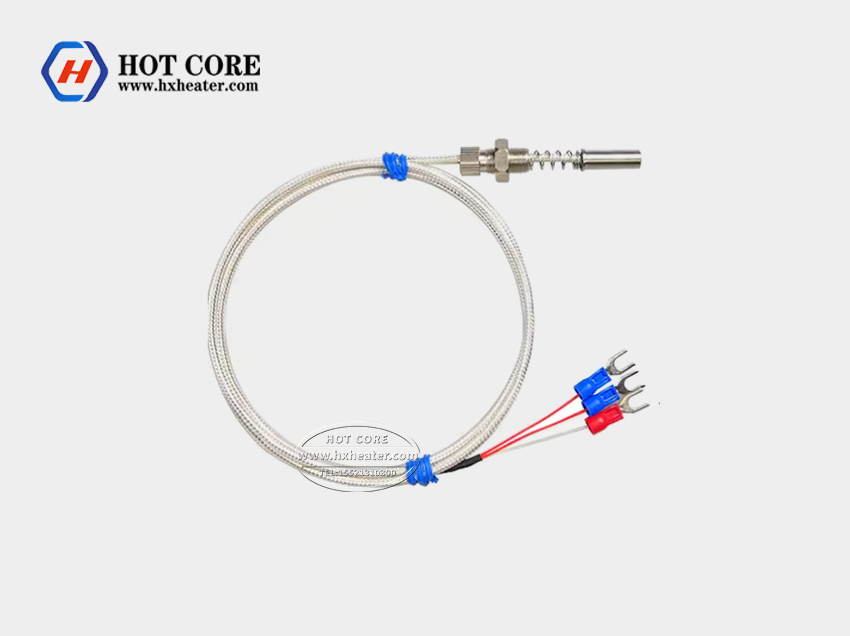

l 1)PT100, PT1000, 4-20mA 3 wire PT100
l 2)Duplex RTD PT100 sensors, double Pt100,RTD sensors
l 3)Probe type,Stainless steel sheath material, SUS 304 material

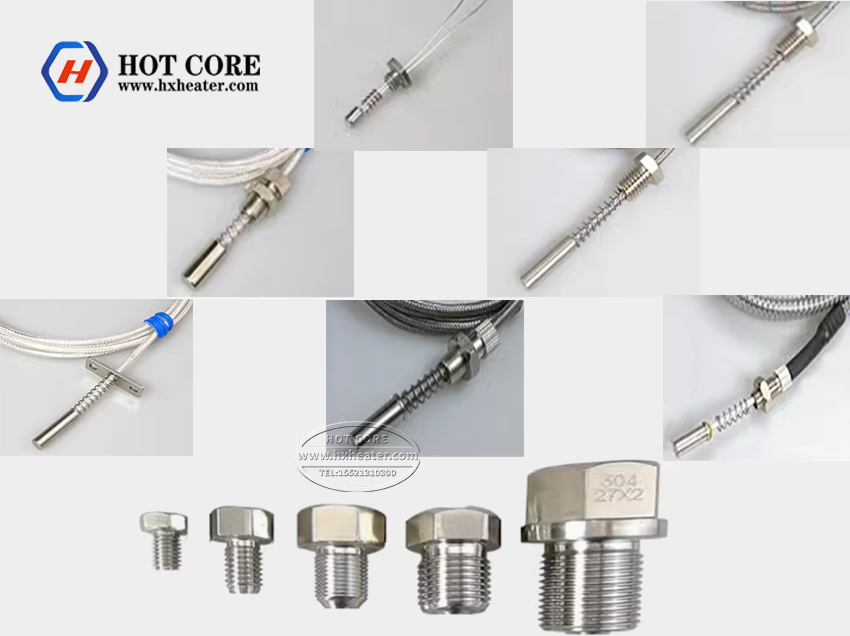

l 4)M6, screw, 1/2NPT, 1/4 BSP screw,
l 5)Lead wire length 2M,3M,5M,10M available on request
l 6)Stainless steel wire, teflon wire, Silicon wire and fiber glass wire

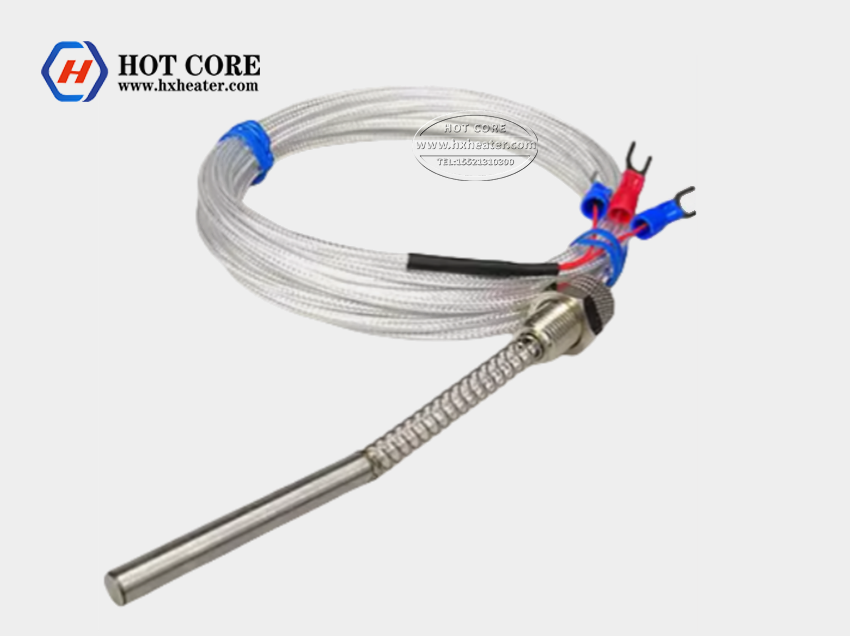

l 7)Pt100 sensor with 1/2″ NPT thread and braided colorful wire,
l 8)4-wire high accuracy Pt100 rtd temperature sensor
| צמד תרמי & rtd | |||
| Ref No. | WZP | Temp | |
 |
Pt100 sensor
PT1000 CU50 |
-200~+450C
-200~+450C -200~+100C |
|
| Pairs quantity of sensor wire | Simplex
Duplex |
||
| Ways of Mounting & Fixing | 1: without fixing device
2: fixed thread 3: movable flange 4: fixed flange 5: right-angle movable flange 6: fixed thread in wimble shape protection tube |
||
| Types of connections box | 2: anti-spray (Protection class: IP65)
3: water-proof (Protection class: IP55) |
||
| Types of sensor end | G: variable section
ק: sheathed elements T: flexible sheathed elements |
||
| Diameter of protection tube | 0: ¢16
1: ¢20 2: ¢16 high aluminum material 3: ¢20 high aluminum material |
||
| Measuring range | 0~1600 degree Celsius | ||
| Shipping | By air, sea, express | ||
| Sample time | 2~7 days | ||
| Manufacture time | 7~30 days depending on order quantity | ||
תכונות：
1) 1/2 NPT PT100, M6 PT100, M8 PT100, RTD, temperature resistance, platinum thermal resistance
2) Probe type, probe diameter, 5מ"מ, 4מ"מ, probe length 10 cm, water tight
3)Lead wire length 2M, 3M, 5M, 10M,
4)Lead wire could be stainless steel. silicon wire. teflon wire, fiber glass wire… וכו
5)we can make grounded and non-grounded type
6) The PT00 chip inside can be class A, Class B and Class B-
בַּקָשָׁה：
● Food processing equipment
● De-icing
● Plating baths
● Industrial processing
● Medical equipment
● Pipe tracing control
● Industrial heat treating
● Packaging equipment
● Liquid temperature measurement
● Refrigerator temperature control
● Oven temperature control
