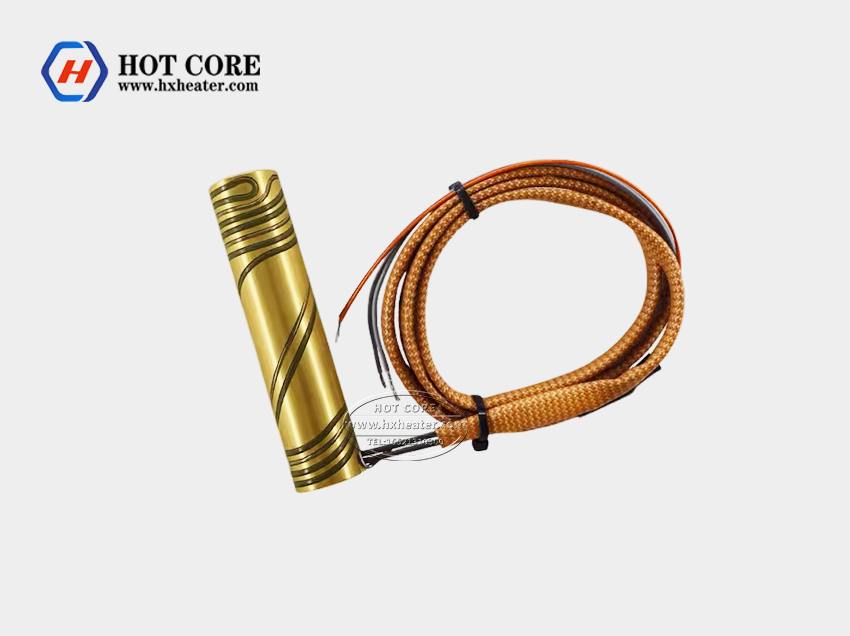

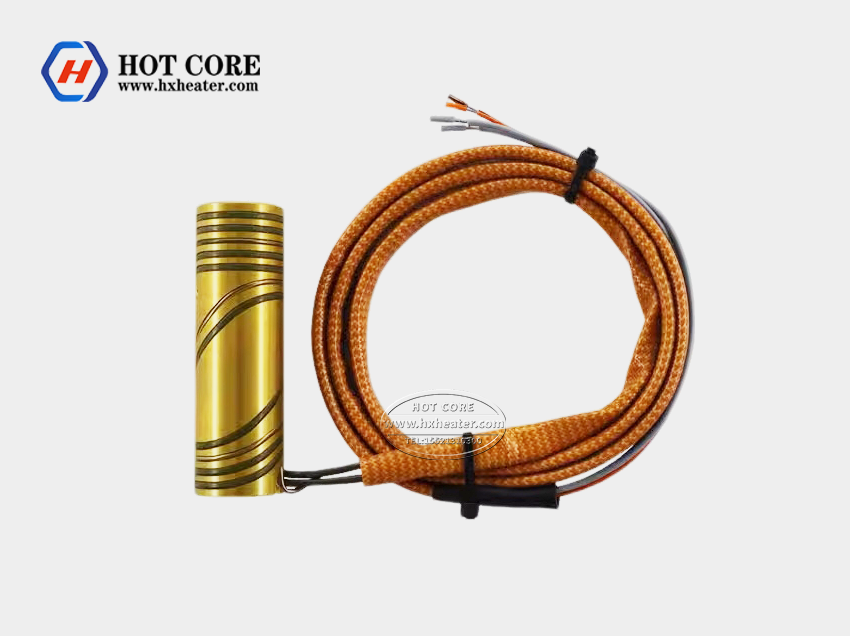

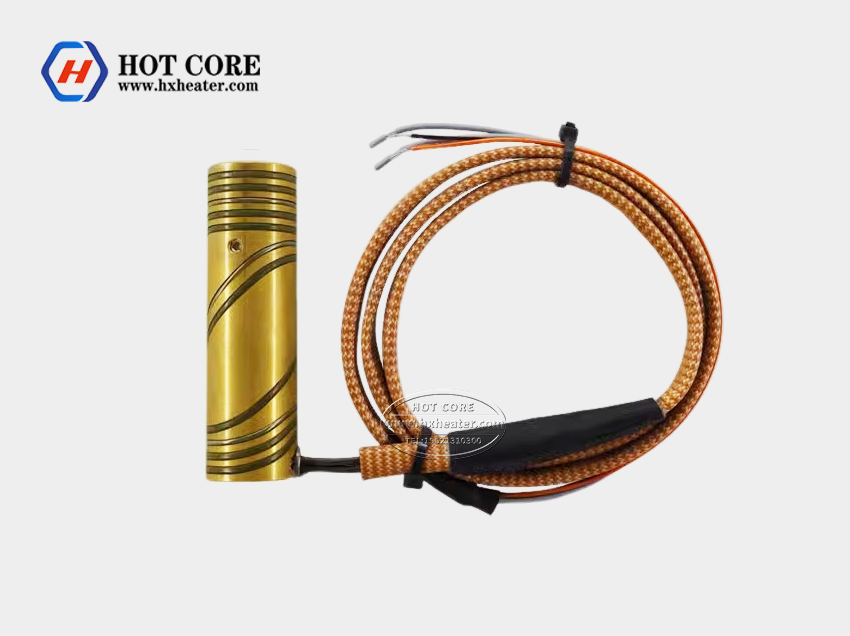

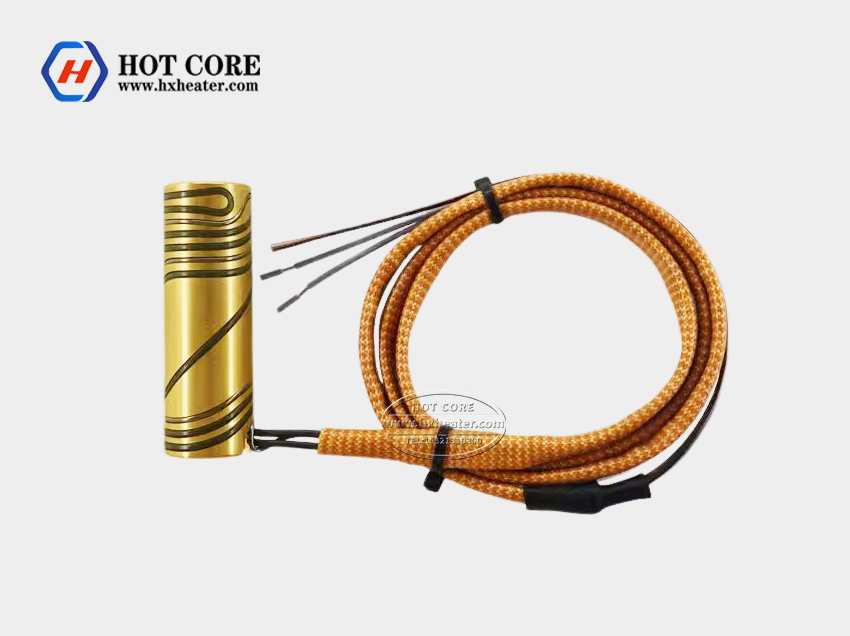

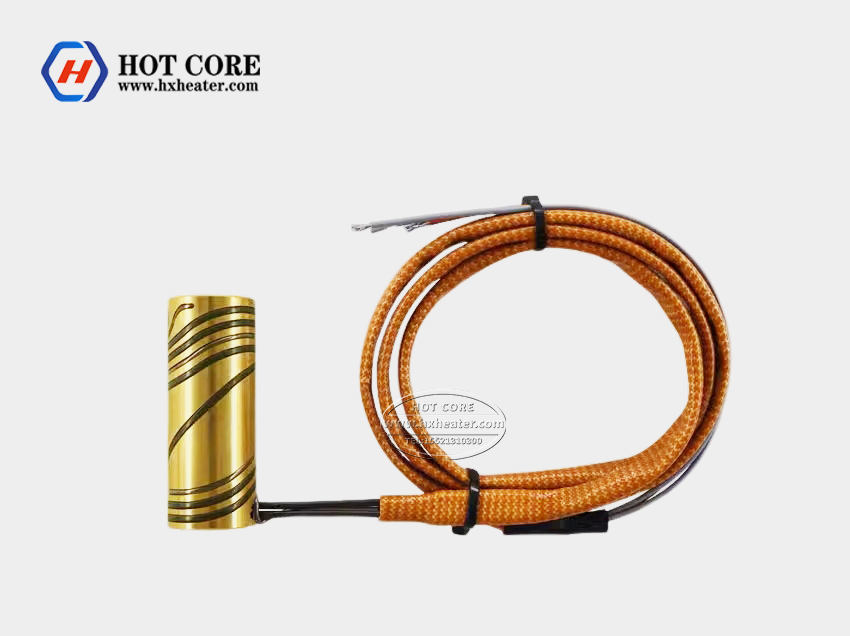

Hot Runner Brass Nozzle Heater
1.מבוא למוצר
HOT COTR Hot runner coil heaters APPLICATION:1. פיית מכונת הזרקה 2. חרירי רונר חמים & Bushings.3. מכונות אריזה 4. Hot runner Injection moulds.5. הַזרָקָה & חרירי מכונת דפוס לנשיפה. 6. PET prefrom & תבניות למיכל קיר דק 7. סעפות לוהט ראנר.
2. מִפרָט
| Quickly View | ||
 |
גוֹדֶל: | OD45mm*ID40*L50mm |
| אורך חוט: | 1meter (Silicone Rubber) | |
| Volts: | 240V | |
| Watts: | 625W | |
| Thermocouple sensor: | K type thermocouple | |
| Minimum Order Quantity: | 3יח' | |
| Usage/Application | תבניות & מת | |
| Heater Material | פְּלִיז | |
| Minimum diameter Φ | 10מ"מ |
| מֶתַח | 12V- 400V |
| Wattage tolerance | ±10% |
| חוֹמֶר | SS304/SS321/SS310/SS316 (מותאם אישית) |
| Sleeve material | פְּלִיז |
| הִתנַגְדוּת | ±10% |
| Dielectric strength | 600V 800V 1000V |
| בִּדוּד(cold 1000V) | ＞10 MΩ |
| Leakage current(cold) | ＜0.5mA |
| Max power density | 10W/cm² |
| Heating length tolerance | ±0.05mm |
| Maximum working temperature allowed on sheath | Max.750℃ / 1380°F |
| Build-in Thermocouple | Type K/ J/ E |
| Standard supply 1000mm PTEE insulated nickel lead wire | |
| Material of lead wire:Fiberglass, Kevlar, Telfon, Silicone Rubber, Metal braided, SUS armoured. | |
3. פרטי המוצר
| Application examples
l Hot runner hearer l Plastic industry l Packing machine l Medical equipment l Casting process l Other electric heating industry |
 |
 |
Latest technical process
Superb Heater factory: 1. High density, In addition to filling MgO rod, and also filled high-temperature MgO powder to achieve the optimal density. 2. Have own Tunnel furnace annealing process, focus on high quality product. Other factory: 1. Low density, just filling MgO rod, density is not up to use requirement. 2. Use a simple oven, easy to cause breakage |
| תכונות:
1. Standard sizes available with various cross section |
 |
 |
יִתרוֹן:
1.Low MOQ: It can meet your promotional business very well. 2.OEM Accepted : We can produce any your design as long as you provide us the drawing. 3.Good Service : We treat clients as friend. 4.Good Quality :We have strict quality control system .Good reputation in the foreigner market 5.מָהִיר & Cheap Delivery: We are the manufacturer, have our own factory, direct delivery from the factory. |
6. שאלות נפוצות
Q1: Are you trading company or manufacturer ?
א: We are factory.
Q2: How long is your delivery time?
א: Generally it is 5-7 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q3: What is your terms of payment ?
א: Payment<=1000USD, 100% in advance. Payment>=10000USD, 50% T/T in advance ,איזון לפני המשלוח.
Q4: Is it OK to print my logo?
א: כֵּן. We also can OEM.
Q5: Do you offer guarantee?
א: כֵּן, we offer 1 year warranty to our products.
If you have another question, please feel free to contact us as below:
