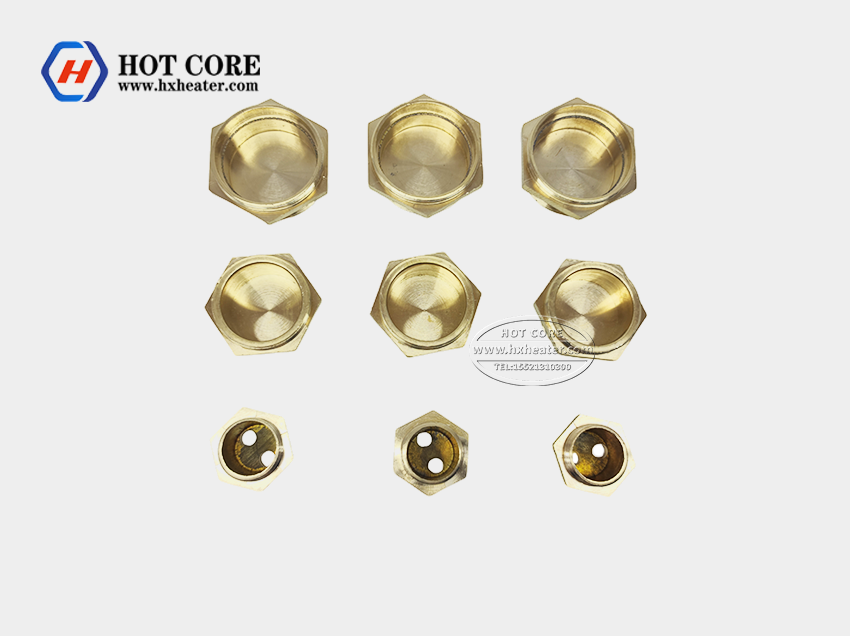

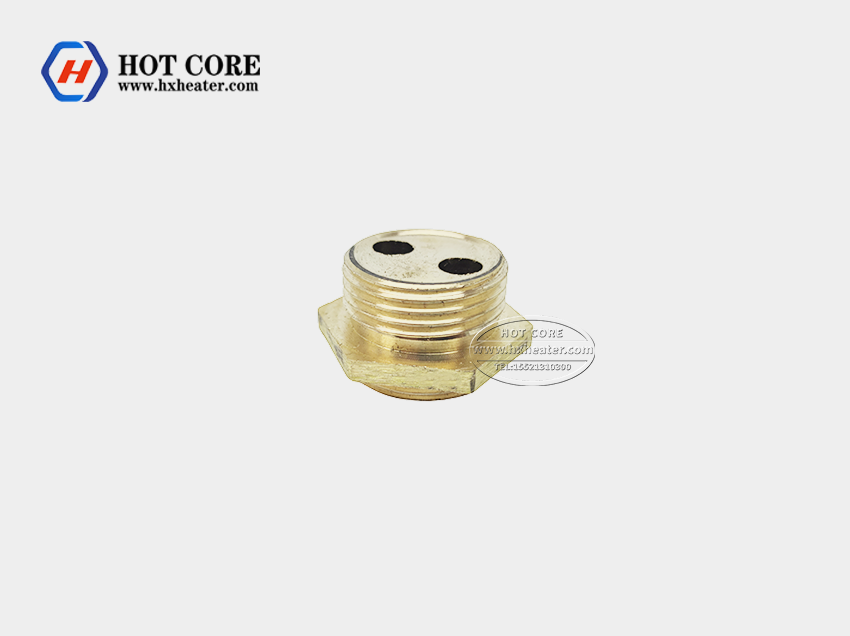

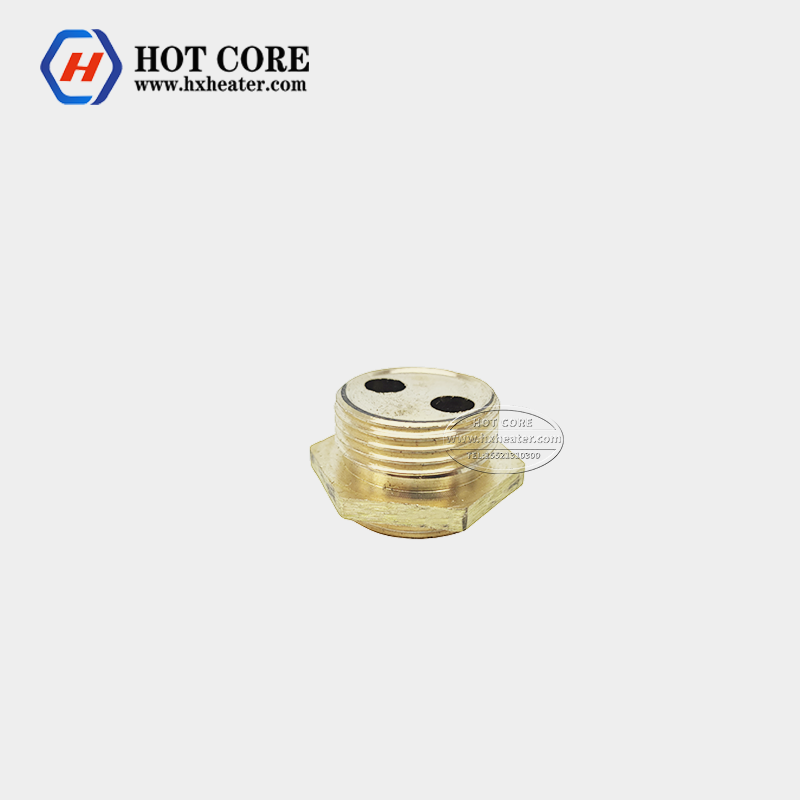

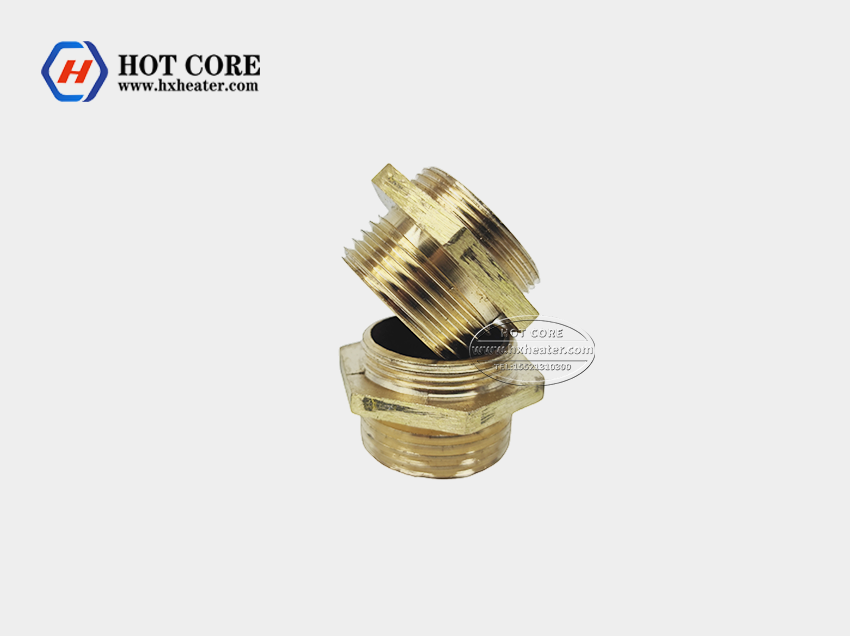

Brass Heating Element Connector Fitting
1. שימושים
This is a specialized accessory for immersion heating systems, primarily used to install and secure heating tubes (לְמָשָׁל, מוטות חימום חשמליים) into containers (טנקים, דוודים, וכו'), while sealing the container opening to prevent liquid/gas leakage.
2. פונקציות
- הַרכָּבָה: Fixes heating elements in place to avoid displacement during operation.
- Sealing: Creates a tight, leak-proof seal between the heating tube and the container.
- Heat Transfer: Enhances thermal conductivity between the heating element and the medium (via brass material).
3. תכונות
- חוֹמֶר: Made of high-purity brass (H62/H65 grade) for durability and heat performance.
- מִבְנֶה: גוף משושה (wrench-friendly installation) + dual holes (for heating tube insertion) + threaded design (compatible with standard container openings).
- Compact Size: Space-saving, suitable for small or narrow installation environments.
4. יתרונות
- אמינות חסינת דליפות: Tight threaded fit ensures no medium leakage even in low-pressure (≤1.6MPa) תנאים.
- Efficient Heat Conduction: Brass conducts heat 3x faster than stainless steel, boosting heating speed.
- Corrosion Resistance: Resists rust and mild chemical corrosion (ideal for water/oil media).
- התקנה קלה: Hexagonal shape allows quick manual tightening without specialized tools.
5. תרחישי יישום
- Domestic Appliances: Electric water heaters, coffee makers, and dishwashers (secures heating rods).
- Industrial Equipment: Water tanks, oil tanks, solar auxiliary heaters, and reaction kettles (liquid/gas heating).
- Commercial Facilities: Electric boilers, swimming pool heaters, and food processing cleaning tanks (medium heating & בִּדוּד).
6. תכונות מפתח
- חוֹמֶר: H62/H65 פליז
- Thread Size: DN20/DN25 (standard container opening sizes)
- Working Temp Range: -20℃ ~ +200℃
- דירוג לחץ: ≤1.6MPa
This compact brass fitting is a cost-effective, reliable solution for immersion heating system installations, איזון בין פונקציונליות וקלות שימוש.
