Chauffage moulé

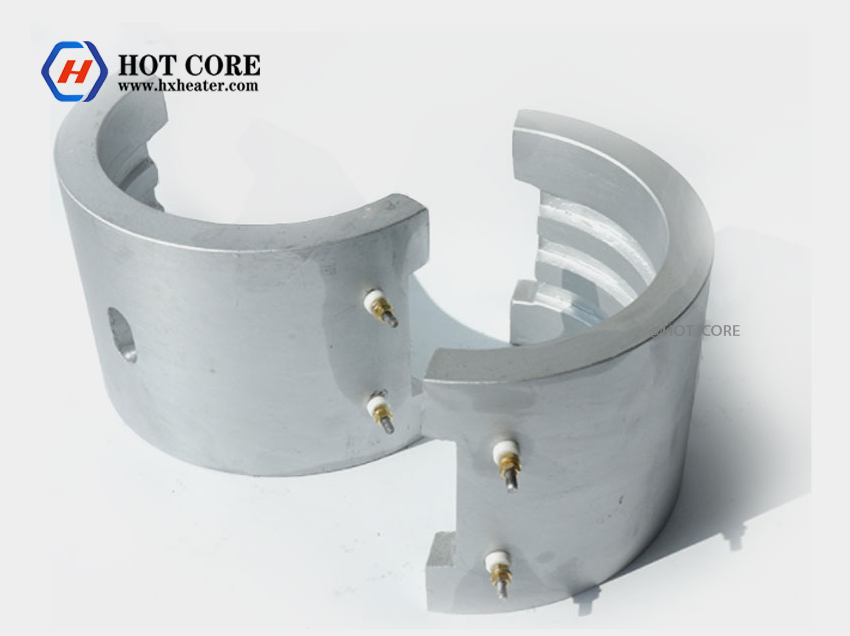

Cast in heater Cast-in liquid cooled barrel heaters are the most common cast -in heater design. The liquid cooling tubes run symmetrical to the heater element, which provides a uniform cooling pattern across the body of the casting. This cooling function dissipates heat rapidly from the cast-in barrel. To maintain lower watt densities important for good heater life, the largest possible diameter steel sheath tubular heater is used. Cooling tube extensions can be cut to your specified length. Many options available, liquid or air cooled. The gravity casting provides excellent homogeneity of the casting material and therefore allows excellent thermal diffusion. The regularity of the surface temperature is ensured by a suitable forming. The cast heating elements can be used to surface temperatures up to 950 °C.

Détails du produit:

Chauffage moulé

Cast in heater features
» Efficient Heat Transfer
» Cast-in heaters can be supplied with cooling tubes & end fitting
» Various Heater terminations
» Uniform surface temperatures
» Max watt densityAluminum alloy – 35 w/sq in on heater elements, Brass alloy – 45 w/sq in on heater elements”.
» Max temperatureAluminum alloy – 375 C, Brass alloy – 950 C”

Cast in heater applications
» Injection and Blow Molding
» Extruders
» Moulds & Meurt
» Packaging machinery
» Medical equipments
» Thermoforming equipment



FAQ
T1. What’s the Minimum order quantity?
UN: 1PC
T2. What About The Delivery time ?
UN: Exemples de besoins 3-7 jours, mass production time depend on the order quantity .
T3. Comment expédiez-vous les marchandises et combien de temps faut-il pour arriver?
UN: Nous expédions généralement par DHL, UPS, FedEx ou TNT. Il faut généralement 3-5 jours pour arriver. Transport aérien et maritime également facultatif.
T4. Est-il possible d'imprimer mon logo?
UN: Oui. Veuillez nous informer formellement avant notre production et confirmer la conception d'abord en fonction de notre échantillon.
Q5: Offrez-vous une garantie?
UN: Oui, nous offrons 1 an de garantie sur nos produits.

Notre avantage :
1.Our experience is very rich, with more than 10 years of production experience,
2.A lot of stock products
3.Assurance qualité:Dans des conditions normales conformes à la plage de conception
4.Faster delivery
5.Customized according to customer needs, helping customers solve technical difficulties
6.A good after-sales service
